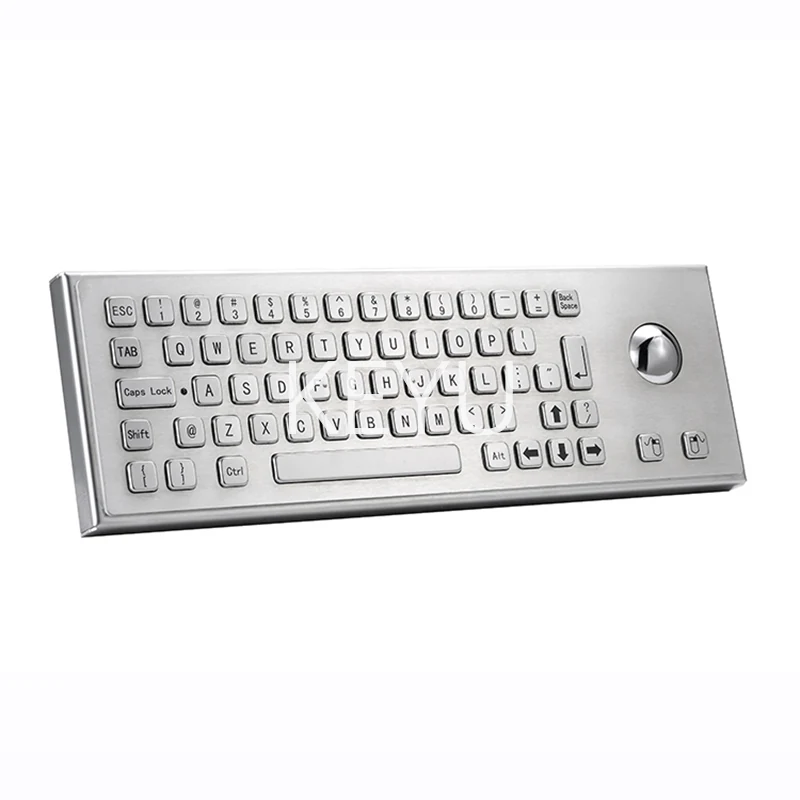

KY-PC-LF Stainless Steel Keyboard With Trackball for Kiosks
KY-PC-LF is a stainless steel keyboard with an integrated trackball for indoor and outdoor self-service terminals. The front panel is 350*108 mm with a 360*118.5 mm overall dimension, and it fixes from bottom to top with back…
Product Overview
KY-PC-LF is a stainless steel keyboard with an integrated trackball for indoor and outdoor self-service terminals. The front panel is 350*108 mm with a 360*118.5 mm overall dimension, and it fixes from bottom to top with back panel fixing. RoHS, IP65, FCC and CE approvals are held, and the compact layout is customized for free.
- Trackball pointing works reliably where a touchpad struggles with wet or gloved fingers
- IP65 approval covers both indoor and outdoor self-service terminals
- 350*108 mm front panel fits narrow kiosk fascias
- Back panel fixing from bottom to top keeps the front face free of visible fasteners
- Laser or etching key labeling keeps legends legible for the life of the unit
- 2N±0.2N operation force with 1.5mm key trip gives a defined press
Application Scenarios
- Indoor and outdoor self-service terminals
- Industrial equipment control stations
- Transportation and automotive service kiosks
- Pharmaceutical and medical terminals
- Healthcare information points
- Oil and gas field equipment consoles
Who It Is For
- Self-service terminal manufacturers
- Industrial equipment integrators
- Medical and pharmaceutical terminal OEMs
- Oil and gas equipment suppliers
Problems It Solves
- Loose mice are lost or damaged on unattended terminals
- Touchpads misread wet or gloved fingers outdoors
- Exposed front fixings invite tampering on public kiosks
- Unsealed keyboards fail in outdoor and washdown positions
Technical Features
- Stainless steel keyboard with trackball and water and vandal proof design
- Front panel 350*108 mm and overall 360*118.5 mm
- Power supply DC5V±5% with working current <150mA
- Interface USB and PS/2
- Operation force 2N±0.2N with key trip 1.5mm
- Mounting from bottom to top with back panel fixing
- Operation temperature -10℃~55℃
Specifications
| Front panel | 350*108 mm |
|---|---|
| Overall | 360*118.5 mm |
| Pointing device | Trackball |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Operation force | 2N±0.2N |
| Key trip | 1.5mm |
| Mounting way | From bottom to top, back panel fixing |
| Operation temperature | -10℃~55℃ (relative humidity 20%~85%, atmospheric pressure 60~106Kpa) |
| Compatible systems | Windows XP, 7, 8, Linux, Ubuntu, Android |
| Approvals | RoHS, IP65, FCC, CE |
Materials
- Stainless steel front panel
- Stainless steel keys
- Sealed trackball assembly
Manufacturing Process
- Sheet-metal forming of the 350*108 mm front panel
- Trackball aperture machining and sealing
- Panel brushing
- Laser marking or etching of key labels
- Back panel fixing assembly
- Pointer and keymap testing
Quality Control
- Trackball travel and click response tested in all directions
- IP65 sealing verified around the trackball aperture
- Operation force sampled against 2N±0.2N
- Panel dimensions checked against 360*118.5 mm overall
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Laser or etching procedure for key labeling
- USB or PS/2 interface build
- Trackball position within the panel
- Panel outline adapted to the kiosk fascia
How It Compares
| KY-PC-NT keyboard with touchpad | A trackball keeps working with wet or gloved fingers that a touchpad may not register |
|---|---|
| Keyboard plus external mouse | The sealed trackball cannot be removed or damaged like a loose mouse on a public terminal |
| Front fixed panel keyboard | Back panel fixing from bottom to top leaves no fastener heads on the public face |
Use Guide
- Size the fascia aperture to the 360*118.5 mm overall dimension
- Plan access from behind, as fixing runs from bottom to top
- Supply DC5V±5% with at least 150mA available
- Operate within -10℃~55℃
- Clean around the trackball ring to keep the pointer smooth
Questions About This Model
What pointing device is fitted?
An integrated trackball.
What are the dimensions?
Front panel 350*108 mm and overall 360*118.5 mm.
How is it mounted?
From bottom to top with back panel fixing.
Which approvals does it hold?
RoHS, IP65, FCC and CE.
Can it be used outdoors?
It is intended for indoor and outdoor self-service terminals and operates from -10℃~55℃.
Which interfaces are supported?
USB and PS/2.
Request A Quote On KY-PC-LF
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
