Industrial Keyboard

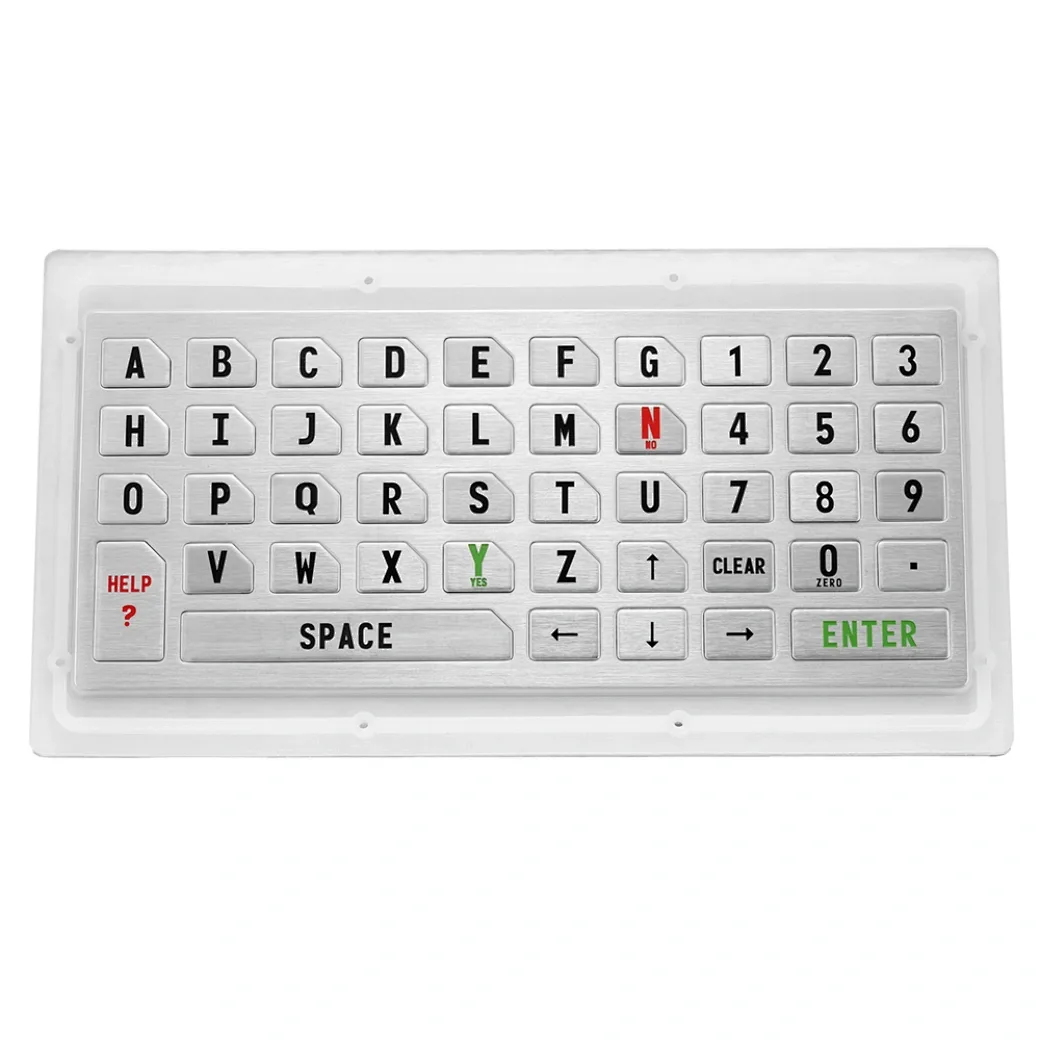

Kiosk Metal Keyboard KY-PC-K2 With 50 Keys
KY-PC-K2 is a 50 key kiosk keyboard in SUS304 stainless steel with a black craftsmanship finish and a stainless steel base plate.
Product Overview
KY-PC-K2 is a 50 key kiosk keyboard in SUS304 stainless steel with a black craftsmanship finish and a stainless steel base plate. It is an embedded unit used on financial, communication and military equipment and on self-service terminals. Key stroke is 0.45mm at 2.5N ± 10%, and the keyboard connects over USB or PS/2.
- 50 key layout gives an alphanumeric set sized for a kiosk fascia
- Black craftsmanship finish blends into dark terminal housings
- SUS304 stainless steel panel and keys are explosion-proof and corrosion-resistant
- High-quality stainless steel base plate keeps the key field flat under pressure
- Key life >2 million times for continuous public service
- Keyboard layouts in various countries customized to customer requirements
Application Scenarios
- Self-service terminal equipment
- Financial equipment installations
- Communication equipment consoles
- Military equipment control points
- Embedded kiosk fascias
Who It Is For
- Kiosk manufacturers
- Financial equipment suppliers
- Communication equipment builders
- Defence equipment integrators
Problems It Solves
- Bright metal clashes with dark kiosk housings, solved by the black craftsmanship design
- Thin base plates flex and misalign keys, prevented by the stainless steel base plate
- Export terminals need local layouts, supported by country keyboard layouts
- Legacy terminals without USB are covered by the PS/2 data interface
Technical Features
- 50 keys in SUS304 stainless steel
- Working voltage 5V±5% with working current <100mA
- Key size 21.5*15.5*2mm and key stroke 0.45mm
- Key pressing force 2.5N ± 10%
- Installation from bottom to top with the base plate fixedly assembled
- Working temperature -10℃~45℃ and storage -30℃~85℃
Specifications
| Model | KY-PC-K2 |
|---|---|
| Keys | 50 |
| Working voltage | 5V±5% |
| Working current | <100mA |
| Key life | >2 million times |
| Data interface | USB / PS/2 |
| Key size | 21.5*15.5*2mm |
| Key stroke | 0.45mm |
| Key pressing force | 2.5N ± 10% |
| Net weight | 1.2Kg |
| Gross weight | 1.4Kg |
| Working temperature | -10℃~45℃ |
Materials
- SUS304 stainless steel panel and keys
- High-quality stainless steel base plate
Manufacturing Process
- Sheet metal forming of the SUS304 panel
- Black surface craftsmanship treatment
- Key stamping to 21.5*15.5*2mm
- Base plate fixing and bottom to top assembly
- USB and PS/2 output verification
Quality Control
- Key pressing force sampling against 2.5N ± 10%
- Working current measured against the <100mA figure
- Black finish uniformity inspection
- Interface test on the listed operating systems
Customisation Options
- Keyboard layouts in various countries
- Customized function keys or combination keys
- Key legend content and character set
- Interface choice between USB and PS/2
How It Compares
| Natural stainless kiosk keyboards | The black craftsmanship finish matches dark terminal housings |
|---|---|
| Full size industrial keyboards | A 50 key set keeps the fascia compact while still covering alphanumeric entry |
| Keyboards with light base plates | A high-quality stainless steel base plate keeps the key field flat at 1.2Kg net weight |
Use Guide
- Mount the keyboard as an embedded unit, assembling bottom to top with the base plate fixed
- Supply 5V±5% and allow for the <100mA working current
- Connect USB or PS/2 to the terminal PC
- Operate within -10℃~45℃, which is narrower than outdoor rated models
Questions About This Model
How many keys does it have?
50 keys.
What finish is available?
It is designed with black craftsmanship on SUS304 stainless steel.
Which interfaces are supported?
USB and PS/2.
What is the key stroke?
0.45mm with 2.5N ± 10% key pressing force.
How is it installed?
From bottom to top, with the base plate fixedly assembled.
What is the working temperature?
-10℃~45℃, with storage from -30℃ to 85℃.
Request A Quote On KY-PC-K2
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
