KY-PC-K Industrial Metal Keyboard

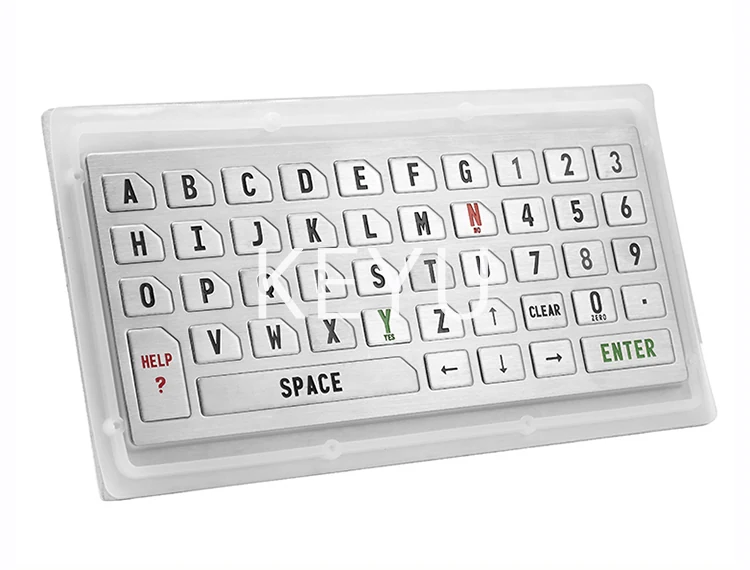

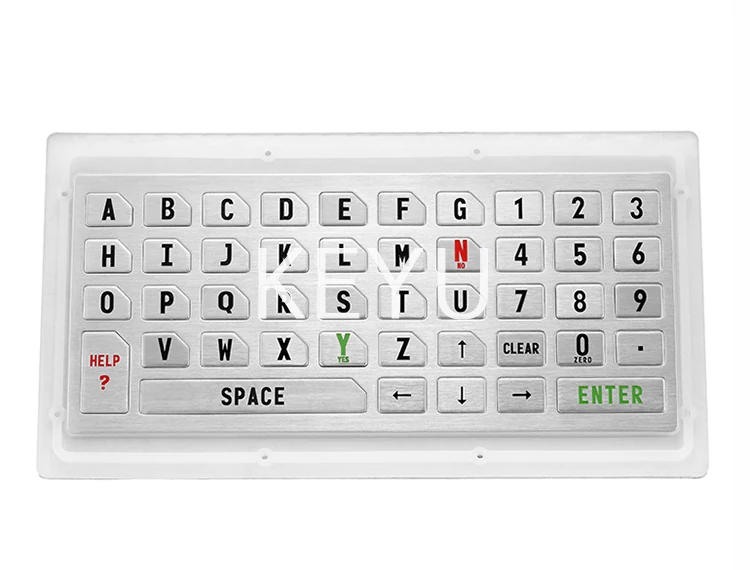

KY-PC-K is a mid size industrial metal keyboard with a 271*118.6 mm front panel on a generous 298*158.8 mm body, giving a wide flange for panel fixing.
Product Overview
KY-PC-K is a mid size industrial metal keyboard with a 271*118.6 mm front panel on a generous 298*158.8 mm body, giving a wide flange for panel fixing. Keys measure 14*14*4.5mm with 1.5mm of trip and are marked by laser or etching. It is fitted to control terminals, factory equipment and self-service machines in public places.
- Wide 298*158.8 mm flange gives plenty of fixing area around the cutout
- 271*118.6 mm key field carries a full function layout
- Consistent 14*14*4.5mm key size for gloved operation
- One year warranty that can be extended
- IP65 sealed against water, dust and vandalism
- USB and PS/2 interfaces for older and current hosts
Application Scenarios
- Indoor and outdoor self-service terminals
- Industrial equipment in extreme environments
- Control terminals in plant rooms
- Factories and public places with shared terminals
- Process line data entry points
Who It Is For
- Factory equipment integrators
- Public terminal operators
- Industrial control panel builders
Problems It Solves
- Narrow flanges leave no room for fixing studs around the cutout
- Small keys are hard to hit accurately with work gloves
- Short warranties on shared terminals create unplanned cost
Technical Features
- Industrial metal keyboard, water, dust and vandal resistant
- Key size 14*14*4.5mm and key trip 1.5mm
- Operation force under 2N
- DC5V±5% supply with working current below 150mA
- USB and PS/2 interfaces
- Durability of 2million
- Rear mounting or front mounting
Specifications
| Front Panel | 271*118.6 mm |
|---|---|
| Overall Dimension | 298*158.8 mm |
| Key Size | 14*14*4.5mm |
| Key Trip | 1.5mm |
| Operation Force | <2N |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2million |
| Warranty | one year, can be extended |
| Operation Temperature | -20℃~55℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Metal front panel
- Stainless steel key buttons
Manufacturing Process
- Sheet metal forming of the 298*158.8 mm body
- CNC machining of the key field
- Laser or etching lettering
- Key module assembly and sealing
- Surface finishing and test
Quality Control
- Flange and cutout dimension inspection
- Key size conformity check
- Water and dust exposure test
- Full key response scan
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Layout and key count to the customer drawing
- Laser or etched lettering
- USB or PS/2 termination
- Fixing stud positions on the wide flange
- Extended warranty period
How It Compares
| KY-PC-HHCT5 | A larger 271*118.6 mm key field for layouts beyond a small function block |
|---|---|
| KY-PC-F2-H | No trackball, keeping the body shorter at 298 mm |
Use Guide
- Size the cutout for the 271*118.6 mm panel and the 298*158.8 mm flange
- Agree the key layout before manufacture
- Power over USB or PS/2 at DC5V±5%
- Operate within -20℃~55℃
Questions About This Model
How large is the mounting flange?
The overall dimension is 298*158.8 mm around a 271*118.6 mm panel.
What key size is used?
14*14*4.5mm with 1.5mm of key trip.
Is the warranty extendable?
The one year warranty can be extended.
Which interfaces are available?
USB and PS/2.
Which approvals are listed?
RoHS, IP65, FCC and CE.
Request A Quote On KY-PC-K
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
