Industrial Keyboard

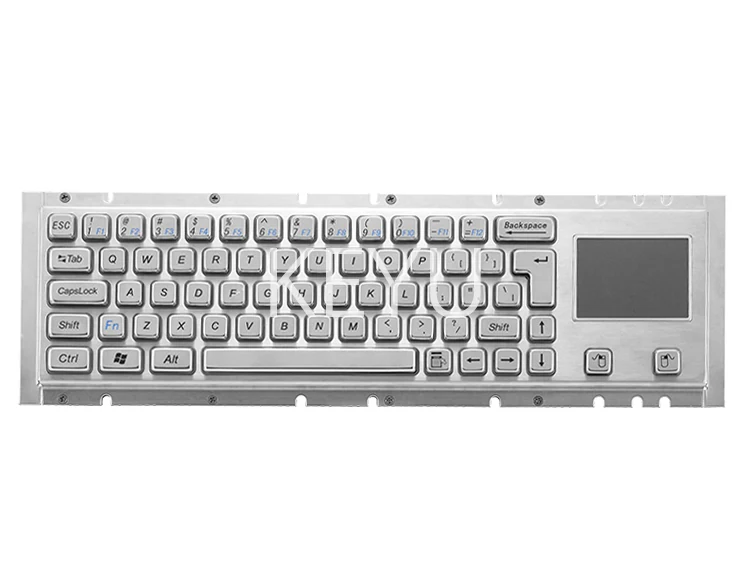

KY-PC-HT Metal Mechanical Keyboard With Cherry Switch and Touchpad
KY-PC-HT is a panel mount metal mechanical keyboard with Cherry keyswitches and an integrated touchpad. Its 2.5mm key trip sits between the shallow 1.5mm panels and the deep 4mm industrial units, which suits operators alternating…
Product Overview
KY-PC-HT is a panel mount metal mechanical keyboard with Cherry keyswitches and an integrated touchpad. Its 2.5mm key trip sits between the shallow 1.5mm panels and the deep 4mm industrial units, which suits operators alternating between typing and pointing. The stainless steel panel is water and vandal proof for indoor and outdoor self-service terminals.
- Cherry mechanical keyswitches give repeatable actuation on a panel mount unit
- 2.5mm key trip balances typing comfort with panel depth
- Integrated touchpad means no separate pointing device on the fascia
- Water and vandal proof stainless construction with RoHS, IP65, FCC and CE approvals

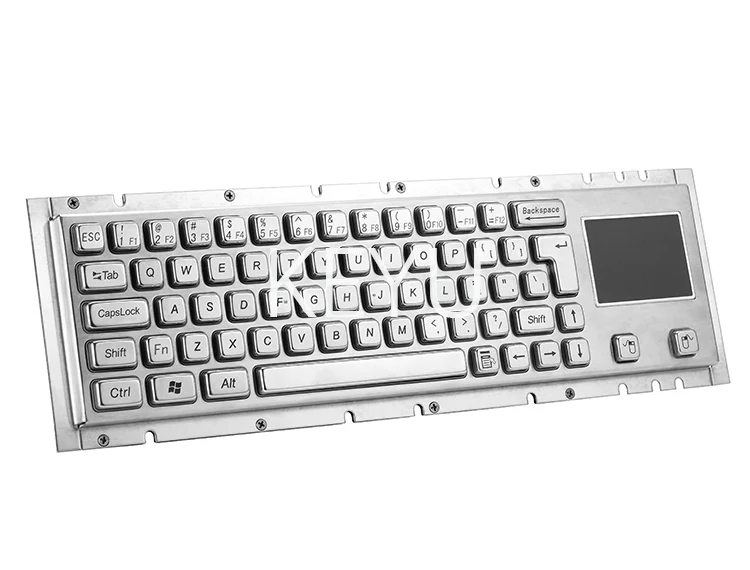

- 372*102 mm front panel fits a standard kiosk band
- Bottom to top back panel fixing keeps fasteners out of public reach
Application Scenarios
- Indoor self-service terminals in stations and lobbies
- Outdoor self-service terminals exposed to weather
- Industrial equipment in extreme environments
- Operator consoles with heavy text entry
- Machine control panels in workshops
Who It Is For
- Self-service terminal manufacturers
- Industrial equipment builders wanting mechanical feel in a panel format
- Kiosk integrators specifying sealed input
- Machine shop console designers
Problems It Solves
- Mushy panel keyboards on stations where operators type all day
- Loose mice on public and industrial consoles
- Weather and washdown ingress on outdoor terminals
- Front-accessible fixings that can be tampered with
Technical Features
- Metal mechanical keyboard built with Cherry mechanical keyswitch
- Integrated touchpad on the stainless panel
- Power supply DC5V±5% with working current <150mA
- Operation Force 2N±0.2N with Key Trip 2.5mm
- Mounting from bottom to top, back panel fixing
- Operation Temperature -10℃~55℃ and Storage Temperature -30℃~85℃
- USB and PS/2 interfaces with Window XP through Android support
Specifications
| Keyboard Type | Metal mechanical keyboard, cherry switch keyboard |
|---|---|
| Front Panel | 372*102 mm |
| Overall | 394*124 mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Operation Force | 2N±0.2N |
| Key Trip | 2.5mm |
| Mounting way | From bottom to top, back panel fixing |
| Operation Temperature | -10℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Approvals | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel buttons
- Cherry mechanical keyswitch modules
Manufacturing Process
- Sheet metal forming of the 372*102 mm panel
- CNC machining of the switch plate and touchpad window
- Cherry keyswitch seating and soldering
- Laser or etching procedure for key labeling
- Back panel fixing assembly and IP65 sealing
Quality Control
- Actuation test on every Cherry keyswitch
- Key trip verification at 2.5mm
- Operation force sampling at 2N±0.2N
- IP65 ingress testing on the sealed panel
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Laser or etching procedure for key labeling
- Touchpad position on the panel
- USB or PS/2 harness
- Panel outline matched to a 394*124 mm cutout
How It Compares
| KY-PC-H | KY-PC-HT uses Cherry keyswitches at a 2.5mm trip and adds a touchpad, where KY-PC-H is a 4mm trip keyboard without a pointing device |
|---|---|
| KY-PC-HT-DESK style bench units | This panel mount version fixes from bottom to top behind the fascia rather than sitting on a bench |
Use Guide
- Cut the fascia for the 394*124 mm overall size
- Fit from bottom to top with back panel fixing
- Confirm a DC5V±5% supply at under 150mA
- Operate within -10℃~55℃
Questions About This Model
What switches does KY-PC-HT use?
Cherry mechanical keyswitches.
What is the key trip?
2.5mm, with an operation force of 2N±0.2N.
Does it include a pointing device?
Yes, a touchpad is built into the panel.
What are the panel dimensions?
Front panel 372*102 mm and overall 394*124 mm.
How is it mounted?
From bottom to top, back panel fixing.
Which approvals apply?
RoHS, IP65, FCC and CE.
Request A Quote On KY-PC-HT
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
