KY-PC-HT Metal Mechanical Keyboard With Touchpad

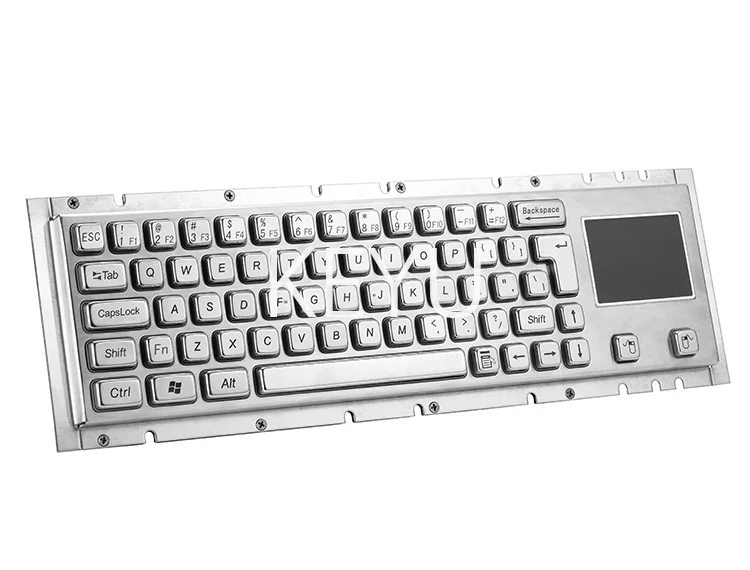

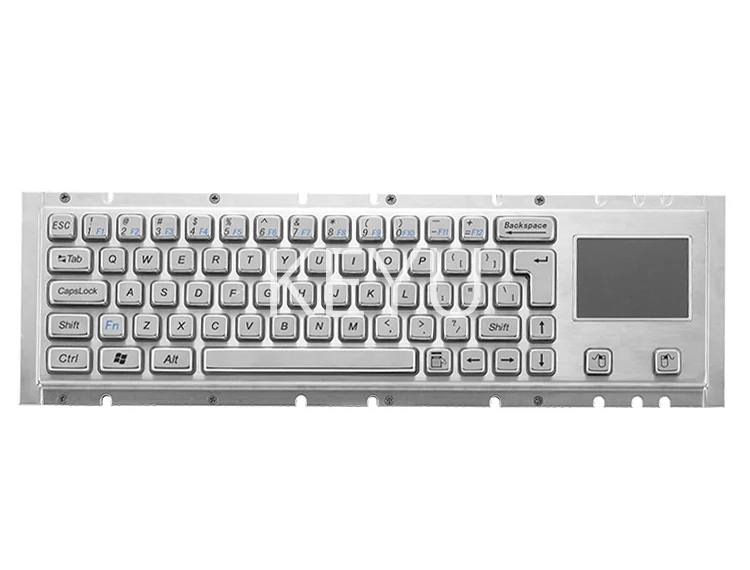

KY-PC-HT is a stainless steel industrial keyboard built with Cherry mechanical keyswitches and an integrated touchpad, on a 372*102 mm panel in a 394*124 mm body.
Product Overview
KY-PC-HT is a stainless steel industrial keyboard built with Cherry mechanical keyswitches and an integrated touchpad, on a 372*102 mm panel in a 394*124 mm body. The 4mm key trip gives full mechanical travel that operators can feel through gloves. It is specified for indoor and outdoor self-service terminals and equipment in extreme environments.
- Cherry mechanical keyswitches give a defined click that survives heavy typing
- Full 4mm key trip is unmistakable under gloves
- Integrated touchpad removes the need for a separate pointing device
- IP65 sealed stainless panel for indoor and outdoor terminals
- Operation force under 2N keeps prolonged entry comfortable
- Rear or front mounting for panel integration
Application Scenarios
- Indoor and outdoor self-service terminals
- Industrial equipment operator panels
- Extreme environment control stations
- Kiosk solutions with heavy daily typing
- Medical equipment consoles
Who It Is For
- Self-service terminal manufacturers
- Industrial equipment builders needing mechanical key feel
- Kiosk integrators replacing membrane panels
- Medical equipment OEMs
Problems It Solves
- Shallow key travel causes missed entries when operators wear gloves
- Membrane panels wear out where typing volume is high
- Separate mice cannot be secured on public terminals
Technical Features
- Cherry mechanical keyswitch under each stainless steel button
- Key trip 4mm with operation force under 2N
- Integrated touchpad on the metal panel
- Power supply DC5V±5% with working current below 150mA
- USB and PS/2 interfaces
- Durability of 2million
- Operation temperature -20℃~55℃
Specifications
| Front Panel | 372*102 mm |
|---|---|
| Overall Dimension | 394*124 mm |
| Key Trip | 4mm |
| Operation Force | <2N |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2million |
| Mounting Way | Rear mounting or Front mounting |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel buttons
- Cherry mechanical keyswitches
Manufacturing Process
- Stainless panel forming to 394*124 mm
- CNC machining of key and touchpad openings
- Cherry keyswitch mounting and alignment
- Laser or etching of key legends
- Touchpad integration and sealing
- Travel and force calibration
Quality Control
- Key trip verified at 4mm on sample keys
- Switch actuation test across the full field
- Touchpad response check
- IP65 water test
- Endurance sampling to 2million
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout customisation on the 372*102 mm panel
- Laser or etched legends by language
- USB or PS/2 lead
- Front or rear mounting hardware
- Panel branding
How It Compares
| KY-PC-HHCT5 | 4mm mechanical travel with Cherry switches instead of the 1.5mm short trip build |
|---|---|
| KY-PC-H-BL | Uses a touchpad rather than a trackball in the same 372*102 mm panel size |
Use Guide
- Cut the panel to 372*102 mm allowing for the 394*124 mm body
- Allow depth for the mechanical switch stack behind the panel
- Connect over USB or PS/2 with DC5V±5%
- Keep ambient within -20℃~55℃
- Wipe the touchpad clear of grit before use
Questions About This Model
Which keyswitches are used?
The keyboard is built with Cherry mechanical keyswitches.
How far do the keys travel?
Key trip is 4mm with operation force under 2N.
Is a pointing device included?
Yes, a touchpad is integrated into the metal panel.
What is the panel size?
372*102 mm front panel in a 394*124 mm body.
Which approvals are listed?
RoHS, IP65, FCC and CE.
Request A Quote On KY-PC-HT
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
