KY-PC-HHCT5 Industrial Stainless Steel Keyboard

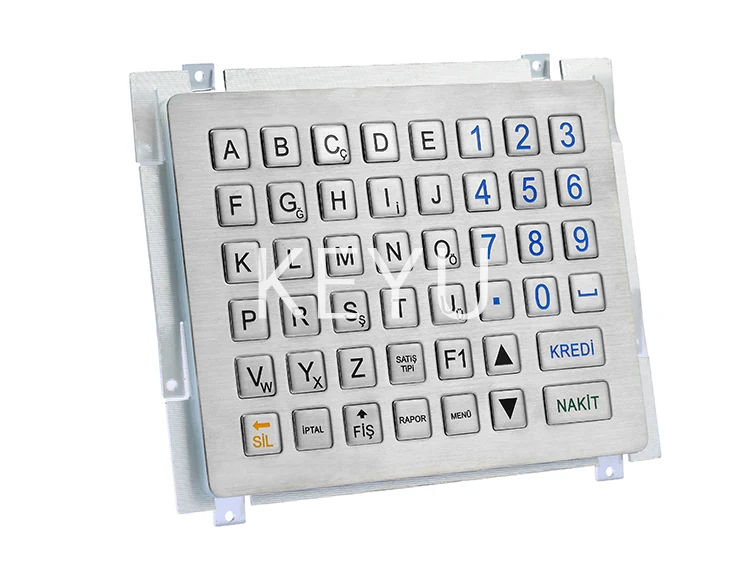

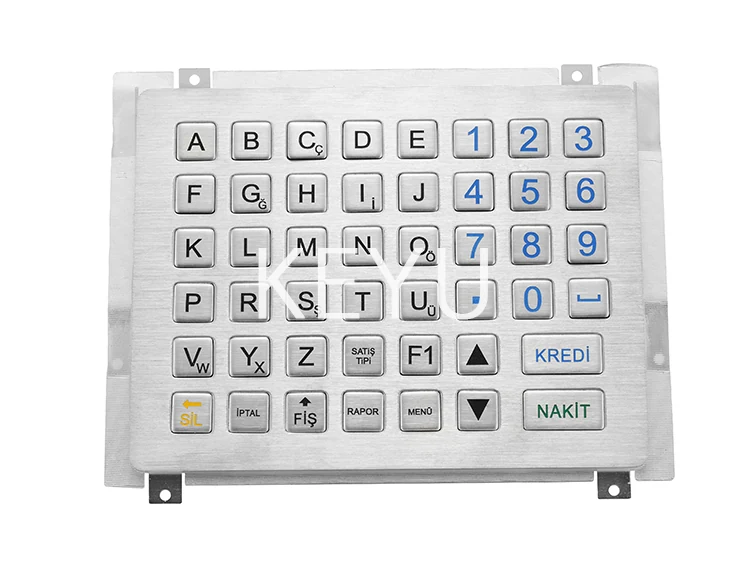

KY-PC-HHCT5 is a small industrial metal keyboard with a 154*120 mm front panel on a 170*131 mm body and a metal keyboard frame behind the keys.
Product Overview
KY-PC-HHCT5 is a small industrial metal keyboard with a 154*120 mm front panel on a 170*131 mm body and a metal keyboard frame behind the keys. Key size is 14*14*4.5mm with 1.5mm of trip, giving a compact block for function entry rather than text. It ships with a one year warranty that can be extended.
- Compact 154*120 mm panel for function key blocks on machine doors
- Metal keyboard frame supports the key field against impact
- Defined key size of 14*14*4.5mm for consistent gloved operation
- One year warranty that can be extended
- IP65 sealed and resistant to water, dust and vandalism
- Laser or etching lettering that resists abrasion
Application Scenarios
- Indoor and outdoor self-service terminals
- Numerical control equipment operator panels
- Industrial equipment in extreme environments
- Machine side function key stations
- Process control cabinets
Who It Is For
- Machine tool builders
- Industrial equipment OEMs
- Self-service terminal manufacturers
Problems It Solves
- Full keyboards do not fit machine doors that only need function keys
- Unsupported key fields deform when struck
- Printed legends rub off under oily gloves
Technical Features
- Industrial metal keyboard with metal keyboard frame
- Key size 14*14*4.5mm with key trip 1.5mm
- Operation force under 2N
- Power supply DC5V±5% with working current below 150mA
- USB and PS/2 interfaces
- Durability of 2million
- Rear mounting or front mounting
Specifications
| Front Panel | 154*120 mm |
|---|---|
| Overall Dimension | 170*131 mm |
| Key Size | 14*14*4.5mm |
| Key Trip | 1.5mm |
| Operation Force | <2N |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2million |
| Warranty | one year, can be extended |
| Operation Temperature | -20℃~55℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel key panel
- Metal keyboard frame
Manufacturing Process
- Frame fabrication and welding
- CNC machining of the 14*14*4.5mm key apertures
- Laser or etching lettering
- Key module fitting to the frame
- Sealing and surface finishing
Quality Control
- Key size and aperture fit inspection
- Frame rigidity check
- Water and dust exposure test
- Key trip and force sampling
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Function legends laser marked or etched
- Layout built around the customer key count
- USB or PS/2 lead
- Frame fixing pattern to the machine door
- Warranty extension beyond one year
How It Compares
| KY-PC-K | A smaller 154*120 mm panel where the 271*118.6 mm layout will not fit |
|---|---|
| KY-PC-HT | Short 1.5mm trip keys instead of 4mm Cherry mechanical travel |
Use Guide
- Match the door cutout to the 154*120 mm panel within the 170*131 mm body
- Specify function legends before manufacture
- Connect by USB or PS/2 at DC5V±5%
- Ask about warranty extension at order stage
Questions About This Model
What warranty is included?
One year, and it can be extended.
How big are the keys?
Key size is 14*14*4.5mm with 1.5mm of trip.
Is there a supporting frame?
Yes, the keyboard is built on a metal keyboard frame.
Which approvals apply?
RoHS, IP65, FCC and CE.
How is lettering applied?
By laser or etching.
Request A Quote On KY-PC-HHCT5
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
