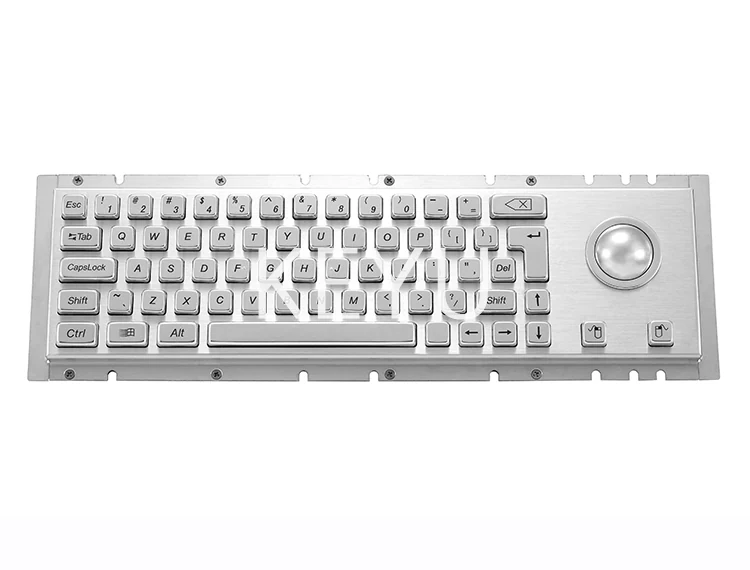

KY-PC-H Industrial Metal Keyboard for Extreme Environments

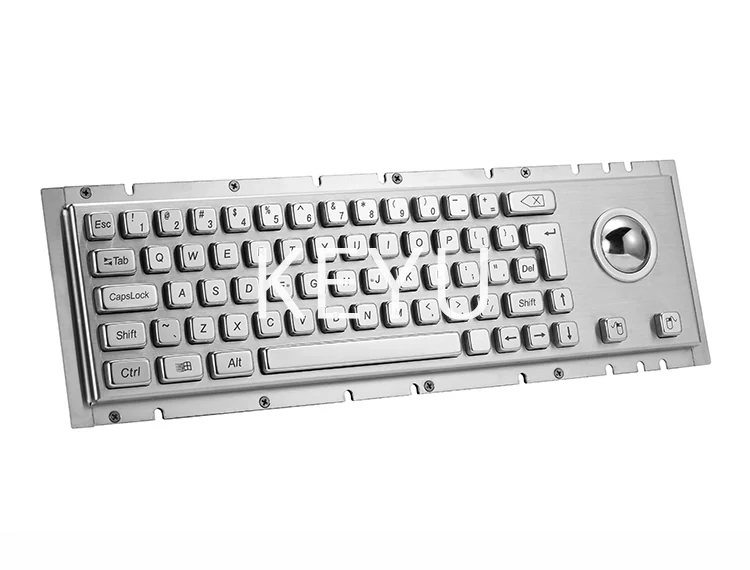

KY-PC-H is a full size industrial metal keyboard for equipment that lives outside a clean control room. It offers an unusually long 4mm key trip, which gives a clear tactile confirmation through gloves on a production floor.
Product Overview
KY-PC-H is a full size industrial metal keyboard for equipment that lives outside a clean control room. It offers an unusually long 4mm key trip, which gives a clear tactile confirmation through gloves on a production floor. Water, dust and vandal resistance plus RoHS, IP65, FCC and CE approvals make it a straightforward fit for indoor and outdoor self-service terminals.
- 4mm key trip gives a deep, unmistakable stroke for gloved operators
- Water, dust and vandal resistant construction suits unsupervised installations
- RoHS, IP65, FCC and CE approvals answer standard tender paperwork
- One year warranty that can be extended reduces lifecycle risk on fleet rollouts
- Rear mounting or front mounting fits both new builds and retrofits
- Durability ≥2million supports continuous public use
Application Scenarios
- Industrial equipment operating in extreme environments
- Indoor self-service terminals in lobbies and stations
- Outdoor self-service terminals exposed to weather
- Kiosk equipment in high traffic public areas
- Production line control stations
Who It Is For
- Industrial equipment manufacturers
- Self-service terminal OEMs
- Kiosk builders sourcing a full size metal keyboard
- Maintenance teams replacing failed plastic keyboards
Problems It Solves
- Shallow key travel that operators cannot feel through gloves
- Dust and water ingress on keyboards mounted in open plant areas
- Damage from impact on unsupervised terminals
- Short warranty cover on consumer keyboards used in industrial duty
Technical Features
- Industrial metal keyboard construction, water, dust and vandal resistant
- Key size 14*14*4.5mm with a 4mm key trip
- Operation force <2N
- Power supply DC5V±5% with working current <150mA
- Laser or etching lettering on the key faces
- Operation temperature -10℃~55℃, storage temperature -30℃~85℃
- USB and PS/2 interfaces with Window XP, Window7, Window8, Linux, Ubuntu and Android support
Specifications
| Front Panel | 372*102 mm |
|---|---|
| Overall | 394*124 mm |
| Key Size | 14*14*4.5mm |
| Key Trip | 4mm |
| Operation Force | <2N |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2million |
| Mounting Way | Rear mounting or Front mounting |
| Warranty | One year, can be extended |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Industrial grade metal keyboard panel
- Metal key caps
Manufacturing Process
- Sheet metal panel forming of the 372*102 mm face
- CNC machining of the 14*14*4.5mm key apertures
- Surface finishing of the panel
- Laser or etching lettering of key legends
- Switch assembly and IP65 sealing
Quality Control
- Key trip measurement against the 4mm specification
- Operation force sampling below 2N
- IP65 ingress verification
- Interface enumeration test on USB and PS/2
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Laser or etching lettering to customer artwork
- Layout adapted to national key sets
- Rear or front mounting hardware
- Extended warranty beyond the standard one year
- Cable length and connector choice
How It Compares
| Short travel membrane keyboard | A 4mm key trip is felt through heavy gloves where a membrane dome is not |
|---|---|
| Office keyboard in an industrial cabinet | Water, dust and vandal resistance plus IP65 keep the panel working where an office unit fails in weeks |
Use Guide
- Allow for the 394*124 mm overall size when cutting the fascia
- Choose rear or front mounting at design stage
- Confirm the host can supply DC5V±5% at under 150mA
- Discuss warranty extension at order stage rather than after shipment
Questions About This Model
How deep is the key stroke on KY-PC-H?
The key trip is 4mm, with a key size of 14*14*4.5mm.
What is the warranty?
One year, and it can be extended.
Is it sealed?
It is water, dust and vandal resistant and carries IP65 approval.
Which interfaces are available?
USB and PS/2.
What is the operating temperature range?
-10℃~55℃ with 20%~85% relative humidity.
Can the lettering be customized?
Yes, by laser or etching. KEYU has provided OEM and ODM service since 1995.
