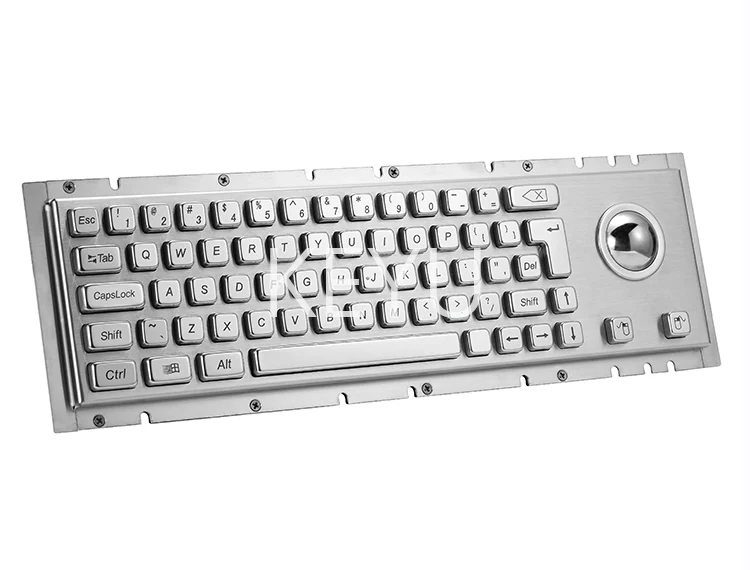

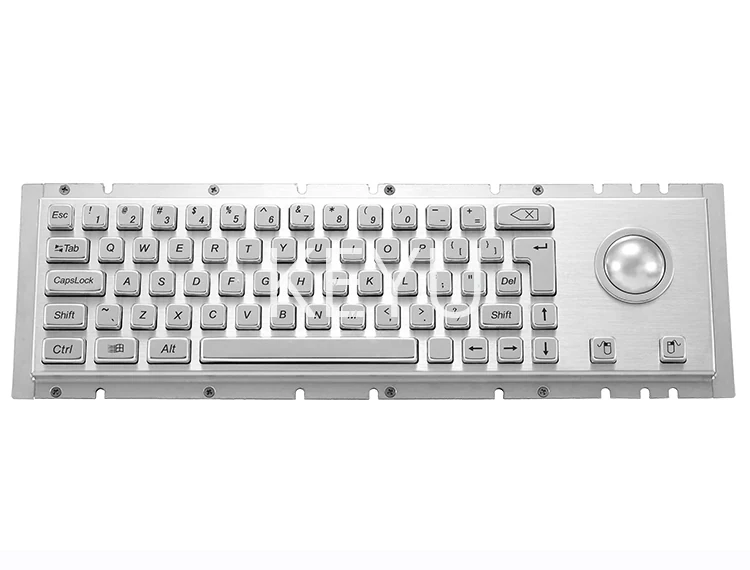

KY-PC-H Stainless Steel Keyboard With Mechanical Trackball
KY-PC-H is an embedded metal keyboard carrying 65 keys plus a mechanical trackball in one SUS304 panel. It is built for communication equipment, military equipment and self service terminals where an operator needs full text…
Product Overview
KY-PC-H is an embedded metal keyboard carrying 65 keys plus a mechanical trackball in one SUS304 panel. It is built for communication equipment, military equipment and self service terminals where an operator needs full text entry and cursor control from a single fixed panel. The 4mm key trip gives a deliberate tactile stroke that can be felt through gloves.
- A mechanical trackball replaces a loose mouse that would be stolen or damaged on an unattended cabinet
- SUS304 stainless steel construction resists riot damage and corrosion in outdoor and coastal installs
- 4mm key trip and 2N operation force give clear feedback for gloved and rushed operators
- USB or PS/2 output lets the same unit serve new builds and legacy controllers
- Broad system support covering Windows XP through Windows 10 plus Linux, Ubuntu and Android
Application Scenarios
- Communication equipment racks and shelter cabinets
- Military vehicle and field equipment consoles
- Self service terminals in public buildings
- Fixed operator stations that must not accept a removable mouse
- Control cabinets running Linux or Ubuntu based software
Who It Is For
- Defence and communications equipment integrators
- Self service terminal manufacturers
- Industrial control cabinet builders replacing desktop keyboards
Problems It Solves
- Desktop keyboards and mice get removed or broken on shared and public equipment
- Legacy systems still need PS/2 while new builds require USB
- Shallow travel keypads give no confirmation to operators wearing gloves
- Painted mild steel panels corrode in humid and salt laden air
Technical Features
- 65 keys in SUS304 stainless steel with mechanical trackball
- Working power 5V±5% with working current under 100mA
- Durability rated above 2 million operations
- Key sizes of 14mm*14mm*8.5, 23.5*14*8.5, 33*14*8.5mm and 118.5*14*8.5mm
- Key trip of 4mm and operation force of 2N ± 10%
- Back mounting with 1.55Kg net weight and 1.75Kg gross weight
- Working temperature of -10℃~45℃ with storage down to -30℃
Specifications
| Model | KY-PC-H |
|---|---|
| Keys | 65 |
| Working Power | 5V±5% |
| Working Current | <100mA |
| Durability | >2Million |
| Interface | USB / PS/2 |
| Key Size | 14mm*14mm*8.5/23.5*14*8.5/33*14*8.5mm/118.5*14*8.5mm |
| Key Trip | 4mm |
| Operation Force | 2N ± 10% |
| Mounting Way | Back mounting |
| Wet Weight | 1.55Kg |
| Working Temperature | -10℃~45℃ |
Materials
- SUS304 stainless steel panel
- SUS304 stainless steel keys
- Mechanical trackball assembly
Manufacturing Process
- Sheet metal blanking and forming of the SUS304 panel
- CNC machining of key holes and the trackball aperture
- Key legend etching or laser marking
- Trackball module fitting and alignment
- Wiring, back mounting hardware and final assembly
Quality Control
- Key travel verified against the 4mm specification
- Operation force sampled against 2N ± 10%
- Trackball tracking test in all directions
- Life cycling to confirm the 2 million operation rating
- Interface test on both USB and PS/2 hosts
Customisation Options
- Customized layout across the 65 key field
- Custom function and combination keys
- Legend etching content to your drawing
- Back mounting hole pattern matched to your chassis
- Choice of USB or PS/2 cable termination
How It Compares
| Keyboard with optical touchpad | The mechanical trackball keeps working when operators wear gloves or have wet fingers |
|---|---|
| USB only metal keyboard | KY-PC-H offers USB and PS/2 so older communication controllers stay usable |
| Short travel metal keypad | 4mm key trip gives a positive stroke rather than a flat click |
Use Guide
- Mount from the back of the panel using the supplied fixing points
- Allow for the 1.55Kg wet weight when sizing the panel support
- Select USB or PS/2 at order time to match the host controller
- Keep operation within -10℃~45℃ and store no colder than -30℃
- Clean the trackball seat periodically to keep cursor movement smooth
Questions About This Model
How many keys are on the KY-PC-H?
It has a total of 65 keys with trackball mouse function.
Which interfaces are available?
USB and PS/2 are both supported.
Which operating systems work with it?
Windows XP, 7, 8 and 10 plus Linux, Ubuntu and Android.
What material are the keys?
SUS304 stainless steel, chosen for anti-riot and anti-corrosion performance.
How is it installed?
It uses back mounting as an embedded device behind your panel.
What is the rated durability?
More than 2 million operations.
