KY-PC-F3 Full Size Industrial Metal Keyboard With 106 Keys

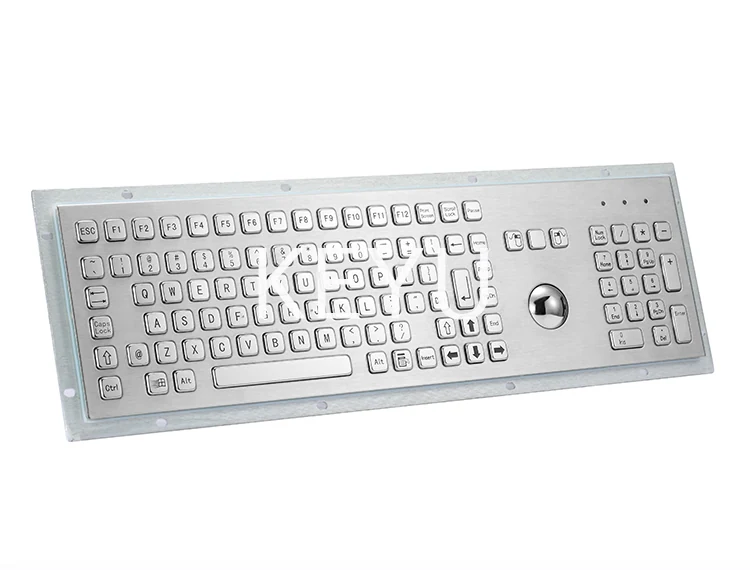

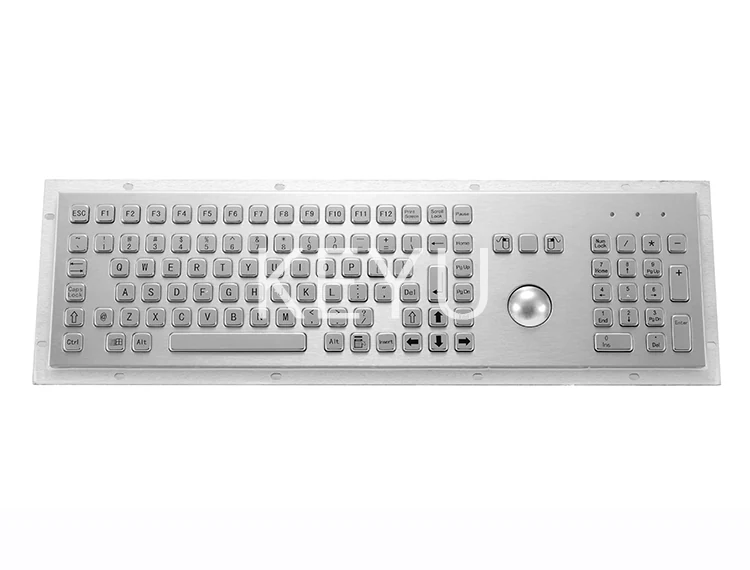

KY-PC-F3 is a full size industrial metal keyboard with 106 keys on a 478*135mm front panel, for terminals that need a complete layout rather than a reduced one.
Product Overview
KY-PC-F3 is a full size industrial metal keyboard with 106 keys on a 478*135mm front panel, for terminals that need a complete layout rather than a reduced one. It is water, dust and vandal resistant and is approved to RoHS, IP65, FCC and CE. A one year warranty applies and can be extended.
- 106 keys deliver a full layout including function and numeric sections
- Water, dust and vandal resistant build for indoor and outdoor terminals
- One year warranty that can be extended by agreement
- Operation temperature from -10 degrees C to 55 degrees C covers exposed sites
- Three key widths support space and long function bars
- Rear or front mounting to suit either enclosure design
Application Scenarios
- Indoor and outdoor self-service terminals
- Industrial equipment operator positions needing a full keyboard
- Extreme environment control stations
- Maintenance and engineering access terminals
- Public information terminals needing full text entry
Who It Is For
- Self-service terminal manufacturers
- Industrial equipment integrators
- Outdoor terminal and enclosure builders
- Engineering teams replacing full size plastic keyboards
Problems It Solves
- Reduced layouts cannot support text heavy or engineering applications
- Standard keyboards fail in dust, rain and extreme temperature
- Procurement needs a warranty position on input hardware
- Enclosures vary and a single mounting method restricts design
Technical Features
- 106 keys in a full size industrial layout
- Front panel 478*135mm with overall 502*159mm
- Key sizes 14*14*4.5mm, 14*28*4.5mm and 14*100*4.5mm
- Key trip 1.5mm or 2mm with operation force under 2N
- Power supply DC5V plus or minus 5 percent, working current under 150mA
- Durability of 2 million operations or more
- Laser or etching lettering
Specifications
| Keys | 106 |
|---|---|
| Front panel | 478*135mm |
| Overall | 502*159mm |
| Power supply | DC5V±5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Key size | 14*14*4.5mm, 14*28*4.5mm, 14*100*4.5mm |
| Key trip | 1.5mm/2mm |
| Operation force | <2N |
| Durability | ≥2 Million |
| Operation temperature | -10°c ~ +55°c |
| Approvals | RoHS, IP65, FCC, CE |
Materials
- Industrial metal keyboard panel
- Metal keys
Manufacturing Process
- Blanking of the 478*135mm front panel
- CNC machining of the 106 key aperture field in three key widths
- Panel forming and finishing
- Laser or etching lettering
- Sealed assembly to the IP65 requirement and function test
Quality Control
- All 106 keys swept on a host before packing
- Sealing verified against the IP65 approval
- Key trip checked against the 1.5mm or 2mm build specified
- Panel sizes confirmed to 478*135mm and 502*159mm
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Laser or etching lettering chosen at order
- Key trip specified at 1.5mm or 2mm
- USB or PS/2 interface
- Rear or front mounting configuration
- Extended warranty term agreed at order
How It Compares
| KY-PC-U with 84 keys | KY-PC-F3 carries 106 keys on a larger 478*135mm panel for full text and function entry. |
|---|---|
| Mini metal keyboards | The full layout suits engineering and text heavy applications that a compact panel cannot serve. |
| Unwarranted industrial keyboards | KY-PC-F3 is supplied with a one year warranty that can be extended. |
Use Guide
- Machine the fascia for the 478*135mm front panel and 502*159mm overall
- Select rear or front mounting and seat the gasket evenly
- Connect USB or PS/2 and test the full 106 key field
- Operate between -10°c and +55°c and store between -30°c and +85°c
- Agree any warranty extension at the time of order
Questions About This Model
How many keys does KY-PC-F3 have?
It has 106 keys.
What warranty is provided?
A one year warranty applies and it can be extended.
What are the panel dimensions?
Front panel is 478*135mm and overall is 502*159mm.
What key trip is available?
Key trip is 1.5mm or 2mm depending on the build.
Which approvals are listed?
RoHS, IP65, FCC and CE.
What temperatures does it tolerate?
Operation temperature is -10°c ~ +55°c and storage temperature is -30°c ~ +85°c.
Request A Quote On KY-PC-F3
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
