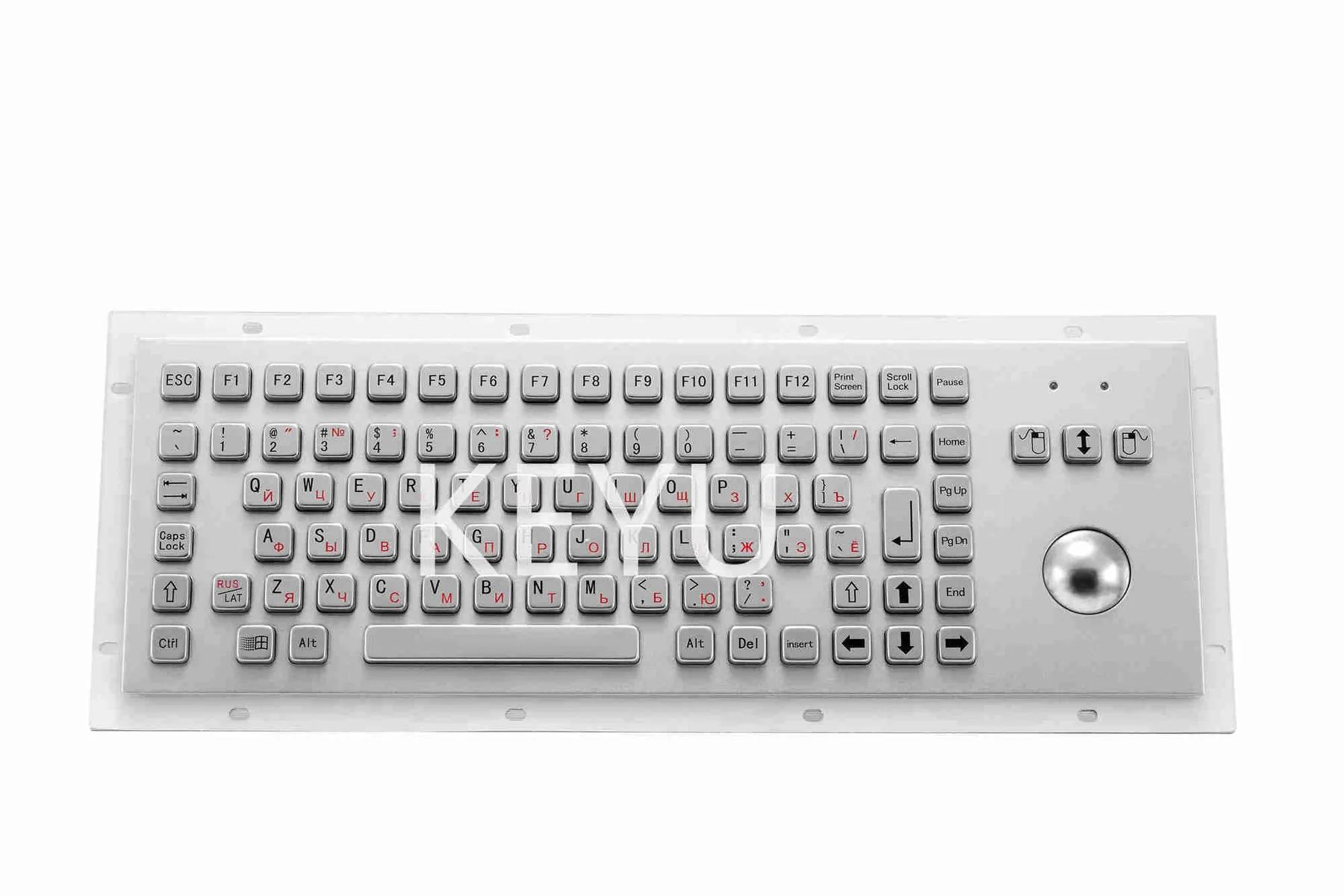

KY-PC-F2-H Industrial Metal Keyboard With Trackball Mouse

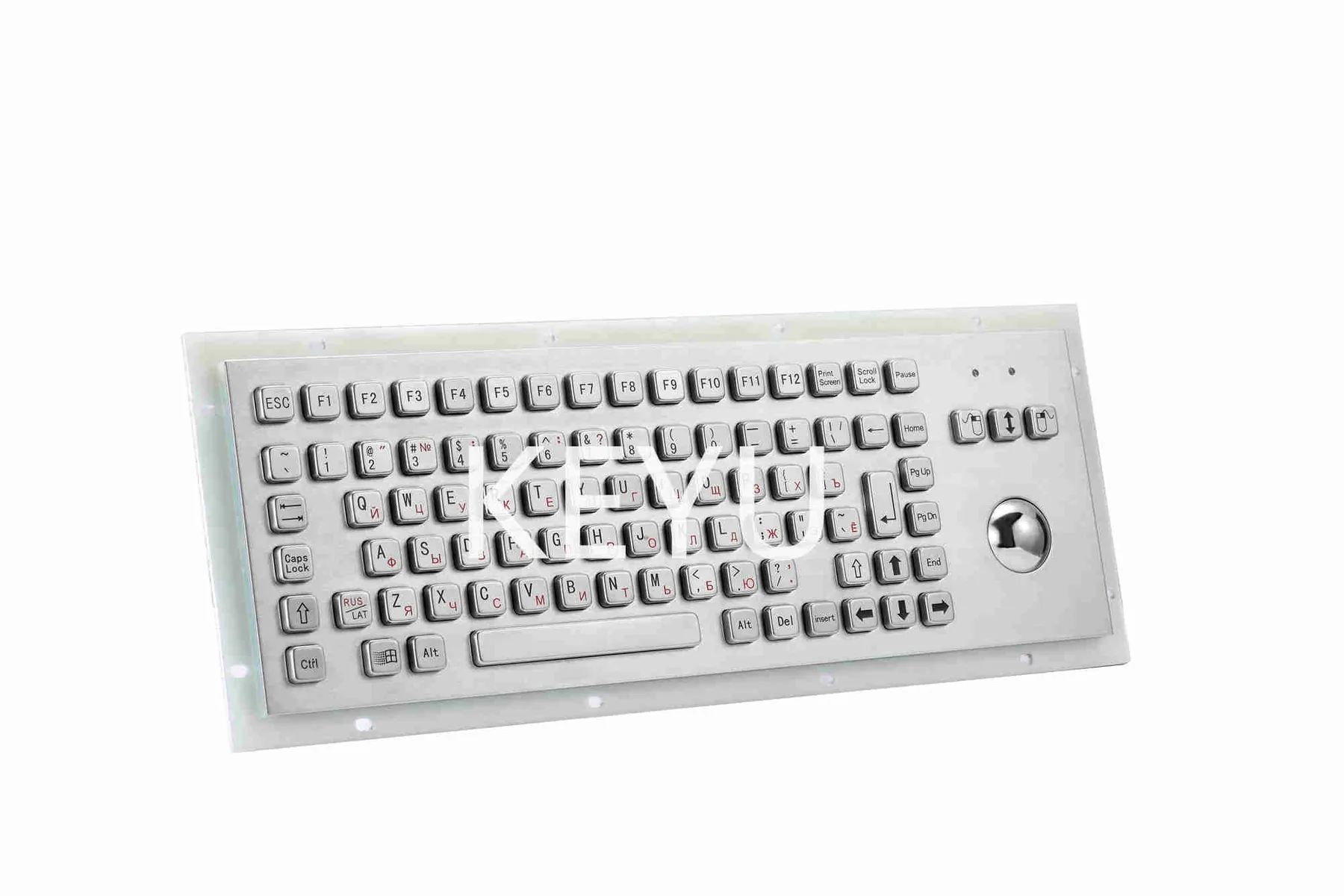

KY-PC-F2-H combines a full industrial key field and a trackball mouse in one metallic keyboard case, with a 392*135 mm front panel on a 416*159 mm body.
Product Overview
KY-PC-F2-H combines a full industrial key field and a trackball mouse in one metallic keyboard case, with a 392*135 mm front panel on a 416*159 mm body. Key trip of 4mm gives long mechanical travel while the 14*14*4.5mm keys stay easy to find by touch. It is built for indoor and outdoor self-service terminals and equipment in extreme environments.
- Keyboard and trackball mouse in a single metallic keyboard case
- Long 4mm key trip confirms each press without looking down
- 392*135 mm panel gives a full layout plus the pointer
- IP65 sealed, water, dust and vandal resistant
- One year warranty that can be extended
- Operation temperature from -10℃~55℃
Application Scenarios
- Indoor and outdoor self-service terminals
- Industrial equipment consoles
- Extreme environment control stations
- Public access information terminals
- Machine supervision desks
Who It Is For
- Self-service terminal manufacturers
- Industrial equipment integrators
- Operators of public terminals needing a secured pointer
Problems It Solves
- Two cutouts and two cables needed when keyboard and pointer are separate
- Shallow key travel causing entry errors in gloves
- Loose mice removed from unattended terminals
Technical Features
- Industrial metal keyboard with trackball mouse in a metalic keyboard case
- Key size 14*14*4.5mm with key trip 4mm
- Operation force under 2N
- DC5V±5% supply with working current below 150mA
- USB and PS/2 interfaces
- Durability of 2million
- Rear mounting or front mounting
Specifications
| Front Panel | 392*135 mm |
|---|---|
| Overall Dimension | 416*159 mm |
| Key Size | 14*14*4.5mm |
| Key Trip | 4mm |
| Operation Force | <2N |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Durability | ≥2million |
| Warranty | one year, can be extended |
| Operation Temperature | -10℃~55℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Metal keyboard case
- Stainless steel key buttons
Manufacturing Process
- Fabrication of the 416*159 mm metal case
- CNC machining of key and trackball openings
- Laser or etching lettering
- Trackball module installation and alignment
- Sealing and surface finishing
- Key travel calibration to 4mm
Quality Control
- Trackball tracking and button test
- Key trip verification at 4mm
- Water and dust ingress test
- Endurance sampling to 2million
- Interface enumeration on USB and PS/2
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Layout and legends to the customer drawing
- Laser or etched lettering
- USB or PS/2 cable and length
- Front or rear mounting hardware
- Extended warranty period
How It Compares
| KY-PC-K | Adds a trackball mouse and a longer 4mm key trip |
|---|---|
| KY-PC-HT | Uses a trackball rather than a touchpad, so wet hands still control the cursor |
Use Guide
- Cut the panel to 392*135 mm and allow for the 416*159 mm case
- Allow depth behind the panel for the trackball module
- Connect over USB or PS/2 at DC5V±5%
- Keep operation within -10℃~55℃
Questions About This Model
Does it include a pointing device?
Yes, a trackball mouse is built into the metal keyboard case.
What is the key travel?
Key trip is 4mm and key size is 14*14*4.5mm.
What is the mounting outline?
A 392*135 mm panel in a 416*159 mm body.
Is the warranty extendable?
One year is included and it can be extended.
Which approvals apply?
RoHS, IP65, FCC and CE.
Request A Quote On KY-PC-F2-H
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
