Industrial Keyboard

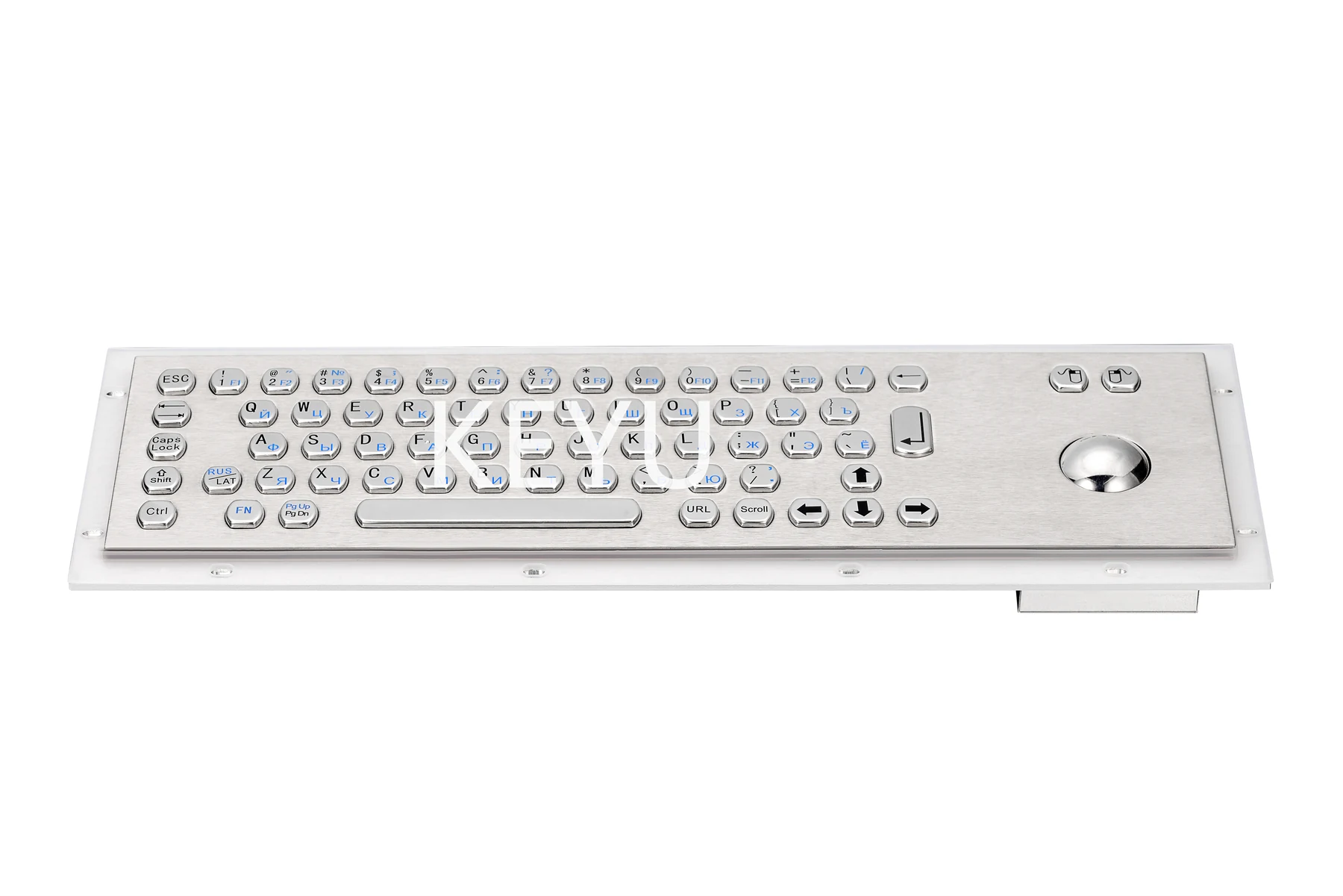

KY-PC-DY Waterproof Stainless Steel Keyboard With Trackball 66 Keys
KY-PC-DY is a waterproof rugged stainless steel keyboard with trackball and 66 keys, aimed at internet kiosk builds.
Product Overview
KY-PC-DY is a waterproof rugged stainless steel keyboard with trackball and 66 keys, aimed at internet kiosk builds. The SUS304 brushed panel and buttons are anti-riot and anti-corrosion, and etched key content follows the customer artwork. Mounting is rear or front, so it can be fitted into either side of a fascia.
- 66 keys with trackball cover typing and cursor work in one panel
- Waterproof rugged construction for internet kiosks in public halls
- SUS304 brushed stainless steel panel and buttons resist attack and corrosion
- Three key widths let the layout carry space and function bars
- Working current under 100mA keeps the terminal power budget low
- Rear or front mounting for new builds and retrofits
Application Scenarios
- Internet kiosks in libraries and public halls
- Self-service terminals needing a pointer and a keyboard
- Industrial control stations with wet or dusty air
- Public information terminals
- Service desks where a separate mouse cannot be used
Who It Is For
- Internet kiosk operators and builders
- Public access terminal manufacturers
- Industrial control panel integrators
- Facilities teams replacing failing plastic keyboards
Problems It Solves
- Internet kiosk keyboards and mice are stolen or broken within weeks
- Spilled drinks disable a standard keyboard
- Two separate devices need two apertures and two cables
- Key legends must match localised kiosk software
Technical Features
- 66 keys with integrated trackball mouse function
- Key sizes 14mm*14mm*4.5, 14*28*4.5 and 10*14*4.5mm
- Key trip 1.5mm with key strength 1.5N plus or minus 10 percent
- Power supply 5V plus or minus 5 percent, working current under 100mA
- Product interface USB or PS/2
- Durability of more than 2 million operations
- Operation temperature -10 degrees C to 45 degrees C
Specifications
| Keys | 66 |
|---|---|
| Power supply | 5V±5% |
| Working current | <100mA |
| Durability | >2 million |
| Product interface | USB / PS/2 |
| Key size | 14mm*14mm*4.5 / 14*28*4.5 / 10*14*4.5mm |
| Key trip | 1.5mm |
| Key strength | 1.5N ± 10% |
| Mounting way | Rear mounting or Front mounting |
| Net weight | 1.25Kg |
| Gross weight | 1.45Kg |
| Operation temperature | -10℃~45℃ (Relative humidity 20%~85%) |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel buttons
Manufacturing Process
- Stainless sheet blanking and panel forming
- CNC machining of key apertures and the trackball opening
- Brushing of the panel face and button tops
- Etching of key content to customer artwork
- Trackball fitting and waterproof sealing before test
Quality Control
- Trackball movement and all 66 keys tested on a host
- Water resistance of the sealed assembly checked at build
- Key strength sampled against 1.5N ± 10%
- Etched legend contrast and position inspected
Customisation Options
- Button silk screen or etching content to your requirement
- Rear or front mounting arrangement
- USB or PS/2 interface chosen at order
- Key layout adapted to kiosk software functions
- Cable length and exit direction
How It Compares
| Touchpad equipped kiosk keyboards | A trackball needs no finger drag, which suits long browsing sessions on internet kiosks. |
|---|---|
| Separate keyboard and mouse | One fascia aperture, one cable and one sealed assembly instead of two. |
| Plastic internet kiosk keyboards | The SUS304 brushed panel and buttons are anti-riot and anti-corrosion. |
Use Guide
- Select rear or front mounting to match your fascia thickness
- Connect USB or PS/2 and confirm both keyboard and trackball operate
- Keep supply at 5V ± 5%
- Operate within -10℃~45℃ ambient
- Clean around the trackball regularly with a damp cloth
Questions About This Model
How many keys does KY-PC-DY have?
It is a 66 key stainless steel keyboard with trackball.
Is it suitable for wet environments?
It is a waterproof rugged industrial stainless steel keyboard intended for internet kiosk and similar exposed use.
What interface does it use?
USB or PS/2, with support for Window XP through Window 10, Linux, Ubuntu and Android.
How is it mounted?
Rear mounting or front mounting, depending on the enclosure.
What is the key travel and force?
Key trip is 1.5mm with key strength of 1.5N ± 10%.
What does it weigh?
Net weight is 1.25Kg and gross weight is 1.45Kg.
Request A Quote On KY-PC-DY
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
