Industrial Keyboard

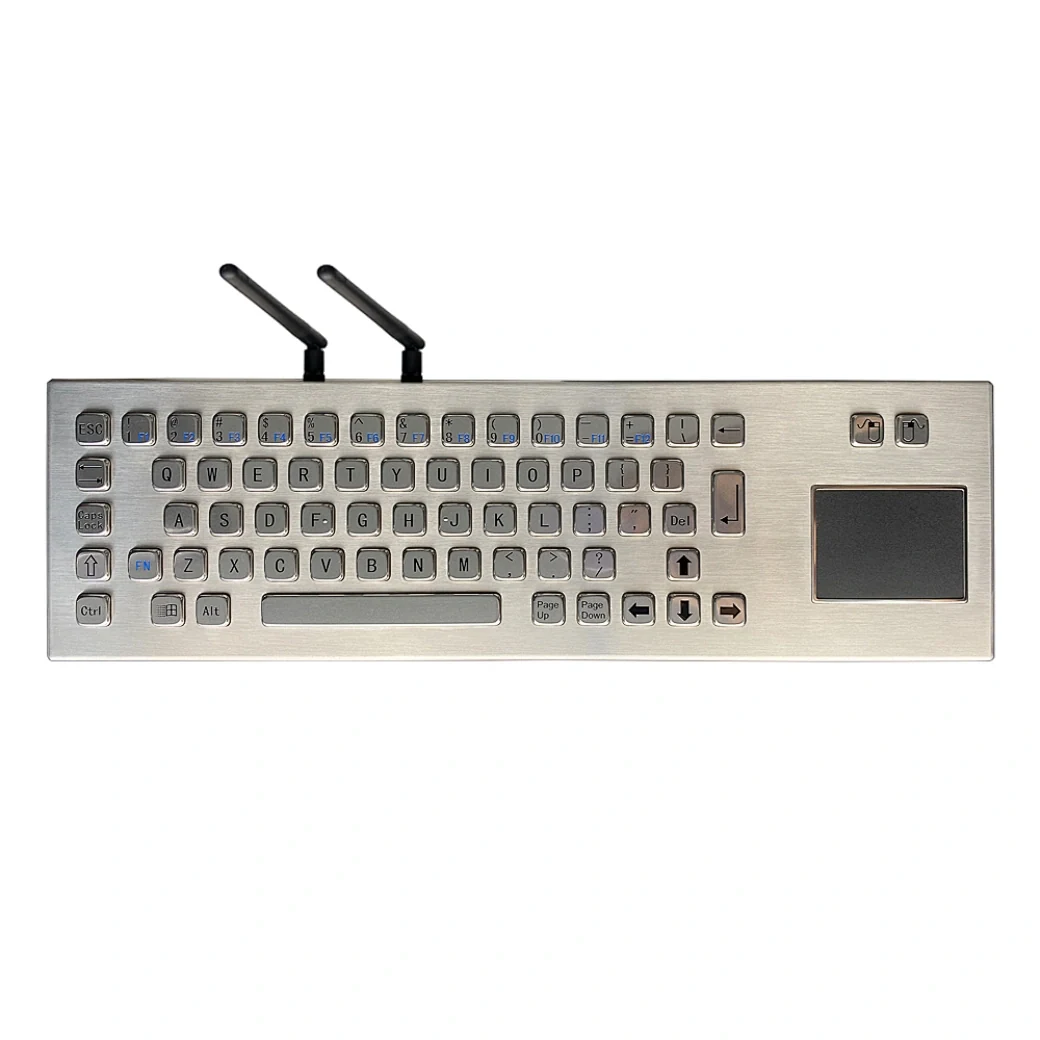

KY-PC-DT-D4 Wireless Stainless Steel Industrial PC Keyboard
KY-PC-DT-D4 is a desktop industrial PC keyboard with 66 keys in SUS304 stainless steel and a wireless link over low-power Bluetooth or 2.4G.
Product Overview
KY-PC-DT-D4 is a desktop industrial PC keyboard with 66 keys in SUS304 stainless steel and a wireless link over low-power Bluetooth or 2.4G. It removes the cable run between an operator position and a cabinet mounted PC, which matters where the desk is moved or the machine is locked away. Power comes from 2 replaceable AA batteries.
- Wireless operation over low-power Bluetooth or 2.4G removes the trailing keyboard cable
- 66 key full layout gives operators a normal typing position on a metal keyboard
- 2 AA batteries are replaceable on site with no return to service
- Bluetooth mode runs 30 days and 2.4G mode 60 days on the stated duty calculation
- SUS304 stainless steel panel and keys are explosion-proof and anti-corrosive
- Keyboard layouts for various countries can be built to your order
Application Scenarios
- Financial equipment operator desks away from the host cabinet
- Communication equipment rooms where cable runs are restricted
- Military equipment positions needing a metal keyboard without a tether
- Self-service terminal maintenance and supervisor stations
- Control desks where the PC sits in a locked enclosure
Who It Is For
- Industrial PC and control desk integrators
- Financial and banking equipment manufacturers
- Communication infrastructure operators
- Defence system contractors
Problems It Solves
- Cables between a movable desk and a locked cabinet snag and break
- Plastic wireless keyboards do not survive industrial desks
- Batteries sealed inside a device force the whole unit out of service
- Export projects need country specific key layouts rather than one fixed map
Technical Features
- Total of 66 keys on a desktop stainless steel body
- Interface by low-power Bluetooth or 2.4G
- 2.4G transmission distance 7m and Bluetooth transmission distance 8m
- Key size 14*14*4.5mm, 28*14*4.5mm and 100*14*4.5mm with 1.5mm key trip
- Operation force 1.2N+/-0.1N contact force
- Power supply 5V plus or minus 5 percent with working current under 100mA
- Customized function keys or combination keys available
Specifications
| Keys | 66 |
|---|---|
| Interface | Low-power Bluetooth / 2.4G |
| Power supply | 5V±5% |
| Working current | <100mA |
| Durability | >2 million |
| Key size | 14*14*4.5mm /28*14*4.5mm /100*14*4.5mm |
| Key trip | 1.5mm |
| Operation force | 1.2N+/-0.1N (Contact force) |
| 2.4G transmission distance | 7m |
| Bluetooth transmission distance | 8m |
| Battery life | Bluetooth mode: 30 days / 2.4G mode: 60 days |
| Net weight | 2.05Kg |
Materials
- SUS304 stainless steel panel
- SUS304 stainless steel keys
Manufacturing Process
- Sheet metal forming of the desktop chassis and key plate
- CNC machining of the 66 key aperture field
- Surface brushing and cleaning of the stainless panel
- Wireless module fitting and battery compartment assembly
- Pairing and range verification before packing
Quality Control
- Each keyboard paired and typed through all 66 keys on a host
- Wireless range checked against the 7m 2.4G and 8m Bluetooth figures
- Battery contact and replacement action checked on every unit
- Key trip and operation force sampled against 1.5mm and 1.2N+/-0.1N
Customisation Options
- Keyboard layouts for various countries built to your specification
- Customized function keys or combination keys
- Choice of low-power Bluetooth or 2.4G link
- Etched key legends to your artwork
- Chassis footprint and colour finish adapted for your desk
How It Compares
| Wired metal desktop keyboard | KY-PC-DT-D4 needs no cable to the host, so the desk can be repositioned without rerouting. |
|---|---|
| Plastic wireless office keyboard | The SUS304 panel and keys are explosion-proof and anti-corrosive rather than moulded ABS. |
| Sealed battery wireless units | The 2 AA batteries are replaceable, so power is restored on site in seconds. |
Use Guide
- Fit 2 AA batteries and pair the keyboard with the receiver or Bluetooth host
- Keep the host within 7m on 2.4G or 8m on Bluetooth
- Site the keyboard where ambient stays within 0℃~40℃
- Expect around 30 days in Bluetooth mode and 60 days in 2.4G mode at 5 hours use per day
- Wipe the stainless surface with a damp cloth, not solvents
Questions About This Model
Is KY-PC-DT-D4 wired or wireless?
It is wireless, using either a low-power Bluetooth or a 2.4G link.
How far does the wireless link reach?
2.4G transmission distance is 7m and Bluetooth transmission distance is 8m.
How long do the batteries last?
Bluetooth mode gives 30 days and 2.4G mode 60 days, calculated on a 2300mah dry battery and 5 hours average use per day.
How many keys does it have?
It has a total of 66 keys.
Can the layout be changed for our market?
Yes. Keyboard layouts for various countries are supported and customized function keys or combination keys are available.
What is the operating temperature range?
Operation temperature is 0℃~40℃ with relative humidity 20%~85%.
Request A Quote On KY-PC-DT-D4
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
