Numeric Keypad
16 Key IP65 Computer Keypad KY2088B-02

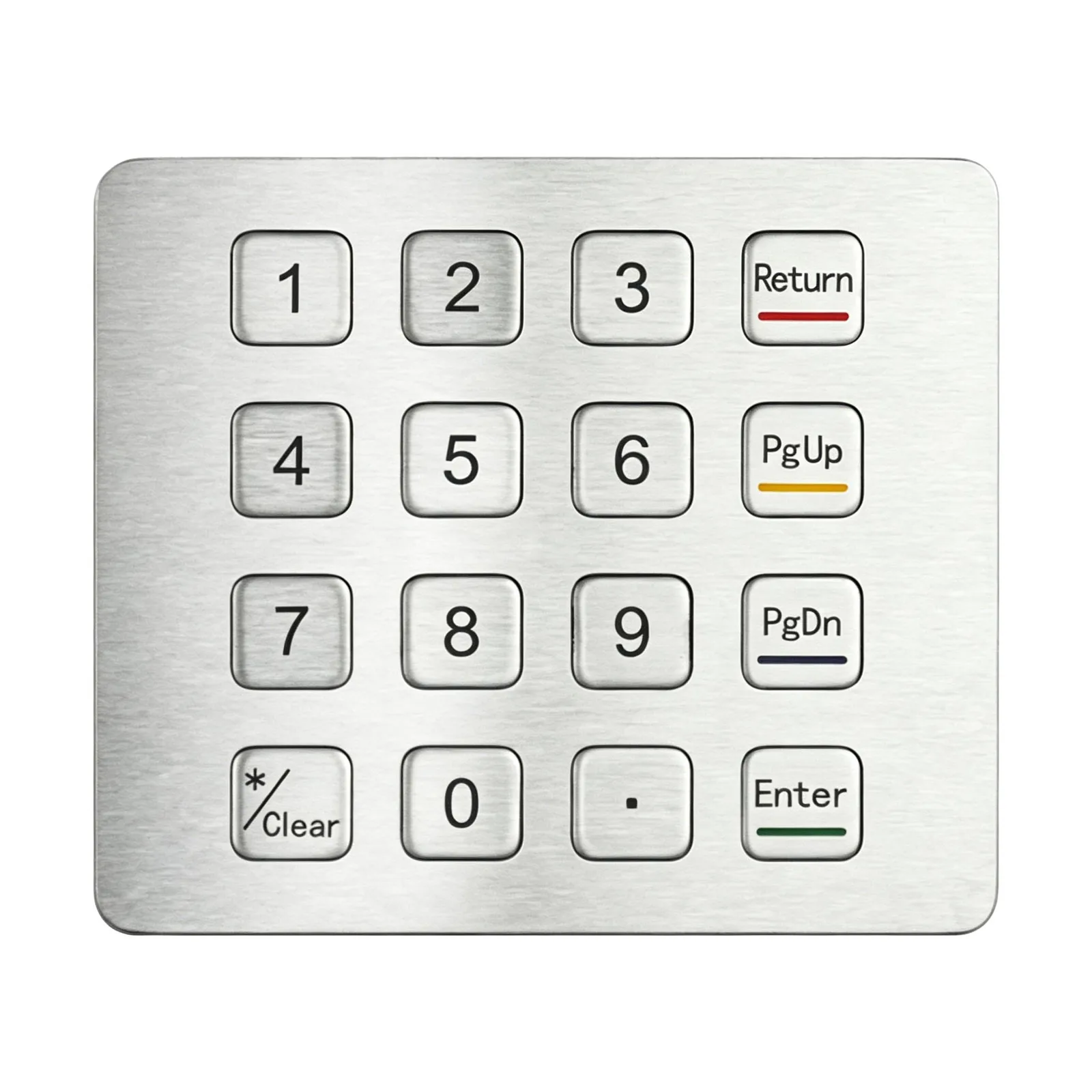

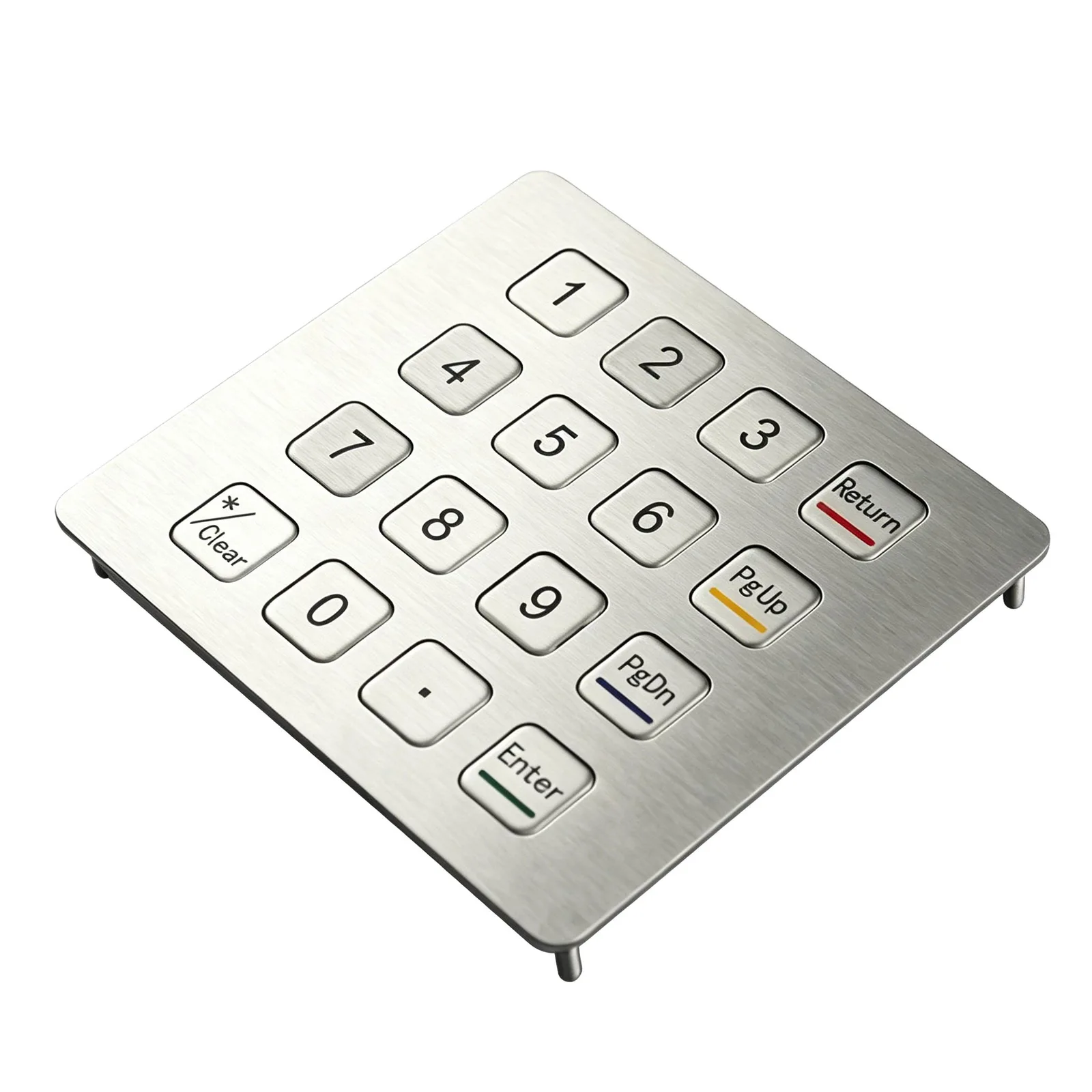

KY2088B-02 is a 16 key metal computer keypad on a 105*95 mm front panel, mounted from the front so it sits flush with the equipment face.
Product Overview
KY2088B-02 is a 16 key metal computer keypad on a 105*95 mm front panel, mounted from the front so it sits flush with the equipment face. Metal spring plate buttons give a short trigger stroke and sharp rebound for daily data entry. The 304 stainless steel body is easy to clean and disinfect, which suits medical, financial and access installations.
- Front panel installation seats the keypad flush with the equipment surface
- Compact 16 key layout integrates numeric keys and commonly used function keys
- Metal spring plate buttons give a short triggering stroke and sharp rebound
- 304 stainless steel is corrosion-resistant and resistant to violent damage
- Easy to clean and disinfect for medical equipment and financial counters
- Durability ≥ 2 million presses for daily high-frequency data entry
Application Scenarios
- Medical equipment front panels
- Smart terminals in public areas
- Financial counter equipment
- High-end access control systems
- Self-service data entry stations
Who It Is For
- Medical equipment manufacturers
- Financial counter equipment suppliers
- Access control system builders
- Smart terminal OEMs
Problems It Solves
- Proud mounted keypads catch and collect dirt, avoided by the flush front panel installation
- Hygiene routines damage plastic pads, while stainless steel is easy to clean and disinfect
- Vague key feel slows entry, addressed by metal spring plates with sharp rebound
- Wet and exposed counters need sealing, met by the IP65 waterproof and vandal proof design
Technical Features
- 16 key layout with numeric and commonly used function keys
- Front panel installation structure
- Metal spring plate button design with short triggering stroke
- 304 stainless steel processed by fine drawing or polishing
- Water and vandal proof design rated IP65
- Durability ≥ 2 million
Specifications
| Model | KY2088B-02 |
|---|---|
| Keys | 16 |
| Front panel | 105*95 mm |
| Installation | Front panel installation |
| Durability | ≥ 2 million |
| Protection | IP65 |
| Panel material | 304 stainless steel |
Materials
- 304 stainless steel panel and buttons
- Metal spring plate contacts
Manufacturing Process
- Sheet metal blanking of the 105*95 mm front panel
- Fine drawing or polishing of the stainless surface
- Key aperture punching for the 16 key field
- Laser or etching procedure for key labeling
- Metal spring plate assembly and IP65 sealing
Quality Control
- IP65 water ingress test on the sealed panel
- Spring plate rebound consistency sampling
- Surface finish inspection after drawing or polishing
- Key endurance sampling against the 2 million figure
Approvals And Test Documentation
- IP65
Customisation Options
- Compact layout customized for free
- Laser or etching procedure for key labeling
- Surface finish by fine drawing or polishing
- Function key assignment in the 16 key field
How It Compares
| Rear mounted keypads | Front panel installation integrates the face seamlessly with the equipment surface |
|---|---|
| Membrane keypads | Metal spring plate buttons give a short trigger stroke and sharp rebound that does not soften |
| Painted metal pads | Fine drawn or polished 304 stainless steel is easy to clean and disinfect at medical and financial counters |
Use Guide
- Prepare a cutout suited to the 105*95 mm front panel and fit from the front
- Choose fine drawing or polishing at order to match the host equipment finish
- Clean and disinfect the stainless face as part of routine service
- Confirm the key labeling method before production
Questions About This Model
How many keys does it have?
16 keys combining numeric and commonly used function keys.
How is it mounted?
Front panel installation, so it sits flush with the equipment surface.
What is the front panel size?
105*95 mm.
Is it sealed?
Yes, it has an IP65 waterproof and vandal proof design.
How are the keys labeled?
By laser or etching procedure, chosen at order.
Can it be disinfected?
Yes, the 304 stainless steel surface is easy to clean and disinfect.
Request A Quote On computer key pad KY2088B-02
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
