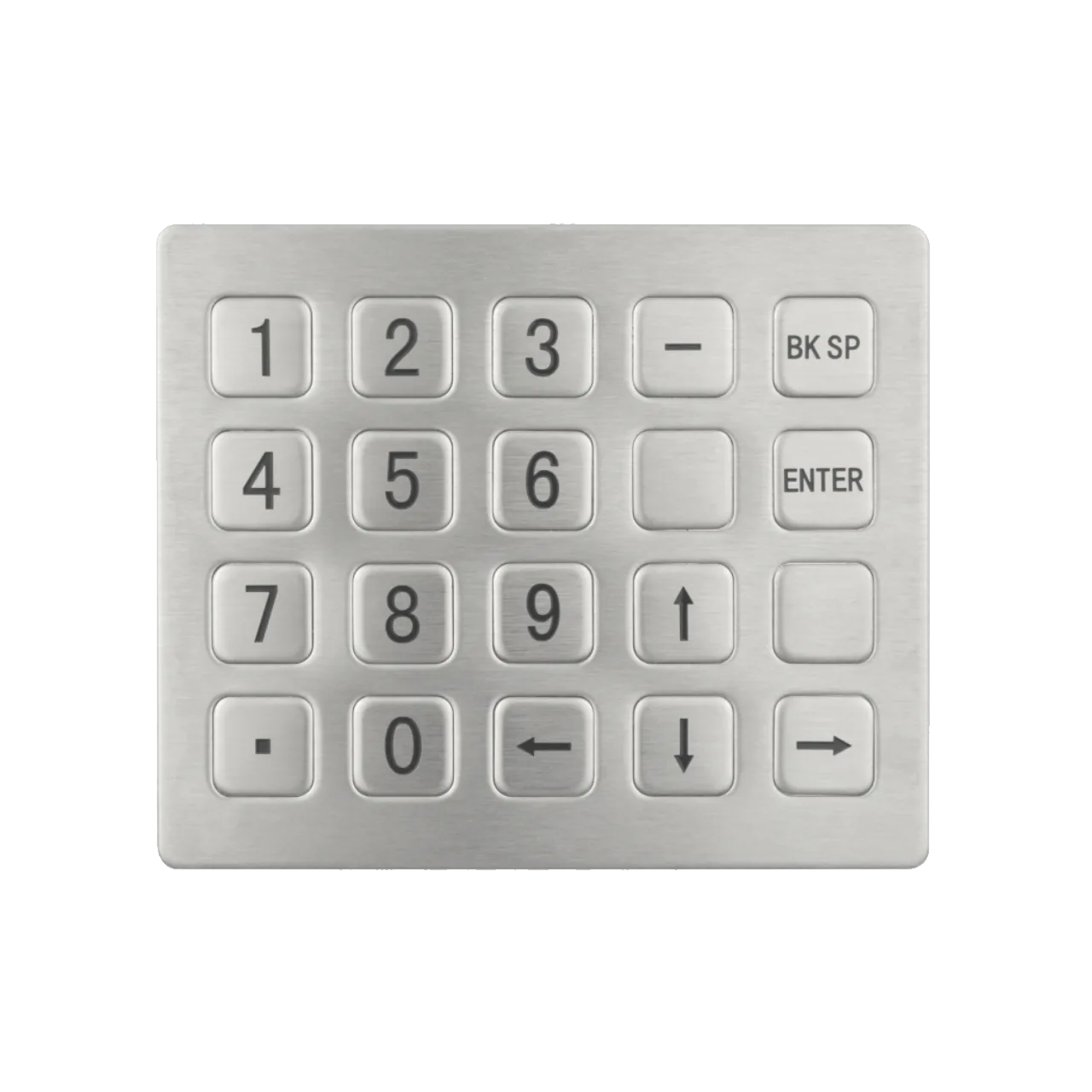

20 Key Industrial Numeric Keypad KY2122-3
KY2122-3 is a 20 key numeric keypad in 304 stainless steel that reports as USB HID, so it works on a terminal PC without driver work.
Product Overview
KY2122-3 is a 20 key numeric keypad in 304 stainless steel that reports as USB HID, so it works on a terminal PC without driver work. The 107.3*89.8 mm front panel and overall footprint are identical, which keeps the cutout drawing simple. It is intended for kiosks, access control and machine panels that need extra function keys beyond a 12 key pad.
- 20 keys give room for function and navigation keys alongside the digits
- USB HID output with other interfaces customizable for legacy controllers
- IP65 waterproof and vandal-proof construction for unattended sites
- Front panel and overall dimensions both 107.3*89.8 mm for a flush fit
- 2,000,000+ keystroke lifetime under public duty
- Layout customized for free so the key field matches your application
Application Scenarios
- Access control and door entry systems
- Self-service payment kiosks
- Vending machines and car wash equipment
- Fuel dispensers and parking terminals
- Industrial control cabinets and machine operation panels
- Banking, medical and public outdoor terminal devices
Who It Is For
- Kiosk and self-service terminal OEMs
- Access control integrators
- Machine builders specifying cabinet input panels
- Vending and car wash equipment suppliers
Problems It Solves
- A 12 key pad runs out of function keys, so this layout carries 20
- Driver installation is not possible on locked-down terminals, so the keypad is USB HID
- Outdoor panels are attacked and rained on, so the pad is IP65 and vandal-proof
- Stock layouts rarely match the application, so layout is customized for free
Technical Features
- 20 key stainless steel button field
- USB HID interface with other interfaces customizable
- Panel mount installation for a flush metal face
- Laser or etching procedure for key labeling optional
- IP65 waterproof, dustproof and anti-corrosion sealing
- Durability ≥ 2 million presses
Specifications
| Keys | 20 |
|---|---|
| Front panel | 107.3*89.8 mm |
| Overall | 107.3*89.8 mm |
| Interface | USB HID |
| Durability | ≥ 2 million |
| Protection | IP65 |
| Panel material | 304 stainless steel |
| Mounting | Panel mount |
Materials
- 304 stainless steel panel and buttons
Manufacturing Process
- Sheet metal blanking of the 107.3*89.8 mm panel
- Key aperture punching for the 20 key field
- Laser or etching of key legends
- Panel mount frame assembly
- IP65 sealing and USB HID function test
Quality Control
- USB HID enumeration test on each unit
- IP65 ingress verification
- Keystroke sampling against the 2,000,000+ figure
- Panel flatness and finish inspection
Approvals And Test Documentation
- IP65
Customisation Options
- OEM key layout customization
- Laser or etching procedure for key labeling
- USB, RS232 or RS485 interface
- Legend language and symbol set
How It Compares
| 12 key numeric pads | 20 keys leave space for function and navigation keys without a second input device |
|---|---|
| Serial only keypads | USB HID needs no driver on a terminal PC while other interfaces remain customizable |
| Plastic keypads | 304 stainless steel with IP65 sealing resists vandalism and washdown |
Use Guide
- Cut a 107.3*89.8 mm aperture and fit the panel mount keypad
- Connect USB and confirm the pad enumerates as HID
- Specify the key legend set before production as etching is permanent
- Clean the stainless face with a damp cloth
Related Products
Questions About This Model
How many keys are there?
20 keys on a 107.3*89.8 mm front panel.
What is the standard interface?
USB HID, with other interfaces customizable.
Is the keypad sealed?
Yes, it is IP65 waterproof and vandal-proof.
Can the layout be changed?
Yes, the compact layout is customized for free.
How are the keys marked?
By laser or etching procedure, chosen at order.
How long do the keys last?
Durability is 2,000,000+ keystrokes.
