Numeric Keypad

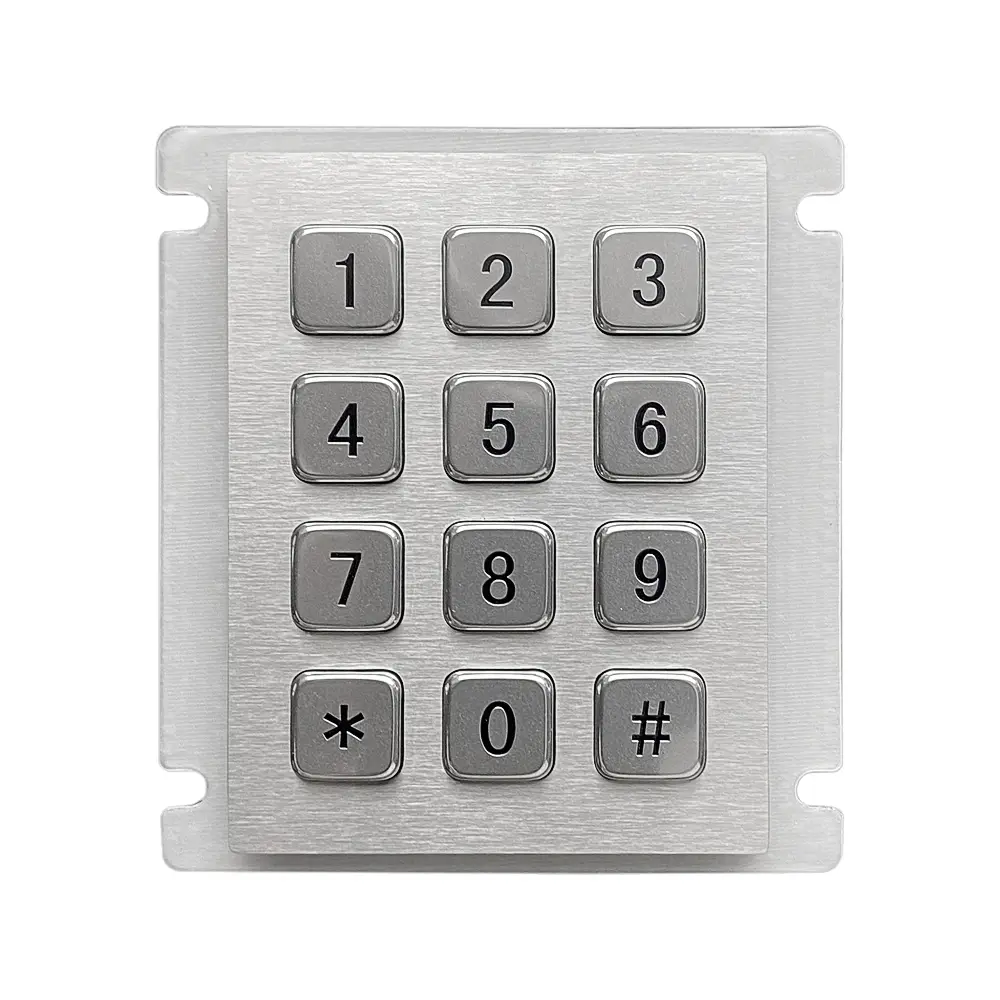

Industrial 4x3 Keypad KY2068A With Metal Dome Switches
KY2068A is a standard 12 key keypad in a 4-row by 3-column layout for access control locks, elevator panels and payment terminals.
Product Overview
KY2068A is a standard 12 key keypad in a 4-row by 3-column layout for access control locks, elevator panels and payment terminals. The SUS304 panel and precise metal dome switches give a crisp press that stays consistent through high-frequency public use. The PCB uses industrial immersion gold plating to hold conductivity under heavy workloads.
- Standard 4-row × 3-column layout drops into existing door and cabinet cutouts
- Industrial immersion gold plating on the PCB prevents oxidation of the contacts
- Precise metal dome switch gives crisp tactile response that does not soften with use
- SUS304 steel panel resists corrosion, scratching and attempted vandalism
- Sealed casing resists water ingress and dust for indoor or outdoor mounting
- Bespoke key labeling and multi-language characters for export builds
Application Scenarios
- Access control locks on doors and gates
- Elevator control panels
- Industrial automation equipment
- Payment terminals
- Cabinet password locks and public self-service devices
Who It Is For
- Door and cabinet lock manufacturers
- Elevator control panel builders
- Payment terminal OEMs
- Automation equipment integrators
Problems It Solves
- Contact oxidation causes intermittent keys, addressed by industrial immersion gold plating
- Membrane pads lose feel after heavy use, while the metal dome switch keeps its tactile response
- Export projects need local characters, met by multi-language key labeling
- Public keypads attract abuse, so the panel is SUS304 with impact resistance
Technical Features
- 12 keys arranged 4×3
- Key lifespan over 2,000,000 presses
- Key travel 0.45mm with actuation force 2N±0.1N contact operating force
- Key dimension 114*14*2.0mm
- Bottom-up assembly installation
- Operating temperature -20℃ ~ 60℃ and storage -40℃ ~ 85℃
- MTBF > 20,000 hours and MTTR < 30 minutes
Specifications
| Model | KY2068A |
|---|---|
| Layout | 4-row × 3-column, 12 keys |
| Key lifespan | Over 2,000,000 presses |
| Interface | USB |
| Key dimension | 114*14*2.0mm |
| Key travel | 0.45mm |
| Actuation force | 2N±0.1N |
| Net weight | 0.4Kg |
| Gross weight | 0.55Kg |
| Operating temperature | -20℃ ~ 60℃ |
| Storage temperature | -40℃ ~ 85℃ |
| MTBF | > 20,000 hours |
Materials
- SUS304 stainless steel panel
- Immersion gold plated industrial PCB
- Metal dome switch contacts
Manufacturing Process
- Sheet metal forming of the SUS304 panel
- PCB fabrication with industrial immersion gold plating
- Metal dome placement and alignment to the key field
- Key labeling for the requested language set
- Bottom-up assembly and sealing of the casing
Quality Control
- Dome actuation force verified against 2N±0.1N
- Press endurance sampling beyond 2,000,000 operations
- Sealed casing water and dust ingress check
- USB output test before packing
Customisation Options
- Bespoke key labeling with multi-language characters
- Interface changed to matrix, PS2, RS485 or RS232
- Panel finish and mounting hole pattern
- Key legend method to suit local market requirements
How It Compares
| Membrane 4×3 keypads | Metal dome switches keep a crisp tactile response through high-frequency usage where membranes go dull |
|---|---|
| Standard tin plated PCBs | Industrial immersion gold plating enhances conductivity and prevents oxidation under heavy workloads |
| Plastic keypad housings | SUS304 steel gives anti-corrosion, anti-scratch and impact resistance against attempted vandalism |
Use Guide
- Match your door or panel cutout to the standard 4×3 12 key footprint
- Install bottom-up so the panel face sits flush
- Connect USB, or order a matrix, PS2, RS485 or RS232 variant for your controller
- Operate within -20℃ ~ 60℃ and store within -40℃ ~ 85℃
Questions About This Model
What layout is it?
A standard 12-key 4-row × 3-column keypad.
Which interfaces are available?
USB as standard, with matrix, PS2, RS485 and RS232 customizable.
How long do the keys last?
Over 2,000,000 presses.
What switch technology is used?
Precise metal dome switches with 0.45mm travel and 2N±0.1N actuation force.
Can keys carry non-English characters?
Yes, bespoke labeling and multi-language characters are supported.
What storage temperature is allowed?
-40℃ ~ 85℃.
Request A Quote On Industrial 4×3 keypad
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
