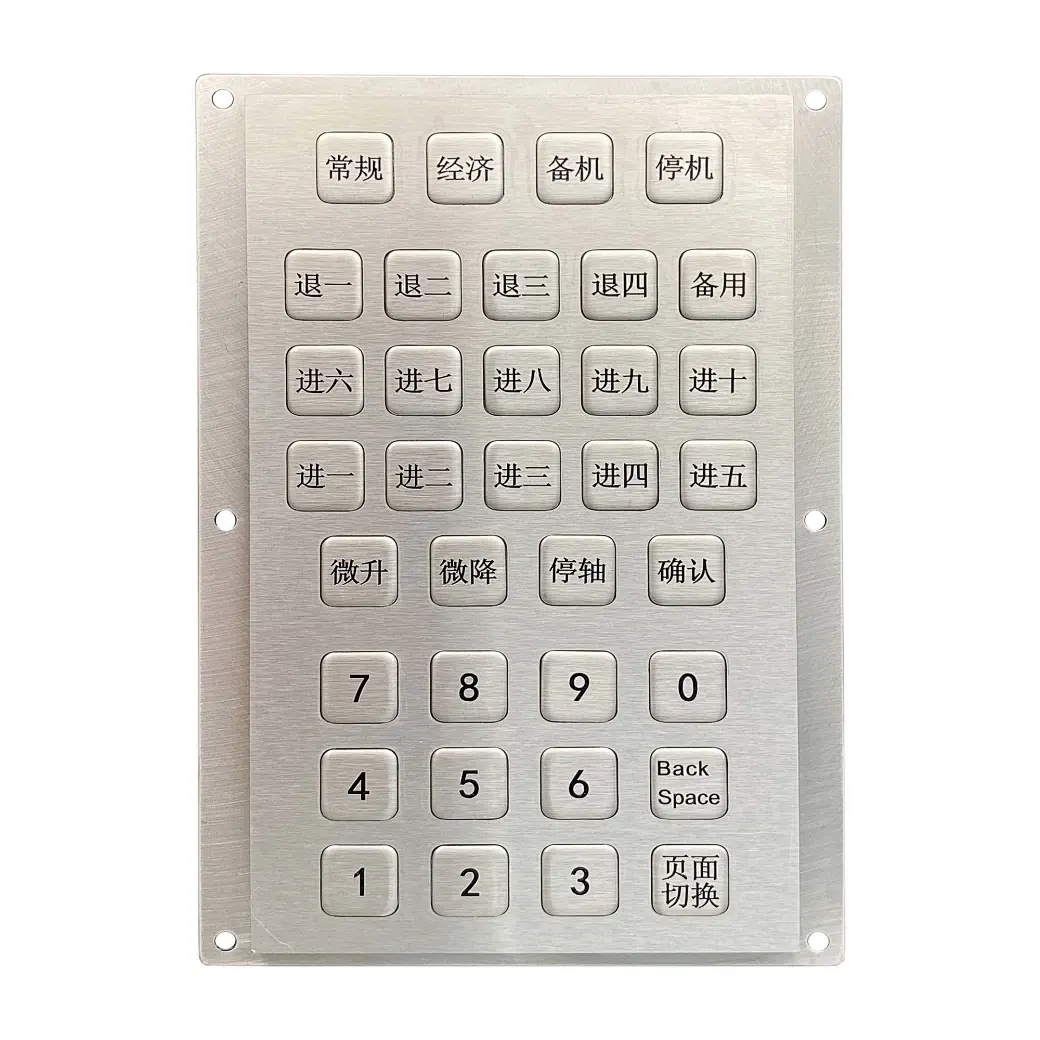

KY-3100A Brushed Stainless Steel Panel Keypad With 35 Buttons
KY-3100A is a panel mount keypad carrying 35 buttons on a corrosion-resistant SUS304 brushed stainless steel face. Buyers choose it when a terminal needs a wide key field on a 12V rail and the etched legends must survive years of…
Product Overview
KY-3100A is a panel mount keypad carrying 35 buttons on a corrosion-resistant SUS304 brushed stainless steel face. Buyers choose it when a terminal needs a wide key field on a 12V rail and the etched legends must survive years of public fingers. Assembly is from top to bottom with the base plate fixed.
- Wide 35 button field lets numeric entry and command keys share a single cut-out
- Explosion-proof and corrosion-resistant SUS304 brushed face for exposed fascias
- Draws under 70mA, so several panels can share one 12V branch
- Etched characters are cut into the steel rather than printed on top
- Shallow 1.5mm thick keys allow a tight enclosure depth
- Rated beyond 2 millions times of key actuation
Application Scenarios
- Banking and financial equipment fascias
- Communication equipment racks with front panel entry
- Military equipment control stations
- Self-service terminals dispensing tickets or goods
- Access control posts needing numeric plus command keys
Who It Is For
- Terminal fascia design engineers
- Financial and payment equipment OEMs
- Telecom equipment manufacturers
- Government and defence panel suppliers
Problems It Solves
- Printed key legends disappear within a season on busy machines
- Small keypads force a second panel for command keys
- Corrosive or coastal air pits plated keypad surfaces
- Adding a 5V converter for an input device complicates a 12V design
Technical Features
- 35 button embedded panel with brushed SUS304 keys
- Laser etching available for black characters
- Power supply 12V plus or minus 5 percent, working current under 70mA
- Key size 14*14*1.5mm and key trip 0.45mm
- Operation force 3N plus or minus 10 percent
- USB interface across Window XP to Window 10, Linux, Ubuntu and Android
- Storage temperature -30 degrees C to 85 degrees C
Specifications
| Buttons | 35 |
|---|---|
| Power supply | 12V±5% |
| Working current | <70mA |
| Durability | >2 millions times |
| Interface | USB |
| Key size | 14*14*1.5mm |
| Key trip | 0.45mm |
| Operation force | 3N ± 10% |
| Mounting way | From top to bottom, the base plate is fixedly assembled |
| Net weight | 0.66KG |
| Gross weight | 0.7KG |
| Working temperature | -20℃~60℃ (Relative humidity 20%~85%) |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel keys
Manufacturing Process
- Stainless sheet blanking and panel flattening
- CNC aperture machining for the 35 key grid
- Directional brushing of key tops and panel face
- Laser etching of black legends
- Base plate fixing and electrical function test
Quality Control
- Full key sweep on a test host for every unit
- 12V rail current measured against the under 70mA limit
- Actuation force sampled to 3N ± 10%
- Surface inspected for pits, burrs and brush consistency
Customisation Options
- Etching or silk-screen content defined by the customer
- Key grouping rearranged within the 35 button grid
- Fixing hole pattern to match an existing fascia
- Cable length and connector specified per order
- Symbol and language sets for export markets
How It Compares
| KY-3100B | Both carry 35 buttons on the same electrical platform, so choose by panel styling and fixing rather than performance. |
|---|---|
| Plastic ABS keypads | The brushed SUS304 face is corrosion-resistant and explosion-proof where plastic yellows and cracks. |
| Front fixed keypads | Top to bottom assembly with a fixed base plate keeps the load on the panel and the fixings out of reach. |
Use Guide
- Machine the fascia opening to the supplied panel drawing
- Insert from the top and secure the base plate before wiring
- Feed 12V ± 5% and verify the USB enumeration on the host
- Operate within -20℃~60℃ and store within -30℃~85℃
- Avoid solvent cleaners that attack the etched legends
Questions About This Model
How many buttons are on KY-3100A?
The keypad carries a total of 35 buttons.
What is the required power supply?
12V±5%, with working current below 70mA.
Are the key characters printed or etched?
Laser etching is available when the characters are black, and etched or silk-screened content follows your requirement.
What is the key travel?
Key trip is 0.45mm with an operation force of 3N ± 10%.
Which systems are supported?
Window XP, Window 7, Window 8, Window 10, Linux, Ubuntu and Android over USB.
How is the keypad fixed?
From top to bottom, with the base plate fixedly assembled behind the fascia.
