20 Key Stainless Steel Matrix Keypad KY-2122-2

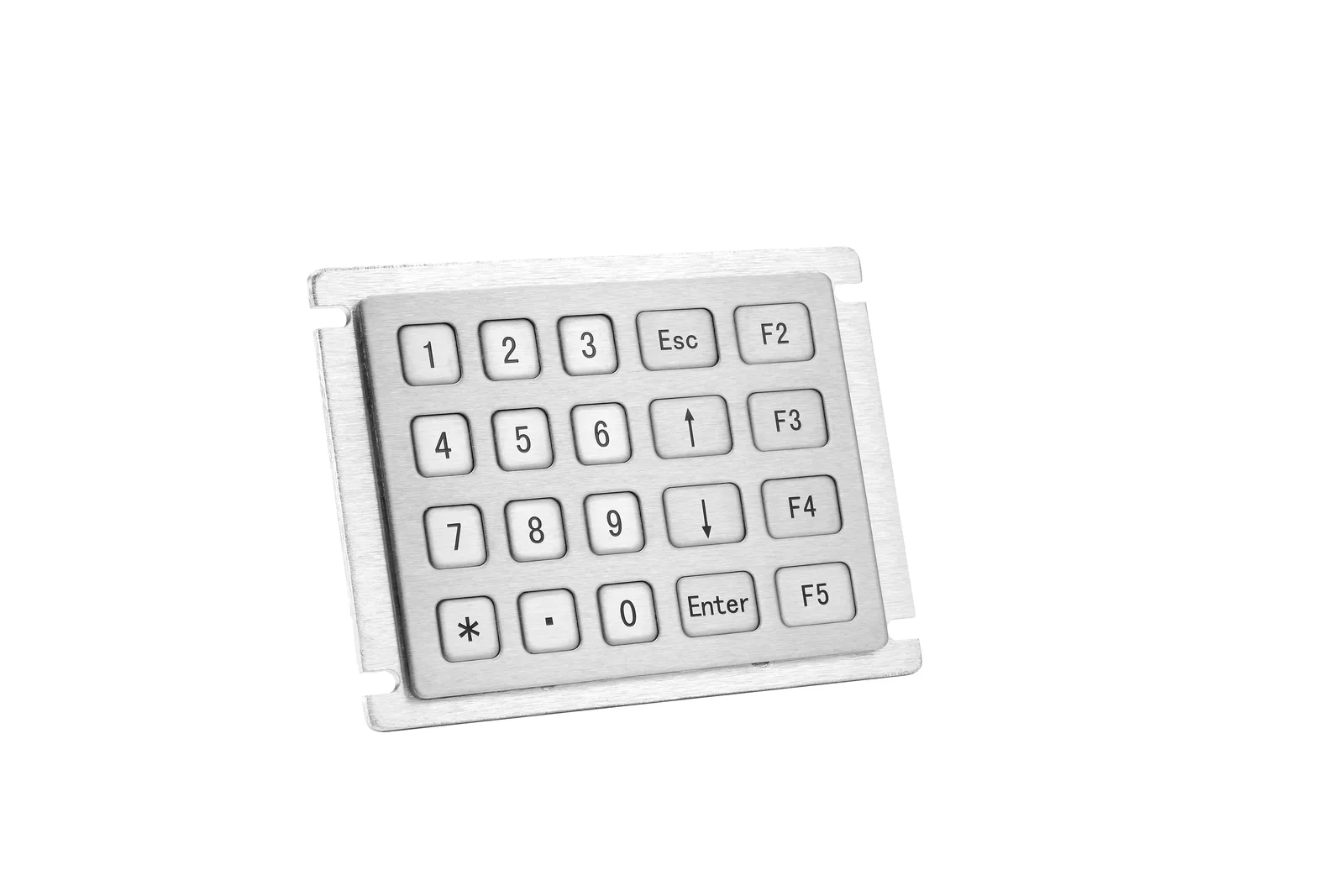

KY-2122-2 is a 20 key brushed stainless steel matrix keypad for equipment that reads a key matrix directly rather than a USB device.
Product Overview
KY-2122-2 is a 20 key brushed stainless steel matrix keypad for equipment that reads a key matrix directly rather than a USB device. The scratch-resistant panel and stable internal conductive structure keep keystroke feedback consistent through long continuous shifts. Connection modes are configured to the customer controller.
- Matrix output connects straight to an existing controller scan, with no HID stack required
- 20 key layout is customizable to match the equipment it is fitted to
- Brushed stainless steel panel gives wear resistance and corrosion resistance on machine fronts
- Stable internal conductive structure keeps keystroke feedback sensitive during long continuous operation
- Stainless steel casing blocks dust and splash to extend service life in tough environments
- Scratch-resistant finish keeps machine panels presentable after years of handling
Application Scenarios
- Industrial control cabinets
- Automation machinery operator panels
- Medical instrumentation control panels
- Cabinet control stations in production areas
- Equipment consoles requiring direct matrix input
Who It Is For
- Automation machine builders
- Control cabinet manufacturers
- Medical instrument makers
- Embedded controller integrators
Problems It Solves
- Adding a USB host to a simple controller is costly, so the keypad outputs a key matrix
- Dust and splash shorten keypad life on machine fronts, blocked by the stainless steel casing
- Generic layouts do not fit bespoke machinery, so the 20 key layout is customizable
- Intermittent contact disrupts operation, addressed by the stable internal conductive structure
Technical Features
- 20 key matrix key field
- Brushed stainless steel panel with wear and corrosion resistance
- Stable internal conductive structure for consistent keystroke feedback
- Dust and splash blocking stainless steel casing
- Connection modes configurable per client demand
- Customizable key layout for equipment matching
Specifications
| Model | KY-2122-2 |
|---|---|
| Keys | 20 |
| Output | Matrix |
| Panel material | Brushed stainless steel |
| Surface | Scratch-resistant brushed finish |
| Layout | Customizable |
Materials
- Brushed stainless steel panel
- Stainless steel casing
Manufacturing Process
- Sheet metal blanking and forming of the panel
- Brushing of the panel surface
- Key aperture punching for the 20 key matrix field
- Conductive structure assembly and continuity setting
- Casing closure and matrix continuity test
Quality Control
- Matrix continuity test on every row and column
- Brushed finish and scratch resistance inspection
- Repeated keystroke feedback consistency check
- Dust and splash resistance check on the assembled casing
Customisation Options
- Key layout configured to the equipment
- Connection mode set per client demand
- Key legend content and language
- Panel size and mounting arrangement
How It Compares
| USB keypads | Matrix output suits controllers that scan rows and columns directly without a USB host |
|---|---|
| Plastic matrix pads | The stainless steel panel and casing resist wear, corrosion, dust and splash on machine fronts |
| Fixed layout keypads | The 20 key layout is customizable so the pad matches the equipment rather than the other way round |
Use Guide
- Confirm the matrix row and column arrangement with your controller before order
- Fit the pad into the cabinet front and secure the casing
- Specify the key legends at order as they are applied during manufacture
- Wipe the brushed panel with a soft cloth to preserve the finish
Questions About This Model
How many keys does it have?
20 keys in a matrix arrangement.
Does it need a driver?
No. It is a matrix keypad read directly by the host controller.
Can the layout be changed?
Yes, the key layout is customizable to suit different equipment.
What is the panel made of?
Brushed stainless steel with wear and corrosion resistance.
Where is it typically installed?
Industrial control cabinets, automation machinery and medical instrumentation control panels.
Are connection modes flexible?
Yes, connection modes are configurable as per client demands.
