Anti-Static Plastic Sheet
Surface resistivity 1×10⁸ to 1×10¹⁰ Ω, available in any colour
- Thickness2 mm to 12 mm
- Weight250 g/m² to 2000 g/m²
- Surface Resistivity1×10⁸ Ω to 1×10¹⁰ Ω
- Standard Size2440 mm × 1220 mm or to customer request
Send a drawing by WhatsApp or email for a custom size. Samples are free of charge and sent by FedEx UPS or DHL.
Product Overview
When the corrugated plastic sheet is extruded we add anti-static concentrate grain to modify the material, which gives the sheet its anti-static performance.

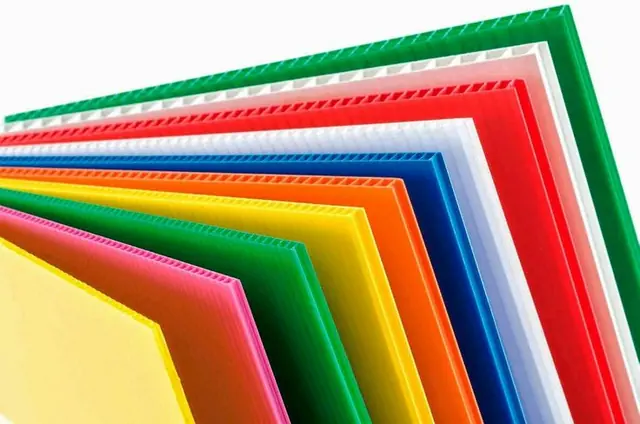

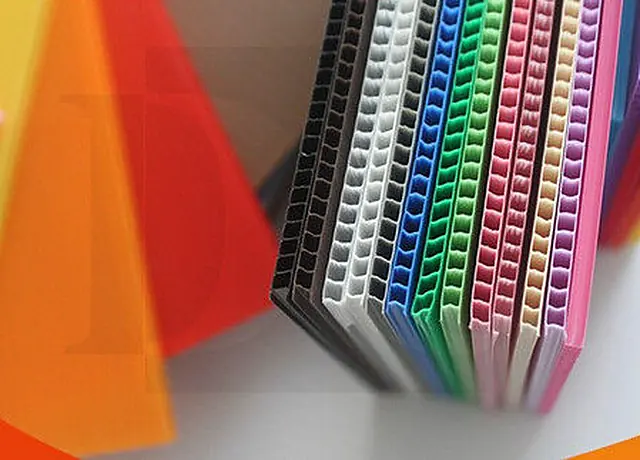

Anti-static grade can be applied to sheet in any colour, with surface resistivity of 1×10⁸ Ω to 1×10¹⁰ Ω.
Anti-static plastic sheet is often fabricated into reusable packaging boxes and is widely applied to packaging in the automotive and electronic industries. Electronic components are sensitive, fragile and high in value, so they need proper protection from damage, and this plastic transit packaging is a better choice than wood, cardboard or metal. An anti-static returnable box keeps spare parts and industrial materials from breakage, transports and stores them safely, and is particularly effective for semiconductors, computers and telecommunication equipment.
Key Benefits
Excellent Mechanical Property

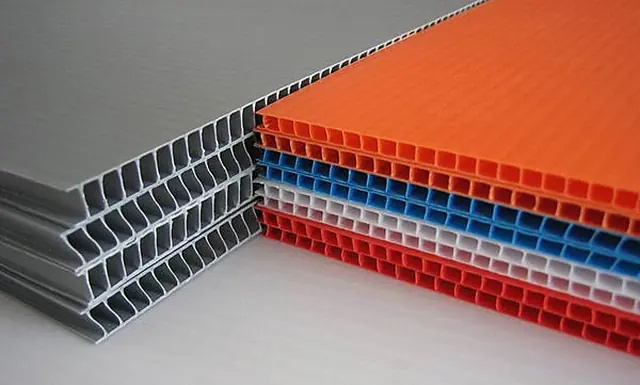

The twin-wall structure gives strong toughness, impact resistance, high compressive strength, shock buffering, high hardness, good bending behaviour and long service life.
Light Weight and Material Saving
To reach the same mechanical result, an extruded corrugated sheet uses less material, costs less and weighs less than a solid board.
Heat and Sound Insulation

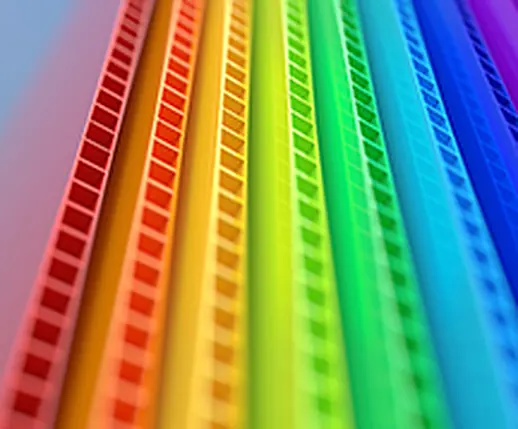

The hollow flute structure transfers far less heat and sound than a solid board of the same thickness.
Anti-Static Conductive and Flame Retardant Grades
Modification, compounding and surface treatment produce anti-static, conductive and flame retardant versions of the same base sheet.
Stable Chemical Property
Against carton board or wooden board the sheet offers chemical resistance, waterproofing, moisture resistance, weatherability, anti-corrosion and fade resistance.
Smooth Surface in Many Colours
Masterbatch modification extrudes the sheet in different colours and the surface accepts paint and ink jet printing well.
Environmentally Friendly
Polypropylene is non-toxic and non-polluting, simple to dispose of and can be recycled.
Applications and Fit
Application Scenarios
- Reusable ESD packaging boxes and totes
- Automotive electronics transit packaging
- Semiconductor, computer and telecom equipment packing
- Dividers and layer pads inside static sensitive loads
Who It Is For
- Electronics manufacturers and EMS providers
- Automotive electronics suppliers
- Semiconductor and telecom equipment packers
- Packaging converters producing ESD boxes
Problems It Solves
- Static build-up in ordinary packaging damages sensitive components.
- Wood and cardboard shed particles and cannot be washed.
- Metal packaging is heavy and expensive for a returnable loop.
Technical Data
Specifications
| Thickness | 2 mm to 12 mm |
|---|---|
| Weight | 250 g/m² to 2000 g/m² |
| Surface Resistivity | 1×10⁸ Ω to 1×10¹⁰ Ω |
| Standard Size | 2440 mm × 1220 mm or to customer request |
| Colour | Any colour to customer request |
| Packing | Plastic shrink film and wooden pallet or to customer request |
Technical Features and Materials
High impact co-polymer polypropylene with anti-static concentrate compounded at the extruder, so the property is through the sheet rather than a surface coating.
Manufacturing Process
- Raw Material High impact co-polymer polypropylene resin, with anti-static, conductive, UV or flame retardant masterbatch added at the extruder when a modified grade is ordered.
- Extrusion The sheet is extruded on one of six production lines to the ordered thickness and weight per square metre. Printing grade stock is corona treated on both surfaces during extrusion.
- Cutting and Creasing Sheets are cut to the ordered panel size and creased where the part has to fold.
- Fabrication Boxes, totes, trays, sleeves and layer pads are formed by welding, riveting or sealing the edges and corners, and accessories are fitted.
- Inspection and Packing Finished goods are inspected, then packed in plastic shrink film on wooden pallets or to the packing method the customer specifies.
From Enquiry to Delivered Goods
Quality Control
ISO 9001:2000 Quality Management System
Operations run to an ISO 9001:2000 quality management system so that the process meets international standards.
100% Inspection Before Delivery
Quality control is carried out inside our own factory and every product is 100% tested before it is released for delivery.
Extrusion Line Control
Thickness, weight per square metre, flute geometry and colour are set and checked on the extrusion line so each sheet matches the ordered specification.
Fabrication Check
Cut sizes, crease positions, welded corners and sealed edges are checked against the approved sample before packing.
Certifications and Standards
Operations run to an ISO 9001:2000 quality management system. Container resin can be specified as ESD safe or flame retardant meeting UL 94 HB flame retardant grade. Where food contact packing is required, 100% new virgin materials are used. We do not publish certificates we have not been given — ask and we will send what applies to your order.
Customization and Comparison
Customization Options
- OEM and customised orders are welcome. Send the drawing and the requirements of the style you want and we will submit samples for your approval.
- Thickness, weight per square metre, panel size, colour and grade are all set per order.
- Boxes and containers can be produced in different colours, thicknesses and styles to your detailed requirements, including dividers, layer pads and accessories.
- Printing and self-adhesive vinyl application are available on corona treated printing grade stock.
Comparison With Other Options
| Option | What It Means for You |
|---|---|
| Anti-Static Sheet | 1×10⁸–1×10¹⁰ Ω, available in any colour |
| Conductive Sheet | 1×10³–1×10⁵ Ω, black only |
| Standard Sheet | No static control, any colour |
| Cardboard | No static control, absorbs moisture, not washable |
Use Guide
- Confirm which resistivity band your process requires before ordering: anti-static sits at 1×10⁸–1×10¹⁰ Ω and conductive at 1×10³–1×10⁵ Ω.
- Anti-static grade is available in any colour, so it can be colour coded by part number or by line.
- Specify thickness and weight per square metre together with the box drawing so the walls hold their shape through the return trip.
Related Products
Corrugated Plastic SheetConductive Plastic SheetBlack conductive grade at 1×10³ to 1×10⁵ Ω surface resistivityView Details
Corrugated Plastic ContainersConductive and Antistatic Plastic ContainersESD containers for packaging, storage and transport of electronic componentsView Details
Corrugated Plastic ContainersElectronic Parts Packaging ContainersESD and anti-static boxes for packaging storage and transportation of componentsView Details
Corrugated Plastic SheetCorrugated Plastic SheetExtruded twin-wall polypropylene board, 2–12 mm, in any colour and gradeView Details Related Industry Applications
Related Solutions
Related Articles
FAQ
FAQ About Anti-Static Plastic Sheet
What Is the Surface Resistivity
Anti-static grade runs at 1×10⁸ Ω to 1×10¹⁰ Ω.
Is Anti-Static Grade Limited to One Colour
No. Anti-static grade can be applied to sheet in any colour. Conductive grade is the one limited to black.
Is the Property a Coating
No. Anti-static concentrate is added during extrusion to modify the material itself.
What Is It Usually Made Into
Reusable packaging boxes for the automotive and electronic industries, plus dividers and layer pads.
How Do I Get Samples
Samples are free of charge. We send them as soon as possible by FedEx, UPS or DHL international air express.
How Long Does Production Take
From order and payment confirmation it takes 7 to 10 days to arrange production and book shipping space in advance before the goods are ready for shipment.
Get a Quotation for Anti-Static Plastic Sheet
Send thickness colour weight per square metre and end use and we quote against that specification
Samples are free of charge and sent by FedEx UPS or DHL · Production 7 to 10 days after order confirmation
