Temporary Surface Protection Board
2.2 to 5.0 mm protection board for floors, windows, membranes and fixtures on site
- Thickness2.2 mm, 3.0 mm, 4.0 mm and 5.0 mm
- Weight275 g/m² to 900 g/m²
- Standard Size2000 mm × 1000 mm or as required
- ColourBlue, black, grey, orange, red, white or as required
Send a drawing by WhatsApp or email for a custom size. Samples are free of charge and sent by FedEx UPS or DHL.
Product Overview
Temporary surface protection board has good physical durability and chemical resistance, and it is widely used in the construction industry to protect waterproofing membranes, infrastructure networks, fixtures during construction, and windows and floors.
The same product is sold as Cartonal, Correx and Corflute temporary protection board. Because the panel is polypropylene it survives water on site, wipes clean and can be lifted and reused on the next phase instead of being thrown away.
Key Benefits
Physical Durability
Handles foot traffic, tools and site handling without tearing like paper-based protection.
Chemical Resistance
Resists the water, plaster, paint and site chemicals that ruin cardboard protection.
Waterproof
The polypropylene panel is unaffected by water on site.
Reusable
Lift, clean and use again on the next phase of the project.
Light to Handle
Boards cut and carry easily on site.
Colour Coded
Blue, black, grey, orange, red and white to suit the trade or phase.
Applications and Fit
Application Scenarios

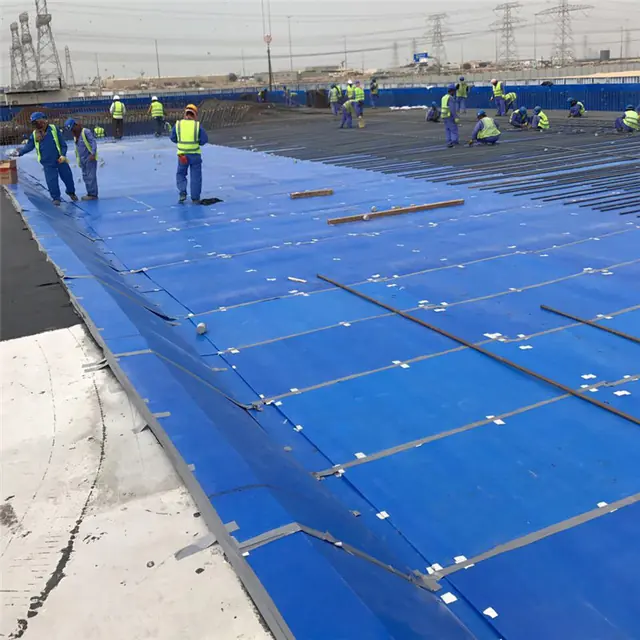

- Waterproofing membrane protection
- Infrastructure network protection
- Protection of fixtures during construction
- Window and glazing protection

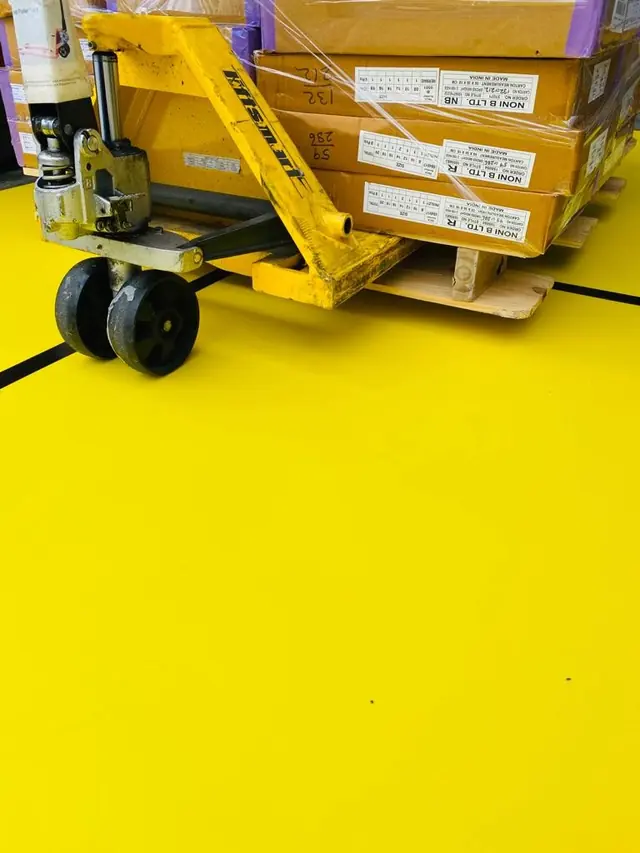

- Floor protection during fit-out
Who It Is For
- Main contractors and fit-out contractors
- Waterproofing and roofing subcontractors
- Facilities teams protecting finished floors
- Builders merchants and site supply distributors
Problems It Solves
- Cardboard protection disintegrates as soon as it gets wet.
- Finished floors and glazing get scratched during the following trades.
- Single-use protection has to be bought again on every phase.
Technical Data
Specifications
| Thickness | 2.2 mm, 3.0 mm, 4.0 mm and 5.0 mm |
|---|---|
| Weight | 275 g/m² to 900 g/m² |
| Standard Size | 2000 mm × 1000 mm or as required |
| Colour | Blue, black, grey, orange, red, white or as required |
| Packing | Plastic shrink film and wooden pallet or as required |
Technical Features and Materials

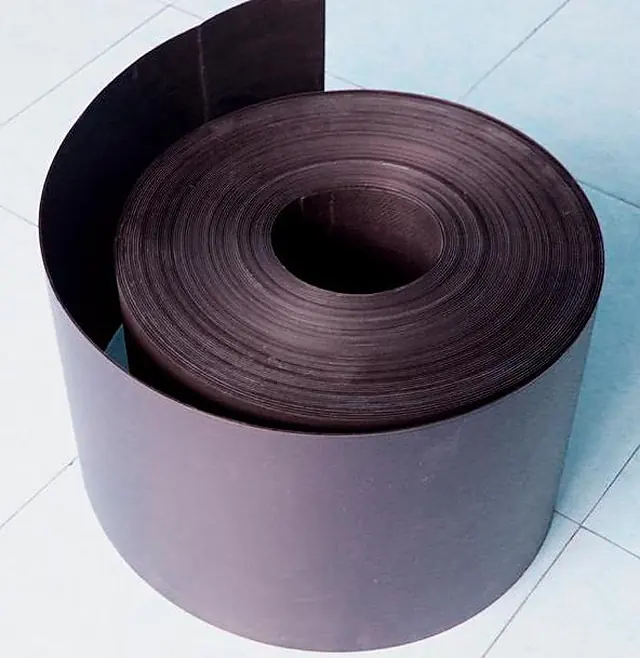

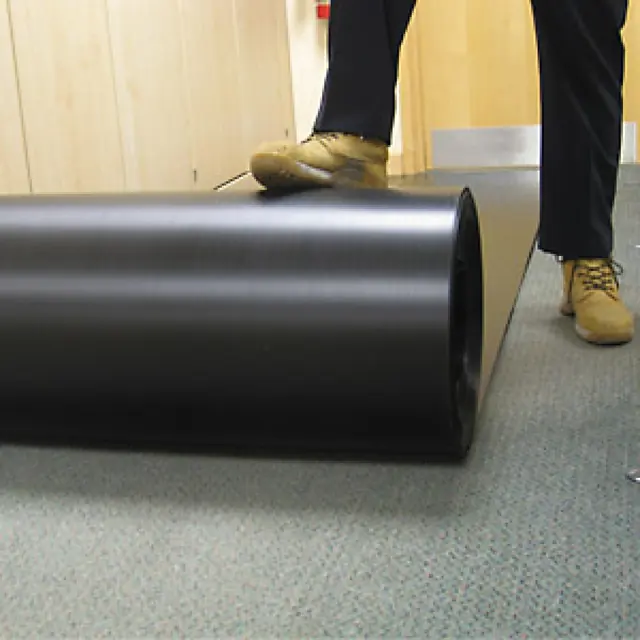

Extruded polypropylene twin-wall sheet, supplied in board form and also available on the roll for continuous floor runs.
Manufacturing Process
- Raw Material High impact co-polymer polypropylene resin, with anti-static, conductive, UV or flame retardant masterbatch added at the extruder when a modified grade is ordered.
- Extrusion The sheet is extruded on one of six production lines to the ordered thickness and weight per square metre. Printing grade stock is corona treated on both surfaces during extrusion.
- Cutting and Creasing Sheets are cut to the ordered panel size and creased where the part has to fold.
- Fabrication Boxes, totes, trays, sleeves and layer pads are formed by welding, riveting or sealing the edges and corners, and accessories are fitted.
- Inspection and Packing Finished goods are inspected, then packed in plastic shrink film on wooden pallets or to the packing method the customer specifies.
From Enquiry to Delivered Goods
Quality Control
ISO 9001:2000 Quality Management System
Operations run to an ISO 9001:2000 quality management system so that the process meets international standards.
100% Inspection Before Delivery
Quality control is carried out inside our own factory and every product is 100% tested before it is released for delivery.
Extrusion Line Control
Thickness, weight per square metre, flute geometry and colour are set and checked on the extrusion line so each sheet matches the ordered specification.
Fabrication Check
Cut sizes, crease positions, welded corners and sealed edges are checked against the approved sample before packing.
Certifications and Standards
Operations run to an ISO 9001:2000 quality management system. Container resin can be specified as ESD safe or flame retardant meeting UL 94 HB flame retardant grade. Where food contact packing is required, 100% new virgin materials are used. We do not publish certificates we have not been given — ask and we will send what applies to your order.
Customization and Comparison
Customization Options
- OEM and customised orders are welcome. Send the drawing and the requirements of the style you want and we will submit samples for your approval.
- Thickness, weight per square metre, panel size, colour and grade are all set per order.
- Boxes and containers can be produced in different colours, thicknesses and styles to your detailed requirements, including dividers, layer pads and accessories.
- Printing and self-adhesive vinyl application are available on corona treated printing grade stock.
Comparison With Other Options
| Option | What It Means for You |
|---|---|
| PP Protection Board | Waterproof, reusable, 2.2–5.0 mm, chemical resistant |
| Cardboard Protection | Fails when wet, single use, lower price |
| Hardboard | Heavy, absorbs moisture, harder to cut and handle |
Use Guide
- Match thickness to the traffic: lighter 2.2–3.0 mm board for glazing and fixtures, 4.0–5.0 mm where trolleys and heavy foot traffic run.
- Tape the joints so grit does not migrate under the boards and scratch the surface you are protecting.
- Use a distinct colour per phase so site teams can see at a glance which protection is current.
- Lift and store the boards flat after each phase so they can be reused.
Related Products
Corrugated Plastic SheetCorrugated Plastic SheetExtruded twin-wall polypropylene board, 2–12 mm, in any colour and gradeView Details
Corrugated Plastic SheetFlame Retardant Plastic SheetExtruded flame retardant twin-wall board for household appliance and automotive useView Details
Corrugated Plastic SheetPlastic Layer PadSealed-edge divider sheet for stacking glass bottles, cans and containersView Details
Corrugated Plastic SheetFluted Polypropylene SheetCorona treated printing grade twin-wall board for graphics, packaging and agricultureView Details Related Industry Applications
Related Solutions
Related Articles
FAQ
FAQ About Temporary Surface Protection Board
What Thicknesses Are Available
2.2 mm, 3.0 mm, 4.0 mm and 5.0 mm.
What Is the Standard Board Size
2000 mm × 1000 mm, or any other size as required.
What Colours Do You Supply
Blue, black, grey, orange, red and white, or another colour as required.
What Does It Protect
Waterproofing membranes, infrastructure networks, fixtures during construction, and windows and floors.
How Do I Get Samples
Samples are free of charge. We send them as soon as possible by FedEx, UPS or DHL international air express.
How Long Does Production Take
From order and payment confirmation it takes 7 to 10 days to arrange production and book shipping space in advance before the goods are ready for shipment.
Get a Quotation for Temporary Surface Protection Board
Send thickness colour weight per square metre and end use and we quote against that specification
Samples are free of charge and sent by FedEx UPS or DHL · Production 7 to 10 days after order confirmation
