Electronic Parts Packaging Containers
ESD and anti-static boxes for packaging storage and transportation of components
- GradesESD (electrostatic discharge) and anti-static
- Antistatic Resistivity1×10⁸ Ω to 1×10¹⁰ Ω, any colour
- Conductive Resistivity1×10³ Ω to 1×10⁵ Ω, black
- Sheet Thickness2 mm to 12 mm
Send a drawing by WhatsApp or email for a custom size. Samples are free of charge and sent by FedEx UPS or DHL.
Product Overview

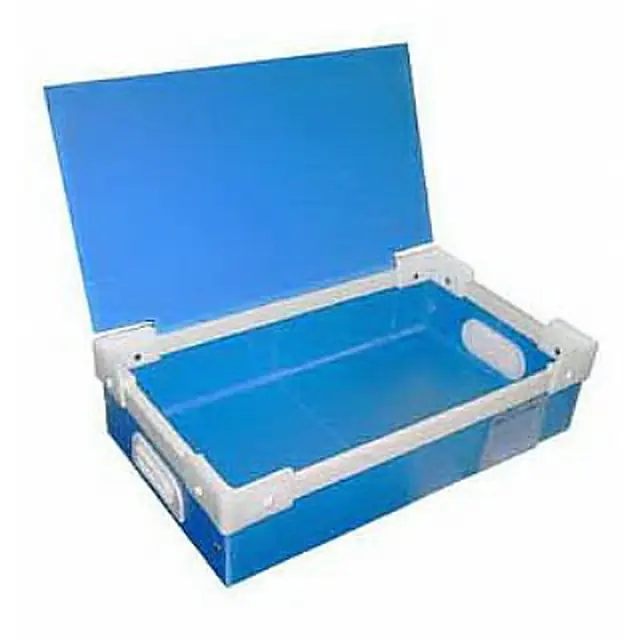

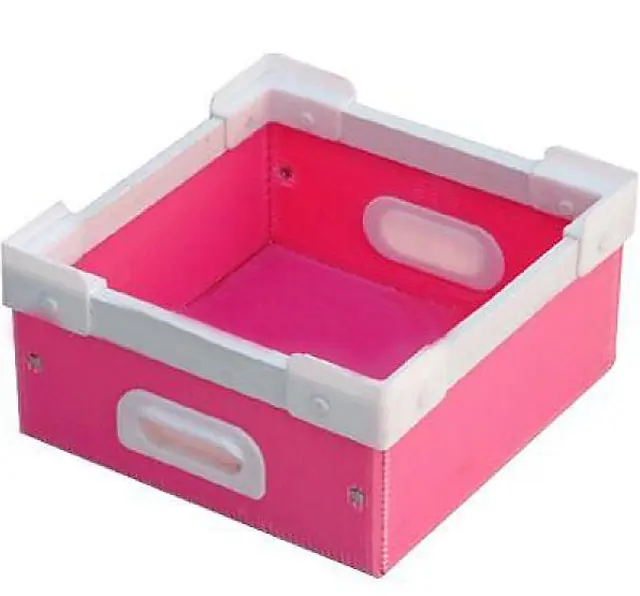

Special application containers can be fabricated, including ESD (electrostatic discharge) boxes and anti-static boxes, and they are widely applied as packaging, storage and transportation of electronic components.
Because those components are very sensitive, fragile and high in value, they need proper protection from damage. A corrugated plastic container is a better choice than other packing materials such as wood, cardboard or even metal.
These boxes prevent spare parts or industrial materials from breakage because of their static properties, and they transport and store safely. They give particularly effective protection for semiconductor, computer and telecommunication equipment. Any type of container can be fabricated for electronic component packaging.
Key Benefits
ESD and Anti-Static Versions
Both electrostatic discharge boxes and anti-static boxes are fabricated from our own sheet.
Protection for High Value Parts
Sensitive, fragile and valuable components are kept from breakage in transit and storage.
Better Than Wood Cardboard or Metal
For this duty corrugated plastic outperforms those packing materials.
Any Container Type
Boxes, totes, trays and fitted inserts to your drawing.
Washable and Reusable
Containers return through the loop and clean up between cycles.
Applications and Fit
Application Scenarios
- Packaging of electronic components
- In-plant storage of static sensitive parts
- Transportation of semiconductor, computer and telecom equipment
- Fitted trays and dividers for PCBs and modules
Who It Is For
- Electronics manufacturers and EMS providers
- Semiconductor packaging engineers
- Telecom equipment producers
- Distribution centres handling electronic goods
Problems It Solves
- Static build-up damages components before they reach the line.
- Cardboard sheds fibres in a controlled assembly area.
- Loose parts move inside oversized packaging and get damaged.
Technical Data
Specifications
| Grades | ESD (electrostatic discharge) and anti-static |
|---|---|
| Antistatic Resistivity | 1×10⁸ Ω to 1×10¹⁰ Ω, any colour |
| Conductive Resistivity | 1×10³ Ω to 1×10⁵ Ω, black |
| Sheet Thickness | 2 mm to 12 mm |
| Sheet Weight | 250 g/m² to 2000 g/m² |
| Style | Any type of container for electronic component packaging |
Technical Features and Materials
Corrugated polypropylene sheet in anti-static or conductive grade, fabricated into the container.
Manufacturing Process
- Raw Material High impact co-polymer polypropylene resin, with anti-static, conductive, UV or flame retardant masterbatch added at the extruder when a modified grade is ordered.
- Extrusion The sheet is extruded on one of six production lines to the ordered thickness and weight per square metre. Printing grade stock is corona treated on both surfaces during extrusion.
- Cutting and Creasing Sheets are cut to the ordered panel size and creased where the part has to fold.
- Fabrication Boxes, totes, trays, sleeves and layer pads are formed by welding, riveting or sealing the edges and corners, and accessories are fitted.
- Inspection and Packing Finished goods are inspected, then packed in plastic shrink film on wooden pallets or to the packing method the customer specifies.
From Enquiry to Delivered Goods
Quality Control
ISO 9001:2000 Quality Management System
Operations run to an ISO 9001:2000 quality management system so that the process meets international standards.
100% Inspection Before Delivery
Quality control is carried out inside our own factory and every product is 100% tested before it is released for delivery.
Extrusion Line Control
Thickness, weight per square metre, flute geometry and colour are set and checked on the extrusion line so each sheet matches the ordered specification.
Fabrication Check
Cut sizes, crease positions, welded corners and sealed edges are checked against the approved sample before packing.
Certifications and Standards
Operations run to an ISO 9001:2000 quality management system. Container resin can be specified as ESD safe or flame retardant meeting UL 94 HB flame retardant grade. Where food contact packing is required, 100% new virgin materials are used. We do not publish certificates we have not been given — ask and we will send what applies to your order.
Customization and Comparison
Customization Options
- OEM and customised orders are welcome. Send the drawing and the requirements of the style you want and we will submit samples for your approval.
- Thickness, weight per square metre, panel size, colour and grade are all set per order.
- Boxes and containers can be produced in different colours, thicknesses and styles to your detailed requirements, including dividers, layer pads and accessories.
- Printing and self-adhesive vinyl application are available on corona treated printing grade stock.
Comparison With Other Options
| Option | What It Means for You |
|---|---|
| ESD Corrugated Plastic Box | Static control, washable, reusable, light |
| Cardboard Box | No static control, sheds fibres, single trip |
| Wooden Case | Heavy, sheds particles, needs fumigation for export |
| Metal Container | Durable but heavy and costly to return |
Use Guide
- State the resistivity band your ESD procedure requires so the correct grade is used.
- Send the component or module dimensions so inserts hold the parts without movement.
- Decide colour coding early; conductive grade is black, anti-static grade can be coloured.
Related Products
Corrugated Plastic ContainersConductive and Antistatic Plastic ContainersESD containers for packaging, storage and transport of electronic componentsView Details
Corrugated Plastic SheetConductive Plastic SheetBlack conductive grade at 1×10³ to 1×10⁵ Ω surface resistivityView Details
Corrugated Plastic SheetAnti-Static Plastic SheetSurface resistivity 1×10⁸ to 1×10¹⁰ Ω, available in any colourView Details
Corrugated Plastic ContainersAuto Parts Packaging ContainersReusable boxes, containers and bulk boxes without mould costView Details Related Industry Applications
Related Solutions
Related Articles
FAQ
FAQ About Electronic Parts Packaging Containers
What Types of Box Can You Fabricate
ESD boxes and anti-static boxes, and in fact any type of container for electronic component packaging.
Why Is Plastic Better Here Than Cardboard
The components are sensitive, fragile and high in value, and corrugated plastic is a better packing choice than wood, cardboard or even metal.
What Equipment Is It Used For
It is especially effective for semiconductor, computer and telecommunication equipment.
Can You Add Dividers and Inserts
Yes. Dividers, layer pads and fitted inserts are fabricated with the container.
How Do I Get Samples
Samples are free of charge. We send them as soon as possible by FedEx, UPS or DHL international air express.
How Long Does Production Take
From order and payment confirmation it takes 7 to 10 days to arrange production and book shipping space in advance before the goods are ready for shipment.
Get a Quotation for Electronic Parts Packaging Containers
Send thickness colour weight per square metre and end use and we quote against that specification
Samples are free of charge and sent by FedEx UPS or DHL · Production 7 to 10 days after order confirmation
