AlumaCorr
Corrugated plastic core faced with aluminium on both sides, up to 10 years service life
- Thickness2.5 mm to 6.5 mm
- Weight1.5 kg/m² to 3.5 kg/m²
- Size2440 mm × 1220 mm or as required by customers
- SurfaceSmooth aluminium both sides
Send a drawing by WhatsApp or email for a custom size. Samples are free of charge and sent by FedEx UPS or DHL.
Product Overview

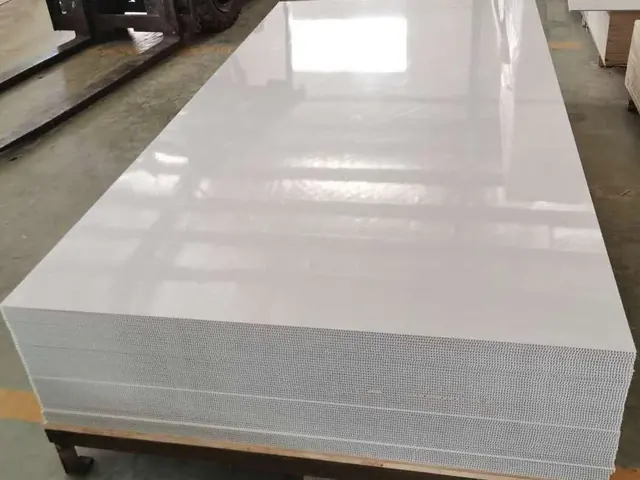

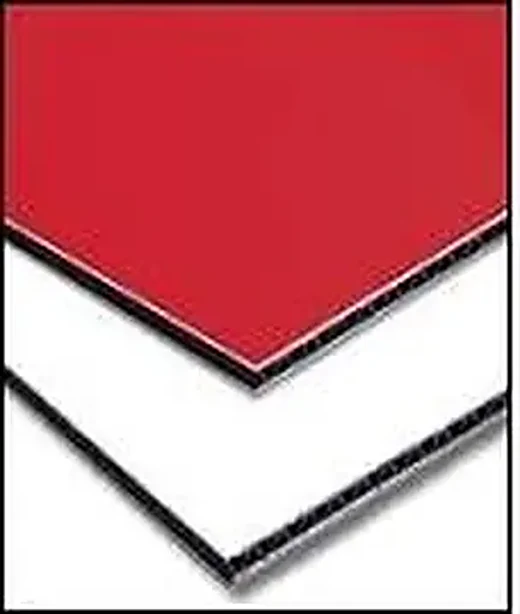

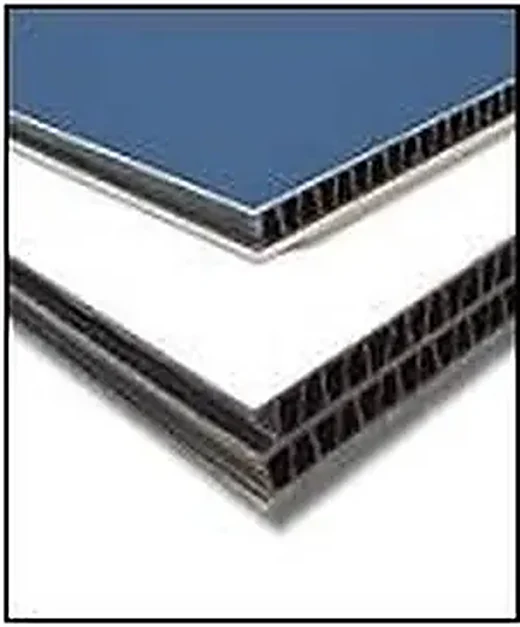

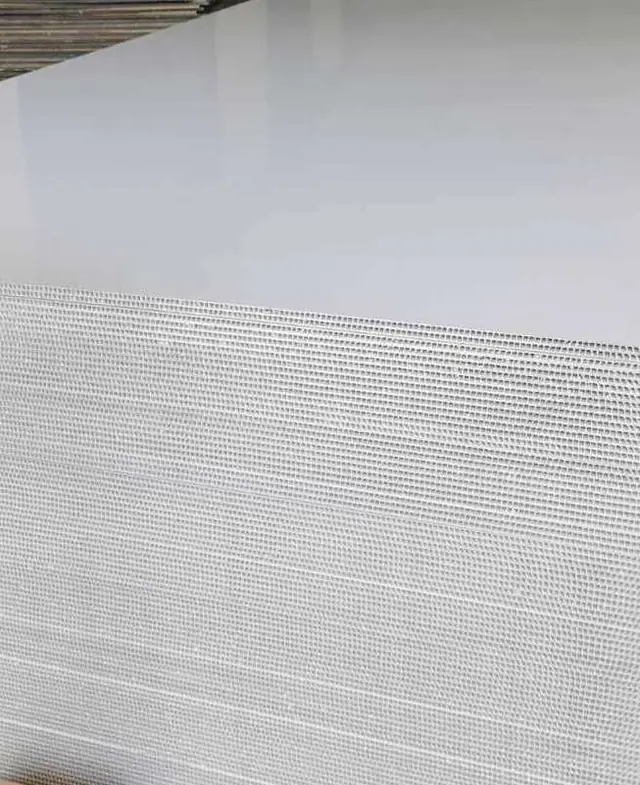

AlumaCorr, also known as aluminium-plastic composite panel, is made of corrugated plastic sheet covered with aluminium on both sides.
AlumaCorr is widely used in construction, interior decoration, outdoor advertising, signage and other fields, and it can effectively replace MDO, aluminium sheet, vinyl sheet and wood core board.
Key Benefits
Smooth Aluminium Surface
A finished metal face straight off the panel.
Lightweight and Durable
Strong in compression and bending resistance for its weight.
Graphics Ready
Suitable for vinyl letters, inks and graphics.
Service Life up to 10 Years
As stated for the panel in service.
Replaces Several Materials
Effectively replaces MDO, aluminium sheet, vinyl sheet and wood core board.
Applications and Fit
Application Scenarios
- Outdoor advertising and signage
- Construction panels and cladding
- Interior decoration
- Vinyl lettering and graphic panels
Who It Is For
- Sign fabricators and outdoor advertising companies
- Architectural and interior fit-out contractors
- Sign material distributors
Problems It Solves
- MDO and wood core board absorb moisture and delaminate.
- Solid aluminium sheet is heavy and costly for large sign faces.
- Plastic-only panels do not give the metal finish a client expects.
Technical Data
Specifications
| Thickness | 2.5 mm to 6.5 mm |
|---|---|
| Weight | 1.5 kg/m² to 3.5 kg/m² |
| Size | 2440 mm × 1220 mm or as required by customers |
| Surface | Smooth aluminium both sides |
| Service Life | Up to 10 years |
| Packing | Plastic film and wooden pallet or as required by customers |
Technical Features and Materials
Corrugated plastic core faced with aluminium on both sides.
Manufacturing Process
- Raw Material High impact co-polymer polypropylene resin, with anti-static, conductive, UV or flame retardant masterbatch added at the extruder when a modified grade is ordered.
- Extrusion The sheet is extruded on one of six production lines to the ordered thickness and weight per square metre. Printing grade stock is corona treated on both surfaces during extrusion.
- Cutting and Creasing Sheets are cut to the ordered panel size and creased where the part has to fold.
- Fabrication Boxes, totes, trays, sleeves and layer pads are formed by welding, riveting or sealing the edges and corners, and accessories are fitted.
- Inspection and Packing Finished goods are inspected, then packed in plastic shrink film on wooden pallets or to the packing method the customer specifies.
From Enquiry to Delivered Goods
Quality Control
ISO 9001:2000 Quality Management System
Operations run to an ISO 9001:2000 quality management system so that the process meets international standards.
100% Inspection Before Delivery
Quality control is carried out inside our own factory and every product is 100% tested before it is released for delivery.
Extrusion Line Control
Thickness, weight per square metre, flute geometry and colour are set and checked on the extrusion line so each sheet matches the ordered specification.
Fabrication Check
Cut sizes, crease positions, welded corners and sealed edges are checked against the approved sample before packing.
Certifications and Standards
Operations run to an ISO 9001:2000 quality management system. Container resin can be specified as ESD safe or flame retardant meeting UL 94 HB flame retardant grade. Where food contact packing is required, 100% new virgin materials are used. We do not publish certificates we have not been given — ask and we will send what applies to your order.
Customization and Comparison
Customization Options
- OEM and customised orders are welcome. Send the drawing and the requirements of the style you want and we will submit samples for your approval.
- Thickness, weight per square metre, panel size, colour and grade are all set per order.
- Boxes and containers can be produced in different colours, thicknesses and styles to your detailed requirements, including dividers, layer pads and accessories.
- Printing and self-adhesive vinyl application are available on corona treated printing grade stock.
Comparison With Other Options
| Option | What It Means for You |
|---|---|
| AlumaCorr | Aluminium faced, light, up to 10 years, takes vinyl and inks |
| MDO Board | Absorbs moisture, heavier, shorter outdoor life |
| Solid Aluminium Sheet | Longer life but heavier and more expensive |
| Corrugated Plastic Sign Board | Cheapest, lighter, plastic surface finish |
Use Guide
- Choose panel thickness against the sign frame span; 2.5 mm suits small faces and 6.5 mm large ones.
- Confirm weight per square metre for the fixing method your installer uses.
- Clean the aluminium face before applying vinyl letters or graphics.
Related Products
Signs and AdvertisingCorflute SignsCorona treated printing grade board at 45 dynes for screen and digital printingView Details
Signs and AdvertisingCartonplast SignsThe same twin-wall sign board sold as Cartonplast, Correx and CorriboardView Details
Signs and AdvertisingCoroplast SignsTwin-wall polypropylene sign board in any colour with printing service availableView Details
Corrugated Plastic SheetPP Honeycomb BoardThree-layer bubble guard panel with a circular honeycomb core, up to 2500 mm wideView Details Related Industry Applications
Related Solutions
Related Articles
FAQ
FAQ About AlumaCorr Aluminium Composite Panel
What Is AlumaCorr Made Of
A corrugated plastic sheet core covered with aluminium on both sides.
What Thickness Range Is Available
From 2.5 mm to 6.5 mm, at 1.5 kg/m² to 3.5 kg/m².
How Long Does It Last
Service life is up to 10 years.
What Can It Replace
It effectively replaces MDO, aluminium sheet, vinyl sheet and wood core board.
How Do I Get Samples
Samples are free of charge. We send them as soon as possible by FedEx, UPS or DHL international air express.
How Long Does Production Take
From order and payment confirmation it takes 7 to 10 days to arrange production and book shipping space in advance before the goods are ready for shipment.
Get a Quotation for AlumaCorr Aluminium Composite Panel
Send thickness colour weight per square metre and end use and we quote against that specification
Samples are free of charge and sent by FedEx UPS or DHL · Production 7 to 10 days after order confirmation
