YT1000R Electro Pneumatic Valve Positioner-Rotork New Module

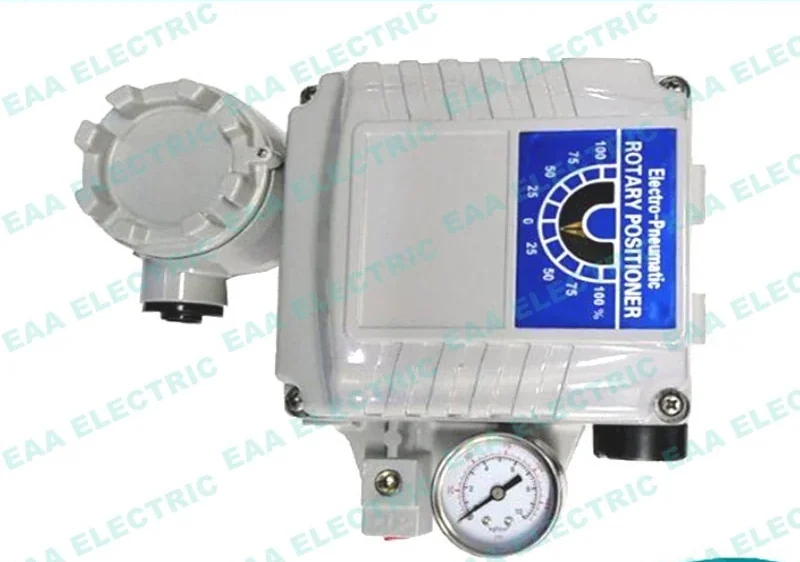

The YT-1000R electro pneumatic valve positioner is designed for the operation of pneumatic rotary valve actuators.
What This Model Does
The YT-1000R electro pneumatic valve positioner is designed for the operation of pneumatic rotary valve actuators. It operates from an analog control signal of DC 4 to 20 mA or split ranges supplied by an electrical controller or process control system. The unit controls rotary actuators to drive quarter turn valves such as ball and butterfly valves to the target position dictated by the control loop. It is supplied as a Rotork new module style unit serving as a direct form, fit and function replacement for existing plant installations.
| Model | YT-1000R Rotork New Module |
|---|---|
| Type | Electro-pneumatic valve positioner |
| Actuator type | Pneumatic rotary valve actuator |
| Input signal | DC 4 to 20 mA, split ranges available |
| Direction of action | One-way or two-way valve positioner |
| Gain action | Positive acting or reverse acting |
| Signal type | Analog signal |
| Housing colour | Black, blue, yellow or painted to order |
| Warranty | 18 months |
Why Buyers Specify This Model
- Operates pneumatic rotary valve actuators directly from an electrical analog control signal
- Accepts DC 4 to 20 mA or split range inputs to match standard plant control system outputs
- Provides direct form fit and function replacement for Rotork YTC type rotary positioner installations
- Available in positive acting or reverse acting configurations depending on output gain requirements
- Can be configured as a one-way or two-way valve positioner to suit actuator action
- Enables fast replacement on running plants without modifying actuator mounting plates
- Eliminates the need for separate external I/P transducers ahead of the rotary actuator
Problems It Solves
- Rotary control valve fails to track the DCS analog signal due to positioner wear
- Long procurement lead times from original instrumentation brands keeping plant lines waiting
- Actuator requires split range analog control that existing field units cannot support
- Need to configure positive or reverse action on rotary valves without replacing the base unit
- Sourcing delays when replacing discontinued or hard-to-find rotary electro pneumatic positioners
Application Scenarios
- Pneumatic rotary actuator on a quarter turn valve requiring positioning from a 4 to 20 mA loop
- Split range control setups where two rotary valves are sequenced from a single controller output
- Replacing a worn or damaged Rotork YTC style rotary positioner during scheduled plant maintenance
- Valve and actuator package assembly where the rotary positioner is mounted before shipment
- Skid fabrication requiring a dedicated electro pneumatic positioner for rotary control valves
Who It Is For
- Plant maintenance technicians replacing worn rotary positioners on ball and butterfly control valves
- Valve and actuator OEMs who fit positioners to rotary packages under their own branding
- EPC engineering contractors buying positioners in bulk for new plant automation projects
- Local instrumentation and valve accessory distributors stocking common rotary positioner models
- Process plant trading companies supplying direct replacement spares on tight lead times
Technical Features
- Designed specifically for pneumatic rotary valve actuator operation
- Accepts standard DC 4 to 20 mA analog control signals from controllers or control systems
- Supports split range operation across partial spans of the input signal
- Available in one-way valve positioner and two-way valve positioner action options
- Configurable for positive acting or reverse acting control gain requirements
- Analog electro pneumatic design for straightforward loop commissioning without microprocessor setup
Materials and Construction
- Cast housing with painted finish for industrial plant environments
- Rotary feedback coupling components designed for rotary valve stems
- Internal pneumatic relay and torque motor components built for continuous operation
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control

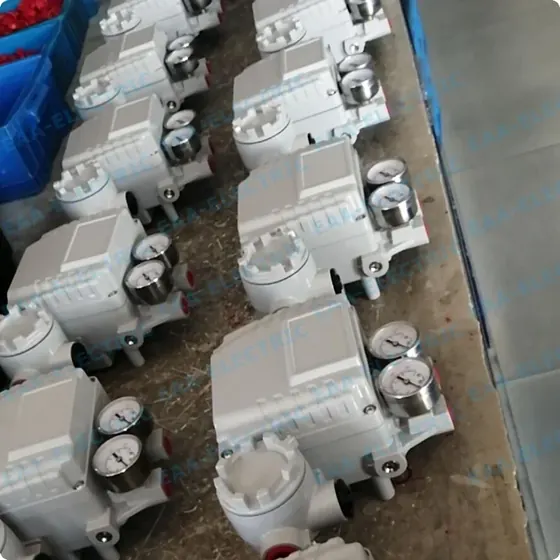

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Housing preparation and precision machining for rotary actuator mounting
Installation of torque motor and electrical analog input components

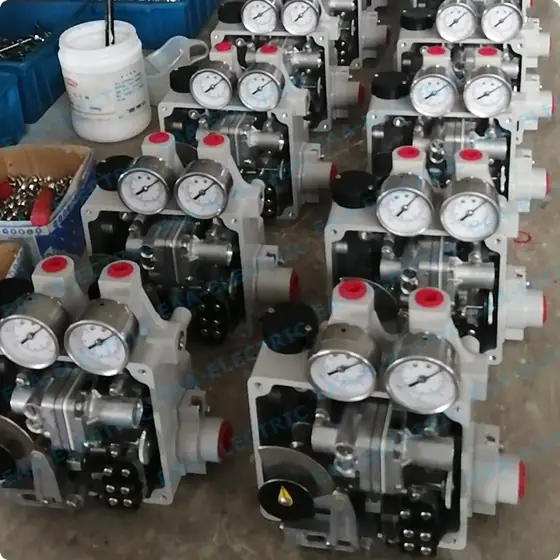

Assembly of pneumatic relay and internal feedback mechanisms
Calibration of zero and span against DC 4 to 20 mA analog inputs
Housing painted in standard or specified customer colour
Packaging in standard or custom printed cartons for dispatch
Quality Control
- Every positioner is verified across the DC 4 to 20 mA signal range before dispatch
- Photos and videos of finished units taken in the warehouse or sample room upon buyer request
- 18 month warranty covering faulty units with direct replacement rather than site repair
- Replacements dispatched on photo or video evidence, usually with the next shipment or fast-tracked
Customisation Options

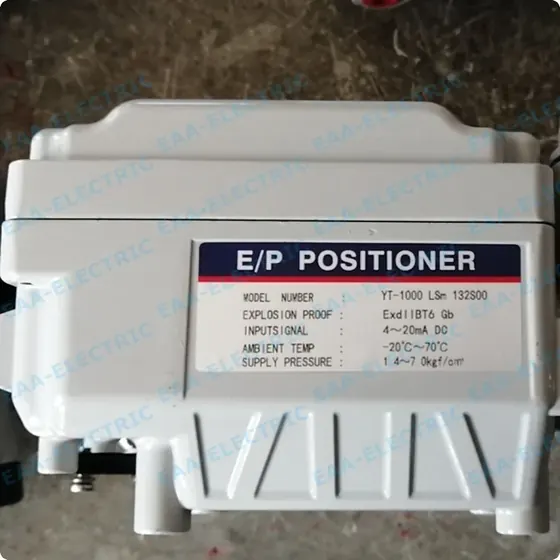

- OEM logo and nameplate marking applied to customer specification
- Housing painted in custom colours including standard black, blue, and yellow
- Newly designed shape modules developed to buyer drawings and requirements
- Customised outer cartons and inner packaging for retail or OEM distribution
- Supply alongside matching limit switch boxes, pilot valves, or pneumatic actuators
How It Compares With the Alternatives
| YT-1000L linear positioner | YT-1000R drives quarter turn rotary actuators; YT-1000L is for linear stem globe valves |
|---|---|
| Intelligent digital valve positioner | Intelligent positioners use microprocessors and auto-calibration; YT-1000R is a plain analog unit with lower upfront cost |
| Pneumatic valve positioner | Pneumatic units require an air control signal; YT-1000R accepts DC 4 to 20 mA directly from the controller |
| Fieldbus digital positioner | Fieldbus units communicate digitally over network buses; YT-1000R uses standard analog 4 to 20 mA loop wiring |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the positioner securely onto the rotary actuator using the specified mounting bracket
Align the rotary feedback shaft with the actuator drive stem to prevent binding
Connect clean, dry instrument air supply piping to the positioner air inlet port
Pipe the output ports to the rotary actuator ports for one-way or two-way operation
Wire the electrical analog input signal from the controller to the terminal block observing polarity
Calibrate zero and span using a calibrated DC 4 to 20 mA or split range signal source
Verify positive or reverse acting output matches the required valve fail action
YT1000R Electro Pneumatic Valve Positioner-Rotork New Module FAQ
What is the lead time for this rotary positioner?
Delivery is normally 2 to 3 days for regular quantities from stock. Large project quantities ship in 7 to 10 days.
What is the difference between the YT-1000R and YT-1000L?
The YT-1000R is built for pneumatic rotary valve actuators. The YT-1000L is built for pneumatic linear valve actuators on globe or diaphragm valves.
Can I get this positioner branded with our company logo?
Yes. We offer OEM and ODM services including customer logo marking, custom nameplates, and custom shape modules.
What housing colours are available?
Housings are painted to customer requirements. Black, blue, and yellow are standard options, and other colours can be painted to order.
What is your warranty policy if a unit fails on site?
All units come with an 18 month warranty. Faulty units are replaced rather than repaired based on photo or video evidence.
Can you provide supporting accessories with the positioner?
Yes. We also supply limit switch boxes, pilot valves, and pneumatic valve actuators to complete your valve automation package.
Can we inspect the units before they leave your warehouse?
Yes. Real product photos and videos can be taken in our sample room or warehouse on request before shipment.
