YT1000L Electro Pneumatic Valve Positioner Rotork YTC
The Type YT-1000L electro-pneumatic valve positioner is designed for operating pneumatic linear valve actuators from an...
What This Model Does
The Type YT-1000L electro-pneumatic valve positioner is designed for operating pneumatic linear valve actuators from an electrical controller or DCS analog output. It accepts a DC 4 to 20 mA signal or split ranges, converting the control room current into a pneumatic output that sets and maintains the required stem opening. By matching signal pressure directly to valve position, it overcomes stem friction and cancels out unbalanced forces caused by medium pressure fluctuations. Operating modes can be reversed between direct-acting and reverse-acting simply by flipping the internal cam between direction A and direction B. It serves as a direct form, fit, and function replacement for Rotork YTC pattern linear positioners across industrial process applications.

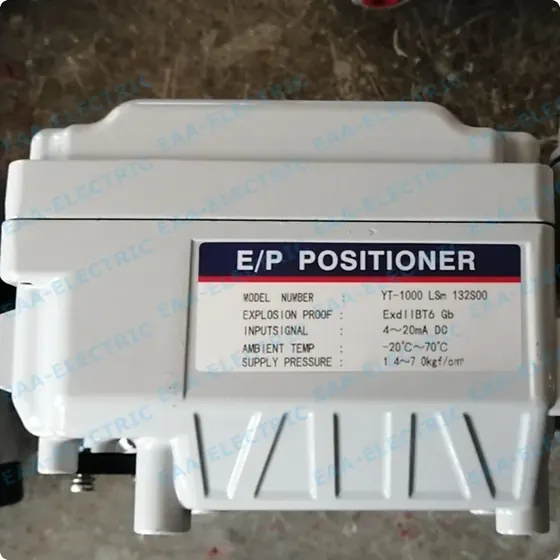

| Model | YT-1000L |
|---|---|
| Type | Electro-pneumatic valve positioner |
| Actuator compatibility | Pneumatic linear valve actuators |
| Input signal | DC 4 to 20 mA or split ranges |
| Action modes | Positive action (direct) and counteraction (reverse), selectable by cam |
| Housing colour | Black, blue, yellow, or custom painted to order |
| Delivery time | 2 to 3 days for regular quantities, 7 to 10 days for large quantities |
| Warranty | 18 months |
Why Buyers Specify This Model
- Maintains accurate valve opening corresponding to the DC 4 to 20 mA analog control signal
- Supports split range calibration so two control valves can operate sequentially from one controller loop
- Offsets the unbalanced forces generated by process medium pressure fluctuations across the valve plug
- Overcomes stem packing friction to prevent erratic valve movement and control deviation
- Simple field reversibility between direct and reverse action by flipping the internal cam
- Enables positive-acting actuators to operate with reverse action characteristics and vice versa
- Standard YTC mounting interface simplifies direct drop-in replacement on existing pneumatic linear actuators
Problems It Solves
- Process medium pressure fluctuations forcing the valve plug off its intended control position
- Stem packing friction causing control valve lag, sticking, or hunting during fine throttling
- Need to change actuator operating action without repiping or replacing the pneumatic actuator assembly
- Long delivery lead times from original instrumentation brands when replacement positioners are required urgently
- Difficulty running two sequential control valves from a single DC 4 to 20 mA control room output
Application Scenarios
- Globe control valve on a process line requiring DC 4 to 20 mA positioning
- Linear pneumatic diaphragm actuator subject to fluctuating medium pressure across the valve seat
- Split range control valve installation sequencing two valves from a single analog output channel
- Direct replacement of a worn or failed Rotork YTC linear positioner on an operational line
- Control valve assembly in an OEM workshop fitting pneumatic linear actuators prior to plant delivery
Who It Is For
- Plant instrument technicians replacing worn Rotork YTC pattern linear positioners on process control valves
- Valve and actuator OEMs requiring custom-branded electro-pneumatic positioners for linear control valve assemblies
- EPC contractors procuring instrumentation accessories and control valve positioners for capital plant projects
- Process automation distributors stocking form, fit, and function linear positioner replacements for local end users
- Trading companies sourcing fast-delivery electro-pneumatic positioners for industrial maintenance clients
Technical Features
- Designed specifically for positioning control of pneumatic linear valve actuators
- Accepts standard analog input signals of DC 4 to 20 mA or split ranges
- Internal reversible cam allows quick switching between positive action and counteraction modes
- Direct-acting mode increases output air pressure as the electrical input signal pressure increases
- Counteracting mode decreases output air pressure as the electrical input signal pressure increases
- Compensates for valve stem friction and unbalanced process forces to keep valve opening stable
Materials and Construction
- Housing supplied painted in black, blue, yellow, or custom colours on request
- Reversible internal positioning cam for direct and reverse action configuration
- Full material and construction breakdown available on request or in the product datasheet
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control

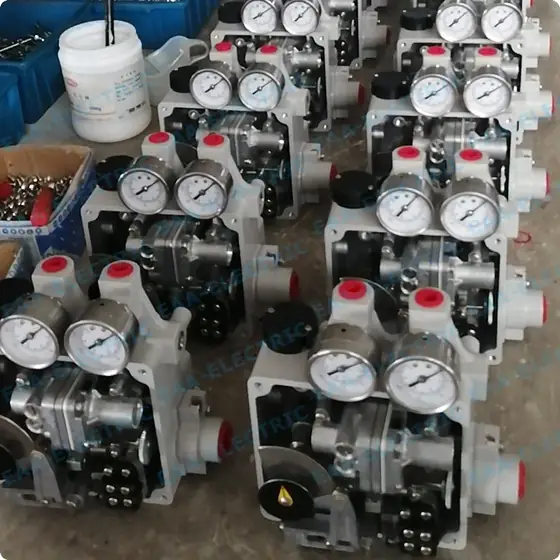

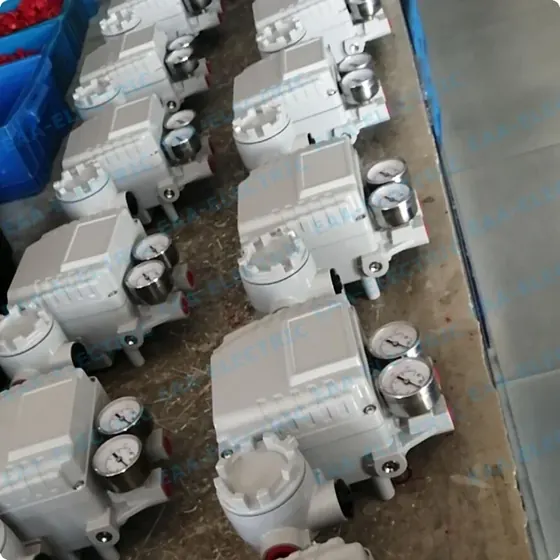

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Housing preparation and precision machining for linear actuator bracket mounting
Torque motor and pneumatic pilot valve sub-assembly integration
Internal cam mechanism installation for direct and reverse action selection
Bench testing and calibration across DC 4 to 20 mA and split ranges
Housing surface coating and paint finishing in specified custom colours
Packaging into standard cartons or customer-specified custom packaging
Quality Control
- Every positioner is calibrated and stroke tested across the signal range prior to shipment
- Real product photos and inspection videos can be provided from the warehouse or sample room
- Defective units under the 18-month warranty are replaced based on photo or video evidence rather than repaired
- Replacement positioners are dispatched with the next shipment or sent via express delivery for urgent plant breakdowns
Customisation Options
- Custom logo and brand marking on the positioner housing and nameplate
- Housing paint available in standard black, blue, yellow, or customer-specified corporate colours
- Newly designed shape modules and housing castings engineered to OEM customer requirements
- Carton and inner packaging customized with buyer part numbers and branding
- Supplied alongside supporting accessories including limit switch boxes, pilot valves, and pneumatic actuators
How It Compares With the Alternatives
| Rotary type positioners (such as YT-1000R) | The YT-1000L is engineered for linear stem actuators, whereas rotary models are built for quarter-turn valves |
|---|---|
| Standard pneumatic positioners without I/P module | The YT-1000L accepts a direct DC 4 to 20 mA electrical signal without needing an external I/P converter |
| Pneumatic actuators operated directly by air pressure | The YT-1000L offsets stem friction and line pressure fluctuations to hold accurate valve opening |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the YT-1000L securely to the linear actuator yoke using the appropriate mounting bracket
Connect the feedback mechanism to the valve stem clamp ensuring smooth travel over the full stroke
Select the required action mode by positioning the internal cam to direction A or direction B
Connect clean, dry pneumatic instrument air supply to the positioner air inlet port
Wire the DC 4 to 20 mA analog control loop to the electrical input terminals observing correct polarity
Calibrate zero and span to correspond with the required valve travel or split range settings
Verify that the valve holds target position against process line pressure fluctuations during startup
YT1000L Electro Pneumatic Valve Positioner Rotork YTC FAQ
What is the delivery time for regular and large orders?
Regular order quantities normally ship within 2 to 3 days from stock. Large project quantities typically deliver in 7 to 10 days.
Can the action mode be reversed in the field?
Yes. You can switch between positive action and counteraction simply by flipping the internal cam from direction A to direction B.
Does this positioner support split range operation?
Yes. The YT-1000L accepts DC 4 to 20 mA input signals as well as split range calibration for sequential valve control.
Can you supply the YT-1000L with our own brand logo and colour?
Yes. We offer OEM customization including customer logos, nameplates, and housing painted in black, blue, yellow, or custom colours.
What warranty is provided and how are warranty claims handled?
We provide an 18-month warranty. Faulty units are replaced rather than repaired upon review of photo or video evidence.
Can I inspect the units before they leave the factory?
Yes. On request, we can take real product photos and videos of your units in our warehouse or sample room before shipment.
Do you supply mounting brackets and related valve accessories?
Yes. Alongside positioners, we supply limit switch boxes, pilot valves, and pneumatic valve actuators for complete control valve assemblies.
Applications Cases and Guides
Related Products
Get A Price on This Model
Tell us the quantity, the actuator it goes on and the destination port. We come back with price, lead time and confirmation that the model matches your valve.
