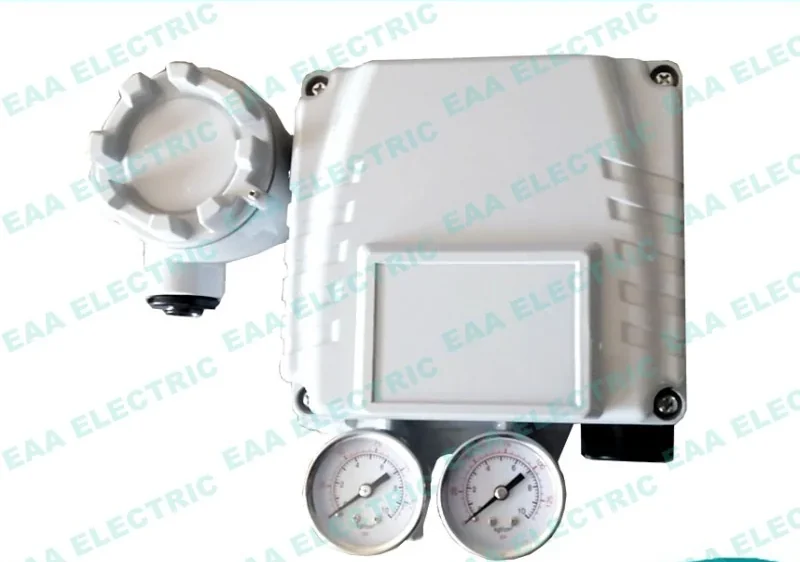

YT1000L Electro Pneumatic Valve Positioner Rotork Pattern
The YT-1000L electro pneumatic valve positioner is designed for pneumatic linear valve actuators on straight travel...

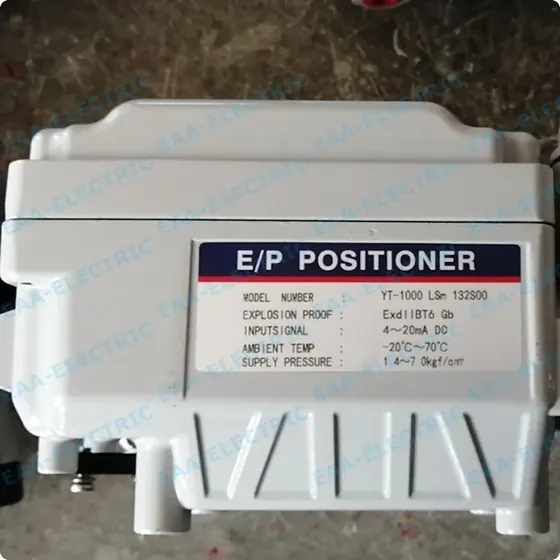

What This Model Does
The YT-1000L electro pneumatic valve positioner is designed for pneumatic linear valve actuators on straight travel regulating valves and wind panels. It receives an analog DC 4 to 20 mA signal or split range signals from an electrical controller or DCS to modulate actuator position. Operating on a torque balance principle with a nozzle flapper and pneumatic amplifier, it increases air pressure to overcome valve imbalance forces, packing drag, and signal transmission lags over long distances. It serves as a direct form fit and functional replacement for Rotork YTC type linear positioners on existing control valves.
| Model | YT-1000L |
|---|---|
| Brand family | Rotork YTC type |
| Input signal | DC 4 to 20 mA or split range |
| Actuator type | Pneumatic linear actuator (straight travel) |
| Applicable differential pressure | Up to and exceeding 1 MPa (△p > 1 MPa) |
| Applicable valve sizes | Linear valves including Dg > 100 mm |
| Signal distance limit | Suitable for controller-to-actuator distances > 60 m |
| Housing colours | Black, blue, yellow, and custom painted colours |
| Warranty | 18 months |
Why Buyers Specify This Model
- Operates pneumatic linear actuators from a standard DC 4 to 20 mA or split range analog control signal
- Increases actuator output force to handle differential pressures across the valve seat exceeding 1 MPa
- Overcomes valve stem friction caused by tightly compressed packing on high temperature or hazardous media
- Eliminates movement resistance when throttling viscous fluids or process slurries containing suspended solids
- Increases operating thrust on large diameter control valves with port sizes over Dg 100 mm
- Overcomes signal transmission lag when the controller is located more than 60 metres away from the actuator
- Enables split range operation so two control valves can sequence from a single controller output
Problems It Solves
- Actuator fails to seat or stroke accurately because line differential pressure exceeds 1 MPa
- Tight packing on toxic or high temperature lines causes severe stem friction and valve response lag
- Thick fluids or suspended solids create mechanical resistance that stalls standard actuator action
- Controller output is attenuated or delayed because line distance exceeds 60 metres
- One DCS channel must sequence two valves across split signal ranges without external converter hardware
Application Scenarios
- Control valves operating across high differential pressures above 1 MPa where plug forces cause stroke error
- Large diameter regulating valves above Dg 100 mm requiring boosted actuator thrust to maintain stability
- Tight stem packing installations on toxic flammable high pressure or cryogenic services with stem drag
- Long pipe runs where the controller or DCS cabinet is positioned more than 60 metres from the actuator
- Slurry lines or viscous fluid handling where suspended solids resist smooth valve stem travel
- Split range temperature control loops where two linear valves sequence from one DC 4 to 20 mA loop
- Replacing failed Rotork YTC type positioners on operating processing skids without altering actuator mountings
Who It Is For
- Plant instrumentation technicians maintaining linear control valves and dampers in chemical and process plants
- Valve automation shops fitting electro pneumatic positioners onto straight travel pneumatic actuators
- EPC project contractors sourcing replacement positioners for industrial piping packages
- Distributors supplying Rotork YTC pattern instrumentation spares to local manufacturing facilities
- Actuator OEMs requiring custom painted positioners with private branding for linear control assemblies
Technical Features
- Torque balance mechanism balancing input pressure against main lever rotation around a fixed fulcrum
- Internal nozzle baffle assembly paired with a unidirectional pneumatic amplifier for air pressure boost
- Accepts standard DC 4 to 20 mA analog input signals as well as split range signal configurations
- Configured specifically for straight travel pneumatic linear actuators and regulating valves
- Directly boosts air supply to actuator chambers to counter fluid imbalance on the valve plug
- Can be paired with limit switch boxes pilot valves and pneumatic actuators from the same manufacturer
Materials and Construction
- Cast metal housing with industrial protective paint finish
- Internal torque balance mechanical lever and nozzle flapper components
- Pneumatic amplifier block and bellows pressure sensing assembly
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control

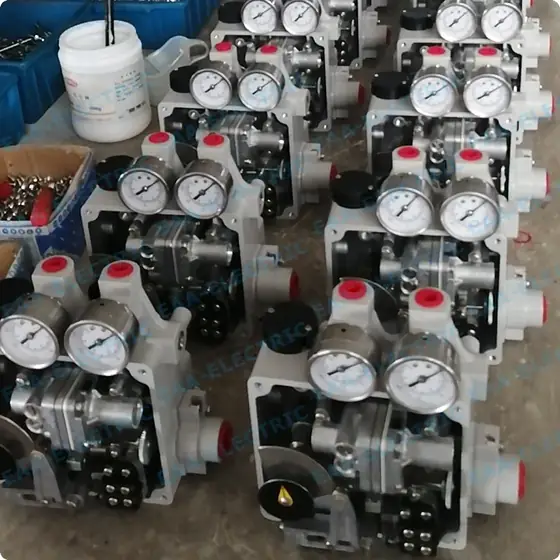

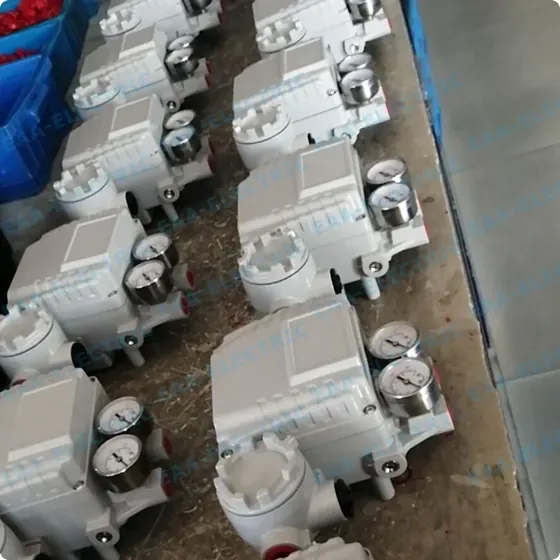

Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Die casting and CNC machining of the positioner body and terminal enclosure
Assembly of the torque balance lever mechanism nozzle flapper and pneumatic amplifier
Pneumatic bench calibration across DC 4 to 20 mA and split range input spans
Custom colour housing painting and private logo application for OEM orders
Function testing of stroke response and pressure output prior to packaging
Quality Control
- Every unit undergoes stroke response and signal calibration checks before shipping
- Sample room or warehouse photos and video can be provided prior to dispatch
- Eighteen month replacement warranty covering defective units upon photo or video confirmation
- Warranty replacements dispatched with next shipment or expedited if plant operation is down
Customisation Options
- Custom nameplate marking and customer logo branding on positioner housings
- Exterior body painting in black blue yellow or custom customer specified colours
- Customised carton packaging and inner packing tailored to distributor needs
- New shape modules and custom enclosure adaptations developed to client specifications
- Option to supply pre-assembled with model 210, 310, 410, or 510 limit switch boxes
How It Compares With the Alternatives
| Pneumatic controller air direct to actuator | The positioner boosts supply air pressure to overcome packing friction and line differential pressure above 1 MPa |
|---|---|
| YT-1000R rotary positioner | The YT-1000L is built for straight travel linear actuators while the YT-1000R is built for quarter turn valves |
| Standard single valve configuration | The YT-1000L accepts split range inputs so two valves can be modulated in sequence from a single DCS output |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the YT-1000L securely to the linear actuator yoke using compatible mounting hardware
Connect the linear stem feedback linkage to track straight travel stem movement accurately
Supply clean dry instrument air to the supply port to meet actuator thrust requirements
Terminate the analog DC 4 to 20 mA control loop wiring onto the internal terminals
Adjust the zero and span settings to align actuator stroke with the low and high input signals
For split range control calibrate one positioner for the lower current span and the other for the upper span
Inspect instrument air filtration regularly to keep the internal nozzle and amplifier clean
YT1000L Electro Pneumatic Valve Positioner Rotork Pattern FAQ
What is the standard delivery lead time?
Regular quantities are typically dispatched within 2 to 3 days. Large batch quantities ship in 7 to 10 days.
Can the YT-1000L handle long distances from the control room?
Yes. The positioner overcomes signal transmission lag when the distance between regulator and actuator is more than 60 metres.
Can this positioner handle high valve differential pressures?
Yes. It is designed to boost actuator force on valves operating with differential pressures exceeding 1 MPa.
Can we order these units with our company branding and colour?
Yes. We provide OEM service including custom housing paint in black, blue, yellow or specific colours, along with custom logo marking.
What is the warranty policy if a unit fails on site?
All units carry an 18 month warranty. If an issue occurs, submit photo or video evidence and a replacement unit will be provided.
Is the YT-1000L suitable for split range control?
Yes. Two positioners can be configured to accept low and high input signals respectively, sequencing two actuators from one regulator.
