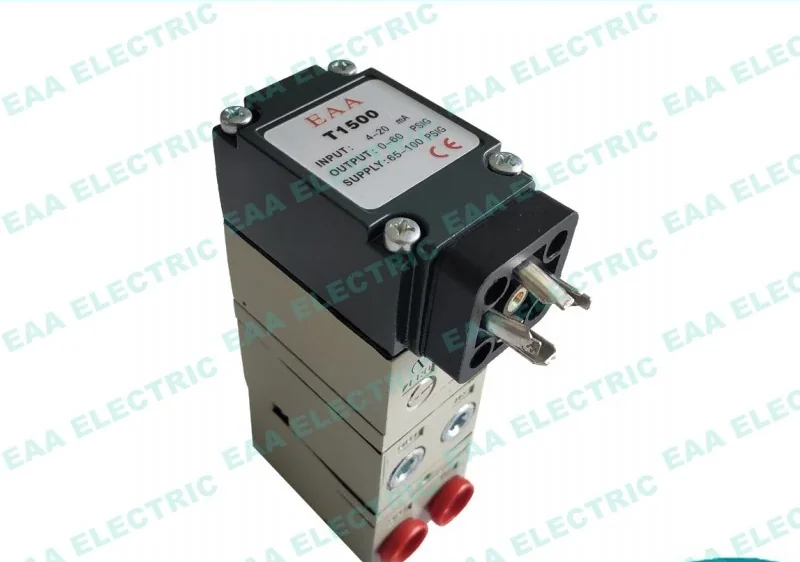

T1500 Electro Pneumatic Transducer
The T1500 is an electro pneumatic transducer (I/P and E/P converter) that converts a variable electrical input signal, such...
What This Model Does
The T1500 is an electro pneumatic transducer (I/P and E/P converter) that converts a variable electrical input signal, such as a 4 to 20 mA current from a control room or a voltage signal, into a proportional pneumatic output pressure. It is designed to provide precision control for valve actuators, pneumatic positioners, dampers, and other final control elements, particularly high-flow control devices. An integral pneumatic volume booster provides high flow capacity directly from the unit without needing an external booster relay. Built in a compact housing with front and rear porting options, it mounts in space-constrained locations, on DIN rail kits, or in multi-device manifolds.
| Model | EAA-T1500 (Type 1500) |
|---|---|
| Type | Electro pneumatic transducer (I/P, E/P converter) |
| Input signal | Variable current (4-20 mA) or voltage |
| Output | Proportional pneumatic pressure |
| Operating pressure requirement | Stable near 0.14 MPa |
| Port locations | Supply and output ports on front and back |
| Adjustments | External zero and span |
| Warranty | 18 months |
Why Buyers Specify This Model
- Converts electrical current or voltage signals directly into proportional output air pressure for pneumatic equipment
- Built-in volume booster delivers high flow capacity without requiring an external booster relay
- Small footprint and compact size permit installation in space-constrained enclosures and skid panels
- Pneumatic supply and output ports located on both front and back simplify panel and bracket piping
- Supports manifold mounting kits offering three, five, or ten multi-device mounting points
- Low air consumption design reduces continuous demand on the plant instrument air supply
- External zero and span adjustments allow straightforward field calibration without opening the housing
- Field accessible orifice simplifies routine maintenance when cleaning air passages on site
Problems It Solves
- Electronic controllers cannot directly pilot pneumatic actuators without an accurate electrical-to-pressure conversion stage
- External volume booster relays take up excess space and add pipe fittings to valve assemblies
- Cramped control cabinets cannot accommodate bulky conventional transducers
- Long lead times on original brand transducers cause delays during plant maintenance and turnaround
- Dirty instrument air plugging an internal restriction without an easy-access orifice for cleaning
Application Scenarios
- Driving a pneumatic valve actuator or positioner from a 4 to 20 mA DCS output loop
- Multi-device panel mounting using a three, five, or ten position manifold assembly
- Space-constrained instrumentation cabinets where DIN rail mounting is required
- Controlling high-flow pneumatic actuators without installing a separate volume booster relay
- Replacing an existing Marsh Bellofram type T1500 transducer on an operational process line
Who It Is For
- Plant instrument technicians replacing worn or discontinued Marsh Bellofram type T1500 transducers
- Control valve and actuator OEMs requiring compact I/P converters under their own brand
- EPC contractors sourcing electro pneumatic transducers for multi-loop process skid builds
- Instrumentation distributors stocking form fit and function replacement transducers for local plants
- Panel builders requiring multi-device manifold or DIN rail mounted electro pneumatic converters
Technical Features
- Magnetic coil and disc baffle mechanism translating current values into physical displacement
- Integral pneumatic volume booster incorporated within the main body for high flow output

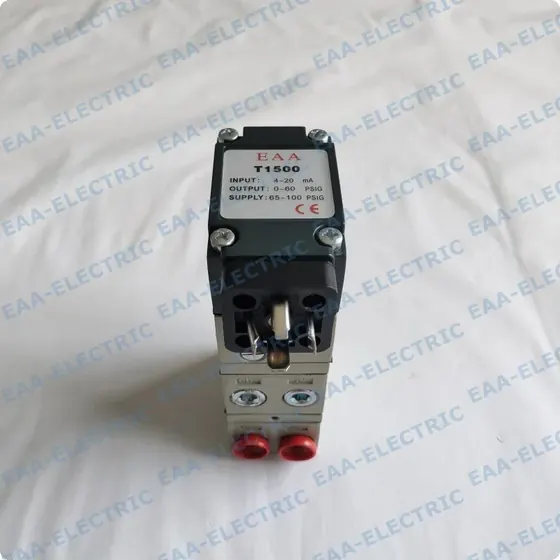

- Supply and output pneumatic ports provided on both the front and back of the housing

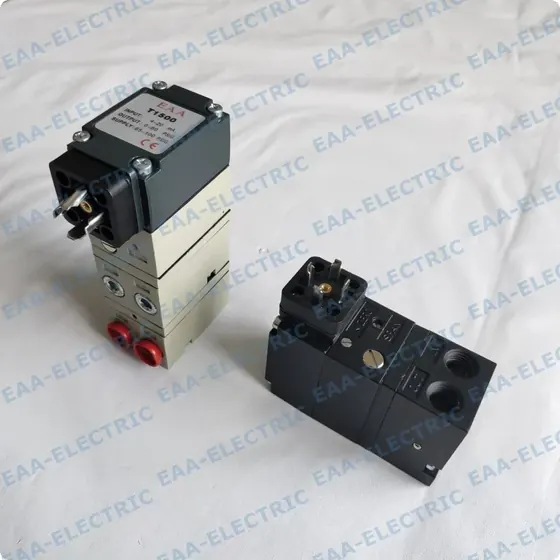

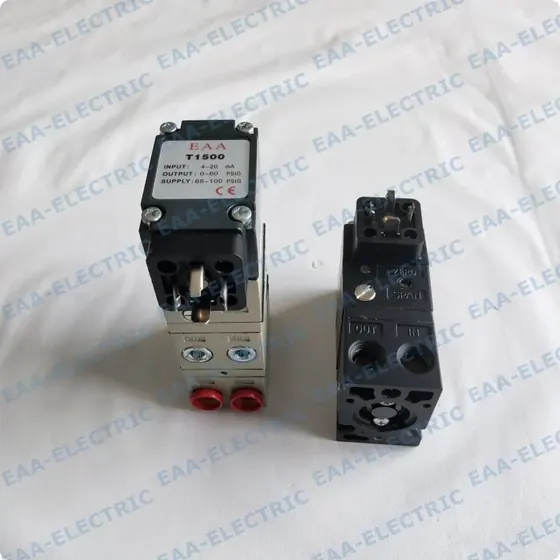

- Multiple electrical connection styles: 1/2 NPT conduit, BSPT, terminal block, or Hirschmann DIN 43650-A

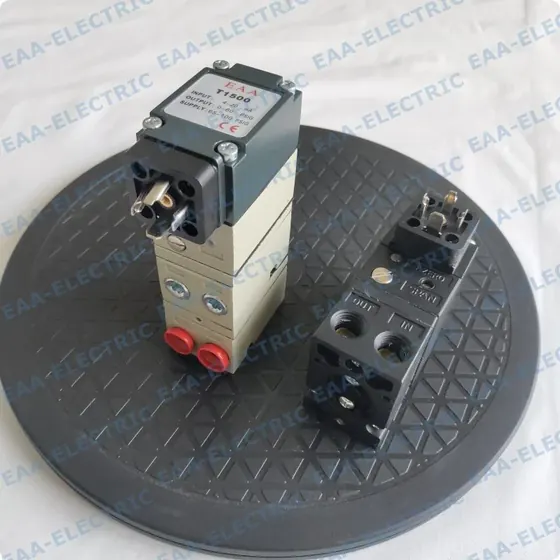

- External adjustment screws for field calibration of zero and span points
- Field accessible orifice for simplified maintenance and servicing
- Available with DIN rail mounting kits and manifold assemblies of three, five, or ten points
- Optional Intrinsically Safe (FM, CSA, ATEX) and NEMA 4X (FM, CSA) configurations
Materials and Construction
- Metal coil and magnet assembly with integrated disc baffle
- Painted cast metal housing for industrial process environments
- Full material and finish breakdown is given in the datasheet PDF
Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Housing machining and surface preparation
Torque motor, magnet, coil, and disc baffle assembly
Integral pneumatic volume booster assembly and seating
Pressure calibration across input current range with stable air supply
Zero and span calibration adjustment checks
Housing painting to customer requirements and OEM marking
Packaging in standard or custom cartons
Quality Control
- Every transducer is calibrated and function tested before packing
- Real product photos or video can be recorded in the sample room or warehouse prior to shipment
- Faulty units under the 18 month warranty are replaced on photo or video evidence rather than repaired
- Urgent replacement goods are re-sent in the fastest way when required for plant downtime
Customisation Options
- Customer logo and custom nameplate marking
- Housing painted in custom colours including black, blue, yellow, and others
- Newly designed shape modules developed to customer specifications
- Carton and packaging customisation
- Mounting kits supplied for DIN rail or multi-point manifold configurations
How It Compares With the Alternatives
| Transducers without built-in boosters | The T1500 includes an integral volume booster, eliminating the need and cost of piping a separate booster relay for high-flow control |
|---|---|
| Pneumatic valve positioner | The T1500 converts an electrical signal to proportional air pressure, but does not provide mechanical valve stem position feedback |
| Original brand Marsh Bellofram T1500 | Provides matching form fit and function mounting without the long factory lead times |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Install an air filter and pressure regulator ahead of the air inlet to maintain stable, clean air near 0.14 MPa
Mount the unit directly, onto a DIN rail, or onto a 3, 5, or 10 station manifold kit
Connect pneumatic lines using either the front or rear supply and output ports according to cabinet space
Wire the 4 to 20 mA or voltage signal to the 1/2 NPT, BSPT, terminal block, or Hirschmann DIN connector
Apply minimum input signal and adjust the external zero screw until output pressure matches lower calibration point
Apply maximum input signal and adjust the external span screw, repeating zero and span until output is linear
Access and clean the field accessible orifice if air contaminants affect output stability
T1500 Electro Pneumatic Transducer FAQ
What is the standard delivery lead time?
Regular order quantities normally ship within 2 to 3 days from stock. Large project orders generally take 7 to 10 days.
What air supply pressure does the T1500 require?
The instrument air entering the converter must be clean and stable near 0.14 MPa, requiring an upstream filter and pressure reducing regulator.
Can I order units painted in our brand colour with our logo?
Yes. We offer OEM and ODM services including custom nameplates, logos, and housing paint in black, blue, yellow, or custom colours.
What mounting configurations are available?
The T1500 supports standalone mounting, DIN rail kits, and manifold assemblies designed for three, five, or ten units.
What electrical connection options can be specified?
Connections include 1/2 NPT or BSPT electrical conduit, internal terminal block, or Hirschmann DIN 43650-A connectors.
How are warranty claims handled if a unit fails?
We provide an 18 month warranty. On photo or video evidence, faulty units are replaced rather than repaired, typically shipping with your next order or immediately if urgent.
