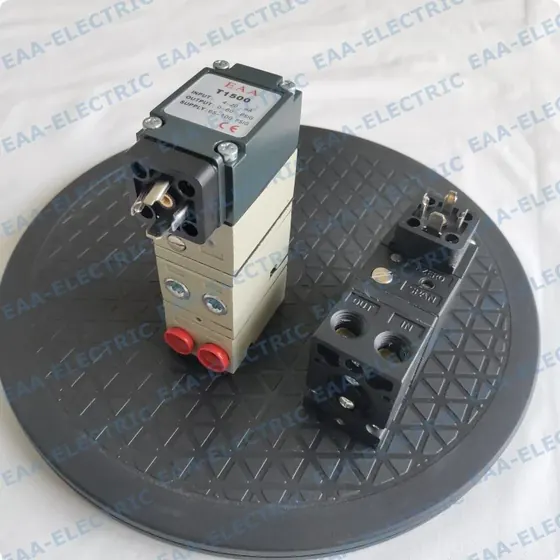

T1500 Electro Pneumatic Converter
The Type EAA-T1500 is an electro pneumatic transducer and electronic pressure regulator that converts an electrical input...
What This Model Does

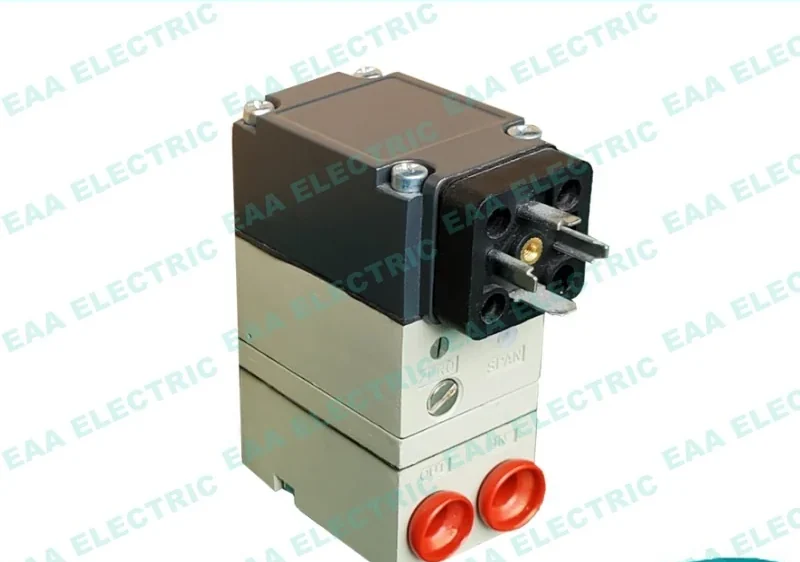

The Type EAA-T1500 is an electro pneumatic transducer and electronic pressure regulator that converts an electrical input signal of current or voltage into a proportional pneumatic pressure output. It is built as a Marsh Bellofram type form fit and function replacement for controlling pneumatic valve actuators, valve positioners, HVAC systems, and final control elements. Designed with a small footprint, it includes an integral pneumatic volume booster to support high-flow control devices, alongside accessible ports on both the front and back for tight spaces or multi-unit manifold installations.
| Model | EAA-T1500 |
|---|---|
| Type | Electro pneumatic transducer (I/P, E/P converter) |
| Function | Converts current or voltage to proportional pneumatic pressure |
| Flow capacity | High flow capacity via built-in volume booster |
| Air consumption | Low air consumption |
| Pneumatic ports | Supply and output ports on front and back |
| Electrical connections | Conduit 1/2 NPT, BSPT, terminal block, Hirschmann (DIN 43 650-A) |
| Adjustments | External zero and span adjustments |
| Enclosure / options | NEMA 4X (FM, CSA), Intrinsically Safe (FM, CSA, ATEX) |
| Warranty | 18 months |
Why Buyers Specify This Model
- Integral pneumatic volume booster delivers high flow capacity directly to control devices without external boosters
- Compact small footprint installs easily into space-constrained field enclosures or tight machine bays
- Supply and output ports on both front and back simplify manifold integration and piping layouts
- DIN rail and manifold assembly kits support grouped multi-device control with three, five, or ten points
- Low air consumption cuts running costs across large plant instrument air networks

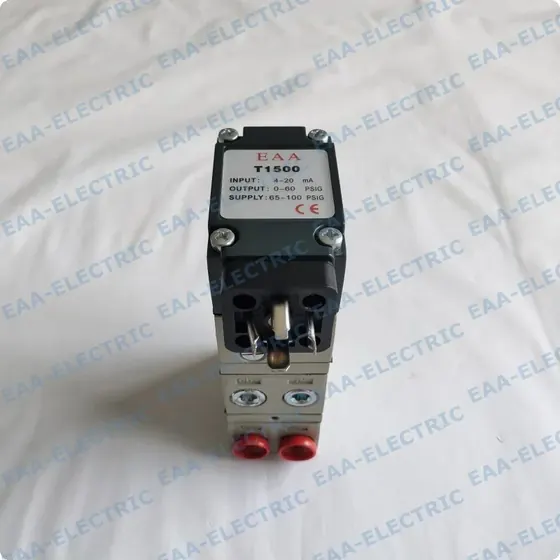

- External zero and span adjustment points allow quick recalibration without opening the housing
- Field accessible orifice simplifies routine maintenance and clearing without dismounting the transducer
Problems It Solves
- Long lead times on original-brand Marsh Bellofram transducers delaying plant maintenance schedules
- Limited enclosure space preventing the installation of bulky standard converters alongside piping
- Sluggish actuator response cured by the built-in pneumatic volume booster providing high flow
- Time-consuming calibration fixed by externally accessible zero and span adjustment screws
- Piping layout constraints solved by dual supply and output ports on front and back
Application Scenarios
- Converting DCS or controller electrical signals to pneumatic pressure for pneumatic valve actuators
- Feeding proportional air pressure to pilot inputs on pneumatic valve positioners
- Controlling dampers and pneumatic actuators across commercial or industrial HVAC systems
- Mounting on multi-station manifold blocks inside instrument cabinets for multi-device pneumatic control
- Replacing legacy Marsh Bellofram Type 1500 units during routine plant turnaround maintenance
Who It Is For
- Plant instrument technicians sourcing direct replacements for worn Marsh Bellofram Type 1500 converters
- EPC contractors purchasing electro pneumatic transducers for plant instrumentation packages
- Valve and actuator OEMs requiring compact I/P or E/P converters under their own brand
- Distributors stocking fast-moving process instrumentation spares for chemical and power plants
- HVAC system integrators building multi-loop pneumatic control panels
Technical Features
- Converts variable current or voltage electrical input into a proportional pneumatic output pressure
- Integral internal volume booster provides high flow capacity for fast valve operation

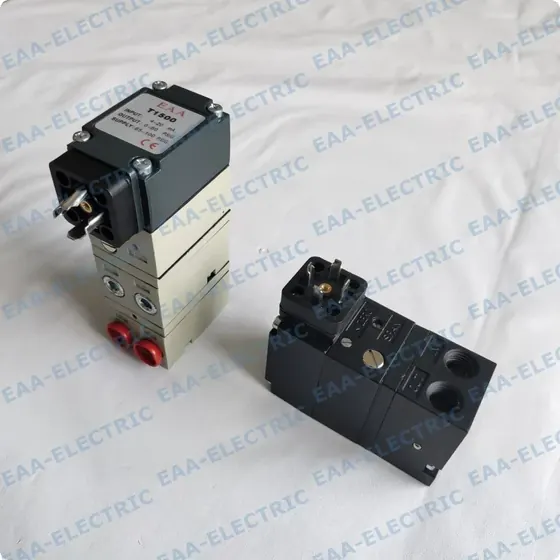

- Pneumatic supply and output connection ports located on both front and back faces
- External screw adjustments for zero and span calibration in the field
- Field accessible orifice allows clearing of debris without complete device teardown

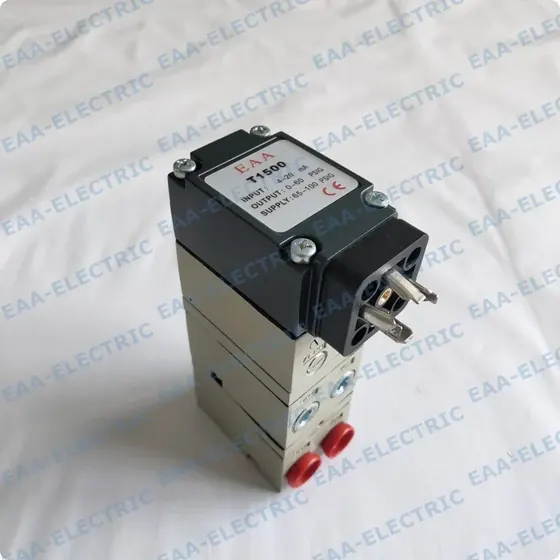

- Electrical connections available in conduit 1/2 NPT, BSPT, terminal block, or Hirschmann DIN 43650-A
- Optional hazardous location builds available for Intrinsically Safe (FM, CSA, ATEX) and NEMA 4X
Materials and Construction
- Cast metal enclosure with painted protective finish
- Internal pneumatic relay and volume booster components
- Full material and finish breakdown is given in the datasheet PDF
Dimensions and Connection Detail

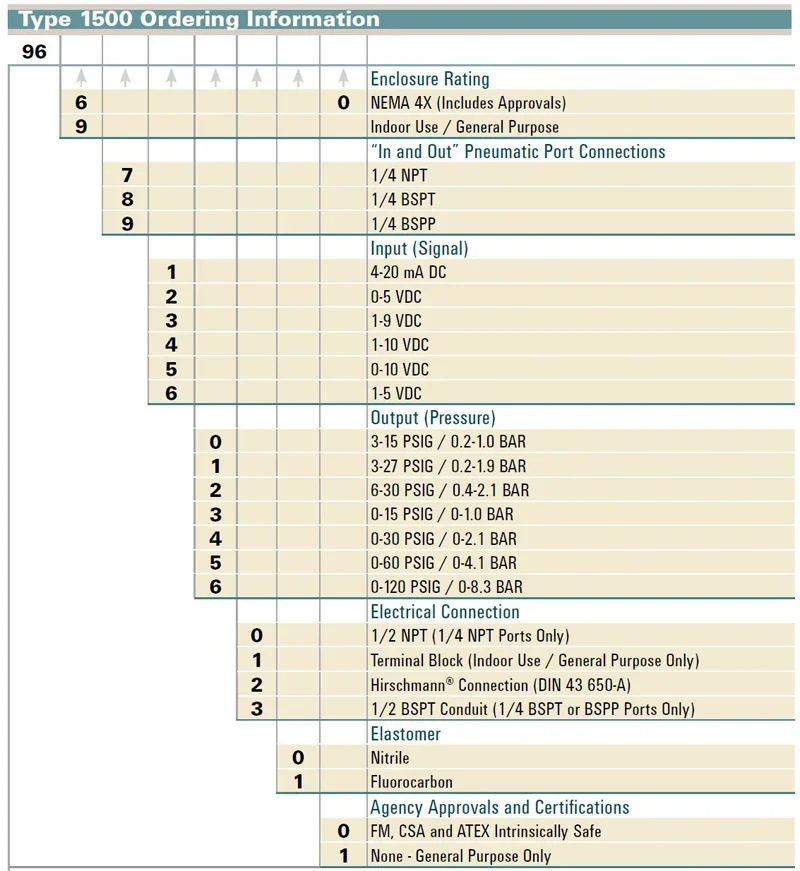

Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Housing machining and preparation of front and back pneumatic port threads
Assembly of internal torque coil, pilot stage, and pneumatic volume booster
Fitting of electrical interface: conduit hub, terminal block, or Hirschmann connector
Pressure and flow calibration across the electrical input span on test benches
Zero and span calibration verification and orifice inspection
Custom painting and nameplate branding application for OEM customer orders
Carton packaging into individual boxes or multi-unit bulk shipments
Quality Control
- Every converter undergoes zero, span, and pressure output calibration prior to packing
- Warehouse photos or video of the assembled units can be shared before dispatch
- Faulty converters within the 18 month warranty are replaced on photo or video evidence
- Replacement units typically ship alongside the customer next order or promptly if required
Customisation Options
- Electrical connection options including 1/2 NPT, BSPT, terminal block, and Hirschmann connectors
- Housing painted in customer specified colours including black, blue, yellow, and others
- Custom OEM branding, nameplates, and customer part numbering
- Customised master cartons and packaging labels for distributor resale
- Manifold assembly kits configured for three, five, or ten transducer mounting points
How It Compares With the Alternatives
| Valve positioner with stem feedback | The T1500 is an open-circuit pressure converter without stem feedback, making it less suited for overcoming heavy packing friction |
|---|---|
| Transducer without volume booster | The built-in volume booster on the T1500 supplies high flow directly, eliminating the need for an external booster on large actuators |
| Single-port transducer | Front and back pneumatic ports on the T1500 allow versatile plumbing and manifold docking in tight cabinets |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the unit securely either individually, on a DIN rail kit, or on a 3, 5, or 10 point manifold
Plumb clean dry instrument air into the supply port on either the front or rear face
Connect the pneumatic output port to the actuator, positioner, or final control element
Wire the input current or voltage signal to the conduit hub, terminal block, or Hirschmann plug
Apply minimum input signal and adjust the external zero screw until output pressure matches specification
Apply maximum input signal and adjust the external span screw to achieve full scale output pressure
Inspect and clear the field accessible orifice if air contaminants cause pressure output instability
T1500 Electro Pneumatic Converter FAQ
What is the typical lead time for the T1500 converter?
Regular quantities normally dispatch within 2 to 3 days from stock. Large orders require 7 to 10 days.
Can the T1500 directly drive a large control valve actuator?
Yes, because it includes an integral pneumatic volume booster designed to supply high flow capacity to actuators and control devices.
How does the T1500 compare to installing a valve positioner?
The T1500 regulates pressure without valve stem feedback. On valves with high packing friction or large diaphragms, a positioner provides tighter stem position control.
What electrical connections are available?
You can select conduit 1/2 NPT, BSPT, a screw terminal block, or a Hirschmann DIN 43650-A connector.
Can you supply manifold mounting kits?
Yes, manifold and DIN rail assembly kits are available with three, five, or ten mounting stations for grouped control.
What is the warranty policy if a unit malfunctions?
We provide an 18 month warranty. On photo or video evidence, replacement units are supplied rather than repaired, usually shipped with your next order.
Can we order these transducers with our own brand logo and colour?
Yes. We offer OEM housing painting in colours like blue, black, or yellow, and print your logo directly on the nameplate.
