T1000 Electro Pneumatic Transducer
The Type EAA-T1000 is an electro pneumatic I/P and E/P transducer that converts an electrical current or voltage input...
What This Model Does

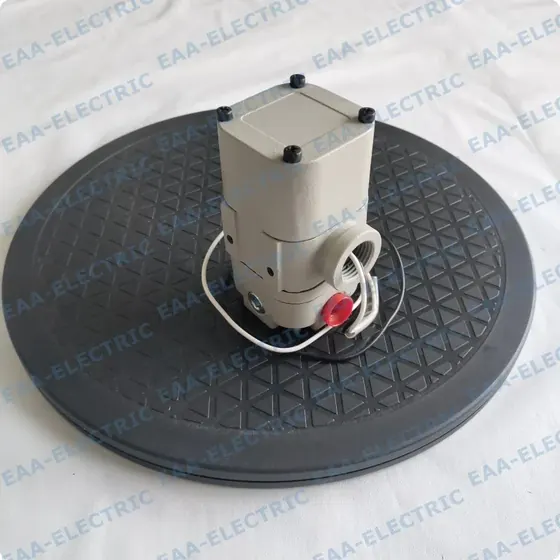

The Type EAA-T1000 is an electro pneumatic I/P and E/P transducer that converts an electrical current or voltage input signal into a linearly proportional pneumatic output pressure. It is a Marsh Bellofram type design fitted with an integral volume booster that provides flow capacity up to 12 SCFM (339 SLPM) to drive actuators or pneumatic positioners directly. The unit accepts supply pressures up to 100 psig (6.9 bar) and mounts at any angle, serving as a direct form fit and function replacement for plant instrumentation loops without replumbing bracketry.
| Model | EAA-T1000 |
|---|---|
| Type | Electro pneumatic transducer (I/P, E/P converter) |
| Design pattern | Marsh Bellofram Type 1000 replacement |
| Input signal | Current or voltage |
| Output | Linearly proportional pneumatic pressure |
| Flow capacity | Up to 12 SCFM (339 SLPM) |
| Supply pressure range | 3 psig (0.2 bar) above maximum output up to 100 psig (6.9 bar) |
| Mounting orientation | Mounts at any angle |
| Model selections | General purpose, NEMA 4X, extended range, high relief, intrinsically safe, explosion proof |
| Housing colour | Black, blue, yellow or painted to order |
| Warranty | 18 months |
Why Buyers Specify This Model
- Converts current or voltage control signals into a proportional pneumatic output pressure
- Integral volume booster supplies up to 12 SCFM (339 SLPM) flow capacity without an external booster relay
- Accepts supply pressures from 3 psig above maximum output up to 100 psig (6.9 bar)
- Mounts at any angle to fit tight spaces on control valve yokes and damper frames
- Field reversible operation simplifies switching between direct and reverse action
- Pairs with purely pneumatic valve positioners to create an electro pneumatic positioning loop
- Low air consumption design keeps steady-state plant instrument air demand low
Problems It Solves
- Pneumatic control valves cannot communicate directly with DCS or PLC electric output cards
- Small transducers without built-in volume boosters starve large actuators and slow stroking speeds
- Tight clearance on damper frames prevents standard upright-only transducer mounting
- Long delivery lead times on original-brand I/P transducers stall plant maintenance schedules
- Process line upgrades require changing from direct to reverse pneumatic action in the field
Application Scenarios
- Converting a 4 to 20 mA signal to operate a pneumatic control valve actuator on a petrochemical line
- Driving damper and louver actuators directly inside commercial HVAC or energy management systems
- Operating clutches, brakes and air cylinders in paper handling and textile processing machinery
- Feeding proportional pilot air into a pneumatic valve positioner to upgrade an existing valve assembly
- Replacing obsolete or long lead time Marsh Bellofram Type 1000 transducers during plant maintenance
Who It Is For
- Plant instrument technicians replacing worn or discontinued Marsh Bellofram type transducers
- Valve and actuator package assemblers requiring compact I/P converters for valve automation skids
- EPC contractors sourcing field instrumentation for liquid, gas and slurry processing plants
- Distributors stocking direct replacement electro pneumatic transducers for local process plants
- Instrumentation OEMs wanting customised housing colours and nameplates for their catalog
Technical Features
- Converts electrical current or voltage input into proportional pneumatic output pressure
- Built-in pneumatic power amplifier volume booster delivering up to 12 SCFM (339 SLPM)
- Wide supply pressure range up to 100 psig (6.9 bar)
- Minimum supply pressure requirement of 3 psig (0.2 bar) above maximum calibrated output
- Field reversible action allows straightforward switching between direct and reverse modes
- Flexible mounting orientation allows the transducer to be installed at any angle
- Available in general purpose, NEMA 4X, extended range, high relief, intrinsically safe and explosion proof selections
Materials and Construction
- Housing material details and internal component breakdowns are available on the product datasheet PDF
Dimensions and Connection Detail

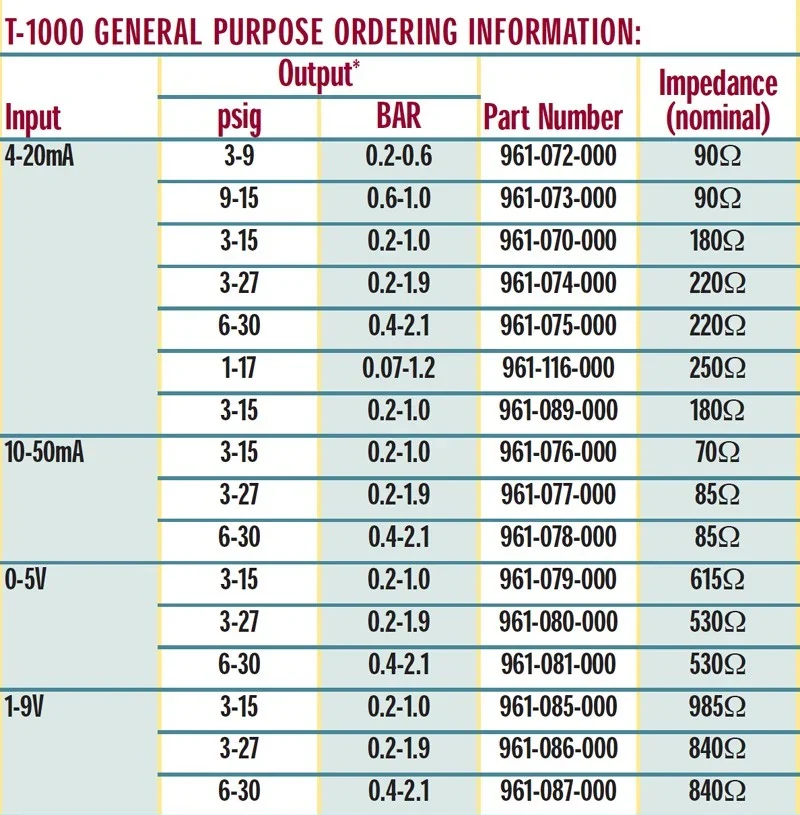

Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Machining of transducer housing and port connections
Assembly of internal coil, magnet assembly and pneumatic booster stage
Leak testing and steady-state air consumption verification
Pressure calibration across the electrical input span
Flow capacity testing of the integral volume booster
Housing painting to specified customer colour and nameplate marking
Protective port capping and carton packaging
Quality Control
- Each transducer is calibrated and function tested across its span prior to packaging
- Photos or video of actual warehouse units can be supplied before dispatch
- Defective units under the 18 month warranty are replaced on photo or video evidence rather than repaired
- Replacement units are shipped with the next order or dispatched rapidly for plant down situations
Customisation Options
- Customer brand name and logo printed on the product nameplate
- Housing finished in specified customer colours including black, blue and yellow
- Custom carton labeling and protective inner packaging options
- Newly designed shape modules developed to buyer drawings upon request
- Supplied alongside supporting pneumatic actuators, positioners and limit switch boxes
How It Compares With the Alternatives
| Transducer without integral volume booster | The T1000 includes a built-in volume booster delivering up to 12 SCFM, removing the need for an external relay |
|---|---|
| Full electro pneumatic valve positioner | The T1000 converts signal to pressure without stem feedback; pair it with a pneumatic positioner when closed loop stem control is required |
| Original brand Marsh Bellofram T1000 | The EAA-T1000 provides identical form fit and function with 2 to 3 day standard dispatch from stock |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Ensure clean, dry instrument air is routed to the supply port within the rated pressure limits
Verify that supply air pressure is at least 3 psig (0.2 bar) above the desired maximum output pressure
Mount the unit securely to the actuator yoke, bracket or pipe at any convenient angle
Connect the electrical current or voltage control wiring observing marked polarity
Select direct or reverse operation using the field reversible configuration if required

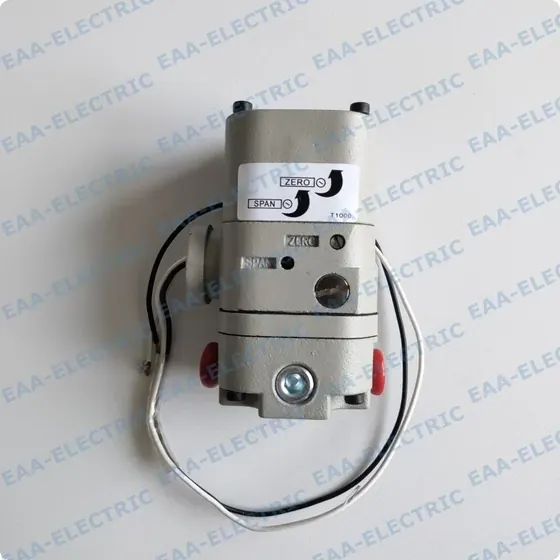

Apply minimum input signal to calibrate zero pressure, then full scale signal to adjust span
Inspect upstream air filtration periodically to prevent particulate accumulation inside the pilot stage
T1000 Electro Pneumatic Transducer FAQ
Can the T1000 directly replace an existing Marsh Bellofram Type 1000?
Yes. It is designed to match the form, fit and function of the Marsh Bellofram Type 1000, including port positions and mounting configurations.
What is the delivery lead time?
Standard order quantities typically ship within 2 to 3 days from stock. Larger project quantities require 7 to 10 days.
Does the T1000 need to be mounted vertically?
No. The Type 1000 design allows mounting at any angle, which suits tight valve yokes and compact damper assemblies.
What flow capacity does the built-in booster provide?
The integral pneumatic volume booster provides a flow capacity of up to 12 SCFM (339 SLPM).
Can I order units in custom housing colours with our company logo?
Yes. Housings can be painted in black, blue, yellow or custom colours, and nameplates can carry your branding.
What is the warranty policy if a unit fails?
We provide an 18 month warranty. If a unit is faulty, provide video or photo evidence and we ship a replacement rather than repairing it.
Can this unit be used with a pneumatic valve positioner?
Yes. It can convert the electrical control signal into a pneumatic input signal to drive a pneumatic valve positioner.
