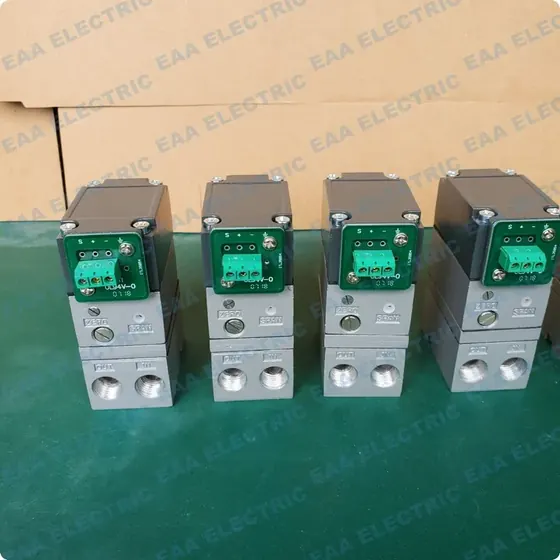

550X Electro Pneumatic Transducer
The 550X electro pneumatic transducer is an electronic pressure regulator that converts a variable electrical input signal...
What This Model Does

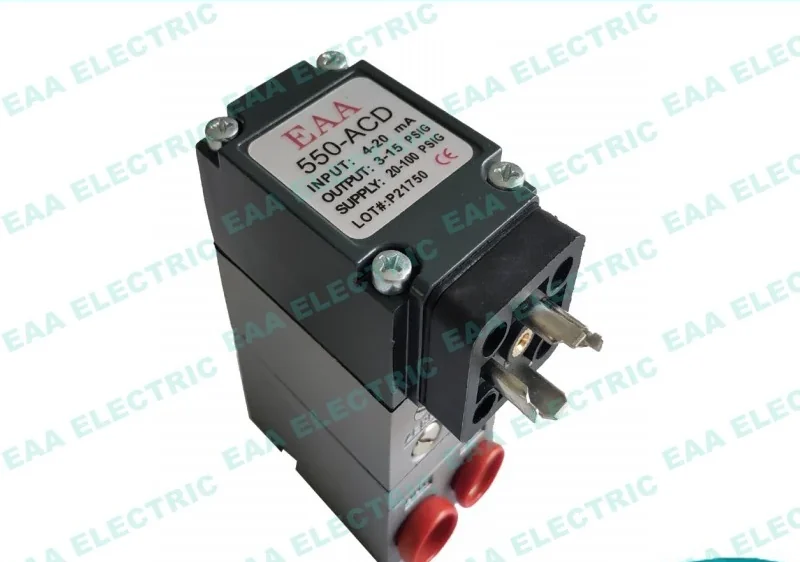

The 550X electro pneumatic transducer is an electronic pressure regulator that converts a variable electrical input signal into a proportional pneumatic output pressure. It accepts direct current or voltage signals, including 4 to 20 mA DC and 0 to 10 mA DC, and regulates compressed air flow across output ranges such as 20 to 60 kPa or 60 to 100 kPa. The unit features precision die-cast construction with a compact envelope and provides explosion-proof ratings for hazardous plant environments. Built as a form fit and function replacement for ControlAir type 550X transducers, it drops directly into existing industrial loops without requiring pipework or wiring changes.
| Model | EAA-550X series |
|---|---|
| Type | Electro pneumatic transducer (I/P, E/P converter) |
| Input signal | 4-20 mA DC, 0-10 mA DC, or variable voltage |
| Output pressure | 20-60 kPa, 60-100 kPa, or proportional pneumatic range |
| Air supply | Wide range air supply |
| Zero and span | Adjustable zero position and span devices |
| Mounting angle | Can be installed at any angle |
| Explosion-proof rating | Intrinsically safe ia II CT5, flameproof d II BT6 |
| Housing | Precision die-casting |
| Housing colour | Black, blue, yellow or painted to order |
| Warranty | 18 months |
Why Buyers Specify This Model
- Converts variable current or voltage signals directly into proportional pneumatic output pressure
- Accepts 4 to 20 mA DC and 0 to 10 mA DC input signals without changing internal modules
- Operates with a wide air supply range suitable for diverse plant pneumatic utilities
- Enables split range outputs including 20 to 60 kPa and 60 to 100 kPa by field adjustment
- Allows mounting at any angle to fit tight skid enclosures and pipe configurations
- Carries intrinsically safe ia II CT5 and flameproof d II BT6 explosion-proof ratings
- Uses precision die-cast components to maintain a compact profile and robust housing structure
Problems It Solves
- Original brand I/P transducers carry long factory lead times that delay plant maintenance schedules
- Existing transducer fails in hazardous plant zones requiring specific flameproof or intrinsically safe ratings
- Field loops require alternative input signals such as 0 to 10 mA DC rather than standard 4 to 20 mA
- Control loops need split pressure spans like 20 to 60 kPa without purchasing dedicated fixed models
- Cramped pipework leaves no room for bulky converters and demands arbitrary mounting angles
Application Scenarios
- Converting DCS 4 to 20 mA analog outputs to drive pneumatic valve actuators on process skids
- Operating pneumatic louvers or dampers from a legacy 0 to 10 mA controller output signal
- Providing split range pneumatic output pressure across 20 to 60 kPa and 60 to 100 kPa stages
- Replacing worn or obsolete ControlAir 550X transducers on running plant instrumentation lines
- Installing field transducers in hazardous locations requiring flameproof d II BT6 or intrinsically safe ratings
Who It Is For
- Plant maintenance technicians replacing worn or failed ControlAir 550X transducers on process lines
- Process instrumentation distributors stocking interchangeable I/P and E/P converters for quick delivery
- Skid builders and EPC contractors needing compact transducers for pneumatic control loops
- Control valve OEMs requiring private label I/P transducers fitted to their actuated packages
- Trading companies supplying plant replacement parts without extended factory lead times
Technical Features
- Electronic pressure regulation converting variable current or voltage into proportional air output
- Supports 4 to 20 mA DC and 0 to 10 mA DC electrical input signals
- Pneumatic output spans adjustable for 20 to 60 kPa and 60 to 100 kPa operation
- Field zero and span adjustment devices for calibration across required ranges
- Intrinsically safe explosion-proof grade ia II CT5 rating
- Flameproof explosion-proof grade d II BT6 rating
- Precision die-cast construction delivering a compact overall profile and durable internal assembly
- Omnidirectional mounting capability allowing installation at any working angle
Materials and Construction
- Precision die-cast alloy housing and structural components
- Painted exterior finish available in standard or customer-specified colours
- Internal pneumatic and electrical components as specified in the technical datasheet
Dimensions and Connection Detail

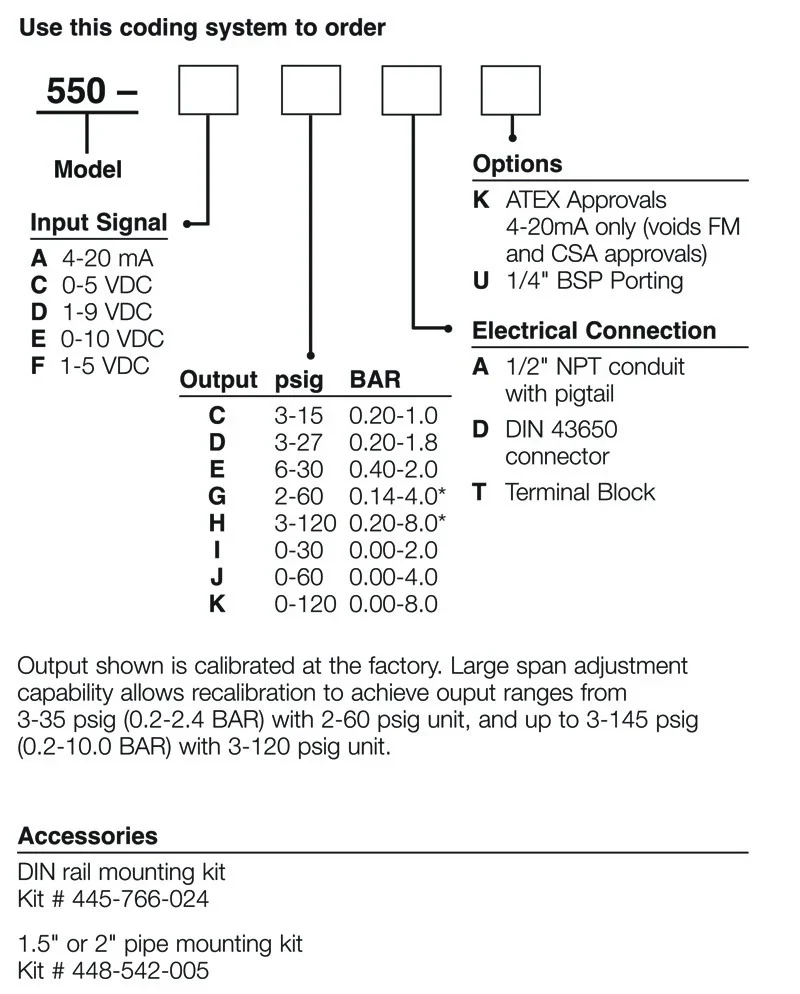

Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Precision die-casting of housing parts and internal chambers
Machining of port interfaces and mounting faces
Assembly of electronic converter circuit and electro-pneumatic regulation module
Calibration of zero and span adjustment mechanisms on test air supply
Testing across electrical input ranges including 4-20 mA and 0-10 mA DC
Housing surface painting in black, blue, yellow, or custom requested colour
Inspection, labeling, and carton packing for shipment
Quality Control
- Every converter is calibrated and operationally checked before packing
- Real product photos and videos can be provided from the warehouse or sample room on request
- 18 month warranty covering faulty units with direct replacement rather than repair
- Replacement units normally ship with the next order on photo or video evidence
- Missed or urgently required items are re-sent by the fastest route
Customisation Options
- Housing painted in customer colours including black, blue, yellow, and other shades
- OEM and ODM branding including customer nameplate logo and custom markings
- Carton packaging customisation to match distributor or OEM branding requirements
- Newly designed shape modules developed to customer drawings and specifications
- Pre-assembly with supporting accessories like limit switches and pilot valves on request
How It Compares With the Alternatives
| Pneumatic positioner with direct mechanical linkage | The 550X transducer regulates output air pressure to an actuator or device, whereas a positioner reads valve stem position |
|---|---|
| Standard fixed-range I/P transducer | The 550X accommodates multiple input signals and split output ranges like 20-60 kPa using simple zero and span adjustments |
| Original brand ControlAir 550X transducer | Provides identical form fit and function with shorter delivery times of 2 to 3 days from stock |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the transducer securely at the selected operating angle using standard bracket fixtures
Ensure the working installation angle is identical to the angle used during zero and span calibration
Connect a clean and dry compressed air supply within the specified wide supply pressure range
Pipe the pneumatic output port to the target actuator, positioner, or pneumatic receiver

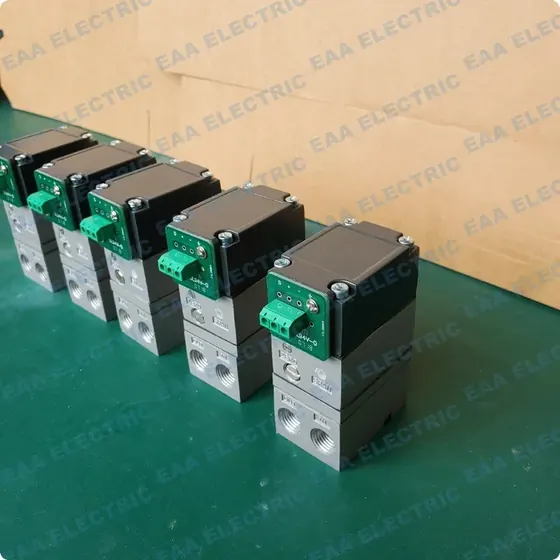

Wire the electrical input signal leads observing correct polarity for 4-20 mA DC or 0-10 mA DC
Apply minimum input signal and turn the zero adjustment device until minimum output pressure is reached
Apply full input signal and adjust the span device to achieve full output pressure, repeating until calibrated
550X Electro Pneumatic Transducer FAQ
What is the standard delivery time for the 550X transducer?
Regular order quantities normally ship in 2 to 3 days from stock. Large orders take 7 to 10 days.
What input signals can this transducer accept?
It accepts 4 to 20 mA DC, 0 to 10 mA DC, or variable voltage signals converted to a proportional pneumatic output.
Can the output pressure be set for split range control?
Yes. The zero and span adjustment devices can be set for split ranges such as 20 to 60 kPa or 60 to 100 kPa.
Can I install the 550X transducer at any angle?
Yes, it can be mounted at any angle. The working installation angle must match the angle at which zero and span are adjusted.
What explosion-proof ratings does the 550X carry?
It is rated intrinsically safe explosion-proof grade ia II CT5 and flameproof explosion-proof grade d II BT6.
What is your warranty policy if a unit fails on site?
We provide an 18 month warranty. Faulty units are replaced rather than repaired upon photo or video evidence, usually shipping with your next order.
Can we purchase the 550X with our own brand logo and housing colour?
Yes. We offer OEM branding with custom nameplate logos and painted housings in black, blue, yellow, or other custom colours.
Applications Cases and Guides
Related Case Photos
Related Products
Get A Price on This Model
Tell us the quantity, the actuator it goes on and the destination port. We come back with price, lead time and confirmation that the model matches your valve.
