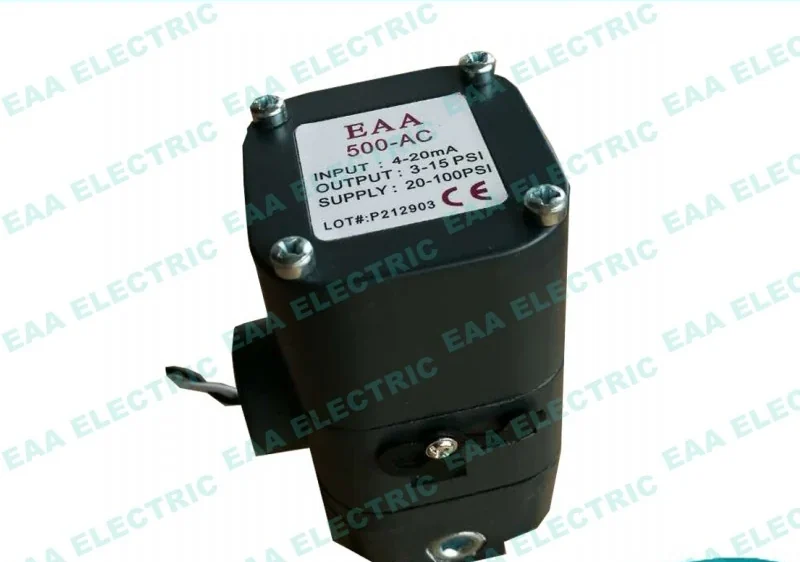

500X Electro Pneumatic Converter
The Type EAA-500 electro pneumatic transducer converts an electrical current or voltage input signal into a linearly...
What This Model Does
The Type EAA-500 electro pneumatic transducer converts an electrical current or voltage input signal into a linearly proportional pneumatic output pressure. It provides signal conversion for pneumatic control valves and instrumentation loops where standard controller signals must drive pneumatic devices. Calibrated using internal zero and span adjustment units, it handles common industrial current ranges like 4 to 20 mA or 0 to 10 mA and outputs standard pneumatic ranges such as 20 to 60 kPa or 60 to 100 kPa. Built with precision die-cast components and stainless steel fasteners, it serves as a form fit and function replacement for ControlAir type 500X converters in operating plants.
| Model | Type EAA-500 (500X type) |
|---|---|
| Input Signal | 4-20 mA DC, 0-10 mA DC, or voltage signal |
| Output Pressure | 20-60 kPa, 60-100 kPa |
| Air Consumption | Low air consumption rate |
| Mounting Orientation | Any angle (calibrate at working angle) |
| Explosion Proof Rating | IAIICT5 intrinsic safety, DIIBT6 flameproof |
| Fasteners | Stainless steel |
| Housing Finish | Anti-corrosion spray coating |
| Warranty | 18 months |
Why Buyers Specify This Model
- Converts electrical current or voltage inputs into a linearly proportional pneumatic pressure output
- Accommodates a wide air supply range while maintaining low air consumption in continuous operation
- Field configurable for multiple signal and output ranges via zero and span adjustments
- Can be mounted at any angle provided calibration is completed in the operating orientation
- Die-cast construction and protective spray finish resist corrosion in demanding plant environments
- Delivers repeatable pneumatic control signals at an economical unit cost for plant replacements
- Quick 2 to 3 day dispatch on stock quantities prevents plant downtime on legacy loops
Problems It Solves
- Original brand I/P converters carry long factory lead times during unexpected outages
- Incompatible control room electrical signals cannot directly position pneumatic diaphragm actuators
- Harsh atmospheric conditions cause corrosion on standard external hardware and fasteners
- Legacy process control systems require specific metric pressure ranges like 20 to 60 kPa
- Pneumatic lines waste plant air due to high steady-state air consumption in older converters
Application Scenarios
- Converting DCS 4 to 20 mA output signals to pneumatic pressure for legacy control valves
- Replacing failed or obsolete ControlAir type 500X transducers without modifying air piping
- Operating pneumatic valve actuators in field locations requiring flameproof or intrinsic safety ratings
- Retrofitting older process control loops where air pressure still drives the final control elements
- Supplying skids and valve assemblies that require economic I/P signal conversion before export
Who It Is For
- Plant instrumentation technicians maintaining older pneumatic control systems
- EPC engineering contractors sourcing signal converters for plant revamps
- Distributors stocking replacement I/P transducers for local chemical and process facilities
- Valve automation shops requiring economical electro pneumatic converters under private branding
- Maintenance teams looking for direct replacements for ControlAir type 500X units
Technical Features
- Linear conversion from current or voltage input to proportional pneumatic output
- Adjustable for 4 to 20 mA DC or 0 to 10 mA DC input signals
- Pneumatic output calibration ranges including 20 to 60 kPa and 60 to 100 kPa

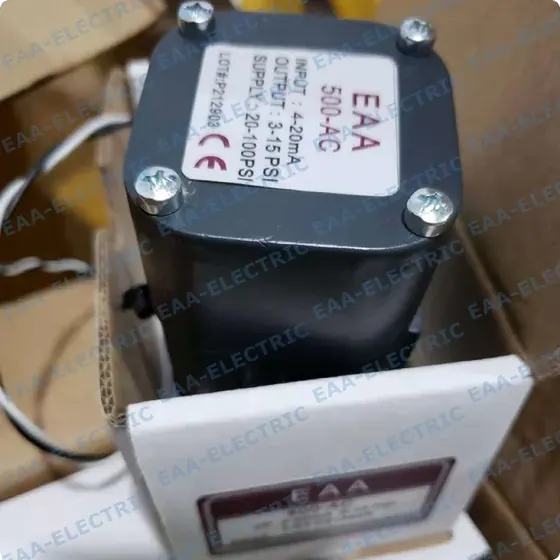

- Independent zero and span calibration adjustments
- Precision die-cast body and compact internal mechanical structure
- Explosion-proof ratings covering IAIICT5 intrinsic safety and DIIBT6 flameproof ratings
- Stainless steel external fasteners for corrosion protection

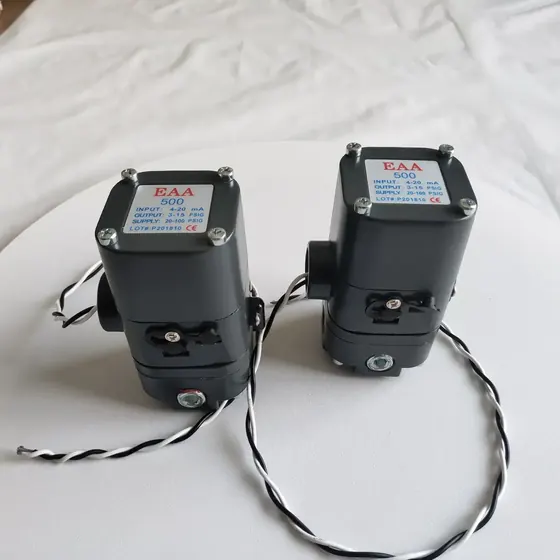

- Operation and mounting possible at any angle when calibrated in place
Materials and Construction
- Precision die-cast alloy housing
- Stainless steel external hardware and fasteners
- Protective anti-corrosion exterior spray coating

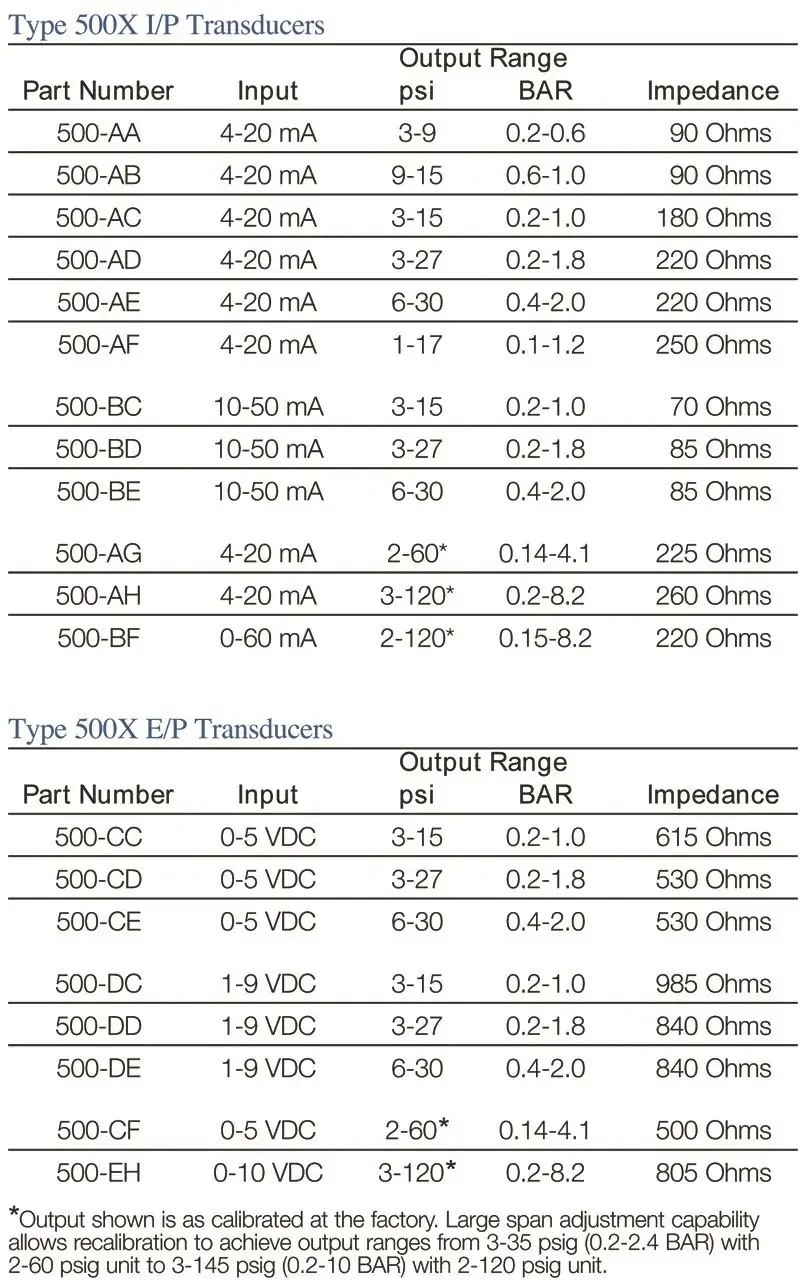

Dimensions and Connection Detail
Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Die casting and machining of compact transducer housing components
Precision assembly of internal electrical and pneumatic conversion mechanisms
Zero and span calibration to specified input and output pressure spans
Surface treatment and application of anti-corrosion spray finish
Inspection of pressure response linearity and seal integrity
Carton packaging or custom OEM branding preparation
Quality Control
- Each transducer undergoes signal input and pressure output calibration prior to dispatch
- Units are inspected for zero and span repeatability across the calibrated range
- Sample room or warehouse photos and videos can be provided before packing
- Faulty units covered by the 18 month warranty are replaced based on photo or video evidence
Customisation Options
- Housing painting in customer colours including black, blue, and yellow
- Laser marking or nameplates featuring customer branding and logo
- Newly designed shape modules developed to buyer specifications
- Customised carton packaging and inner boxing for distributors
How It Compares With the Alternatives
| Valve Positioner | A positioner monitors physical stem position with feedback while the 500X converter only regulates output air pressure |
|---|---|
| Standard Unprotected Converters | The 500X includes stainless fasteners and explosion-proof ratings for hazardous field areas |
| Original ControlAir 500X | EAA-500 provides identical form fit and function with faster 2 to 3 day shipment from stock |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the converter securely to the pipe or bracket at the intended working orientation
Ensure calibration is conducted in the same physical orientation as final operation
Connect clean, dry instrument air within the wide air supply limit to the supply port
Connect the pneumatic output line to the valve actuator or downstream device
Wire the electrical signal leads observing correct polarity for 4-20 mA or 0-10 mA input
Use the internal zero and span adjustment units to align the minimum and maximum output pressure
Check all pneumatic connections for leaks to maintain accurate proportional output
500X Electro Pneumatic Converter FAQ
What input signals and output pressures does this converter handle?
The unit accepts 4 to 20 mA DC or 0 to 10 mA DC electrical signals and outputs standard pneumatic ranges such as 20 to 60 kPa or 60 to 100 kPa.
Can the converter be installed horizontally or at an angle?
Yes, it can be mounted at any angle, but you must calibrate the zero and span adjustments in the final working position.
What is the lead time for standard and large orders?
Regular quantities ship in 2 to 3 days from stock. Large orders normally ship within 7 to 10 days.
What explosion-proof ratings does this unit carry?
The unit is built to explosion-proof levels IAIICT5 intrinsic safety and DIIBT6 flameproof standards.
Can we purchase this converter with our company logo and custom colour?
Yes, we provide OEM branding including custom logo nameplates, custom cartons, and housing painting in colours like black, blue, or yellow.
How are warranty claims handled if a unit fails on site?
We provide an 18 month warranty. If an issue occurs, send photo or video evidence and we will supply a replacement unit rather than repairing it.
