A torsion spring stores energy when its legs are rotated around the coil axis and returns it as torque. Xinshunyan winds torsion springs in wire from 0.1 to 8 mm for furniture fittings, chair mechanisms, door locks, exercise equipment and automotive trim, with leg geometry cut and bent to your drawing.

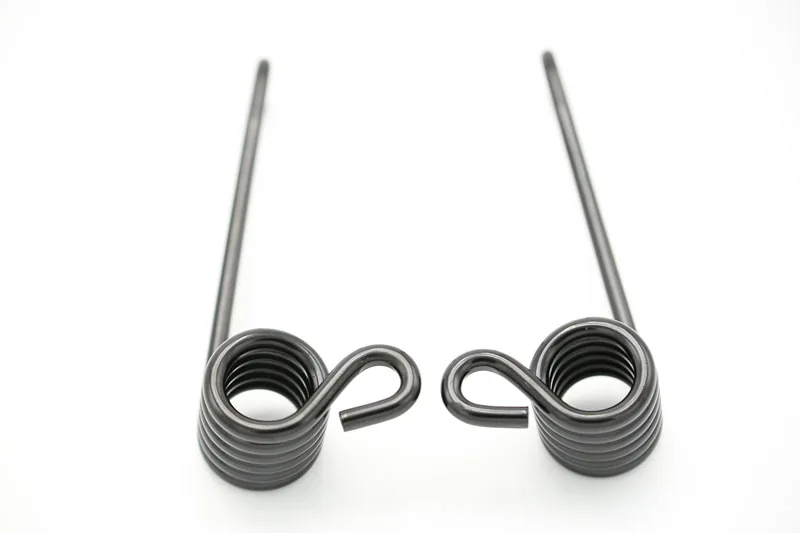

Every part below is a production photograph. Each can be remade to your dimensions.
Torsion springs fail on the leg, not the body. Legs that are the wrong length, bent to the wrong plane or left with a sharp transition at the last coil crack in service and jam the mechanism they sit in. Programmed coiling keeps the leg angle and the body diameter repeatable from the first piece to the last.
Straight legs, hooked legs, double legs and offset planes are formed on the machine, so the arm that drives your mechanism arrives at the angle you specified.
Single-body, double-wheel and mirrored pairs are wound to the handedness your assembly needs, which matters where two springs work against each other.
Nickel, chrome, zinc, galvanised and black coatings are applied in house so the spring does not corrode against the plastic or timber it is clamped into.
Beyond carbon and 65Mn spring steel, stainless and nitinol wire are available where corrosion or shape recovery matters more than cost.
From a sketch, a drawing or the part in your hand to an approved production sample
Nine finishing routes chosen against the environment the spring works in
What gets tested before a batch is allowed to be packed
Send the wire diameter, outside or inside diameter of the body, number of active coils, free angle between the legs, leg lengths and the direction of wind. A sample part or a marked-up drawing is enough for us to quote.
Yes. Send the physical sample to Xiamen and we measure wire diameter, coil geometry and leg angles, then confirm the working torque you need before cutting steel.
The spring should be wound so that the working load closes the coils rather than opening them. If you are unsure, tell us which way the arm travels in your assembly and we will specify the handedness.
Typical production is 7-15 days after the order is confirmed, with the surface finish included in that window.
Send your drawing, your sample or your dimensions. Torque delivered through an angle, not a stroke.
