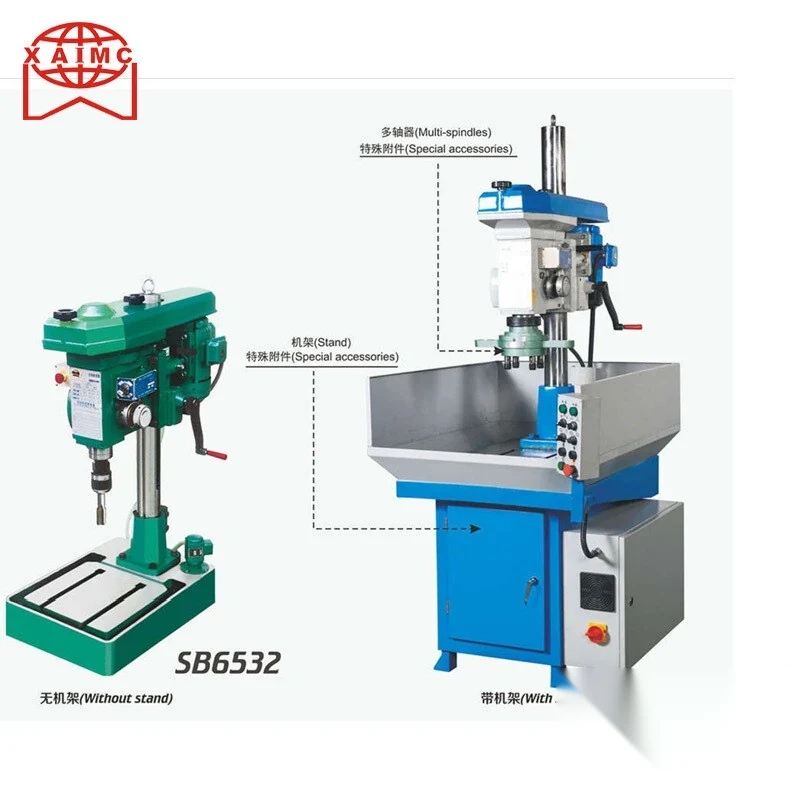

Gear Type Teeth Distance Tapping Machine SB6516 SB6532 and SB6532A
The SB series are column tapping machines that feed the tap through a gear train matched to the thread pitch rather than relying on the operator to follow the thread. SB6516 taps up to M16 on an 85 mm column with a 257.5 mm distance from spindle axis to column, and SB6532 taps up to M32 on a 95 mm column at 252.5 mm. B...
What This Machine Does
The SB series are column tapping machines that feed the tap through a gear train matched to the thread pitch rather than relying on the operator to follow the thread. SB6516 taps up to M16 on an 85 mm column with a 257.5 mm distance from spindle axis to column, and SB6532 taps up to M32 on a 95 mm column at 252.5 mm. Both use an MT3 spindle with 65 mm of spindle travel. SB6516 runs three spindle speeds at 250 400 and 590 r/min from a 1.5 kW motor; SB6532 and SB6532A offer three speeds from either a 6-pole motor at 80 150 and 280 r/min or a 4-pole motor at 120 220 and 420 r/min, rated 1.5 kW and 2.2 kW respectively. Auto feeding covers metric pitches from 1.0 mm to 3.5 mm and inch pitches from 19 to 7 TPI depending on model. SB6532A is the head-only version at 130 kg net for mounting on your own base.
Why Buyers Choose This Machine
- Pitch matched gear feed drives the tap at its own lead so the thread is not stretched or torn
- Three spindle speeds per model let you drop the speed for large threads and hard material
- Capacity to M32 on SB6532 covers structural and hydraulic thread sizes a drill press cannot tap
- Choice of 6-pole or 4-pole motor on SB6532 sets the speed band to your usual work
- Metric pitches from 1.0 mm to 3.5 mm and inch pitches from 19 to 7 TPI on one machine
- SB6532A supplies the head alone at 130 kg net for mounting on an existing bench or line
- MT3 spindle takes standard tapping attachments already in most shops
Where Gear Type Teeth Distance Tapping Machine SB6516 Earns Its Place
Problems It Solves
- Hand tapping above M16 is heavy slow work and taps break in deep blind holes
- Feeding a tap by hand on a drill press stretches the pitch and gives loose threads
- Switching between metric and inch thread work otherwise means two machines
- Large threads run too fast on a general drilling machine and burn the tap
- Fixed floor machines waste space when only the head is needed on an existing line
Who It Is For
- Machine shops tapping medium and large threads in batches
- Hydraulic and valve component manufacturers
- Fabricators who need repeatable inch and metric threads on the same machine
- Distributors supplying bench and column tapping machines
Application Scenarios
- Batch tapping of flanges valve bodies and hydraulic blocks up to M32
- Production tapping of inch threads on parts for export markets
- Threading pre-drilled holes in machined castings in a subcontract shop
- Mounting the SB6532A head on a purpose-built fixture or line station
- Small and medium batch thread work where hand tapping has become the bottleneck
Technical Detail
Technical Features
- Gear driven tap feed matched to thread pitch
- Maximum tapping capacity M16 on SB6516 and M32 on SB6532 and SB6532A
- MT3 spindle taper with 65 mm spindle travel
- Column diameter 85 mm on SB6516 and 95 mm on SB6532
- Three spindle speeds per model
- 6-pole motor 1.5 kW or 4-pole motor 2.2 kW option on SB6532 and SB6532A
- Auto feeding thread pitches 1.0 to 2.0 mm on SB6516 and 1.25 to 3.5 mm on SB6532
- Inch auto feed pitches 19 18 16 14 13 12 11 10 9 8 and 7 TPI
- Optional stand on SB6532 changing gross and net weight to 650 and 600 kg
Specifications
| Machine type | Gear type teeth distance tapping machine |
|---|---|
| Models | SB6516 / SB6532 / SB6532A |
| Max tapping capacity | M16 (SB6516) / M32 (SB6532 and SB6532A) |
| Column diameter | 85 mm (SB6516) / 95 mm (SB6532) |
| Spindle travel | 65 mm |
| Spindle taper | MT3 |
| Distance spindle axis to column generating line | 257.5 mm (SB6516) / 252.5 mm (SB6532) |
| Max distance spindle nose to base | 670 mm (SB6516) / 600 mm (SB6532) |
| Spindle speeds | 250 400 590 r/min (SB6516); 80 150 280 r/min 6P or 120 220 420 r/min 4P (SB6532 / SB6532A) |
| Spindle speed series | 3 |
| Main motor power | 1.5 kW (SB6516); 1.5 kW 6P or 2.2 kW 4P (SB6532 / SB6532A) |
| Base dimensions | 350 x 350 mm (SB6516) / 690 x 500 mm (SB6532) |
| Spindle head travel | 405 mm (SB6516) / 450 mm (SB6532) |
| Overall height | 1110 mm (SB6516) / 1165 mm (SB6532) |
| Auto feeding thread pitch | 1.0 / 1.25 / 1.5 / 1.75 / 2.0 mm and 19-7 TPI (SB6516); 1.25 / 1.5 / 1.75 / 2.0 / 2.5 / 3.0 / 3.5 mm and 19-7 TPI (SB6532) |
| Gross / net weight | 280 / 300 kg without stand (SB6516); 400 / 350 kg without stand and 650 / 600 kg with stand (SB6532); 165 / 130 kg (SB6532A) |
| Packing dimensions | 106 x 64 x 132 cm without stand (SB6516) |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Tapping
- Thread cutting
Quality Control
- Gear feed checked against each listed pitch before the machine leaves assembly
- Spindle run-out and MT3 taper seating verified on the assembled head
- All three spindle speeds run and motor current checked
- Sample threads cut and gauged at the rated capacity
- Paint and packing checked against the declared case dimensions and weight
Customisation Options
- SB6516 or SB6532 chosen by your largest thread size M16 or M32
- 6-pole or 4-pole motor on SB6532 to set the spindle speed band
- With or without stand which changes the shipping weight from 400 kg to 650 kg gross
- SB6532A head only version for mounting on your own base
- Supply voltage frequency and operating language set for your market
How It Compares With the Alternatives
| Tapping on a pillar drilling machine | A drill press feeds by hand or by a general feed rate; the SB machines feed the tap at its own pitch through gears which is what protects the thread form in deep holes |
|---|---|
| Arm type tapping machine SRM-M24 | The arm machine reaches out to large fixed parts up to M24; the SB column machine is more rigid and goes to M32 but the part has to come to the machine |
| Hand tapping | Above M16 hand tapping is slow and inconsistent; the SB6532 does the same thread under power with the pitch set by gears |
Running the Machine
Step 1
Set the machine on its stand or bolt the SB6532A head to your own base
Step 2
Select the gear set for the thread pitch you are cutting metric or TPI
Step 3
Choose one of the three spindle speeds low for M24 and above
Step 4
Clamp the part on the base table and align the pre-drilled hole under the spindle
Step 5
Feed the tap in under the gear drive and let the pitch lead the spindle
Step 6
Reverse to withdraw and clear chips before the next hole
Step 7
Gauge the first thread of each batch before running the rest
Other Machines in Tapping
Pneumatic and Electric Threading Machine SRAM12 SRM-M16W SRM-M24 SRM-M42W
View Machine →
Gear Type Teeth Distance Tapping Machine SB408G SB4516G and SB4516A
View Machine →
Lead-Screw Automatic Tapping Machine SB8030
View Machine →
Tapping Machine SWJ-10B SWJ-6 SWJ-12 SWJ-16 & SWJ-24
View Machine →Questions About Gear Type Teeth Distance Tapping Machine SB6
What is the difference between SB6532 and SB6532A?
SB6532 is the complete machine with column and base at 400 kg net without the stand. SB6532A is the head unit at 130 kg net for mounting on your own base or line station.
Can it tap inch threads?
Yes. Auto feeding covers 19 18 16 14 13 12 11 10 9 8 and 7 TPI as well as metric pitches from 1.0 mm to 3.5 mm depending on the model.
Should I take the 6-pole or the 4-pole motor?
The 6-pole motor gives 80 150 and 280 r/min at 1.5 kW for larger threads; the 4-pole gives 120 220 and 420 r/min at 2.2 kW for faster work on smaller threads. Tell us your usual thread size and material and we will advise.
What tooling does the spindle take?
The spindle is MT3 on all three models so standard MT3 tapping attachments and holders fit. Tell us your thread range and we will quote a holder set.
How is the machine packed and how heavy is the shipment?
Wooden case. SB6516 packs at 106 x 64 x 132 cm without the stand. SB6532 is 400 kg net without the stand and 600 kg net with it. We confirm final case size and gross weight on the proforma invoice.
How long is the lead time?
Lead time depends on the model motor option and whether a stand is included. Send us the model and quantity and we will confirm a shipment date with the quotation.
What are your trade and payment terms?
We quote FOB CFR and CIF. Payment is 30 percent by T/T with the order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Gear Type Teeth Distance Tapping Machine SB6
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
