Overview
Mould tooling cut from the material chosen for your application rather than the grade that happens to be in stock. Sanpin Mould has built tooling since 2007 and the tool room, the measuring room and the moulding hall are on the same site, which is what makes a correction a same-week event instead of a shipping problem.
Problems
What This Fixes
- Tooling sourced from a broker with no visibility of who actually cut it
- Corrections that turn into an international freight exercise
- Steel selection made on price with no reference to the application
- Tools that arrive without a sampling report worth reading
Benefits
What You Get
- Preferred material selected for the tooling to fit the application specification
- Tool room, measuring room and moulding hall on one site in Shenzhen
- T1 samples inspected and reviewed with you before mass production
- Same team carries the tool into production, so nothing is handed over twice
Who For
Suited To
- Buyers replacing a tool that has stopped holding tolerance
- OEMs bringing tooling and moulding under one contract
- Programmes that need the toolmaker and the moulder to be the same company
Scenarios
Typical Jobs

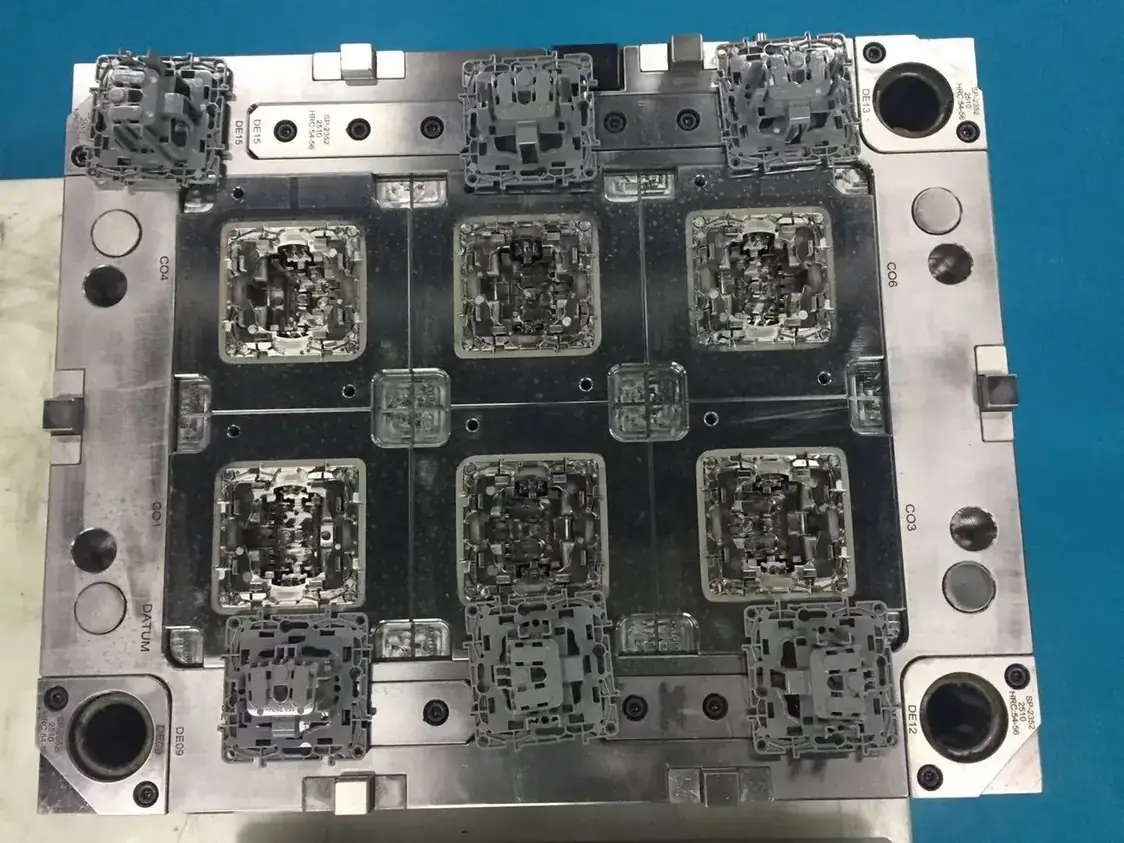

- A multi-cavity production tool for a high-runner part
- A replacement tool for a part currently moulded elsewhere
- A family tool covering several variants of one product
Technical
How It Runs
- Tooling material chosen against the application, not against the stock list
- Precision machining, EDM and grinding available in the tool room
- Moldflow and DFM applied before cutting
- Inspection to international tolerance standards at sampling and in production
At A Glance
Specification
Everything below is published because it is what an engineer checks before sending a drawing. Anything not listed is confirmed in the quotation rather than guessed at here.
| Capability | Injection Mould Tooling Manufacturing |
|---|---|
| Group company | Sanpin Mould, established 2007 |
| Category | Plastic Injection Moulding |
| Location | Shenzhen, Guangdong, China |
| Certification | ISO 9001:2015 |
| Post-treatment | Plating, Anodizing, Painting, UV printing, Screen printing |
| Response time | Engineer replies within 24 hours |
Order Process
How This Job Would Run
The same eight stages apply whether the order is a single tool or a production programme.
Request A Quote
Send the part drawing or 3D file by email. An engineer comes back within 24 hours with a consultation, not an auto-reply.
DFM Report
Before any steel is cut we return a design-for-manufacture report that flags flaws and errors in the design, so they are fixed on paper.
Mould Design & Moldflow
A predictive model analyses how the molten material behaves inside the cavity. Flow analysis settles gating and cooling before tooling.
Mould Tooling Production
Tooling is cut from the steel grade chosen for the application, not from whatever is on the rack.
T1 Sample Inspection
First-trial samples go out for your inspection and review. Errors are identified on T1, before mass production is committed.
Low Volume Production
A low-volume run follows the trial phase, so precision is proven on real machines under expert surveillance before the ramp.
Strict Inspection
Parts are inspected against international tolerance standards and against the specification you supplied.
Delivery
Parts are packaged to survive the journey and released through our logistics partners on a scheduled delivery.
Questions
About Injection Mould Tooling Manufacturing
Do you build the tool and mould the parts?
Yes. Both happen at Sanpin Mould in Shenzhen, which is why a dimensional question can be settled without moving the tool.
Can you take over an existing tool?
Send the tool drawings and the current inspection data and we will report on what we would need to do before running it.
What steel do you use?
The preferred material for the application. Which grade that is depends on the resin, the volume and the surface requirement, and it is confirmed in the quotation.
