Motor Rollers (Motorized / Drive Rollers)
A motor roller puts the gearmotor inside the roller tube, so a conveyor zone drives itself with no external motor, chain or guard. Tianhe supplies AC, DC brushless and direct-drive families in 50, 57, 60 and 76 mm diameters, with galvanized, chrome, PU, NR-coated and stainless tubes, and with sprocket, poly-V, V-pulley, timing pulley and O-groove drive ends for slaving idle rollers.
Motor Roller families
Motor Roller models listed directly in this group
DM216 Belt Conveyor Oil Cooling Motor Roller
Material: carbon Steel & Galvanized and painting…
DM165 Belt Conveyor Oil Cooling Motor Roller

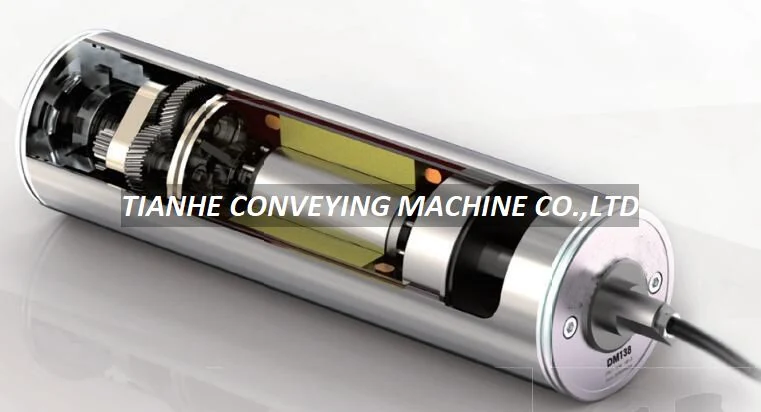

DM138 Belt Conveyor Oil Cooling Motor Roller

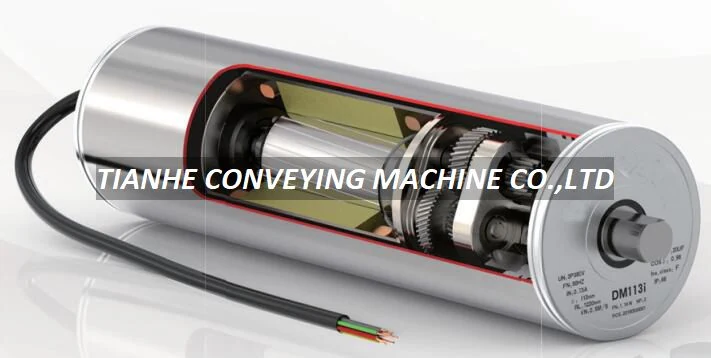

DM113i Belt Conveyor Oil Cooling Motor Roller

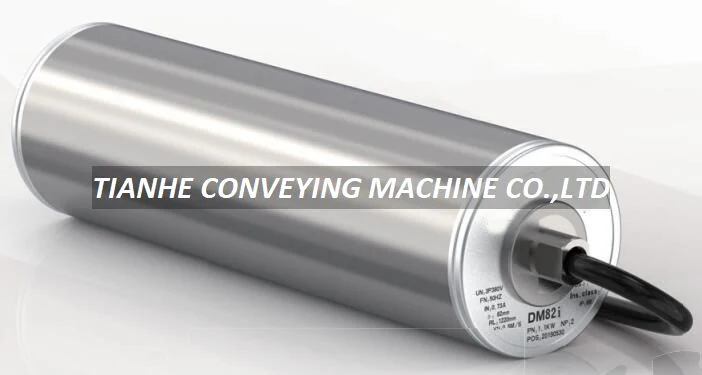

DM82i Belt Conveyor Oil Cooling Motor Roller
Diameter 60 Mm 76mm Direct Current 24V/48V High Torque Motor Roller
Diameter 60mm AC Motor Roller
Material: mild steel & galvanized, mild steel &…
Diameter 50mm AC Motor Roller
Material: mild steel & galvanized, mild steel &…
24v/48v Direct Current Brushless Gear Reduction Rubber Coated Motor Roller
Motor Power: 40W
DGDD50-H Hall Brushless Outer Rotor Permanent Magnetic Motor Roller with Poly V End Cap

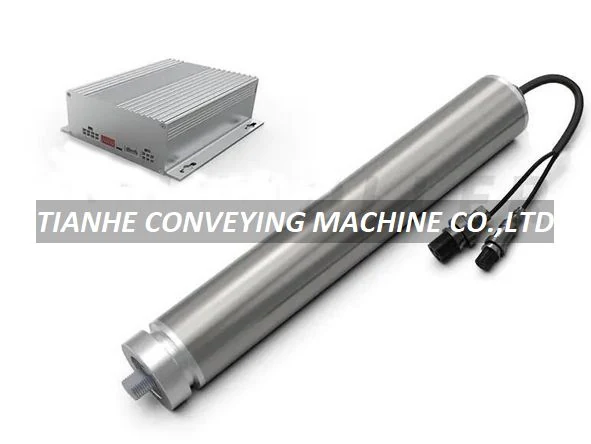

DGDD67-H Hall Brushless Outer Rotor Permanent Magnetic Motor Roller

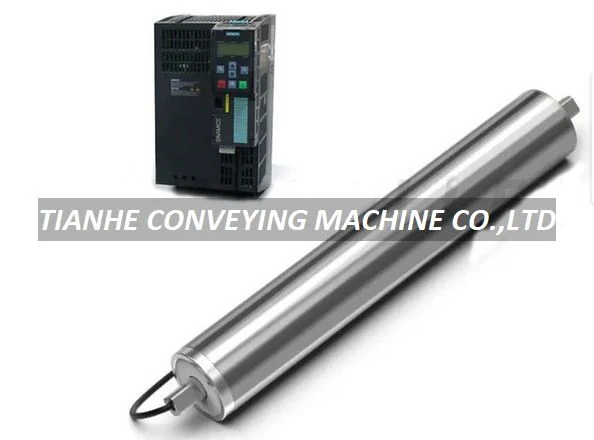

Direct Drive Resolver Servo Outer Rotor Permanent Magnetic Motor Roller
DGBL60 24V/48V DC Brushless Gear Reduction Motor Drive Roller
Material: mild steel & galvanized, mild steel &…DGBL50 24V/48V DC Brushless Gear Reduction Motor Drive Roller
Material: mild steel & galvanized, mild steel &…
Diameter 76mm Alternate Current High Torque Motor Roller
DGAC60/76-AS/HAS/HBP-1PH220V/3PH220V/3PH380V-11M/Min-300L-X-T-H1-N
AC Stainless Motorized Roller with Double Sprocket
Motor Power: 22W
AC Stainless Motorized Roller with Multi Groove
Motor Power: 60W
AC PU Coating Motorized Roller with Double Sprocket
Motor Power: 22W
AC Motorized Roller with Straight Groove
Motor Power: 30W
AC Motorized Roller with Timing Pulley
Motor Power: 30W
AC Taper Motorized Roller
Motor Power: 30W
Three Phase AC Motorized Roller
Motor Power: 22W
Three Phase AC Motorized Roller with Shaft Ends Flat Milling
Motor Power: 30W
76 Three Phase AC Motorized Roller
Motor Power: 60W
Φ113 Rubber Coating AC Motorized Roller
Motor Power: 60W
Φ113 Metal Planet Gear AC Motorized Roller
Motor Power: 60W
Φ113 Alloy Steel Bevel Gear AC Motorized Roller
Motor Power: 60W
Φ127 AC Motorized Roller
Motor Power: 60W
Φ130 Knurling AC Motorized Roller
Motor Power: 60W
Φ138 Grooved Rubber Coating Motorized Roller
Motor Power: 60W
Knurling AC Motorized Roller
Motor Power: 30W
Grooved Rubber Coating Motorized Roller with V Pulley
Motor Power: 30W
Alloy Steel Bevel Gear Motorized Roller with Guide
Motor Power: 120W
NR Coating Motorized Roller with Double O Groove
Motor Power: 22W
Rubber Coating Motorized Roller
Motor Power: 22W
AC Motorized Roller with Brush
Motor Power: 30W
Motorized Roller with Double O Groove
Motor Power: 30W
PU Coating AC Motorized Roller
Motor Power: 60W
Stainless Steel Motorized Roller
Motor Power: 60W
Φ113 Stainless Steel AC Motorized Roller
Motor Power: 60W

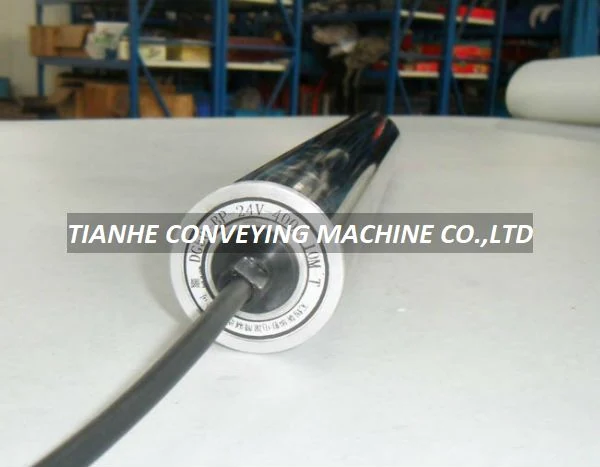

24v/48V DC Brushless Motorized Roller with Speed Control Box 40w 80w
Motor Power: 40W

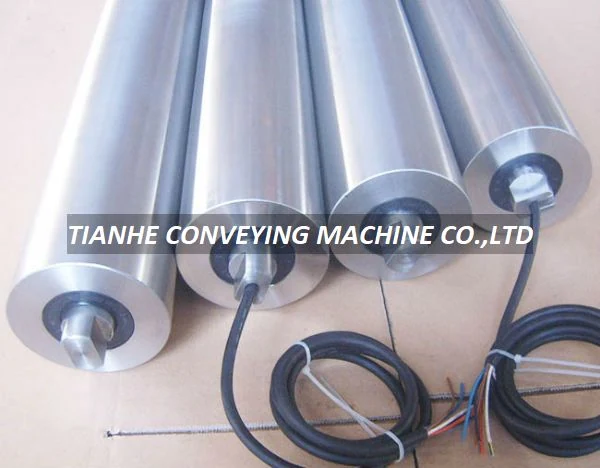

24v/48V DC Brushless Motorized Roller with Speed Control Box with diameter:76mm
Motor Power: 40W

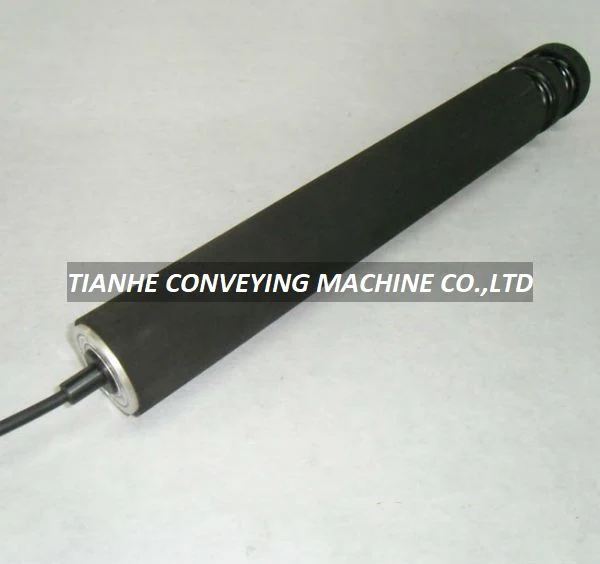

24V/48V DC Brushless Motorized Roller with Rubber Coating and Double O Groove
Motor Power: 40W

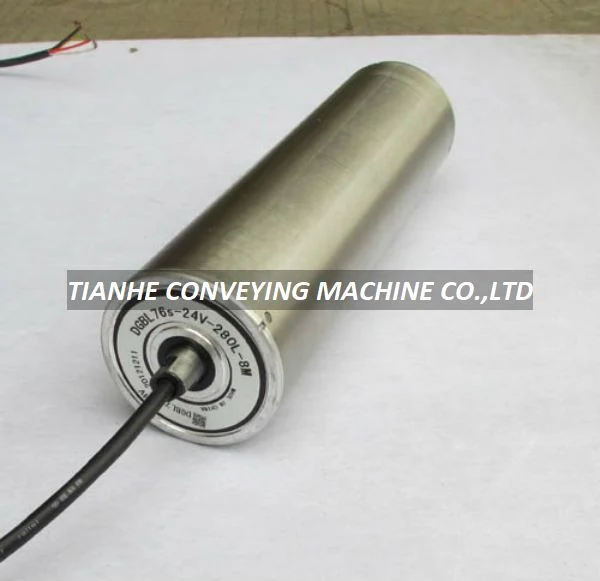

Φ76 24V/48V DC Brushless Stainless Steel Motorized Roller
Motor Power: 40W

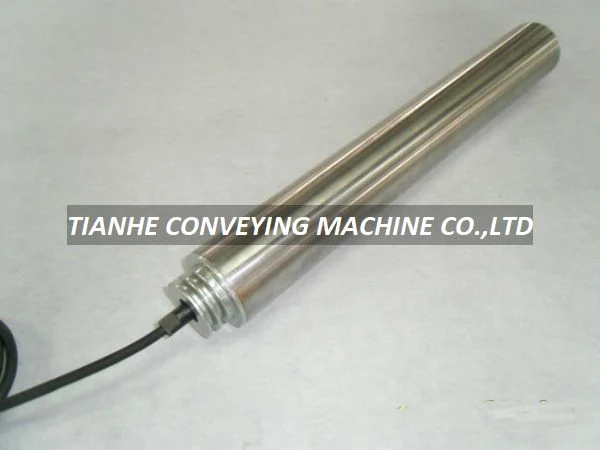

Φ76 24v/48V DC Brushless Stainless Motorized Roller with V Pulley
Motor Power: 40W

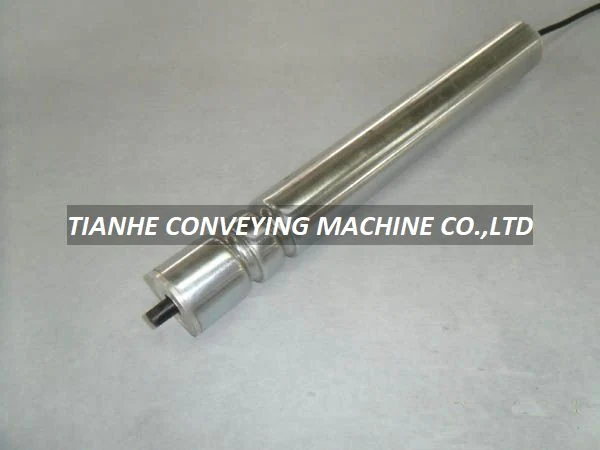

24V/48V DC Brushless Stainless Steel Motorized Roller with Double O Groove
Motor Power: 40W

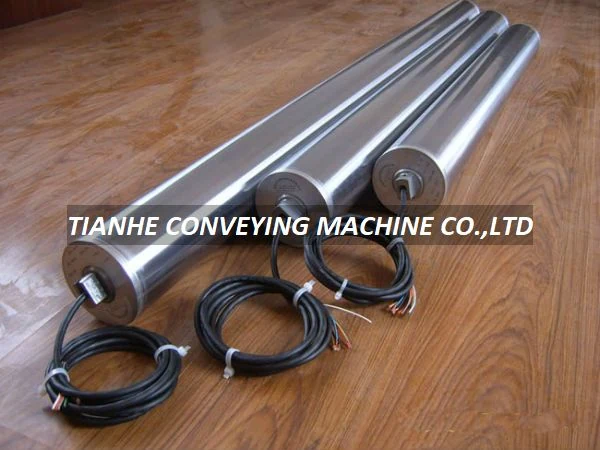

Φ80 24V/48V DC Brushless Stainless sus304 Motorized Roller
Motor Power: 40W

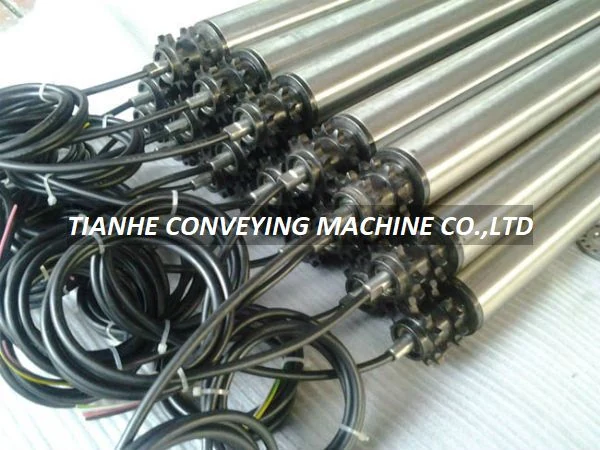

Double Sprocket 24V/48V DC Brushless Motorized Roller
Motor Power: 40W

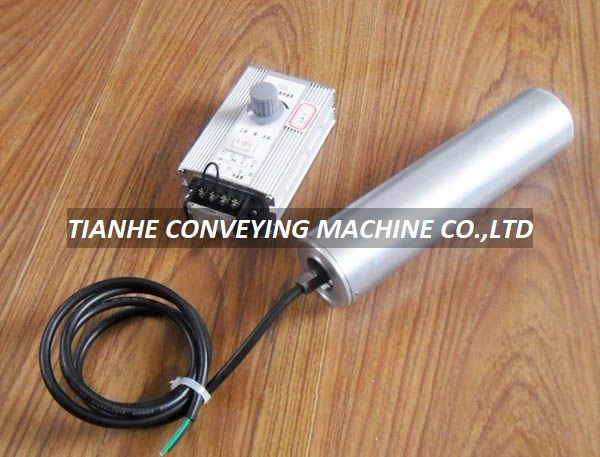

24v/48v Direct Current Brushless Gear Reduction Motor Roller
Motor Power: 40WThe problem this group solves
External drive packages take headroom, need guarding and are the first thing to fail in a wash-down or dusty bay. Moving the drive inside the tube removes the chain run, but it moves the whole selection problem into one part number — diameter, voltage, tube face, speed and coating all have to be right at the order stage.
How to choose
Start with the tube face — it is set by your product width and frame — then the diameter, then speed and voltage. The model code carries all of it: diameter, type, voltage, tube face, rated speed, coating and drive end, in that order.
Typical applications
- Zero-pressure accumulation zones in carton handling
- Powered transfer and merge sections between gravity lines
- Compact drives inside machines where there is no room for a gearmotor
- Wash-down conveyors where an external chain drive cannot be guarded cleanly
Where Motor Roller is specified
E-Commerce and Parcel Handling
Zero-pressure accumulation zones built on 24 V and 48 V brushless motor rollers with poly-V slaved idlers.
IndustryMachine Builders and OEM Equipment
Motor rollers, end caps and ball transfer units supplied to specification for equipment manufacturers.
SolutionZero-Pressure Accumulation Zones
Zoned accumulation built on brushless motor rollers with slaved idlers, so cartons queue without touching.
Product GuideHow to Read a Motor Roller Model Code
Every dimension you need to order a motor roller is already in the model code. Here is how to read one from left to right.
Frequently Asked Questions
What does a motor roller model code mean?
Reading DG50-AS-3PH380V-265L-10M-S3-DS from the left: 50 mm diameter, AS standard type, three-phase 380 V, 265 mm tube face, 10 m/min rated speed, SUS304 tube, double sprocket end.
Can one motor roller drive the idle rollers next to it?
Yes — that is what the sprocket, poly-V or O-groove drive end is for. The number of slaved rollers is limited by the tractive force of the model at your chosen speed.
