Drive Roller Plastic Bearings
Double Sprocket Roller Bearings

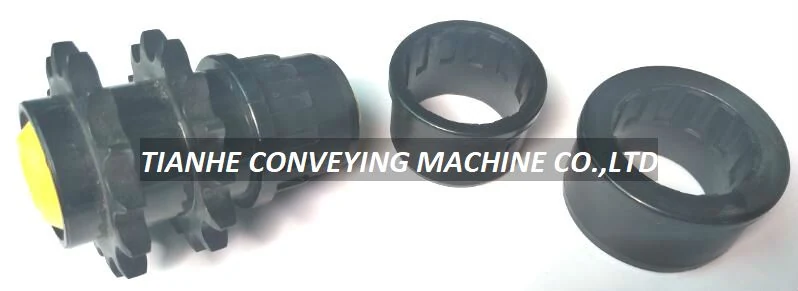

Two sprockets on one end cap, so drive arrives from the previous roller and continues to the next without a separate drive shaft — for example the 08B 14-tooth double sprocket cap for 12 mm shafts.
2 models
Double Sprocket Roller Bearings models we manufacture
The problem this group solves
In a long driven group, every roller has to both receive and pass on drive. A single sprocket cannot do both, so the chain run has to be broken up.
How to choose
Match sprocket type, tooth count and shaft diameter exactly across the group; mixing tooth counts in one chain run will not work.
Typical applications
- Long chain-driven roller groups
- Heavy load transport sections
- Lines where drive must pass through every roller
- Retrofits extending an existing chain-driven zone
Other Drive Roller Plastic Bearings families
Frequently Asked Questions
What does 08B14T mean?
08B is the chain pitch designation and 14T is the tooth count on the sprocket.
Can double sprocket caps be mixed with single ones?
Yes — a double sprocket cap is normally used through the group with a single at the end of the run.
Need double sprocket roller bearings quoted?
Send the model numbers and quantities; we reply with price, lead time and drawings.
