CY Series Ball Transfer Units
The CY series is the pressed-steel workhorse of the range: a stamped steel cup, a steel load ball and a full bed of support balls, offered in flange mount and press mount bodies. It is the unit specified when a line needs many transfer points at a sensible cost and the duty is normal indoor carton and tote handling.
CY Series models we manufacture
Flange Mount Ball Transfer Unit CY-25A
Load Capacity: 25kgs
Disk Mount Pressed Ball Transfer Unit CY-25B
Load Capacity: 25kgs

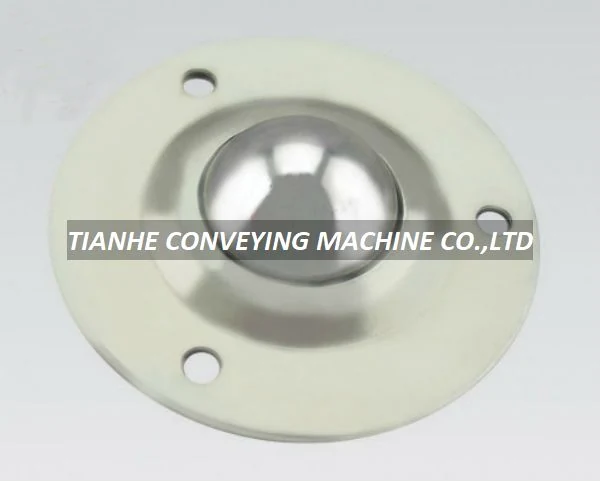

Disk Mount Ball Transfer Unit CY-38B
Load Capacity: 45kgs
Stud Mount Ball Transfer Unit CY-40F
Load Capacity: 40kgs
Flange Mount Ball Transfer Unit CY-38A
Load Capacity: 60kgs
Press Mount Pressed Ball Transfer Unit CY-30H
Load Capacity: 70kgs
Disk Mount Ball Transfer Unit CY-30B
Load Capacity: 35kgs
Flange Mount Ball Transfer Unit CY-30A
Load Capacity: 40kgs

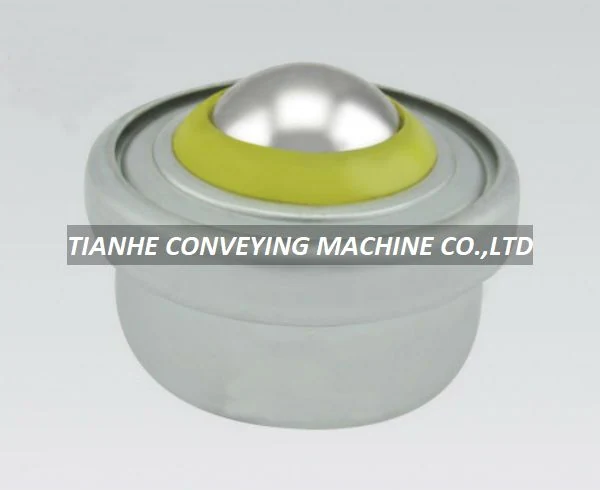

Press Mount Pressed Ball Transfer CY-25T
Load Capacity: 30kgs
Stud Mount Ball Transfer Unit CY-25FLB
Load Capacity: 25kgs
Stud Mount Ball Transfer Unit CY-25FL
Load Capacity: 15kgs
Stud Mount Pressed Ball Transfer CY-25F
Load Capacity: 30kgs
Flange Mount Ball Transfer Unit CY-25E
Load Capacity: 30kgs
Stud Mount Pressed Ball Transfer CY-25D
Load Capacity: 30kgs
Press Mount Pressed Ball Transfer Unit CY-22H
Load Capacity: 40kgs
Stud Mount Pressed Ball Transfer CY-19F
Load Capacity: 15kgs
Stud Mount Pressed Ball Transfer CY-19D
Load Capacity: 20kgs
Press Mount Pressed Ball Transfer Unit CY-19C
Load Capacity: 20kgs
Flange Mount Pressed Ball Transfer Unit CY-18A
Load Capacity: 20kgs
Disk Mount Pressed Ball Transfer Unit CY-16B
Load Capacity: 10kgs
Press Mount Pressed Ball Transfer Unit CY-15H
Load Capacity: 15kgs

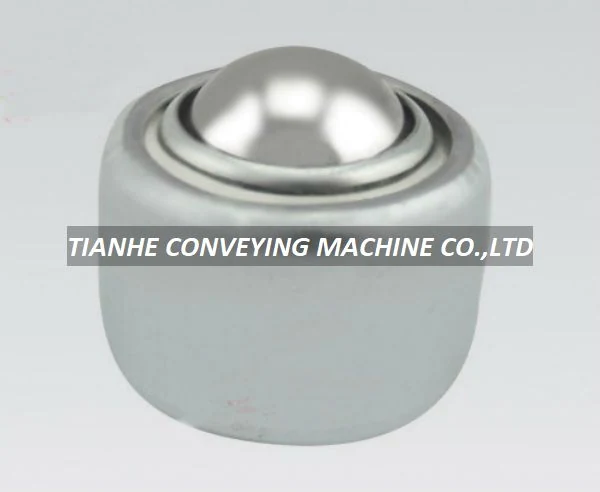

Press Mount Pressed Ball Transfer Unit CY-15T
Load Capacity: 8kgs
Flange Mount Pressed Ball Transfer Unit CY-15A
Load Capacity: 10kgs

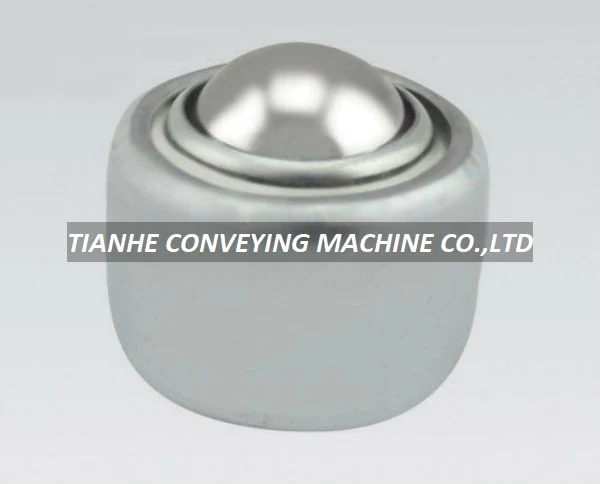

Press Mount Pressed Ball Transfer Unit CY-12T
Load Capacity: 5kgs
Press Mount Pressed Ball Transfer Unit CY-8H
Load Capacity: 3kgsThe problem this group solves
Pressed units are often bought on price and then fail early because the plate was too thin for the mount style, or because the unit sat under a wash-down hose it was never plated for.
How to choose
Choose flange mount where you can bolt from above and want the ball height fixed by the flange; choose press mount where the plate is punched and a flush finish matters. Chrome plating is the usual upgrade for damp indoor areas; stainless bodies are handled by the KS and SI series.
Typical applications
- Ball tables under cartons and plastic totes at packing stations
- Transfer sections between gravity roller conveyors
- Airport and parcel handling check-in plates
- Assembly benches where parts are indexed by hand
Where CY Series is specified
Airport and Baggage Handling
Check-in ball transfer plates, belt conveyor drum motors and transfer sections for baggage lines.
SolutionBall Transfer Tables and Transfer Plates
Laying out a ball table so an operator can rotate and align a load with one hand, and so the units survive the way the load arrives.
Selection GuideBall Transfer Unit Mounting Styles Explained
Flange, press, bolt-down, stud and downward mounts are not interchangeable. The plate you have usually decides which one you can use.
Frequently Asked Questions
What is the difference between flange mount and press mount CY units?
Flange mount has a wide collar with screw holes and sits on top of the plate; press mount has a plain shoulder and is pressed into a prepared hole. Flange mount is easier to retrofit, press mount gives a lower, cleaner surface.
Is the CY series suitable for outdoor use?
Plated pressed steel is an indoor specification. For outdoor, wash-down or corrosive areas use the stainless bodies from the KS KSM or SI SD series instead.
Need cy series quoted?
Send the model numbers and quantities; we reply with price, lead time and drawings.
