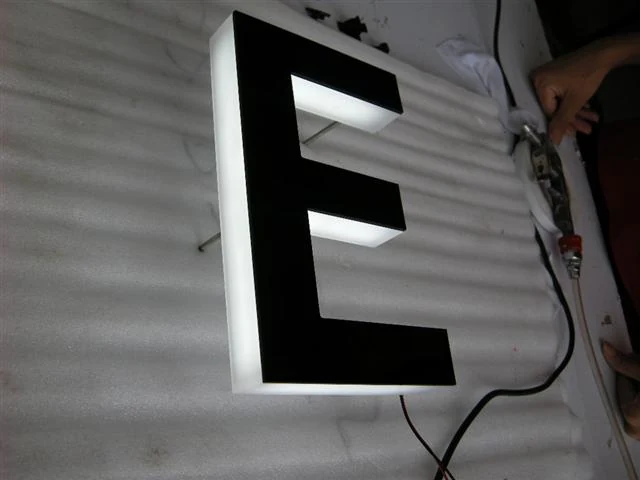

An edge-lit letter with an opaque metal front that blocks light and a 20, 25 or 30mm solid translucent white acrylic back that is cut away inside. The LED sits inside the acrylic and the light escapes along the edge of the letter only.
An edge-lit letter with an opaque metal front that blocks light and a 20, 25 or 30mm solid translucent white acrylic back that is cut away inside. The LED sits inside the acrylic and the light escapes along the edge of the letter only.
Best for. Interiors that want a glowing outline rather than a lit face, such as hotel lobbies and showrooms.
Watch out. The effect depends on a dark surround; in bright daylight the edge glow barely registers.
Interiors that want a glowing outline rather than a lit face, such as hotel lobbies and showrooms. It sits in our hotels restaurants and bars work more often than anywhere else.
Some signs are read from the side of the street rather than from in front of it, and some interiors need a glow rather than a lit letter. Neither is a channel letter problem. These builds are the answers we actually produce, with the longer 7 to 10 day production times stated up front.
Hospitality signage is read at night, at close range, and in rooms whose lighting has already been designed. The sign has to join that lighting scheme rather than fight it. See the export packing and door to door delivery route for how this is specified on a live job.
These points are reproduced from our own production specification for Edgelit LED Letters 09. Nothing has been added to them.
| Construction | Opaque metal front over machined solid acrylic holding the LED |
|---|---|
| Material | Translucent or solid acrylic |
| Face material | Opaque metal, no light passes through the face |
| Surface finish | Opaque metal face; stainless, aluminium or painted metal specified per order |
| Illumination | Edge lit, LED inside solid acrylic |
| LED module | Built-in high quality waterproof LED |
| Transformer | Supplied with the letters |
| Acrylic thickness | 20, 25, 30mm solid translucent acrylic |
| Fixing method | Back stud |
| Supplied with the order | Fixing screws, transformer |
| Production time | 7 to 10 days |
| Shipping | DHL or UPS express door to door, approximately 4 to 5 days |
| Payment terms | T/T, Western Union, PayPal |
| Minimum order quantity | None |
TBC means the figure is not stated on our original specification and has not been estimated.
Translucent or solid acrylic Finish: opaque metal face; stainless, aluminium or painted metal specified per order.
Opaque metal front over machined solid acrylic holding the LED. Artwork in AI, EPS or CDR fixes the geometry before anything is cut.
Joints are dressed before finishing, and illuminated builds are wired and lit before the back is closed. Formal QC documentation is TBC.
Factory level certification is TBC and is not claimed on this site.
Fourteen products that are not channel letters: lightboxes, double-sided projecting flag signs, edge-lit solid acrylic, push-through faces and RGB programmable builds.
The alternative constructions in this catalogue are set out in fabricated or flat cut which construction to use, and the illumination choices in frontlit backlit or edge lit.
The effect depends on a dark surround; in bright daylight the edge glow barely registers.
Interior wording that has to glow evenly across the face and the return at the same time.
View specification

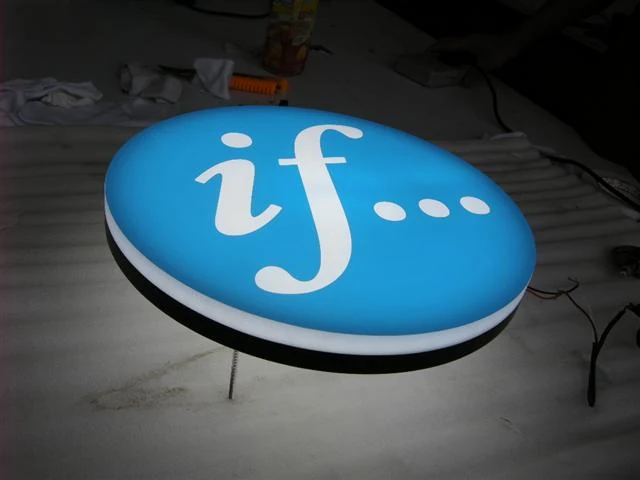

Feature wording in a reception where a single piece of thick acrylic is part of the design.
View specification

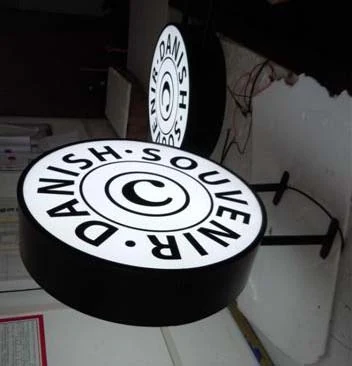

Pharmacy crosses, hotel signs and shop flags on narrow high streets.
View specification

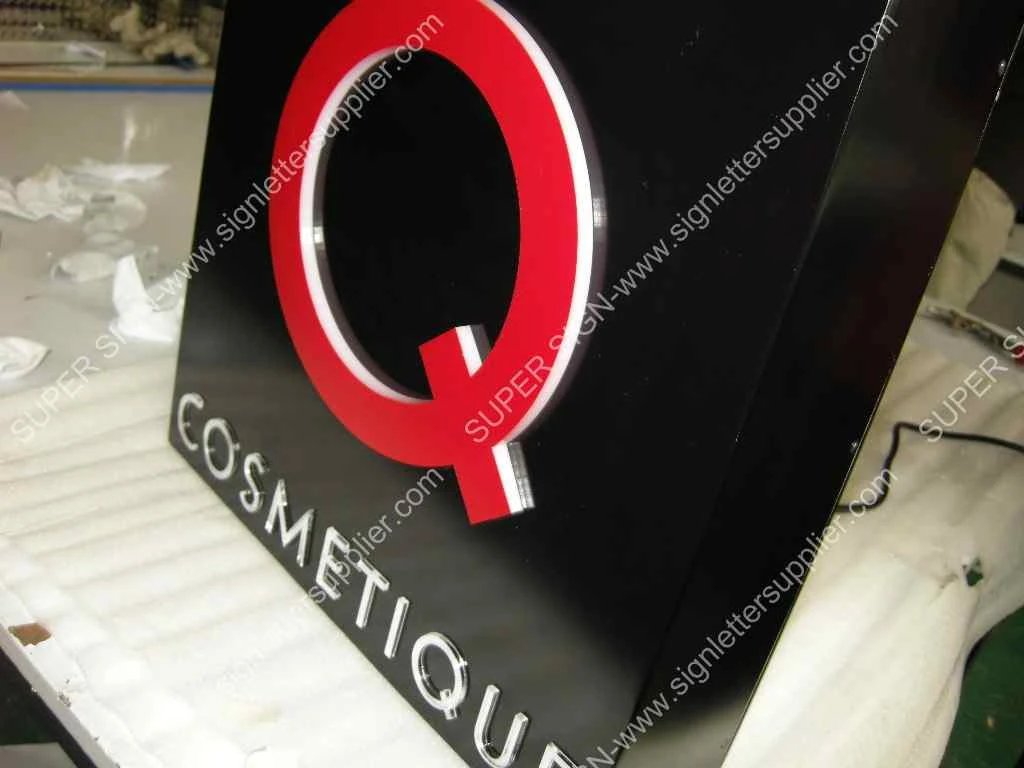

Cosmetic, fashion and service brands whose mark is a shape rather than a word.
View specificationThe venue is read by people walking along the street rather than standing in front of it, so a flat fascia sign would have been invisible until the customer had already passed.
Buying GuideThe numbers a buyer needs to work backwards from a handover date, and what actually travels in the carton.
DownloadsMaterials, finishes, fixings and lead times in one PDF, plus the full catalogue as a CSV.
Translucent or solid acrylic. The construction is opaque metal front over machined solid acrylic holding the LED. Surface finish: opaque metal face; stainless, aluminium or painted metal specified per order.
Production runs 7 to 10 days. Add roughly 4 to 5 days for DHL or UPS express door to door, and allow time for artwork approval before production starts.
Fixing is by back stud. The order includes fixing screws, transformer. Set the letters out from the template rather than by eye.
The effect depends on a dark surround; in bright daylight the edge glow barely registers.
Yes. There is no minimum order quantity on this catalogue and any order quantity is accepted. Shipping cost per letter falls sharply once several travel in the same carton, so order a full word together where you can.
Send the artwork and the finished letter height and the quotation comes back with the production window and the shipping estimate attached.
