Backlit LED Sign Letters 01
Logotypes that mix uppercase and lowercase and need the halo to stay even across both.
View specification
LED Sign Letters · Backlit LED Channel Letters

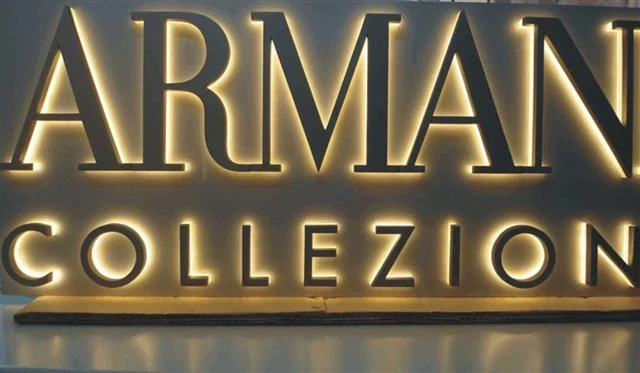

A halo letter with the return and front available in 304 or 316 polished or brushed stainless, lit from behind by waterproof LED. Fixing is by back stud, with screws, a 1:1 template and a transformer included.
A halo letter with the return and front available in 304 or 316 polished or brushed stainless, lit from behind by waterproof LED. Fixing is by back stud, with screws, a 1:1 template and a transformer included.
Best for. Facades where the letters mount onto stone or cladding and the fixing has to be set out precisely.
Watch out. Stone drilling has to follow the template exactly; there is no adjustment once the studs are resined in.
Facades where the letters mount onto stone or cladding and the fixing has to be set out precisely. It sits in our corporate offices and lobbies work more often than anywhere else.
The halo is made by the wall, not by the letter. Surface colour, surface texture and the stand-off distance decide whether the effect is a clean outline or a smudge, and none of those are things a letter specification usually mentions. They are all listed here.
A reception wordmark is looked at from two metres by people with nothing else to do. Every seam, every kerning error and every uneven reflection is visible. See the halo and backlit brand walls route for how this is specified on a live job.
These points are reproduced from our own production specification for Backlit LED Letters 19. Nothing has been added to them.
| Construction | Fabricated sheet metal, folded and soldered into a closed letter |
|---|---|
| Material | Genuine 304 or 316 grade stainless steel, aluminium alloy |
| Return material | 304 or 316 polished or brushed stainless steel, aluminium or powder coated metal |
| Surface finish | Specified per order: polished or brushed stainless, aluminium, or powder coated metal |
| Illumination | Backlit halo, LED aimed at the mounting surface |
| LED module | Built-in high quality waterproof LED |
| Transformer | Supplied with the letters |
| Fixing method | Back stud |
| Supplied with the order | 1:1 scale mounting template, fixing screws, transformer |
| Colour matching | Any colour from a Pantone or RAL code confirmed before production |
| Production time | 7 to 10 days |
| Shipping | DHL or UPS express door to door, approximately 4 to 5 days |
| Payment terms | T/T, Western Union, PayPal |
| Minimum order quantity | None |
TBC means the figure is not stated on our original specification and has not been estimated.
Genuine 304 or 316 grade stainless steel, aluminium alloy Finish: specified per order: polished or brushed stainless, aluminium, or powder coated metal.
Fabricated sheet metal, folded and soldered into a closed letter. Artwork in AI, EPS or CDR fixes the geometry before anything is cut.
Joints are dressed before finishing, and illuminated builds are wired and lit before the back is closed. Formal QC documentation is TBC.
Factory level certification is TBC and is not claimed on this site.
Nineteen builds where the face stays solid metal and the LED throws light onto the wall behind, producing the halo or corona outline.
The alternative constructions in this catalogue are set out in fabricated or flat cut which construction to use, and the illumination choices in frontlit backlit or edge lit.
Stone drilling has to follow the template exactly; there is no adjustment once the studs are resined in.
Logotypes that mix uppercase and lowercase and need the halo to stay even across both.
View specification
Brands whose mark is a specific colour but who also want the night-time halo look.
View specification
Corporate identity walls where the halo is the whole design intent.
View specification
Reception walls and facades where the brand colour should appear as light on the wall, not on the letter.
View specificationThe brand colour had to appear at night without the letter face glowing, so the sign reads as solid brushed metal in daylight and as a coloured outline after dark.
Comparison GuideThree ways of putting light into a metal letter, and the one question that separates them: where do you want the light to come out?
DownloadsMaterials, finishes, fixings and lead times in one PDF, plus the full catalogue as a CSV.
Genuine 304 or 316 grade stainless steel, aluminium alloy. The construction is fabricated sheet metal, folded and soldered into a closed letter. Surface finish: specified per order: polished or brushed stainless, aluminium, or powder coated metal.
Production runs 7 to 10 days. Add roughly 4 to 5 days for DHL or UPS express door to door, and allow time for artwork approval before production starts.
Fixing is by back stud. The order includes 1:1 scale mounting template, fixing screws, transformer. Set the letters out from the template rather than by eye.
Stone drilling has to follow the template exactly; there is no adjustment once the studs are resined in.
Yes. There is no minimum order quantity on this catalogue and any order quantity is accepted. Shipping cost per letter falls sharply once several travel in the same carton, so order a full word together where you can.
Send the artwork and the finished letter height and the quotation comes back with the production window and the shipping estimate attached.
