Paper Cushion Machine · EM-PR800

Paper Cushion Rewinding Machine

Name: Paper Cushion Rewinding Machine
Brand: Emerson Machinery
SKU: EM-PR800

Builds the two-ply reel the cushion former runs on

Paper Cushion Rewinding Machine built by Emerson Machinery

Product Overview

The EM-PR800 is the rewinding half of our paper cushion pair. It unwinds two reels at once and rewinds them together as a single reel, which is how the 2-ply stock for the Paper Cushion Machine is made. It handles reels up to 1 Ton and 1200 mm diameter at the unwind, rewinds to 300 mm, and runs at up to 80 m/min across a 760 mm width.

Key Benefits

Two-roll unwinding and feeding makes the 2-ply reel in one pass
0-80 m/min, more than three times the 25 m/min of the pad forming machine it feeds
Takes 1 Ton mill reels up to 1200 mm, so production runs from bulk stock rather than small rolls
Rewinding shaft available in 1, 1.5, 2 or 3 inch to match the cushion machine in use

The Machine And What It Produces

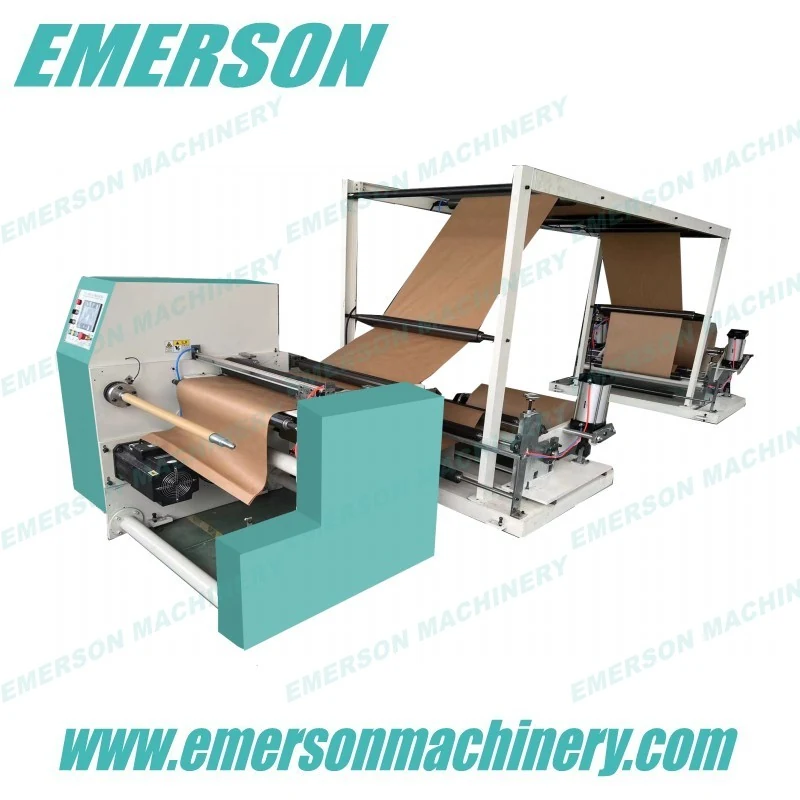

Paper cushion rewinding machine EM-PR800 full line

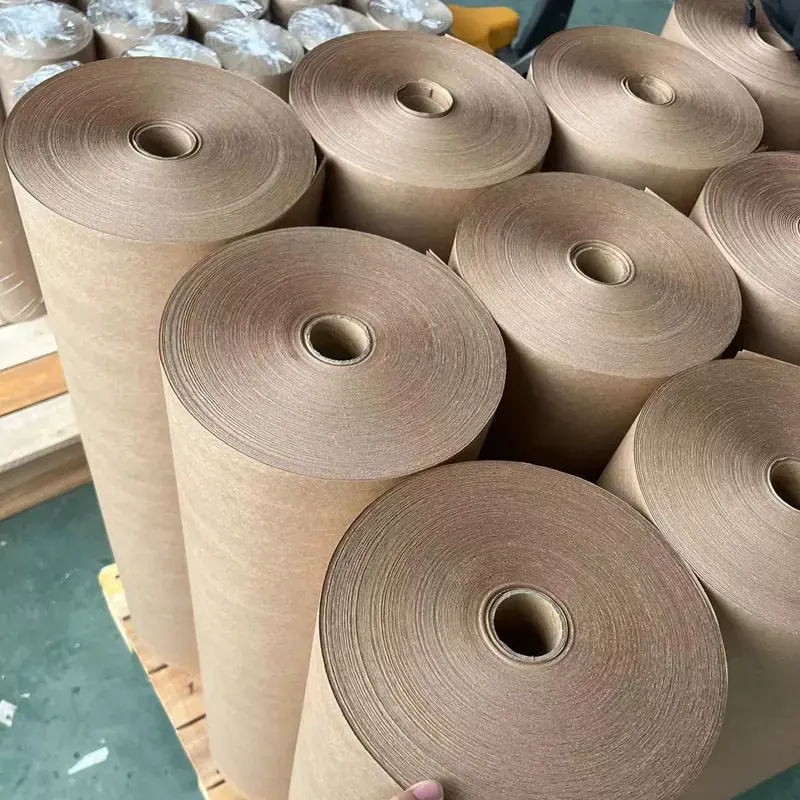

Kraft paper reel being handled at the rewinding station

Two roll unwinding section of the paper cushion rewinding machine

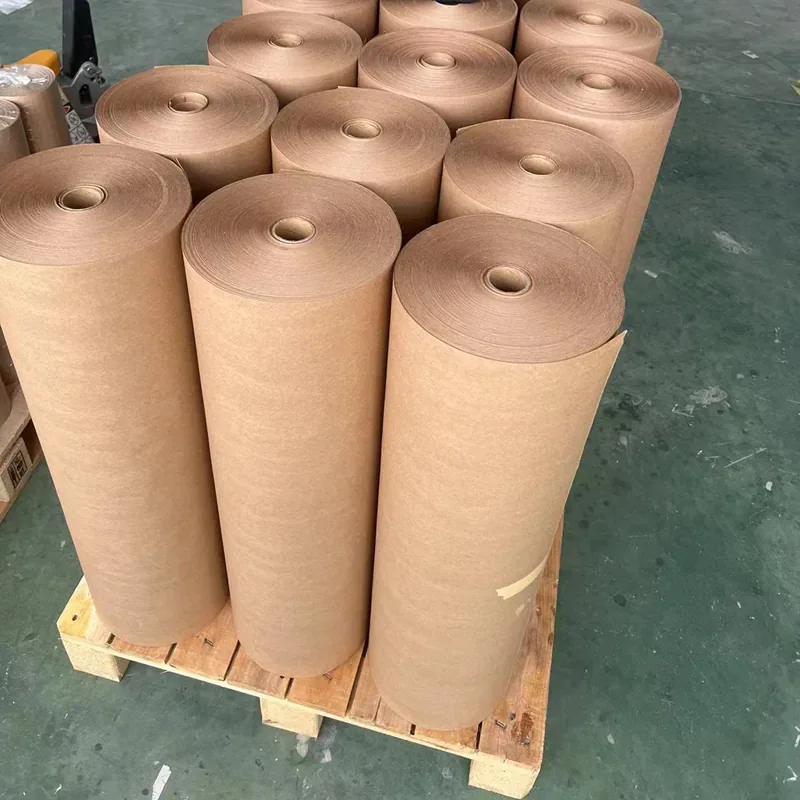

Finished two ply kraft cushion reel on the rewinding shaft

Application Scenarios

Preparing 2-ply kraft reels for cushion pad forming
Rewinding bulk mill reels down to workable production reels
Producing paper pad stock for packers running paper cushion machines
Converting kraft reels for cushion forming, pad making and cushion machine lines

Who It Is For

Packers already running a paper cushion machine on single-ply stock
Converters supplying 2-ply cushion reels to packing operations
Operations buying 1 Ton mill reels and needing them rewound to size
Producers standardising cushion pad strength across shifts

Problems It Solves

Single-ply cushion pads are too weak for heavier goods
Feeding two separate reels into a pad former by hand is unreliable
1 Ton mill reels cannot be loaded straight onto a bench-size cushion machine
Mixed core sizes across machines mean reels cannot be moved between them

Technical Features

Two roll unwinding and feeding, rewound as one reel
760 mm maximum material width
0-80 m/min adjustable speed
Unwinding up to 1200 mm diameter and 1 Ton reel weight
Rewinding up to 300 mm diameter
3 inch inflatable air shaft on the unwind
Rewinding shaft in 1, 1.5, 2 or 3 inch, usually 1.5 inch

Specifications

Machine model	EM-PR800
Max material width	760 mm
Machine working speed	0-80 m/min adjustable
Unwinding and feeding	Two rolls unwinding
Unwinding diameter	Max. 1200 mm
Rewinding diameter	Max. 300 mm
Unwinding roll weight	Max. 1 Ton
Unwinding shaft	3 inch inflatable air shaft
Rewinding shaft	1 / 1.5 / 2 / 3 inch air shaft, usually 1.5 inch
Machine size	L 8500 x W 1200 x H 2000 mm
Machine weight	1500 KG

Every figure above is taken from the published specification for this model. Anything marked TBC has not been published and will be confirmed by our engineers.

Materials It Runs

See the specification table above.

Manufacturing And Quality

The machine is built at our workshop in Ruian, Zhejiang. UDEM has issued CE attestations of conformity to Machinery Directive 2006/42/EC for our honeycomb paper making machine, bag making machine and paper folding machine, referencing EN ISO 12100:2010 and EN 60204-1:2018. A demo machine is kept running in the workshop so the build can be shown and installation supported by video call.

Customization

We have engineers who develop new machine functions to customer requirements, and where the current machine cannot meet a requirement we supply a solution instead. Several machines in this range started exactly that way.

Compared With Our Other Machines

This machine and the Paper Cushion Machine are two halves of one process: the rewinder builds the 2-ply reel at 80 m/min, the cushion machine forms the pad from it at 25 m/min. Against the honeycomb machines, there is no die cutting here at all, only two-roll unwinding and rewinding, which is why the frame is 8500 mm long and holds no cutting module.

Use Guide

Load both mill reels on the two-roll unwinding stand, up to 1 Ton and 1200 mm each. Match the rewinding shaft to the cushion machine you will feed, usually 1.5 inch. Run at the speed the paper will take up to 80 m/min and stop the rewind at 300 mm diameter so the finished reel still fits the pad former.
