Paper Cushion Machine · Cushion pad forming machine

Paper Cushion Machine

Name: Paper Cushion Machine
Brand: Emerson Machinery
SKU: Cushion pad forming machine

Crumpled kraft pads, formed at the packing bench

Paper Cushion Machine built by Emerson Machinery

Product Overview

This kraft paper cushion making machine, also called a cushion pad forming machine, takes paper in roll form and converts it into a crumpled protective pad. It runs a single layer or two layers, and the 2-layer feed gives a stronger cushion effect than one layer. The 2-ply reel itself is made on our Paper Cushion Rewinding Machine, so the two machines are usually bought and used as a pair.

Key Benefits

At 100 kg and 1250 x 1000 x 850 mm it sits at a packing bench, not in a converting hall
Runs 1 or 2 ply from the same head, so pad strength is a feed choice rather than a machine change
760 mm feeding width covers full carton void fill from one pass
Makes the cushion on demand, so no bulky pre-made void fill has to be stored

The Machine And What It Produces

Paper cushion machine forming crumpled kraft pads

Crumpled kraft paper cushion pad leaving the forming head

Paper cushion machine feeding section with kraft roll

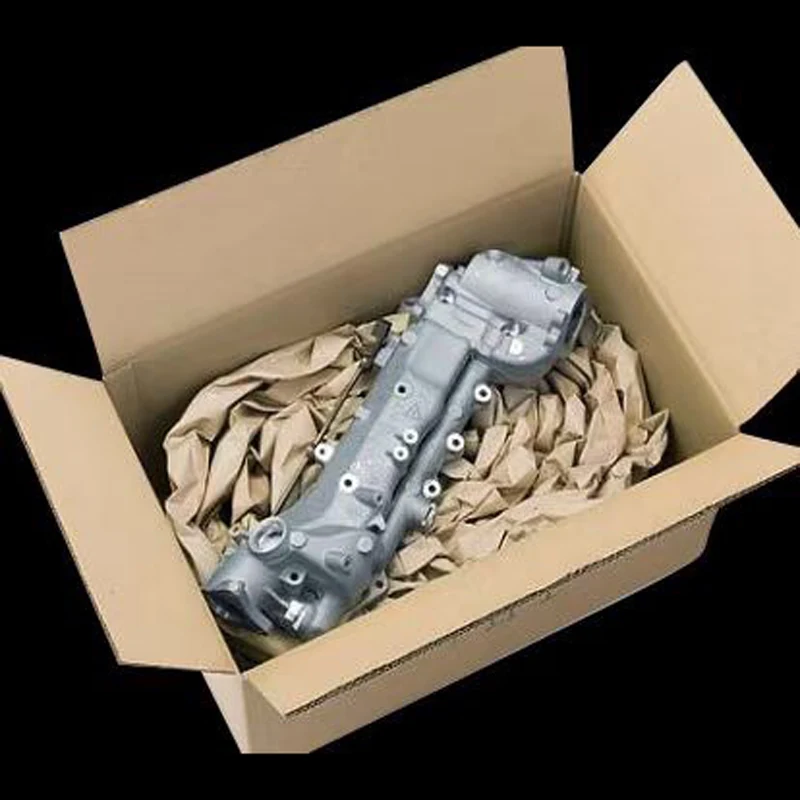

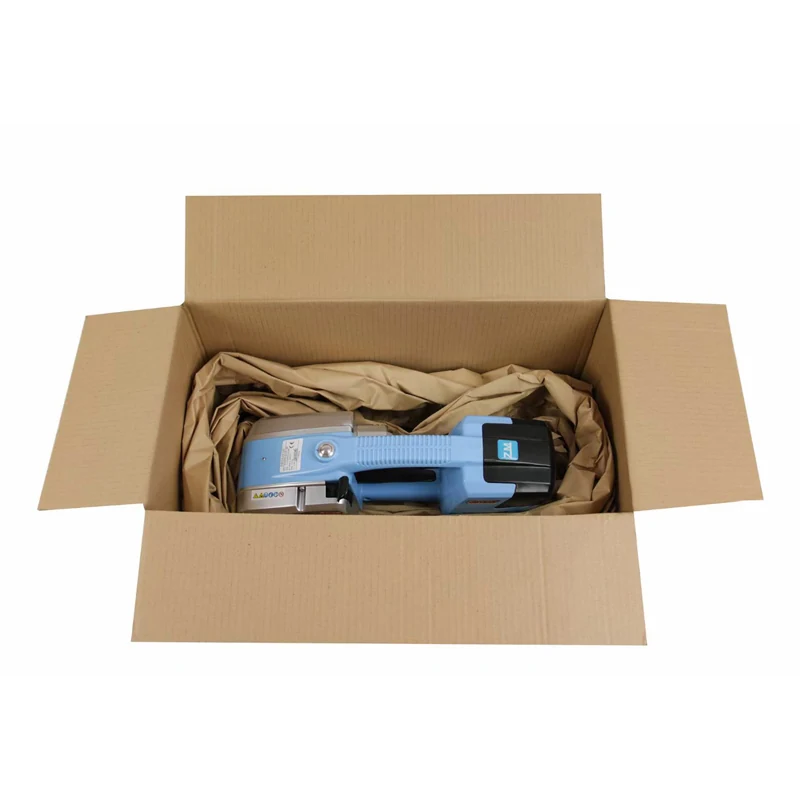

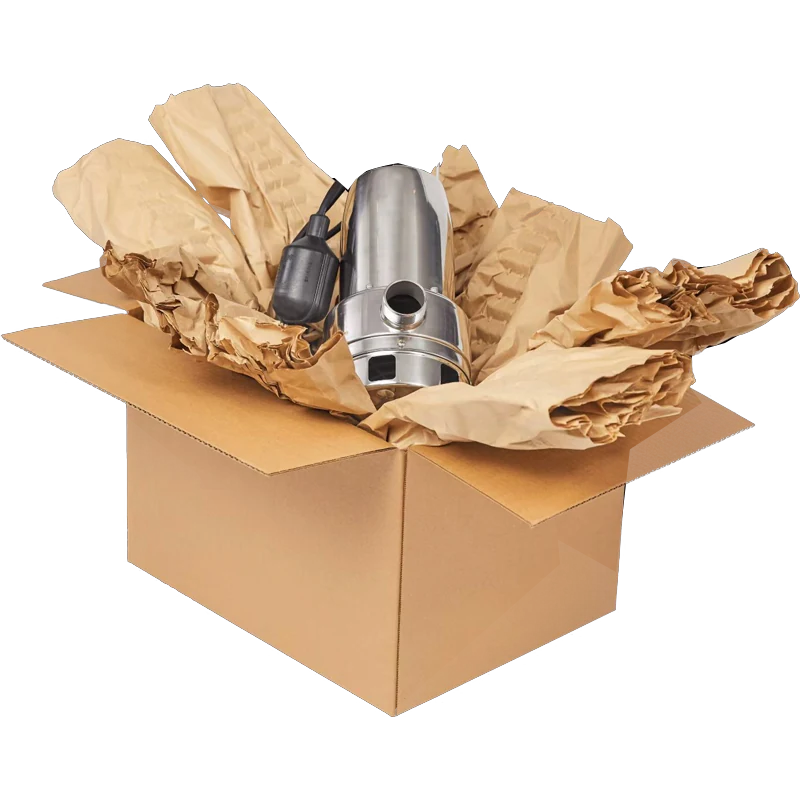

Formed kraft paper cushion used as void fill in a carton

Application Scenarios

Void fill in cartons for e-commerce and retail dispatch
Layer protection between stacked goods
Cushioning around ceramics, glassware and bottles
General protective packing at the dispatch bench

Who It Is For

Fulfilment and dispatch operations packing mixed-size cartons
Packers replacing plastic air pillows and loose fill
Distributors offering a paper void fill service to their customers
Buyers who already run our rewinding machine and want the pad-forming half

Problems It Solves

Pre-made void fill is mostly air and expensive to store and freight
Single-ply crumpled paper is too weak for heavier goods
Plastic air pillows and loose fill are being removed from packaging specifications
Large converting machines will not fit at a packing bench

Technical Features

Original material is paper in roll form
Runs 1 layer or 2 layer feeding
2-layer paper supplies a stronger cushion effect than 1 layer
2-ply reels are prepared on our Paper Cushion Rewinding Machine
760 mm feeding roll width
Runs 70-80 gsm kraft
Compact 1250 x 1000 x 850 mm frame at 100 kg

Specifications

Feeding roll width	760 mm
Speed	25 m/min
Paper thickness	70-80 gsm, 1-2 ply feeding
Machine weight	100 kg
Machine dimension	L 1250 x W 1000 x H 850 mm
Power supply	TBC - confirm with our engineers for your local supply

Every figure above is taken from the published specification for this model. Anything marked TBC has not been published and will be confirmed by our engineers.

Materials It Runs

70-80 gsm, 1-2 ply feeding

Manufacturing And Quality

The machine is built at our workshop in Ruian, Zhejiang. UDEM has issued CE attestations of conformity to Machinery Directive 2006/42/EC for our honeycomb paper making machine, bag making machine and paper folding machine, referencing EN ISO 12100:2010 and EN 60204-1:2018. A demo machine is kept running in the workshop so the build can be shown and installation supported by video call.

Customization

We have engineers who develop new machine functions to customer requirements, and where the current machine cannot meet a requirement we supply a solution instead. Several machines in this range started exactly that way.

Compared With Our Other Machines

The Paper Cushion Rewinding Machine is the upstream half of this pair: it unwinds two reels and rewinds them as one 2-ply reel at up to 80 m/min. This machine is the downstream half that turns that reel into the finished crumpled pad at 25 m/min. Against a fanfold folding machine, the output here is a formed cushion pad rather than a stacked pack for a dispenser.

Use Guide

Decide on 1 ply or 2 ply first; 2 ply gives the stronger cushion and is fed from a reel made on the rewinding machine. Load the 760 mm reel and run at 25 m/min, taking pads off at the bench as the carton is packed. For heavier goods move to 2 ply rather than adding more single-ply paper.
