Honeycomb Paper Machine · EM-PH800

Fire Resistant Filter Paper Making Machine

Name: Fire Resistant Filter Paper Making Machine
Brand: Emerson Machinery
SKU: EM-PH800

One frame, two jobs: filter media or packaging honeycomb

Fire Resistant Filter Paper Making Machine built by Emerson Machinery

Product Overview

This machine was designed to a customer requirement for flame resistant and flame retardant paper. After die cutting and stitching online, the finished roll is used as filter material. The frame is longer between the die cutting module and the rewinding device than on a packaging honeycomb machine, which leaves room for the customer to add a stitching or sewing machine in the process. The same line still makes ordinary honeycomb and mesh paper for packaging when the die is changed.

Key Benefits

The extended die-to-rewind gap leaves space to add a stitching or sewing station in line
Rewinding diameter goes to 600 mm for flame retardant paper, double the 300 mm packaging setting
One machine covers two markets: workshop filter media and packaging honeycomb
700 mm working width suits filter panel formats rather than parcel wrap widths

The Machine And What It Produces

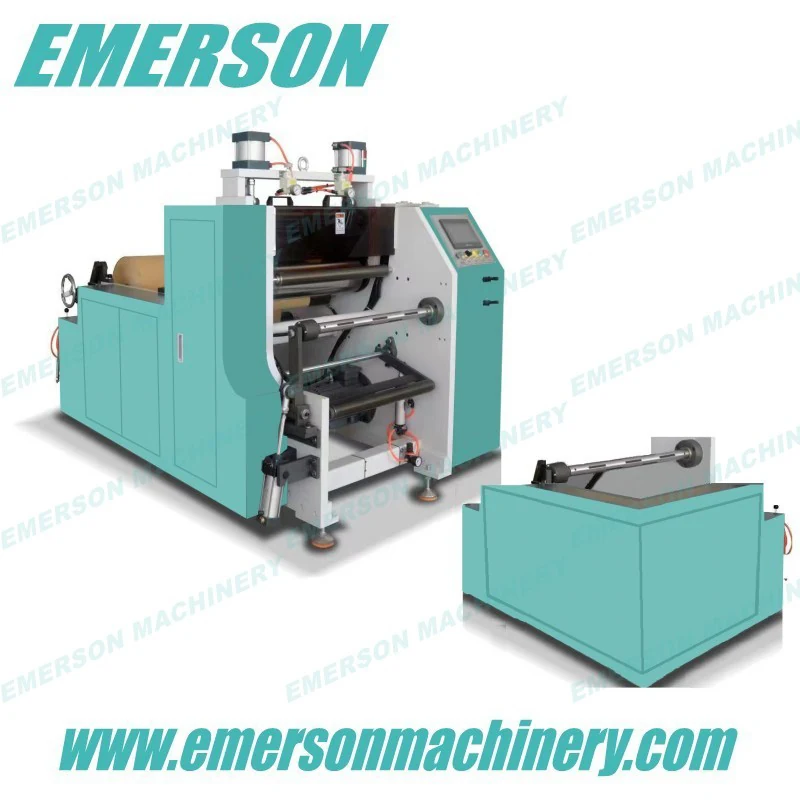

Fire resistant filter paper making machine EM-PH800 full line

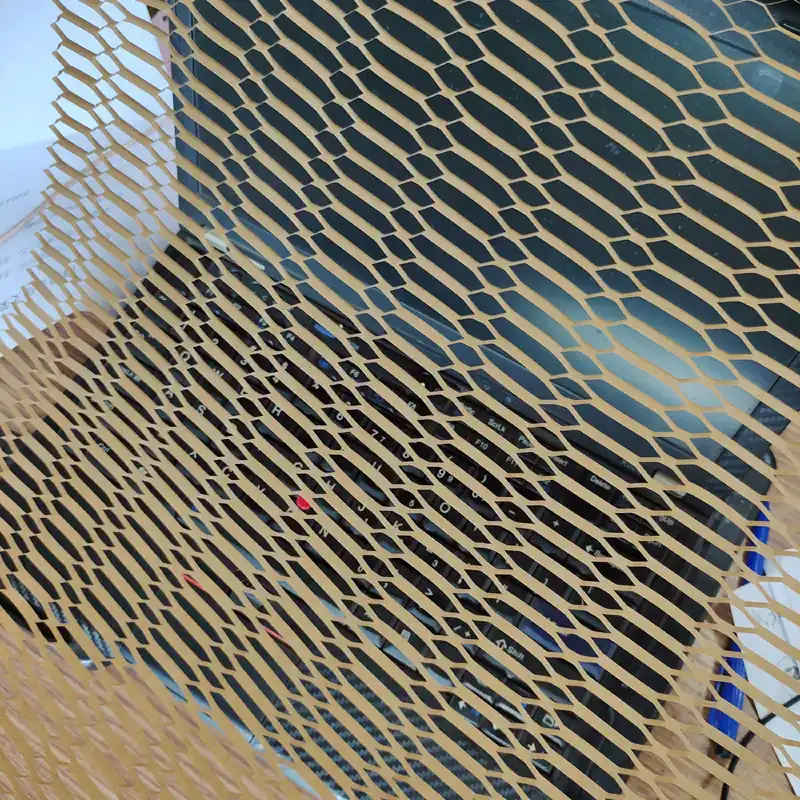

Flame retardant paper being die cut on the EM-PH800

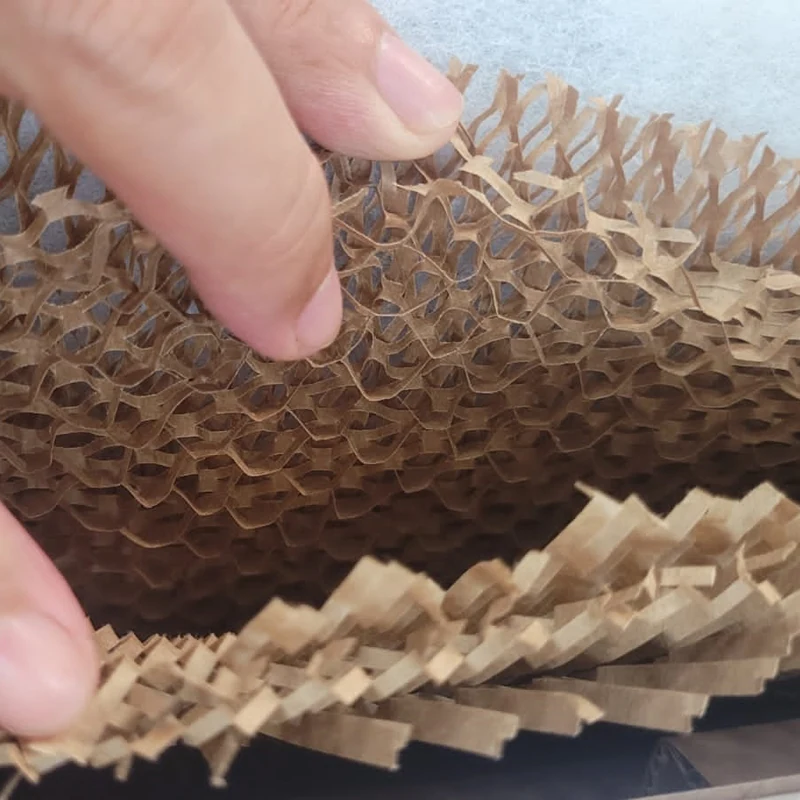

Rewinding station holding a finished filter paper roll

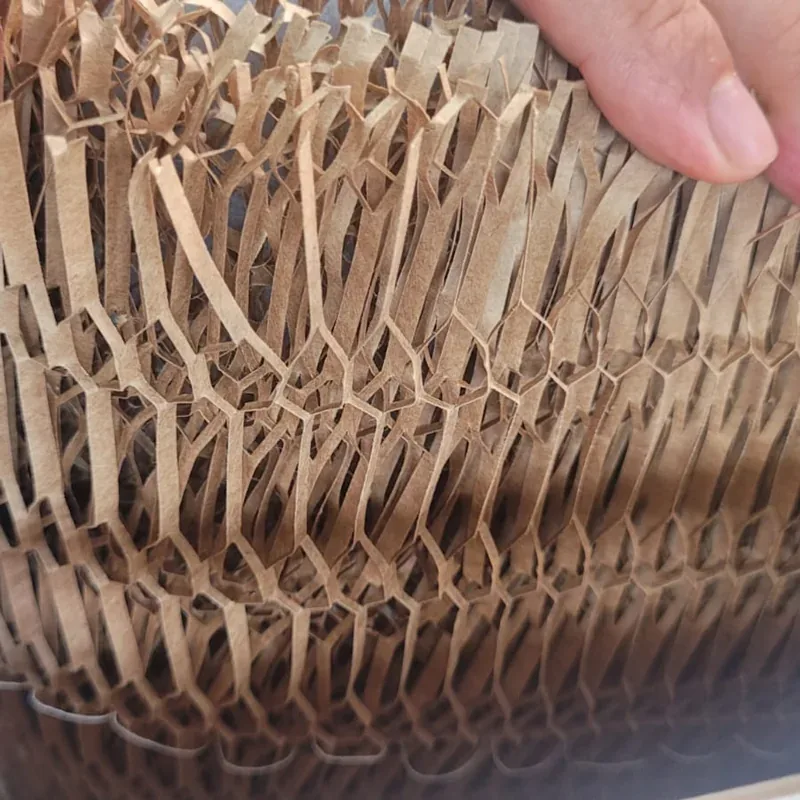

Die cutting module set up for filter paper production

Honeycomb and filter paper webs produced on Emerson machines

Application Scenarios

Filter media production from flame resistant paper for workshop use
Flame retardant paper converting for industrial filtration customers
Honeycomb and mesh paper production for packaging when the die is swapped
Shock-absorbing and wrapping paper die cutting from 70 g to 100 g

Who It Is For

Filter media converters working in flame retardant grades
Spray booth and workshop filtration suppliers
Honeycomb converters who also want a second revenue line in filtration
Machine buyers who need a custom die cutting frame rather than a catalogue one

Problems It Solves

Filter paper needs stitching in line, and a standard honeycomb frame has no room for it
Flame retardant rolls build up bigger than packaging rolls and hit the 300 mm rewind limit
Running two separate machines for filtration and packaging ties up floor space
Off-the-shelf die cutting lines are not designed around flame resistant stock

Technical Features

Designed for flame resistant and flame retardant paper, die cut and stitched online
Longer distance between die cutting module and rewinding device for an added stitching or sewing machine
Also die cuts honeycomb paper, wrapping paper, shock-absorbing paper, kraft paper and fish net paper from 70 g to 100 g
Unwinding, cutting and rewinding in one process
Main motor equipped with inverter for speed regulation
Automatic ultrasonic web guide controller for unwinding
Tension controlled by magnetic powder brake and clutch
Automatic meter counting device with automatic stop
Pneumatic cylinder controls the cutting mould up and down

Specifications

Machine model	EM-PH800
Max material width	700 mm
Machine working speed	0-100 m/min adjustable
Unwinding diameter	0-1200 mm
Rewinding diameter	0-300 mm, 600 mm for flame retardant paper
Unwinding roll weight	Max. 1 Ton
Unwinding shaft	3 inch inflatable air shaft
Rewinding shaft	1 / 1.5 / 2 / 3 inch air shaft, usually 1.5 inch
Machine size	3200 x 1350 x 1300 mm (L x W x H)
Machine weight	1800 KG
Power supply	380V 3 phase or as customer requirement

Every figure above is taken from the published specification for this model. Anything marked TBC has not been published and will be confirmed by our engineers.

Materials It Runs

See the specification table above.

Manufacturing And Quality

The machine is built at our workshop in Ruian, Zhejiang. UDEM has issued CE attestations of conformity to Machinery Directive 2006/42/EC for our honeycomb paper making machine, bag making machine and paper folding machine, referencing EN ISO 12100:2010 and EN 60204-1:2018. A demo machine is kept running in the workshop so the build can be shown and installation supported by video call.

Customization

We have engineers who develop new machine functions to customer requirements, and where the current machine cannot meet a requirement we supply a solution instead. Several machines in this range started exactly that way.

Compared With Our Other Machines

Compared with the EM-PH600 honeycomb machines, this one is wider at 700 mm but slower at 100 m/min, because filter stock is run for stitching rather than for roll output. It is also 600 mm longer in the frame to open the stitching gap, and it rewinds to 600 mm on flame retardant paper where the packaging machines stop at 300 mm.

Use Guide

Fit the die for the pattern you need, honeycomb for packaging or the filter pattern for flame retardant stock. When making filter paper, install the stitching or sewing machine in the gap between the die cutting module and the rewinder before threading the web. Set the rewind limit to 600 mm for flame retardant rolls and 300 mm for packaging rolls.
