Mini Paper Bubble Making Machine
Bubble wrap production that fits behind a packing bench
Product Overview

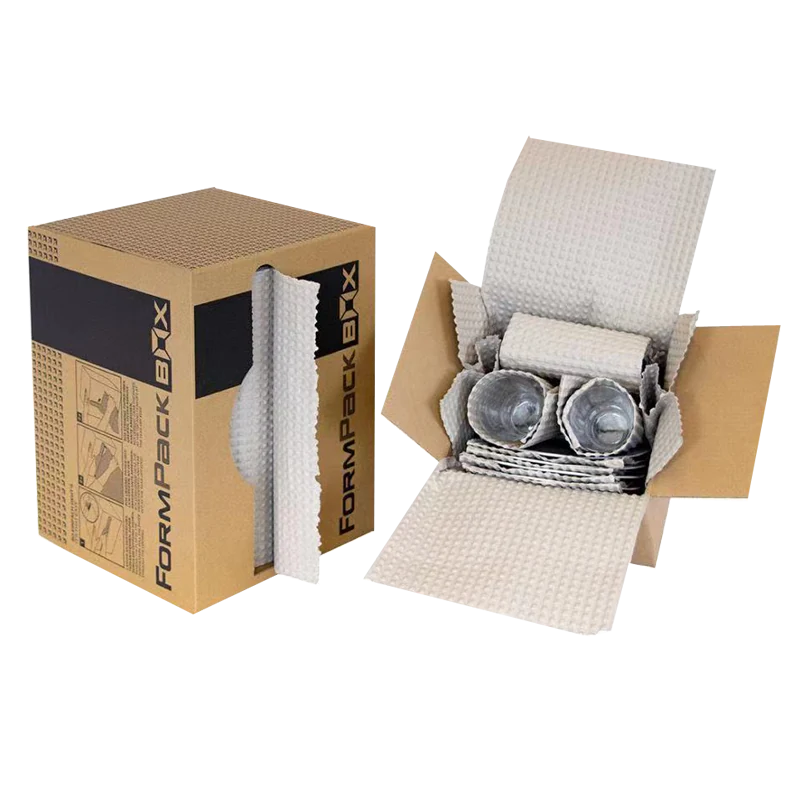

The mini machine is the small end of the paper bubble range, made for recycled kraft paper bubble wrap in narrow rolls. At 400 KG and 1200 x 800 x 1400 mm it is designed to sit where the packing happens rather than in a converting hall, and the unwinding is loaded by hand rather than by a lifting system. The embossed paper it makes has high absorbency and padding, and is used for covering individual shipping items, as deflection material for cartons or lattice boxes, as an intermediate layer, or for covering goods.
Key Benefits
- 400 KG and a 1200 x 800 mm footprint, so it fits in a packing area rather than a converting plant
- Makes bubble wrap on demand, removing the storage space that bought-in rolls need
- Same concave-convex roller and electric heating principle as the industrial machine, at a fraction of the size
- Protects against transport damage, corrosion and damp, not only impact
The Machine And What It Produces
Application Scenarios
- Office and small print shop packing
- Home and small workshop shipping operations
- Narrow roll bubble paper for small parcels and single items
- Intermediate layers and carton deflection material
Who It Is For
- Small e-commerce sellers packing their own parcels
- Print shops and copy centres shipping finished work
- Workshops needing narrow wrap for individual items
- Buyers testing paper bubble before investing in an 800 mm line
Problems It Solves
- Industrial bubble lines are too large and too costly for low parcel volumes
- Bought-in bubble rolls take up storage space that a small operation does not have
- Plastic bubble film is unpopular with customers receiving parcels
- Narrow items wrapped in wide film waste material on every parcel
Technical Features
- Makes recycled kraft paper bubble wrap for the e-commerce packing industry
- Vertical upper and lower concave-convex embossing rollers
- Electric heating model
- Manual unwinding, suited to smaller reels
- 3 inch inflatable air shafts on unwinding and rewinding

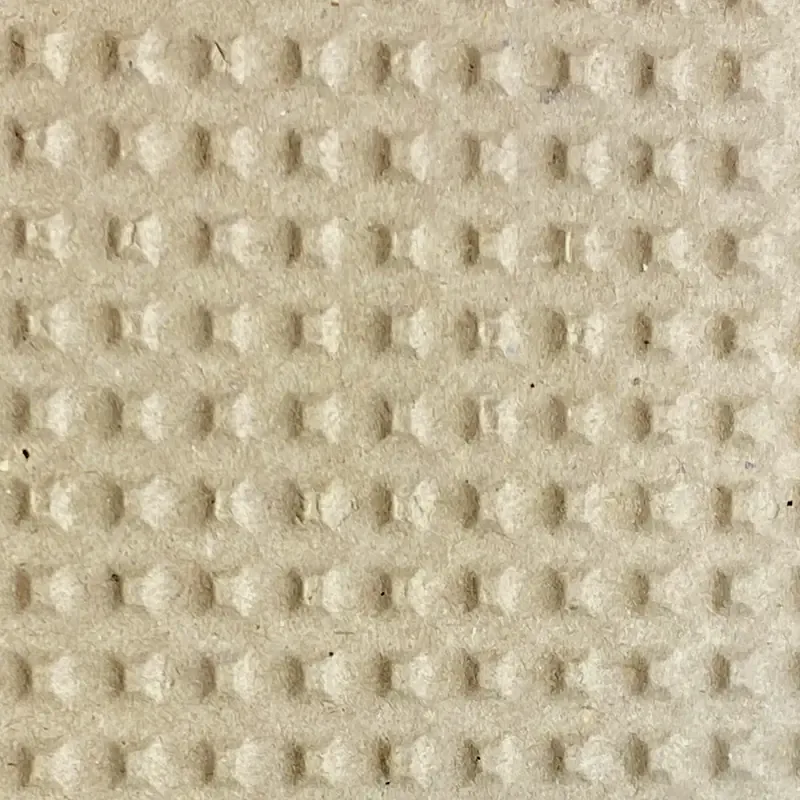

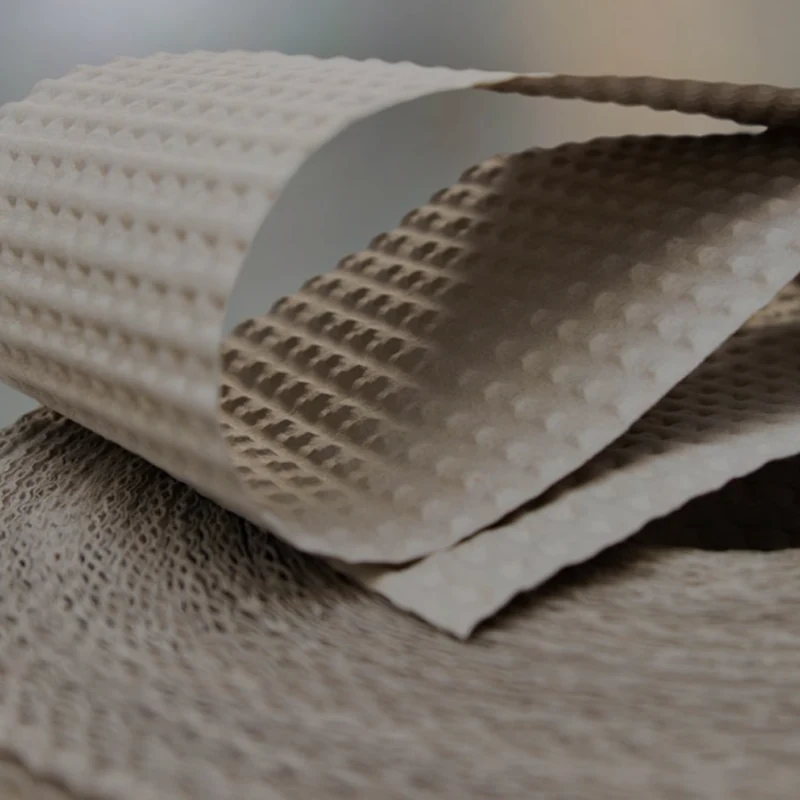

- Embossed paper offers high absorbency and padding for covering items or lining cartons
- Protects against transportation damage, corrosion and damp
Specifications
| Machine model | EM-PB600 |
|---|---|
| Max material width | 600 mm |
| Paper thickness | Min. 60 gsm |
| Machine working speed | 0-45 m/min |
| Embossing form | Vertical upper and lower concave-convex rollers |
| Heating model | Electric heating |
| Max unwinding diameter | 600 mm |
| Max rewinding diameter | 300 mm |
| Unwinding type | By manual |
| Unwinding shaft | 3 inch inflatable air shaft |
| Rewinding shaft | 3 inch inflatable air shaft |
| Machine size | 1200 x 800 x 1400 mm |
| Machine weight | 400 KG |
Every figure above is taken from the published specification for this model. Anything marked TBC has not been published and will be confirmed by our engineers.
Materials It Runs
Min. 60 gsm
Manufacturing And Quality
The machine is built at our workshop in Ruian, Zhejiang. UDEM has issued CE attestations of conformity to Machinery Directive 2006/42/EC for our honeycomb paper making machine, bag making machine and paper folding machine, referencing EN ISO 12100:2010 and EN 60204-1:2018. A demo machine is kept running in the workshop so the build can be shown and installation supported by video call.
Customization
We have engineers who develop new machine functions to customer requirements, and where the current machine cannot meet a requirement we supply a solution instead. Several machines in this range started exactly that way.
Compared With Our Other Machines
Against the EM-PB800 this machine is a third of the weight, takes 600 mm reels instead of 1200 mm, runs at 45 m/min instead of 60, and is loaded by hand rather than by an automatic lifting system. The finished roll type is the same; the difference is scale. Customers who need sheets rather than rolls use the Paper Bubble Sheet Making Machine.
Use Guide
Load the reel by hand onto the 3 inch air shaft, up to 600 mm diameter. Let the electric heating reach temperature before running. Rewind up to 300 mm diameter and change the roll at the bench. Wrap items directly or use the paper as an interleaving layer inside cartons.
Frequently Asked Questions
Who is this machine for
Offices, small printing shops and home use, where finished roll width is usually 100-300 mm.
How wide can it run
600 mm maximum material width.
How does the unwinding work
By manual loading, for reels up to 600 mm diameter. The industrial EM-PB800 has an automatic lifting system instead.
What speed does it run
0-45 m/min, against 0-60 m/min on the 800 mm machine.
What is the bubble paper used for
Covering individual shipping items, deflection material for cartons or lattice boxes, intermediate layers and covering goods.
