Paper Bubble Machine · EM-PB800

Kraft Paper Bubble Machine

Name: Kraft Paper Bubble Machine
Brand: Emerson Machinery
SKU: EM-PB800

Industrial width embossed kraft bubble, in roll form

Kraft Paper Bubble Machine built by Emerson Machinery

Product Overview

The EM-PB800 is the industrial heavy duty machine in our paper bubble range, embossing kraft paper up to 800 mm wide into bubble wrap supplied in roll form. Vertical upper and lower concave-convex rollers form the bubble and electric heating sets it, running from 60 gsm upwards at 0-60 m/min. This is the newest of our kraft paper embossing designs, aimed at the e-commerce packing industry.

Key Benefits

800 mm working width covers the full carton widths that a mini machine cannot
Automatic lifting unwinding system takes 1200 mm mill reels without a crane
Concave-convex roller embossing with electric heating sets the bubble so it survives handling
3 inch inflatable air shafts on both unwind and rewind, so cores change quickly

The Machine And What It Produces

Kraft paper bubble machine EM-PB800 with embossing rollers and control panel

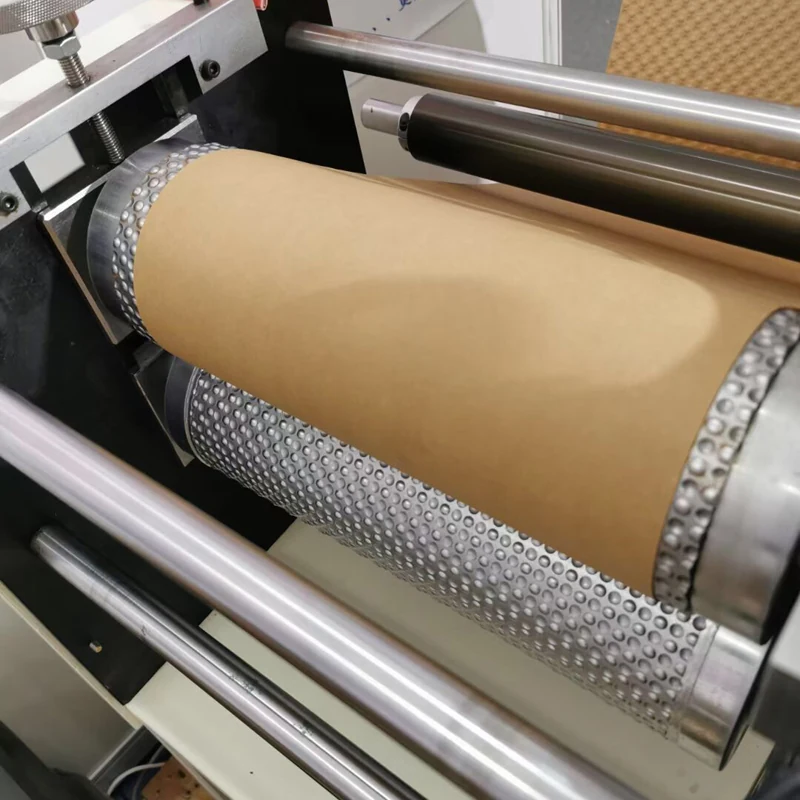

Embossed kraft paper bubble web leaving the heated rollers

Finished kraft paper bubble roll on the rewinding shaft

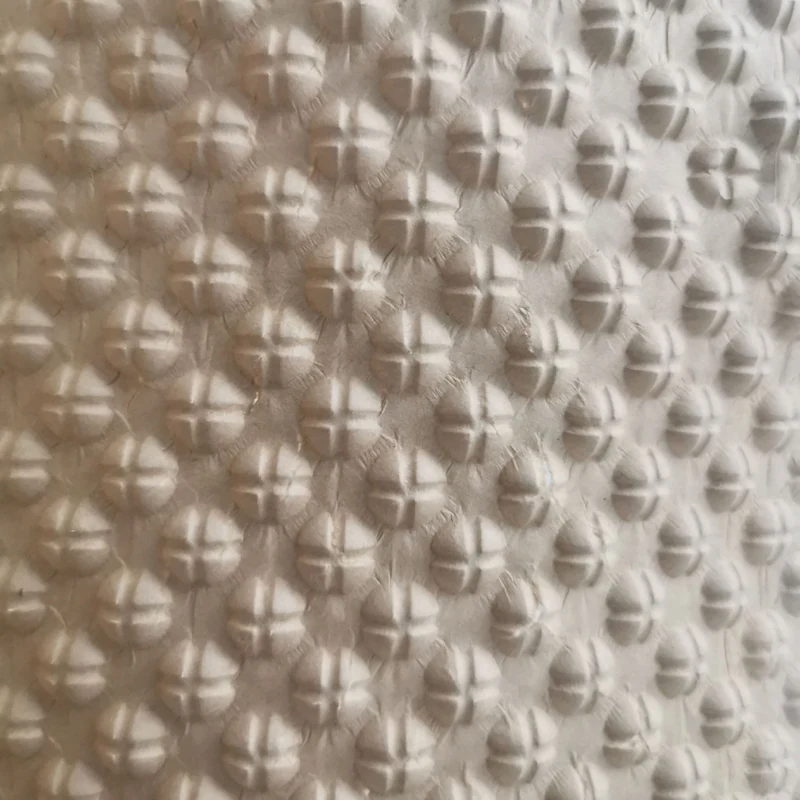

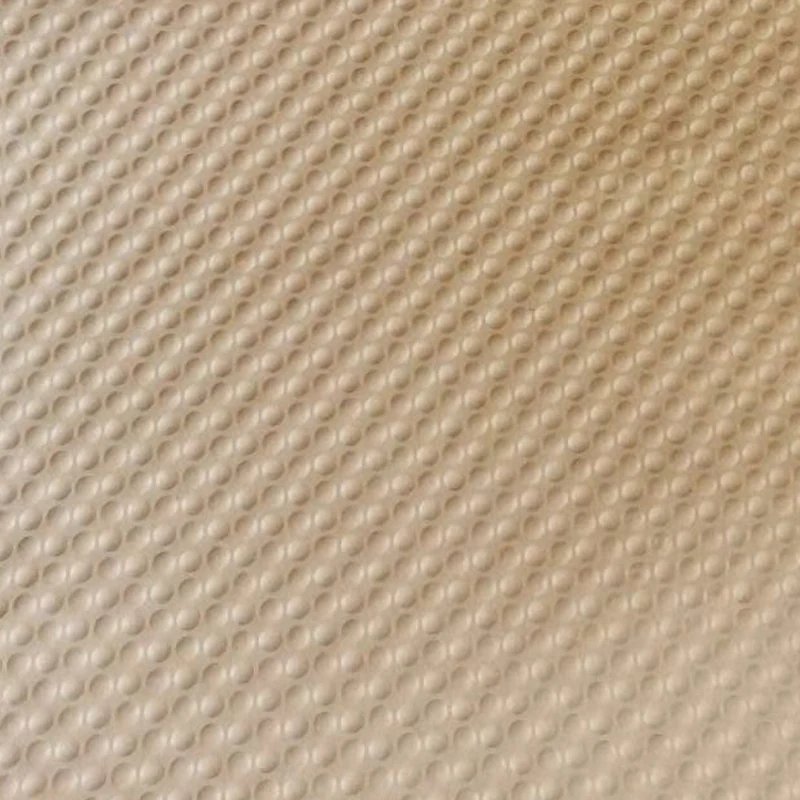

Close view of the embossed bubble pattern in kraft paper

Application Scenarios

E-commerce fulfilment wrapping for mixed-size parcels
Recyclable replacement for plastic bubble film in retail shipping
Interleaving and cushioning inside cartons and lattice boxes
Own-brand bubble paper roll production for packaging distributors

Who It Is For

Packaging converters supplying e-commerce packers
Distributors adding a paper bubble roll to a kraft product range
Large fulfilment operations making their own wrap
Buyers replacing plastic bubble film under retailer packaging rules

Problems It Solves

Plastic bubble film is being removed from e-commerce packaging specifications
Narrow desktop bubble machines cannot cover full carton widths
Bought-in paper bubble rolls carry a converter margin and a lead time
Unheated embossing lets the bubble relax flat and lose padding

Technical Features

Embosses kraft paper into bubble wrap in roll form
Vertical upper and lower concave-convex embossing rollers
Electric heating model
Automatic lifting unwinding system
3 inch inflatable air shaft on unwinding and rewinding
Runs paper from 60 gsm upwards
Newest design in our kraft paper embossing range, aimed at e-commerce packing

Specifications

Machine model	EM-PB800
Max material width	800 mm
Paper thickness	Min. 60 gsm
Machine working speed	0-60 m/min
Embossing form	Vertical upper and lower concave-convex rollers
Heating model	Electric heating
Max unwinding diameter	1200 mm
Max rewinding diameter	1000 mm
Unwinding type	Automatic lifting system
Unwinding shaft	3 inch inflatable air shaft
Rewinding shaft	3 inch inflatable air shaft
Machine size	2100 x 1600 x 1400 mm
Machine weight	1200 KG

Every figure above is taken from the published specification for this model. Anything marked TBC has not been published and will be confirmed by our engineers.

Materials It Runs

Min. 60 gsm

Manufacturing And Quality

The machine is built at our workshop in Ruian, Zhejiang. UDEM has issued CE attestations of conformity to Machinery Directive 2006/42/EC for our honeycomb paper making machine, bag making machine and paper folding machine, referencing EN ISO 12100:2010 and EN 60204-1:2018. A demo machine is kept running in the workshop so the build can be shown and installation supported by video call.

Customization

We have engineers who develop new machine functions to customer requirements, and where the current machine cannot meet a requirement we supply a solution instead. Several machines in this range started exactly that way.

Compared With Our Other Machines

Three paper bubble machines cover different jobs. The Mini Paper Bubble Making Machine makes 100-300 mm rolls for offices, print shops and home use. This EM-PB800 is the industrial heavy duty version at 800 mm, also in roll form. The Paper Bubble Sheet Making Machine cuts roll to sheet inline while embossing, which avoids cutting sheets separately afterwards and losing bubble strength.

Use Guide

Load the mill reel on the automatic lifting unwinding system, up to 1200 mm diameter. Bring the electric heating up to temperature before running so the first metres emboss fully. Run at the speed the paper will take, up to 60 m/min, and change the rewound roll at up to 1000 mm diameter.
