Honeycomb Paper Machine · EM-PH600

Automatic Kraft Honeycomb Paper Machine

Name: Automatic Kraft Honeycomb Paper Machine
Brand: Emerson Machinery
SKU: EM-PH600

Inline roll changing removes the stop-and-strip cycle

Automatic Kraft Honeycomb Paper Machine built by Emerson Machinery

Product Overview

This version was designed to a customer requirement, and the difference from the older honeycomb paper making machine is the automatic finished-roll changing function inline. The paper loader carries five shafts for the machine to draw from, so finished rolls are changed without stopping to load a new core by hand. It saves time and labour, and it costs less than the full automatic machine that also pulls the finished shaft out of the paper core and applies the label.

Key Benefits

Finished rolls change automatically inline, so the line does not stop for a core swap
A five-shaft loader keeps enough shafts staged that an operator can tend other work
Cost sits between the economy machine and the full automatic version, so the automation is affordable at mid volumes
Forming speed is still 200 m/min, identical to the other two honeycomb versions

The Machine And What It Produces

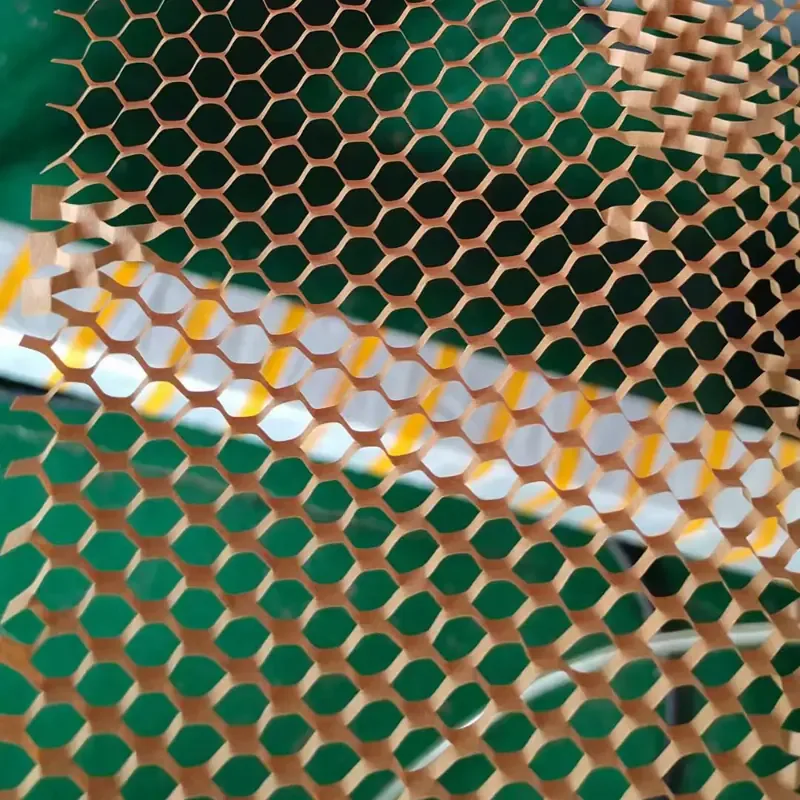

Automatic kraft honeycomb paper machine forming expanded honeycomb web

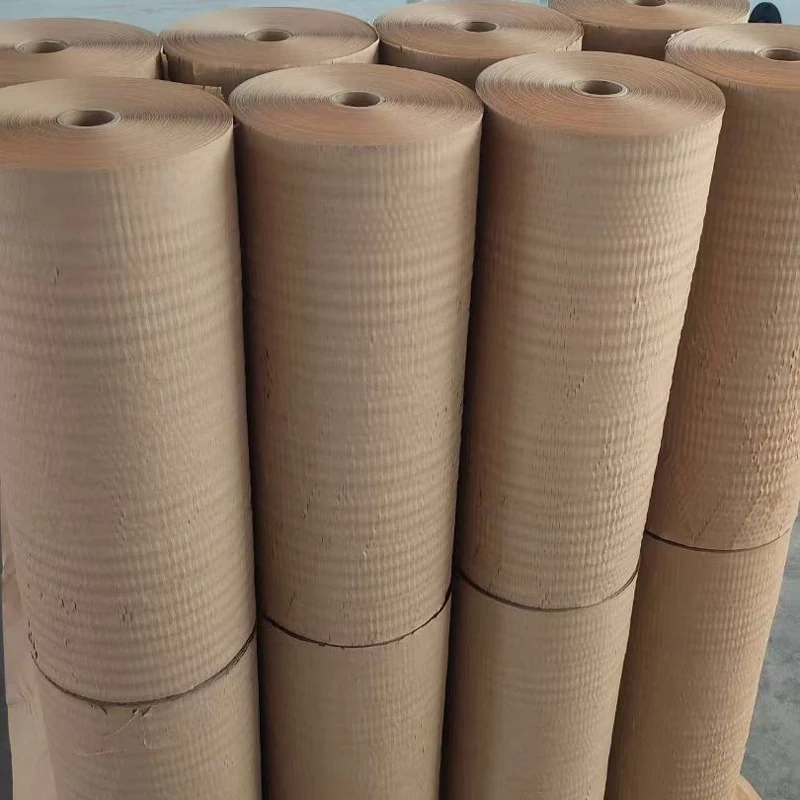

Finished honeycomb paper roll on the automatic changing station

Five shaft paper loader holding rewinding shafts

Honeycomb cell pattern produced by the die cutting module

Automatic kraft honeycomb paper machine complete line view

Application Scenarios

Continuous shift production of honeycomb cushioning rolls
Converters supplying honeycomb paper to e-commerce packers
Protective packaging for ceramics, glassware, fruit and flowers
Own-brand honeycomb roll production for packaging distributors

Who It Is For

Converters already running an economy honeycomb line and hitting a labour ceiling
Producers running more than one shift where roll changes cost real output
Buyers who want automation but not the label-applying full automatic version
Packaging groups standardising several plants on one machine platform

Problems It Solves

Stopping a 200 m/min line to strip a finished roll wastes a large share of available running time
Manual roll changing ties an operator to the machine for the whole shift
Full automatic lines with shaft pulling and labelling cost more than some volumes justify
Inconsistent roll changes produce short or overlong rolls

Technical Features

Automatic finished paper roll changing inline
Five shafts in the paper loader available to the machine
Die cuts honeycomb paper, wrapping paper, shock-absorbing paper, kraft paper and fish net paper from 70 g to 100 g
Unwinding, cutting and rewinding in one process
Main motor equipped with inverter for speed regulation
Automatic ultrasonic web guide controller for unwinding
Tension controlled by magnetic powder brake and clutch
Automatic meter counting device with automatic stop at the set length
Pneumatic cylinder controls the cutting mould up and down

Specifications

Machine model	EM-PH600
Max material width	515 mm (508 mm/20 inch and 380 mm/15 inch most common)
Machine working speed	0-200 m/min adjustable
Unwinding diameter	0-1200 mm
Rewinding diameter	0-300 mm
Unwinding roll weight	Max. 1 Ton
Unwinding shaft	3 inch inflatable air shaft
Rewinding shaft	1 / 1.5 / 2 / 3 inch air shaft, usually 1.5 inch
Paper loader	5 shafts
Machine size	3500 x 1350 x 1300 mm (L x W x H)
Machine weight	1800 KG

Every figure above is taken from the published specification for this model. Anything marked TBC has not been published and will be confirmed by our engineers.

Materials It Runs

See the specification table above.

Manufacturing And Quality

The machine is built at our workshop in Ruian, Zhejiang. UDEM has issued CE attestations of conformity to Machinery Directive 2006/42/EC for our honeycomb paper making machine, bag making machine and paper folding machine, referencing EN ISO 12100:2010 and EN 60204-1:2018. A demo machine is kept running in the workshop so the build can be shown and installation supported by video call.

Customization

We have engineers who develop new machine functions to customer requirements, and where the current machine cannot meet a requirement we supply a solution instead. Several machines in this range started exactly that way.

Compared With Our Other Machines

Three versions of this honeycomb machine exist and all three form at 200 m/min. The economy EM-PH600 changes rolls by hand. This one changes them automatically inline. The full automatic version adds pulling the finished shaft out of the paper core and applying the label, so no shaft has to be fed by hand at all, at a higher price.

Use Guide

Stage shafts in the five-shaft loader before the shift so the machine can keep changing without an operator. Set the meter counter to the roll length you sell, then let the automatic change cycle handle the cut and transfer. Strip completed rolls off the loader between changes rather than at the machine head.

Frequently Asked Questions

What exactly is automatic on this machine

The finished paper roll change happens inline. The machine has five shafts in the paper loader to work from, so rolls are changed without manual core loading.

Is it faster than the economy honeycomb machine

No. All three honeycomb versions run at the same 200 m/min. The gain is running time and labour, not forming speed.

What is the difference from the full automatic version

The full automatic machine also pulls the finished shaft out of the paper core and applies the label, so no shaft has to be changed or fed by hand.

How heavy is the machine

1800 KG, with a footprint of 3500 x 1350 x 1300 mm.

Can it run the same papers as the economy machine

Yes, 70 g to 100 g honeycomb, wrapping, shock-absorbing, kraft and fish net paper.
