Honeycomb Paper Machine · EM-PC900

Honeycomb Paper Core Sleeve Making Machine

Name: Honeycomb Paper Core Sleeve Making Machine
Brand: Emerson Machinery
SKU: EM-PC900

Finished sleeves instead of roll stock

Honeycomb Paper Core Sleeve Making Machine built by Emerson Machinery

Product Overview

Rather than producing a roll for someone else to convert, the EM-PC900 makes the finished article: a honeycomb paper core sleeve that pulls open around a bottle or jar. It runs 50 to 100 g paper, forms sleeves from 200 mm to 900 mm long, and feeds 30 to 50 cores per group from the feeding box. Short sleeves are formed several at a time, so a 220 mm sleeve can be produced four to a cycle.

Key Benefits

Produces a finished sellable sleeve, not roll stock that still needs converting
Multi-up forming: 4 cores per cycle at 220 mm, 2 per cycle at 350 mm
Feeding box takes 30-50 cores per group, so the machine runs on between loads
Small 1600 x 1000 x 1500 mm footprint at 500 KG fits a packing hall, not just a converting plant

The Machine And What It Produces

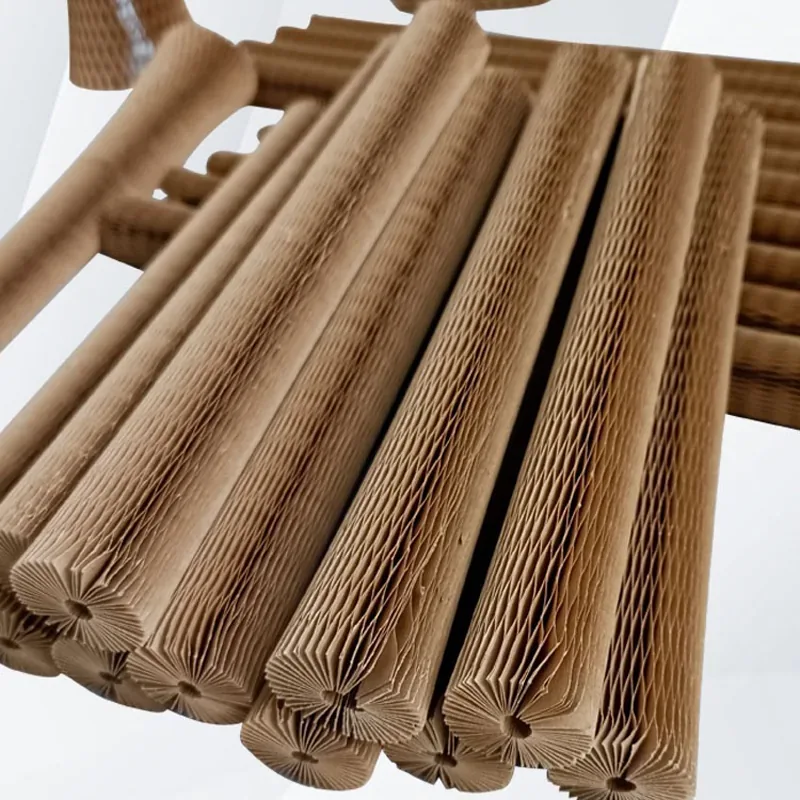

Honeycomb paper core sleeve making machine EM-PC900

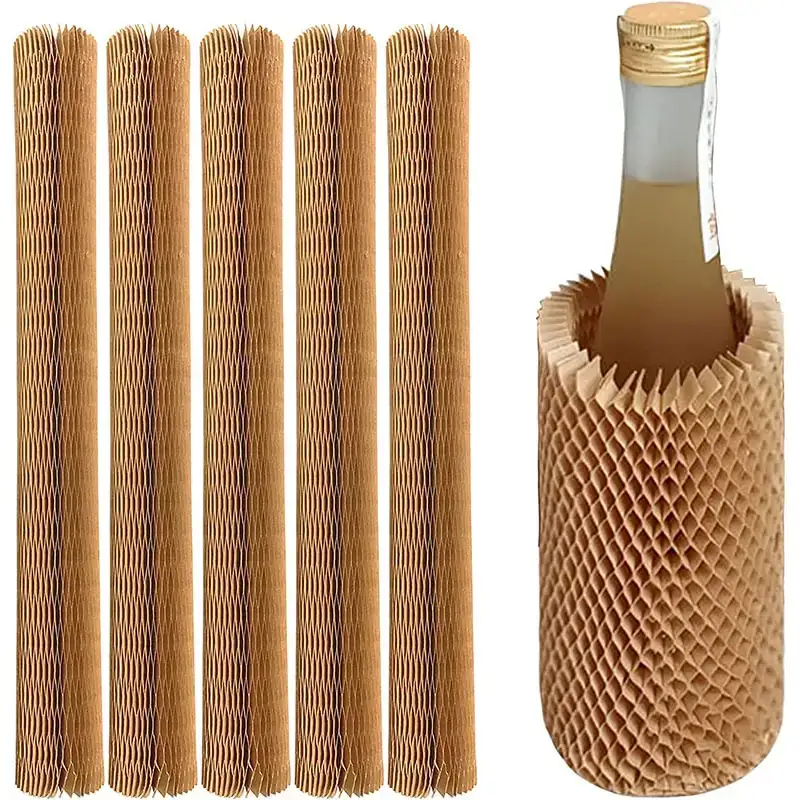

Honeycomb paper sleeves stacked at the discharge of the machine

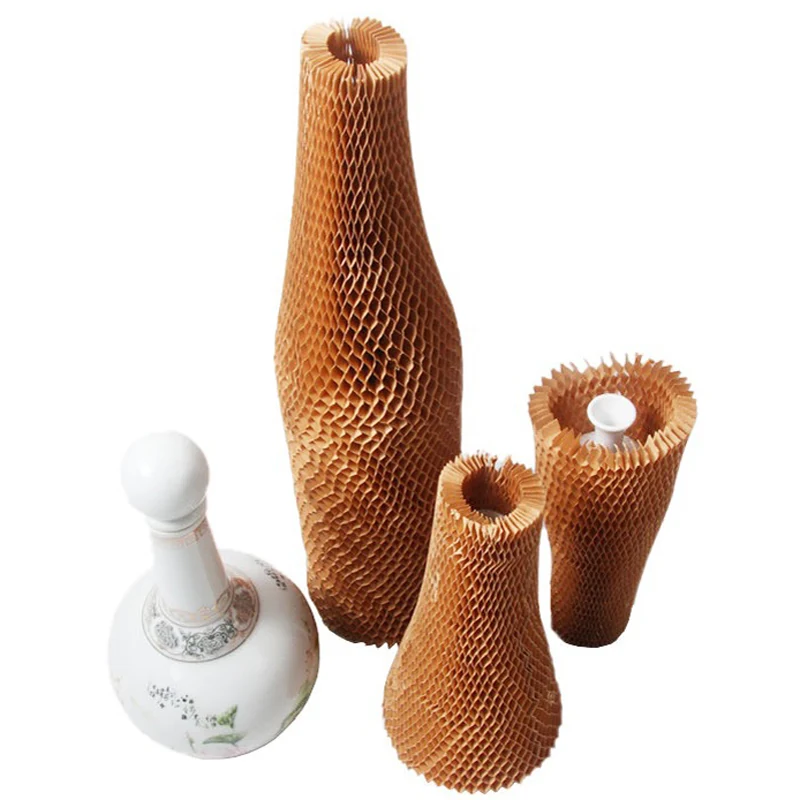

Feeding box loaded with paper cores before forming

Expanded honeycomb paper sleeve protecting a bottle

Application Scenarios

Bottle and jar sleeving for wine, oil and cosmetics shipments
Protecting ceramics and glassware without surface scratching
Fruit and flower packing where sleeves are pulled on by hand
Replacing moulded plastic bottle protectors in retail shipping

Who It Is For

Wine, spirits and oil shippers packing glass bottles
Cosmetics and glassware brands moving away from plastic protectors
Packaging converters selling honeycomb sleeves as a finished product
Fulfilment operations packing fragile round items by hand

Problems It Solves

Honeycomb roll stock still needs a second operation before it protects a bottle
Plastic bottle sleeves are being phased out of retail packaging
Hand wrapping round items is slow and inconsistent between packers
Bought-in sleeves ship mostly air and cost more in freight than in paper

Technical Features

Forms honeycomb paper core sleeves from 50 g to 100 g paper
Sleeve length 200-900 mm, with 220 mm, 350 mm and 450 mm the most common
4 cores fed per cycle at 220 mm, 2 cores per cycle at 350 mm
Feeding box holds 30-50 cores per group
Paper core height 10-15 mm, width 80-160 layers
Easy to open, cushions without scratching the packed surface
3 kW power draw and 500 KG machine weight

Specifications

Machine model	EM-PC900
Paper thickness	50-100 g
Machine working speed	4-12 pcs/min; at 220 mm finished length 4 pcs per cycle, so 15 pcs/min
Feeding box	30-50 pcs cores per group
Paper core height	10-15 mm
Paper core width	80-160 layers (10-20 mm)
Paper core length	200-900 mm; 220 mm, 350 mm and 450 mm most common
Power	3 kW
Machine size	1600 x 1000 x 1500 mm (L x W x H)
Machine weight	500 KG
Power supply	380V 3 phase or as customer requirement

Every figure above is taken from the published specification for this model. Anything marked TBC has not been published and will be confirmed by our engineers.

Materials It Runs

50-100 g

Manufacturing And Quality

The machine is built at our workshop in Ruian, Zhejiang. UDEM has issued CE attestations of conformity to Machinery Directive 2006/42/EC for our honeycomb paper making machine, bag making machine and paper folding machine, referencing EN ISO 12100:2010 and EN 60204-1:2018. A demo machine is kept running in the workshop so the build can be shown and installation supported by video call.

Customization

We have engineers who develop new machine functions to customer requirements, and where the current machine cannot meet a requirement we supply a solution instead. Several machines in this range started exactly that way.

Compared With Our Other Machines

The honeycomb paper machines make expandable roll stock that a packer wraps by hand. This machine makes the sleeve itself, so the packer only pulls it over the bottle. It is the smallest machine in the honeycomb range at 500 KG and 3 kW, and it is the only one rated in pieces per minute rather than metres per minute.

Use Guide

Load 30 to 50 cores into the feeding box as a group. Set the sleeve length; at 220 mm the machine forms four at a time and at 350 mm it forms two. Collect the finished sleeves flat and let the packer expand each one over the bottle at the point of use.
