Paper Shredding Machine · EM-PS300

Kraft Paper Shredding Machine

Name: Kraft Paper Shredding Machine
Brand: Emerson Machinery
SKU: EM-PS300

Crinkle filling paper, made from reels on site

Kraft Paper Shredding Machine built by Emerson Machinery

Product Overview

The crinkle paper made by this machine is an environmentally friendly decorative shock-proof filling material. It is used to fill gift boxes, glass bottle and wine packaging, electronic product boxes and ceramic or glass shipments, and it has become a popular method of candy packaging. The machine feeds from paper in roll form, cuts and shreds automatically, and can run one, three or five layers at once so the finished strips come out in one, two or three colours.

Key Benefits

Produces about 100-120 kg of crinkle filling per hour from reels, instead of buying it by the bag
One machine produces both crinkle and straight effects
1, 3 or 5 roll feeding gives single or multi-colour strips from the same pass
Cutting length adjustable 120-380 mm, so the fill can be matched to the box

The Machine And What It Produces

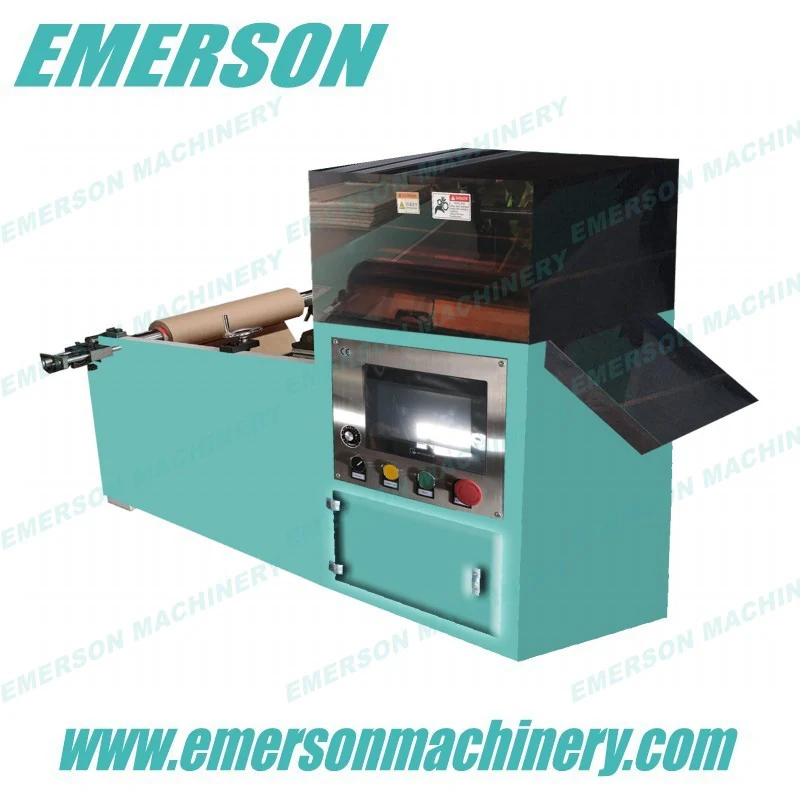

Kraft paper shredding machine EM-PS300 with rotary blade section

Crinkle kraft paper strips falling from the shredder

Multi colour crinkle paper produced from several paper rolls

Crinkle kraft paper filling used inside a gift box

Application Scenarios

Gift box and hamper filling
Glass bottle and wine packaging filling
Electronic product and ceramic packing fill
Candy and confectionery presentation packaging

Who It Is For

Gift and hamper packers buying crinkle paper by the bag
Wine and spirits shippers filling void space around bottles
Retail brands wanting fill colours that match their own boxes
Converters selling crinkle filling paper into gift packaging

Problems It Solves

Bagged crinkle paper is mostly air, so freight costs more than the paper
Buying fixed colours means the fill never quite matches the brand box
Plastic and foam fill is unacceptable in gift and food-adjacent packaging
Bought-in fill has to be stored in volume to cover peak season

Technical Features

Feeds paper in roll form
Automatic cutting and shredding
Produces 1, 3 or 5 layers depending on request, giving 1, 2 or 3 colour strips
One machine produces both crinkle and straight effects
Rotary blade cutting
Finished strips usually 3 mm wide and 25 cm long
Kraft or mixed colours possible
Light, fluffy texture with distinct three-dimensional strands that fill any box size

Specifications

Machine model	EM-PS300
Strip width	Usually 3 mm; 2, 4 or 5 mm needs a module change
Cutting length	120-380 mm adjustable
Paper thickness	50-180 g; 20-30 g recommended for 5 roll feeding, 50-60 g for 3 roll feeding, 70 g for 1-2 roll feeding
Machine working speed	0.6-0.7 m/s adjustable
Capacity	About 100-120 kg/hour
Cutting type	Rotary blade
Unwinding diameter	600 mm
Unwinding shaft	3 inch inflatable air shaft
Machine size	1850 x 1150 x 1350 mm (L x W x H)
Machine weight	N.W 770 kg; G.W 880 kg
Machine power	6 kW
Power supply	380V 3 phase, 50 Hz or as customer requirement

Every figure above is taken from the published specification for this model. Anything marked TBC has not been published and will be confirmed by our engineers.

Materials It Runs

50-180 g; 20-30 g recommended for 5 roll feeding, 50-60 g for 3 roll feeding, 70 g for 1-2 roll feeding

Manufacturing And Quality

The machine is built at our workshop in Ruian, Zhejiang. UDEM has issued CE attestations of conformity to Machinery Directive 2006/42/EC for our honeycomb paper making machine, bag making machine and paper folding machine, referencing EN ISO 12100:2010 and EN 60204-1:2018. A demo machine is kept running in the workshop so the build can be shown and installation supported by video call.

Customization

We have engineers who develop new machine functions to customer requirements, and where the current machine cannot meet a requirement we supply a solution instead. Several machines in this range started exactly that way.

Compared With Our Other Machines

Every other machine in our range produces a continuous web or a formed pad. This one produces loose strips, so it answers a different packing problem: filling the space around an item in a gift or retail box rather than wrapping the item itself. It is also the only machine rated in kg per hour rather than metres per minute.

Use Guide

Choose the feed first: 1-2 rolls at 70 g, 3 rolls at 50-60 g, or 5 rolls at 20-30 g for the lightest multi-colour fill. Set the cutting length between 120 and 380 mm for the box you are filling. Run at 0.6-0.7 m/s and expect about 100-120 kg/hour. Changing strip width away from 3 mm needs a module change.
