Paper Folding Machine · EM-PF500A

Fanfold Kraft Paper Folding Machine

Name: Fanfold Kraft Paper Folding Machine
Brand: Emerson Machinery
SKU: EM-PF500A

The straightforward fanfold line

Fanfold Kraft Paper Folding Machine built by Emerson Machinery

Product Overview

The EM-PF500A perforates, folds and stacks kraft paper into fanfold packs for paperEZ and Ranpak style systems, the same job as the high speed model but built simply. At 800 KG and 2800 mm long it is the smallest and lightest folding machine we make, and it runs 470 mm wide stock at 90 m/min onto a conveyor.

Key Benefits

800 KG and 2800 mm long, the smallest footprint in the folding range
Perforation, folding and stacking are still fully automatic, only the speed is lower
1 Ton unwinding stand and 1200 mm reel capacity, the same reel handling as the faster models
Lowest entry cost into fanfold production for a converter starting the line

The Machine And What It Produces

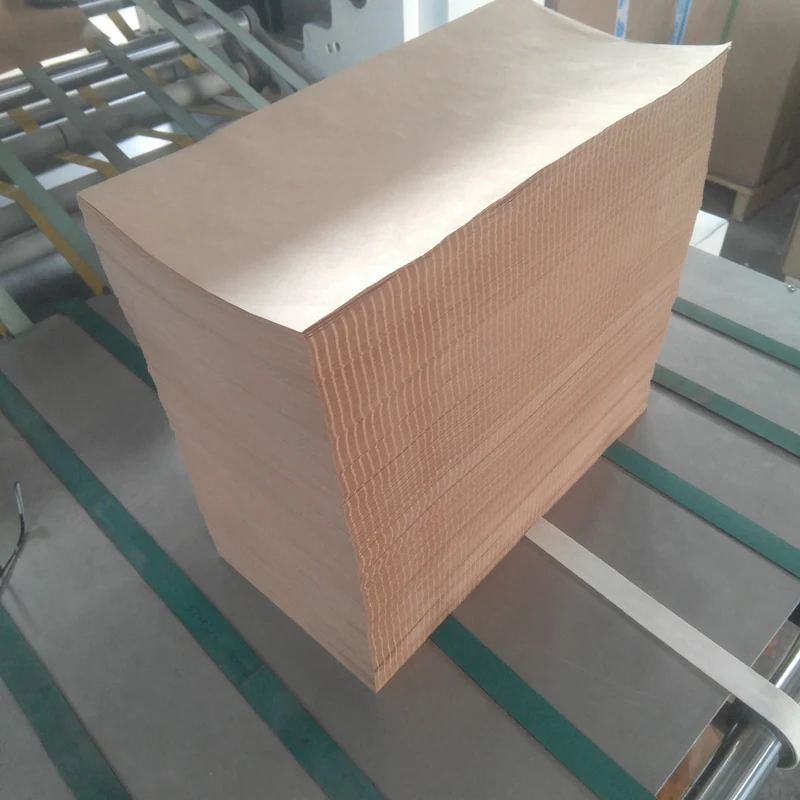

Fanfold kraft paper folding machine EM-PF500A in the workshop

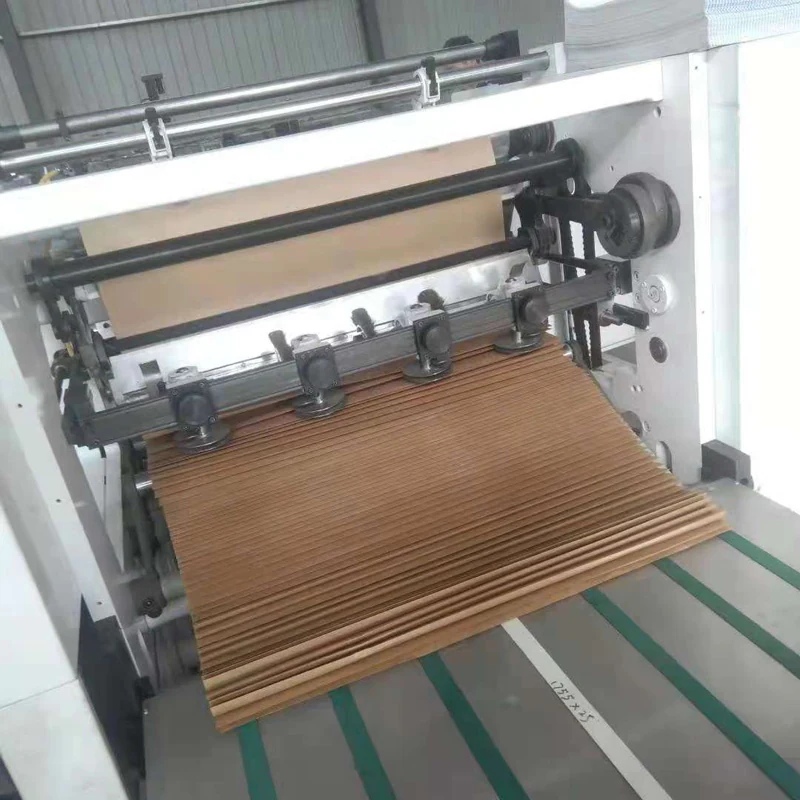

Kraft paper being perforated and folded into a fanfold stack

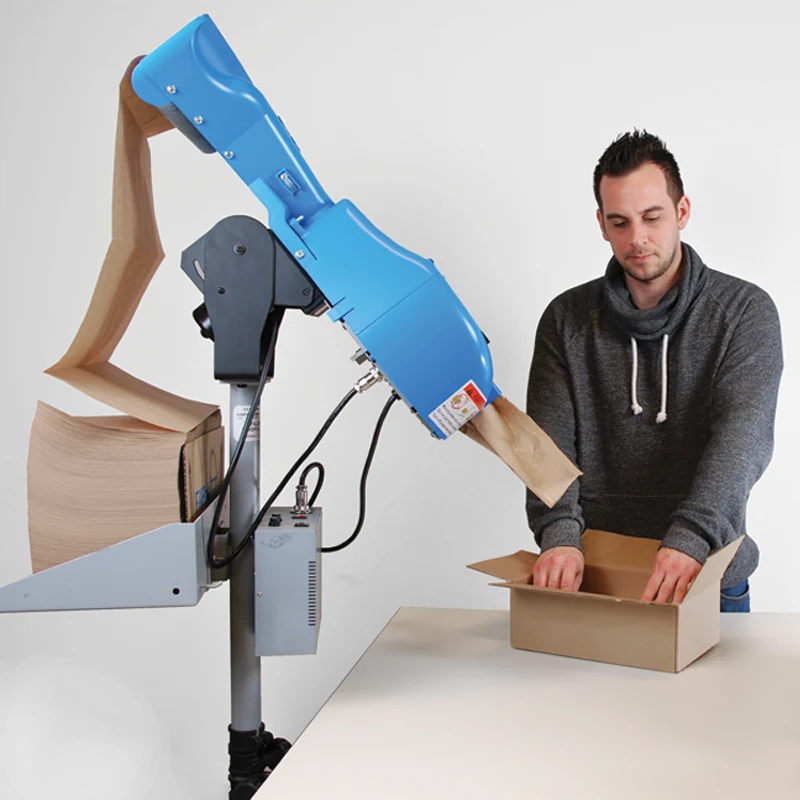

Fanfold kraft paper pile collected on the conveyor

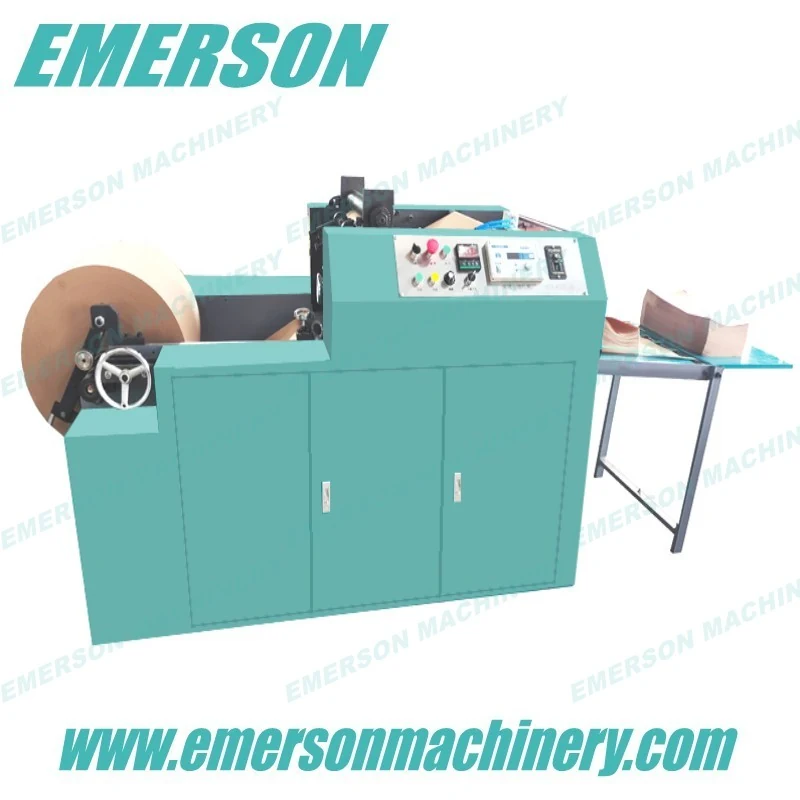

Fanfold kraft paper folding machine drive side

Application Scenarios

Fanfold pack production for void fill dispensers
Consumable supply for paperEZ and Ranpak style packing systems
Small and mid volume converting of kraft reels into fanfold stacks
Second line backing up a high speed folding machine

Who It Is For

Converters entering fanfold production for the first time
Packers whose dispenser consumption does not justify a 200 m/min line
Operations with limited floor space in the converting area
Buyers who want a second, simpler machine alongside a high speed line

Problems It Solves

Bought-in fanfold packs cost per metre for the life of every dispenser
A 200 m/min line is more machine than low and mid volumes need
Long converting machines do not fit into an existing packing hall
Hand folding kraft paper into packs is not a serious option at any volume

Technical Features

Perforated cutting and folding of kraft paper rolls, automatic stacking into a pile
Designed for making the kraft paper roll used by paperEZ and Ranpak style systems
470 mm maximum material width at 90 m/min
Unwinding stand rated at 1 Ton, reels up to 1200 mm
3 inch inflatable air shaft
Stacking by conveyor
Compact 2800 x 1200 x 1300 mm frame at 800 KG

Specifications

Machine model	EM-PF500A
Max material width	470 mm
Machine working speed	90 m/min
Unwinding diameter	0-1200 mm
Stacking system	By conveyor
Unwinding stand weight	1 Ton
Unwinding shaft	3 inch inflatable air shaft
Machine size	2800 x 1200 x 1300 mm (L x W x H)
Machine weight	800 KG
Power supply	380V 3 phase

Every figure above is taken from the published specification for this model. Anything marked TBC has not been published and will be confirmed by our engineers.

Materials It Runs

See the specification table above.

Manufacturing And Quality

The machine is built at our workshop in Ruian, Zhejiang. UDEM has issued CE attestations of conformity to Machinery Directive 2006/42/EC for our honeycomb paper making machine, bag making machine and paper folding machine, referencing EN ISO 12100:2010 and EN 60204-1:2018. A demo machine is kept running in the workshop so the build can be shown and installation supported by video call.

Customization

We have engineers who develop new machine functions to customer requirements, and where the current machine cannot meet a requirement we supply a solution instead. Several machines in this range started exactly that way.

Compared With Our Other Machines

This is the base model of the three folding machines. The high speed EM-PF500B/PF800B runs at 200 m/min, adds PLC and touch screen control, an automatic lifting unwind and a 780 mm option, and weighs 2000-2500 KG. The EM-PF800A with C-fold inline feeds two rolls and C-folds them into a 2-layer paper before perforating, giving a much stronger finished pack.

Use Guide

Mount the reel on the 1 Ton unwinding stand using the 3 inch inflatable air shaft. Thread the web through the perforating and folding section and start slowly to check the fold registers on the perforation. Once the stack is forming cleanly, run at 90 m/min and band the piles as they come off the conveyor.
