Paper Bubble Sheet Making Machine
Sheets cut while the bubble is still being formed
Product Overview
Some customers need sheet bubble paper rather than rolls, so this third machine in the range cuts roll to sheet inline while embossing at the same time. Doing both in one pass avoids cutting the bubble paper to sheet separately on a cutting machine afterwards, which pushes the bubble down and weakens it. At a 200 x 200 mm sheet size the machine runs 300 pcs/min onto a conveyor.
Key Benefits
- Embossing and cutting happen in one pass, so the bubble is not crushed by a later cutting operation
- 300 sheets per minute at 200 x 200 mm, delivered on a conveyor ready to stack
- Handles heavier stock than the roll machines, 80 gsm to 180 gsm
- 2-3 slitting blades let one pass produce several sheet widths

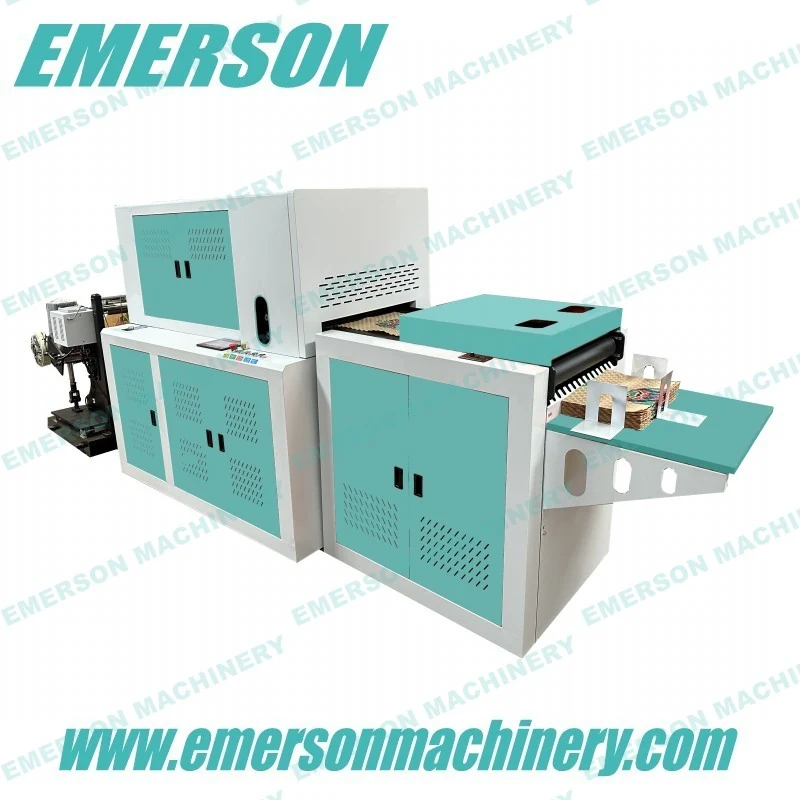

The Machine And What It Produces
Application Scenarios
- Sheet interleaving between stacked products

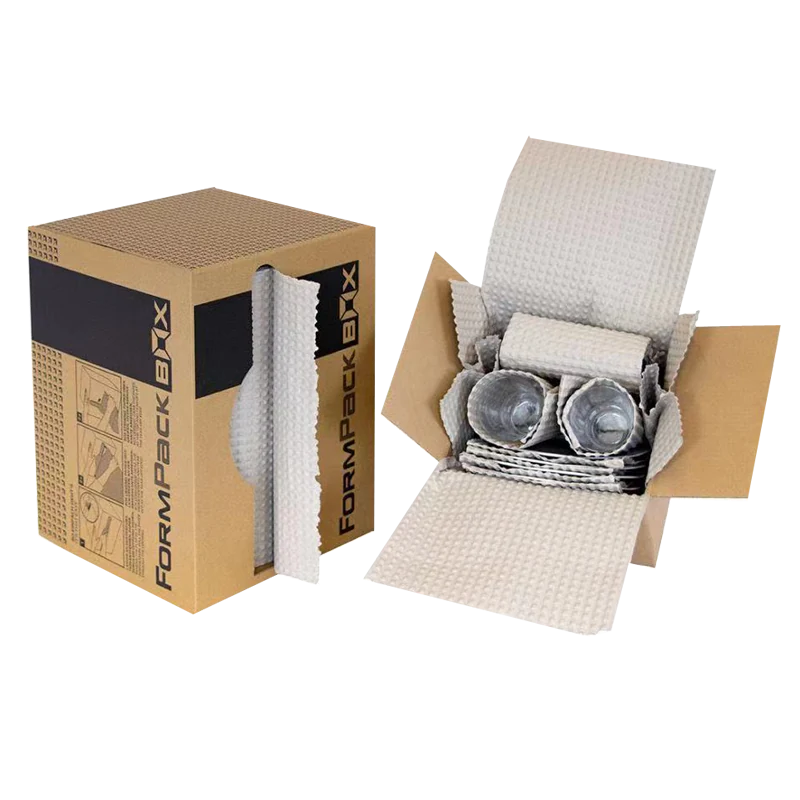

- Pre-cut pads for fixed carton sizes in e-commerce packing
- Deflection material and intermediate layers in cartons and lattice boxes
- Covering goods on pallets and in lattice boxes
Who It Is For
- Packers who work to fixed carton sizes and want pre-cut pads
- Converters selling sheet bubble paper as a stock line
- Operations where packers cut rolls by hand and lose time doing it
- E-commerce packing lines feeding sheets rather than wrapping from a roll
Problems It Solves
- Cutting bubble paper to sheet on a separate machine pushes the bubble down and weakens it
- Hand cutting sheets from a roll is slow and gives inconsistent sizes
- Roll wrap wastes material on items that only need a flat pad
- Heavier 180 gsm stock is beyond what the roll-only machines are set up for
Technical Features
- Cuts roll to sheet inline while embossing in the same pass
- Runs 80 gsm to 180 gsm kraft paper

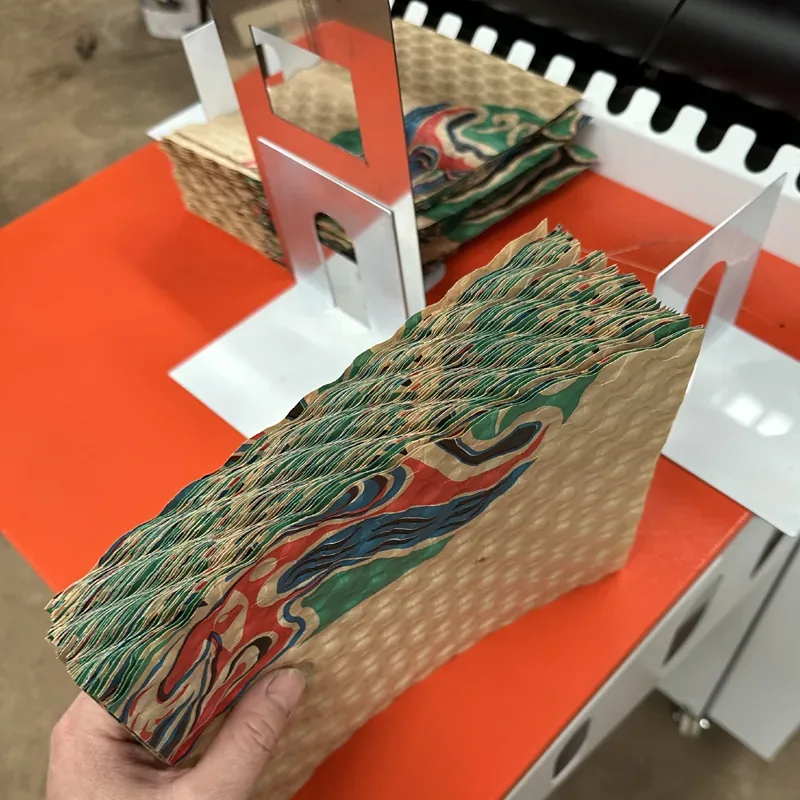

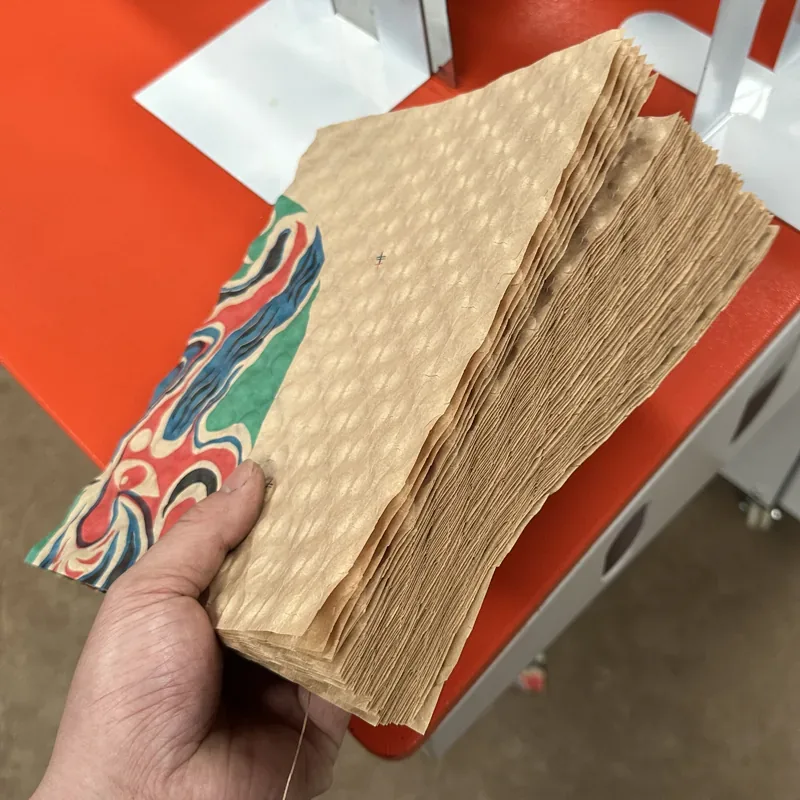

- Conveyor discharge for finished sheets
- 2-3 slitting blades
- 3 inch inflatable air shaft unwinding up to 600 mm diameter

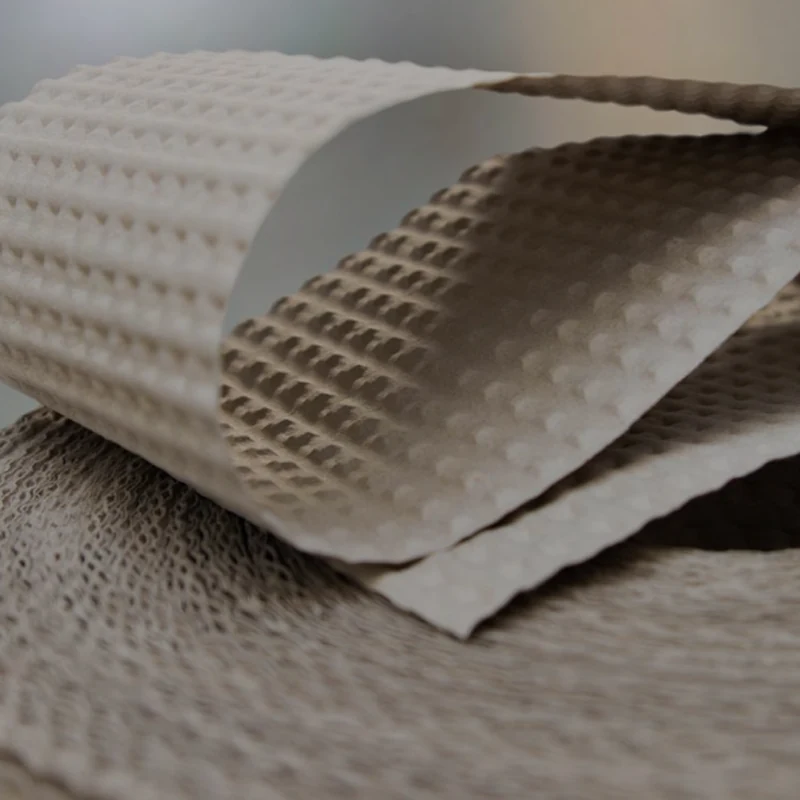

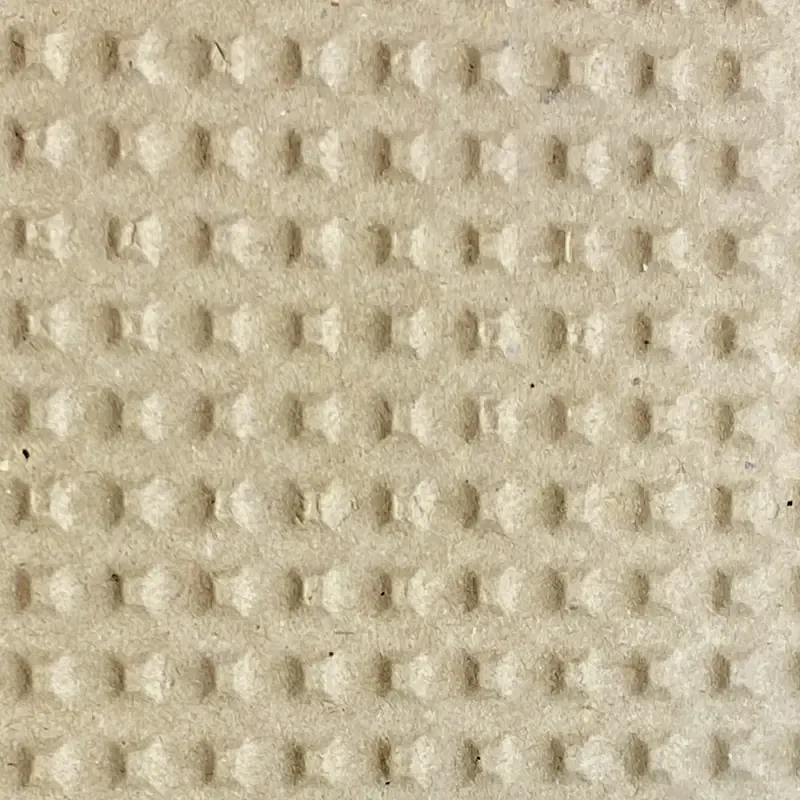

- Embossed bubble paper with high absorbency for covering items and lining cartons
- 3 kW power draw, 600 KG machine weight
Specifications
| Machine model | EM-PB600 |
|---|---|
| Max material width | 600 mm |
| Paper thickness | 80 gsm-180 gsm |
| Machine working speed | 300 pcs/min at 200 x 200 mm per sheet |
| Unwinding diameter | Max. 600 mm |
| Unwinding shaft | 3 inch inflatable air shaft |
| Conveyor | Yes |
| Slitting blade | 2-3 pcs |
| Machine size | 3500 x 1200 x 1600 mm |
| Power | 3 kW |
| Machine weight | 600 KG |
Every figure above is taken from the published specification for this model. Anything marked TBC has not been published and will be confirmed by our engineers.
Materials It Runs
80 gsm-180 gsm
Manufacturing And Quality
The machine is built at our workshop in Ruian, Zhejiang. UDEM has issued CE attestations of conformity to Machinery Directive 2006/42/EC for our honeycomb paper making machine, bag making machine and paper folding machine, referencing EN ISO 12100:2010 and EN 60204-1:2018. A demo machine is kept running in the workshop so the build can be shown and installation supported by video call.
Customization
We have engineers who develop new machine functions to customer requirements, and where the current machine cannot meet a requirement we supply a solution instead. Several machines in this range started exactly that way.
Compared With Our Other Machines
The Mini Paper Bubble Making Machine and the EM-PB800 both finish in roll form. This machine is the only one in the range that finishes in sheets, and it does the cutting inline rather than after embossing. It also takes the heaviest stock of the three at up to 180 gsm, and its output is rated in pieces per minute rather than metres per minute.
Use Guide
Set the slitting blades for the sheet widths you need, then set the cut length. Load a reel up to 600 mm diameter on the 3 inch air shaft. Run and collect sheets from the conveyor; at 200 x 200 mm expect about 300 pcs/min. Stack sheets flat so the bubble is not compressed in storage.
Frequently Asked Questions
Why cut sheets inline instead of afterwards
Cutting embossed bubble paper on a separate machine later pushes the bubble down and loses strength. Cutting while embossing avoids that.
How many sheets per minute
About 300 pcs/min at a 200 x 200 mm sheet size.
What paper weight does it take
80 gsm to 180 gsm, heavier than the roll machines in the range.
How many sheet widths can it produce at once
The machine carries 2-3 slitting blades.
How are finished sheets collected
On a conveyor at the discharge end.
