KY2230 Encrypting Metal Keypad With IP65 and IK07 Rating

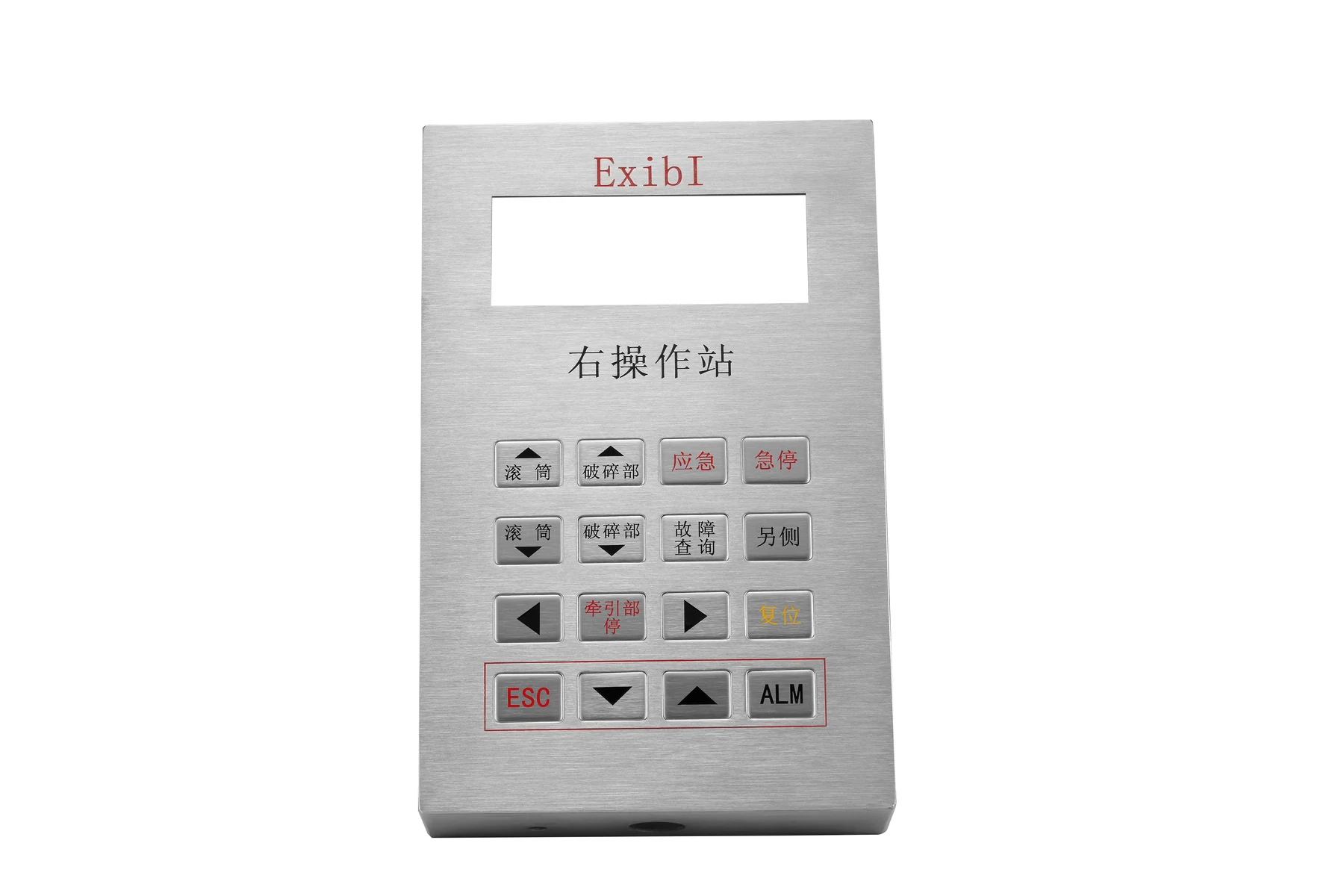

KY2230 is a customized keypad with encryption function on a SUS304 brushed stainless steel panel, rated IP65 for water and dust and IK07 against impact.
Product Overview
KY2230 is a customized keypad with encryption function on a SUS304 brushed stainless steel panel, rated IP65 for water and dust and IK07 against impact. It communicates over RS232 and carries 6K ESD protection for terminals handling PIN entry in exposed locations. Operation temperature covers -20℃~70℃ so outdoor payment points stay usable year round.
- Encryption function keeps PIN entry inside the keypad rather than on the host
- IK07 and IP65 ratings together cover both deliberate impact and weather exposure
- 6K ESD protection guards a terminal used by strangers in dry conditions
- RS232 output suits secure controllers that expect a serial link
- Operation from -20℃ to 70℃ supports unsheltered outdoor payment machines
Application Scenarios
- Outdoor payment terminals requiring PIN entry
- Access control points needing an encrypted code pad
- Unattended fuel and parking payment machines
- Public kiosks in exposed weather
- Secure entry systems with serial controllers
Who It Is For
- Payment terminal manufacturers needing an encrypting pad
- Access control system builders
- Unattended retail equipment OEMs
Problems It Solves
- Plain keypads send keystrokes in the clear to the host controller
- Outdoor PIN pads fail from rain ingress and impact damage
- Static discharge from users damages unprotected keypad electronics
- Cold or hot weather stops keypads rated only for indoor ranges
Technical Features
- Customized keyboard with encryption function
- SUS304 brushed stainless steel panel and buttons, anti-riot and anti-corrosion
- IP65 waterproof and dustproof industrial design with IK07 riot rating
- 6K ESD protection
- RS232 product interface with 5V±5% supply and current under 150mA
- Key size 11.5mm*21.5mm*3mm, key trip 0.45mm, key strength 3N ± 10%
- Durability greater than 2 million operations
Specifications
| Power Supply | 5V±5% |
|---|---|
| Working Current | <150mA |
| Durability | >2 million |
| Interface | RS232 |
| Key Size | 11.5mm*21.5mm*3mm |
| Key Trip | 0.45mm |
| Key Strength | 3N ± 10% |
| ESD | 6K |
| Riot Rating | IK07 |
| Protection | IP65 |
| Operation Temperature | -20℃~70℃ |
| Mounting Way | Rear mounting or Front mounting |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel buttons
Manufacturing Process
- Brushing of the SUS304 panel
- CNC machining of key apertures
- Laser etching of black characters
- Encryption board assembly and programming
- IP65 sealing and gasket fitting
- ESD, impact and communication testing
Quality Control
- Encryption function verification on each unit
- IP65 ingress testing and IK07 impact checks
- ESD testing to the 6K level
- Key strength sampling against 3N ± 10%
- RS232 communication test before packing
Approvals And Test Documentation
- IP65
- IK07
Customisation Options
- Encryption behaviour configured to your terminal protocol
- Key layout and count to suit the fascia
- Etched character set and symbols
- Front or rear mounting arrangement
- Cable length and RS232 connector type
How It Compares
| Door station keypad | KY2230 adds an encryption function on top of the same IP65 and IK07 protection |
|---|---|
| Plastic PIN pads | SUS304 brushed stainless with an IK07 rating withstands impact attacks |
| Indoor rated PIN pads | Operation from -20℃ to 70℃ allows unsheltered outdoor installation |
Use Guide
- Agree the encryption protocol with the factory before production
- Terminate the RS232 line to your secure controller
- Choose front or rear mounting to match the fascia cutout
- Keep operation within -20℃~70℃
- Check gasket seating after any service work to retain IP65
Industries
Questions About This Model
Does KY2230 support encryption?
Yes, it is a customized keyboard with encryption function.
What protection ratings does it carry?
IP65 waterproof and dustproof with an IK07 riot rating.
What is the ESD rating?
6K.
What interface does it use?
RS232.
What is the key trip and strength?
0.45mm key trip with 3N ± 10% key strength.
What temperature range is supported?
-20℃~70℃ operation and -30℃~85℃ storage.
