Metal Door Station Keypad With IP65 and IK07 Protection

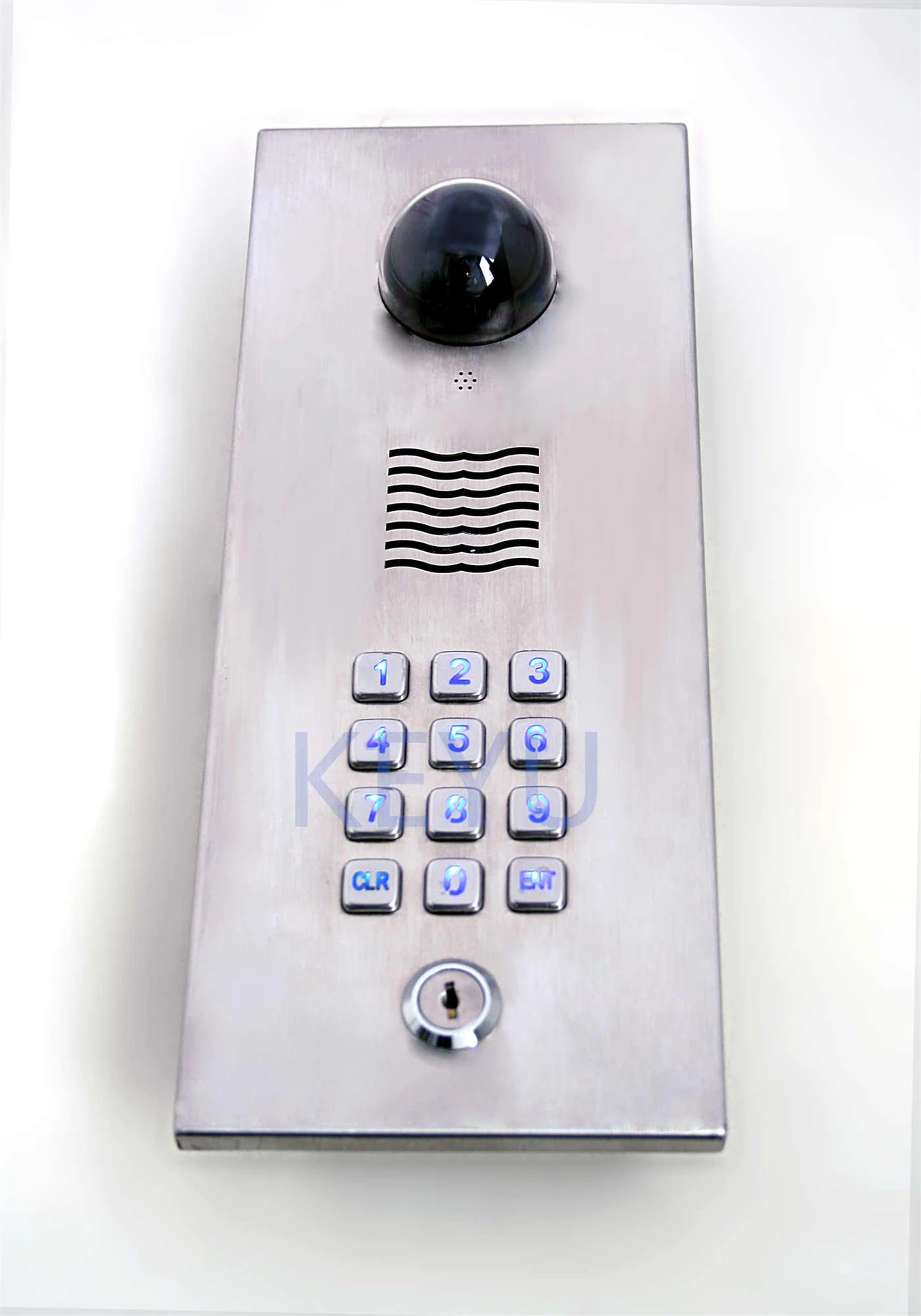

This door station keypad is an entrance input panel in SUS304 brushed stainless steel, rated IP65 for water and dust and IK07 against impact.
Product Overview
This door station keypad is an entrance input panel in SUS304 brushed stainless steel, rated IP65 for water and dust and IK07 against impact. It reports over RS232 and withstands 6K ESD, which matters at doorways where people arrive charged from dry air and carpeting. Operation temperature runs from -20℃ to 70℃ so the panel stays usable in full sun and in frost.
- IK07 impact rating targets the kicks and knocks that door entry panels receive
- IP65 sealing keeps rain and wind blown dust out of an exterior wall mounted unit
- 6K ESD protection guards the electronics against discharges from approaching users
- Operation from -20℃ to 70℃ covers unshaded south facing entrances and cold climates
- Laser etched black characters remain legible after years of weather exposure
Application Scenarios
- Building entrance door stations and intercom panels
- Gated community and car park access points
- Outdoor access control at industrial sites
- Unstaffed entrances exposed to rain and dust
- Doorways where equipment must survive deliberate kicking
Who It Is For
- Access control and intercom system manufacturers
- Building security installers specifying outdoor rated panels
- Facility contractors replacing failed plastic entry keypads
Problems It Solves
- Plastic entry keypads crack and discolour on exposed walls
- Rain and dust penetrate unsealed keypads mounted outdoors
- Static discharge at doorways damages unprotected keypad electronics
- Printed numerals wear off keys touched thousands of times a week
Technical Features
- SUS304 brushed stainless steel panel and buttons
- IP65 waterproof and dustproof industrial design
- IK07 riot resistance rating and 6K ESD protection
- RS232 product interface with 5V±5% supply and current under 150mA
- Key size 11.5mm*21.5mm*3mm with 0.45mm key trip and 3N ± 10% key strength
- Durability greater than 2 million operations
- Rear mounting or front mounting installation
Specifications
| Power Supply | 5V±5% |
|---|---|
| Working Current | <150mA |
| Durability | >2 million |
| Interface | RS232 |
| Key Size | 11.5mm*21.5mm*3mm |
| Key Trip | 0.45mm |
| Key Strength | 3N ± 10% |
| ESD | 6K |
| Riot Rating | IK07 |
| Protection | IP65 |
| Operation Temperature | -20℃~70℃ |
| Mounting Way | Rear mounting or Front mounting |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel buttons
Manufacturing Process
- Brushing of the SUS304 panel surface
- CNC machining of key apertures
- Laser etching of black characters
- Gasket and sealing installation to IP65
- RS232 wiring and harness termination
- Impact and function verification
Quality Control
- IP65 water and dust ingress verification
- Impact testing against the IK07 rating
- ESD testing to the 6K level
- Key strength sampling against 3N ± 10%
- RS232 communication test before packing
Approvals And Test Documentation
- IP65
- IK07
Customisation Options
- Key layout and count to suit your door station fascia
- Etched character set including local symbols
- Front or rear mounting arrangement
- Panel outline and fixing centres to your drawing
- Cable length and RS232 connector type
How It Compares
| Plastic outdoor keypad | SUS304 brushed stainless with IK07 rating withstands impact that cracks plastic |
|---|---|
| Indoor rated keypad | IP65 sealing and -20℃~70℃ operation allow exterior wall mounting |
| USB keypads | RS232 output suits access controllers that expect serial input over a long cable run |
Use Guide
- Mount front or rear depending on whether the wall box is already cut
- Terminate the RS232 line to your access controller and confirm 5V±5% supply
- Keep the panel within -20℃~70℃ operation temperature
- Check the gasket seats fully so IP65 protection is maintained
- Clean with a damp cloth along the brush direction
Industries
Questions About This Model
What protection rating does the door station have?
IP65 waterproof and dustproof with an IK07 riot rating.
What interface does it use?
RS232.
What is the ESD rating?
6K.
What temperature range does it operate in?
-20℃~70℃ during operation and -30℃~85℃ in storage.
How are the characters marked?
Laser etched when the characters are black.
Can it be front mounted?
Yes, rear mounting and front mounting are both supported.
Request A Quote On Door Station
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
