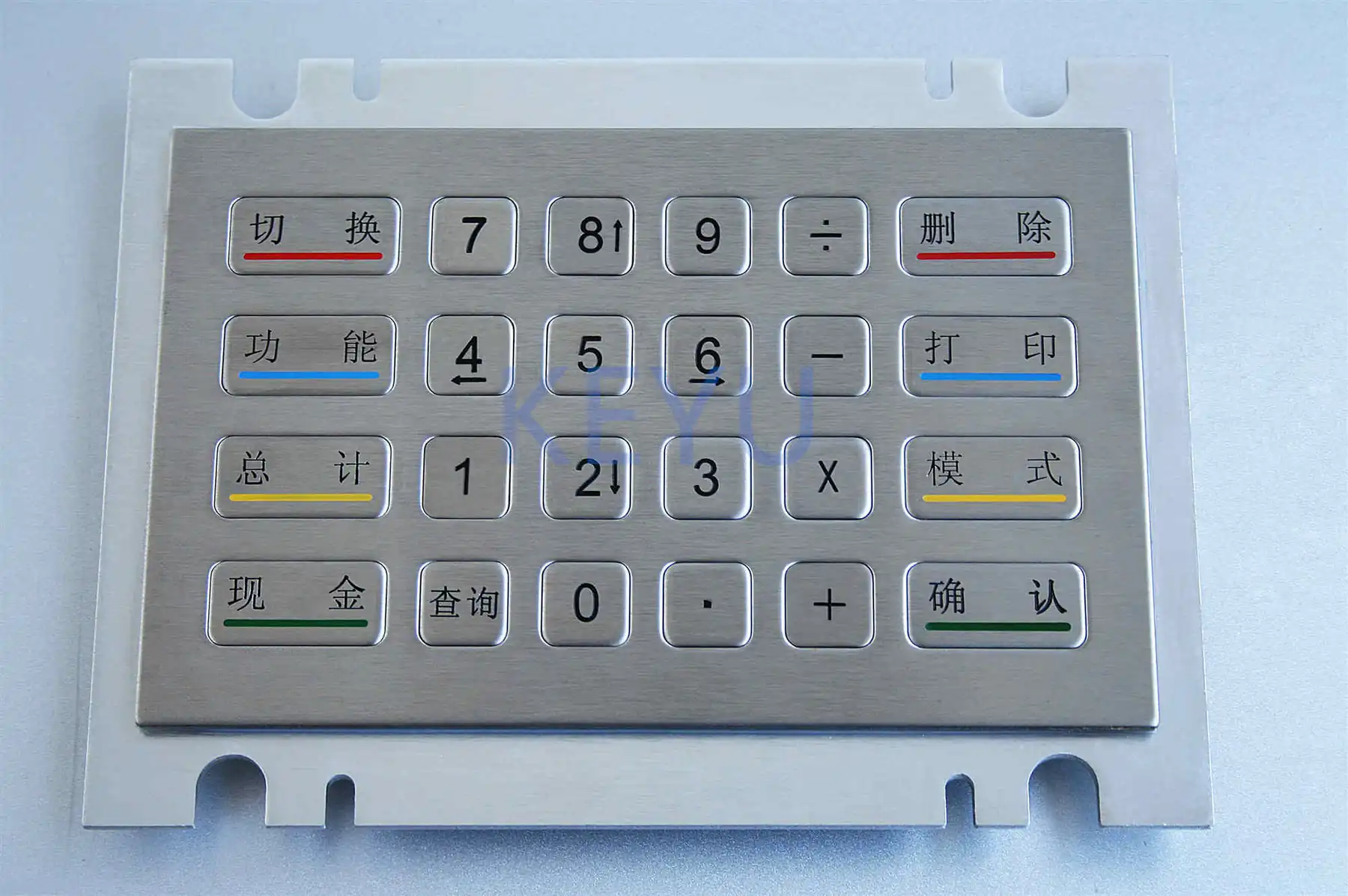

KY2161 24 Key Brushed Stainless Steel Keypad
KY2161 is a 24 key keypad on a brushed SUS304 stainless steel panel, supporting USB, PS/2 and RS232 output from one design. Key strength of 3N ± 10% and a 0.45mm key trip give a short positive action suited to rapid data entry.
Product Overview
KY2161 is a 24 key keypad on a brushed SUS304 stainless steel panel, supporting USB, PS/2 and RS232 output from one design. Key strength of 3N ± 10% and a 0.45mm key trip give a short positive action suited to rapid data entry. Etched button content is set to each customer requirement.
- 24 keys cover a numeric block plus function keys without a full keyboard footprint
- Three interface options on one model simplify spares across a mixed fleet
- 0.45mm key trip allows fast repeated entry without deep finger travel
- Brushed SUS304 hides fingerprints and scratches better than a mirror finish
- Rear or front mounting supports both new enclosures and retrofits
Application Scenarios
- Self service terminals with numeric and function entry
- Industrial control panels requiring serial connection
- Legacy equipment still fitted with PS/2 ports
- Public access machines needing a rugged entry pad
- Cabinets running Linux, Ubuntu or Android software
Who It Is For
- Terminal manufacturers standardising on one keypad across interfaces
- Industrial integrators specifying panel mount keypads
- Service companies retrofitting failed plastic keypads
Problems It Solves
- Separate keypad models for USB, PS/2 and RS232 complicate stock holding
- Deep travel keys slow down high volume data entry
- Polished panels show every fingerprint in public use
- Bespoke legend requirements are refused by catalogue suppliers
Technical Features
- 24 key keypad on a brushed SUS304 stainless steel panel
- Power supply 5V±5% with working current under 150mA
- Durability greater than 2 million operations
- Key size 18.5*23.5*2.0/18.5*50*2.0mm with 0.45mm key trip
- Key strength 3N ± 10%
- Rear mounting or front mounting
- Operation temperature -10℃~50℃ and storage -30℃~85℃
Specifications
| Keys | 24 |
|---|---|
| Power Supply | 5V±5% |
| Working Current | <150mA |
| Durability | >2 million |
| Interface | USB / PS/2/ RS232 |
| Key Size | 18.5*23.5*2.0/18.5*50*2.0mm |
| Key Trip | 0.45mm |
| Key Strength | 3N ± 10% |
| Mounting Way | Rear mounting or Front mounting |
| Operation Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel buttons
Manufacturing Process
- Brushing of the SUS304 panel
- CNC machining of the 24 key apertures
- Etching of button content per customer artwork
- Contact layer lamination and key fitting
- Interface harness assembly and electrical test
Quality Control
- Key strength sampling against 3N ± 10%
- Key trip measurement against the 0.45mm target
- Durability cycling toward the 2 million operation rating
- Etch content check against the approved drawing
- Function test over the ordered interface
Customisation Options
- Button silk screen or etching content to customer requirement
- Interface selected from USB, PS/2 or RS232
- Panel outline and fixing holes to your enclosure
- Front or rear mounting arrangement
- Cable length and connector termination
How It Compares
| KY2117 20 key keypad | KY2161 adds four more keys and publishes full mechanical data including 3N key strength |
|---|---|
| Deep travel metal keyboards | 0.45mm key trip supports faster repeated numeric entry |
| Mirror finish panels | Brushed SUS304 keeps fingerprints and light scratches from showing |
Use Guide
- Choose front or rear mounting to match your enclosure cutout
- Confirm the host can supply 5V±5% at under 150mA
- Send etching artwork with the order so the legends are produced correctly
- Operate within -10℃~50℃ and store above -30℃
- Wipe along the brush grain to preserve the panel finish
Industries
Questions About This Model
How many keys does KY2161 have?
It is a 24 key keypad.
Which interfaces are supported?
USB, PS/2 and RS232.
What is the key strength?
3N ± 10% with a key trip of 0.45mm.
What is the operating temperature?
-10℃~50℃, with storage from -30℃~85℃.
Can button legends be customized?
Yes, etching content is set according to customer requirements.
How is it mounted?
Rear mounting or front mounting.
Request A Quote On KY2161
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
